XZA-GOWELLG328Digital Mobile Phone

G328 Mobile Phone User Manual LEGAL INFORMATION Copyright © 2008 GOWELL CORPORATION. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of GOWELL Corporation. The manual is published by GOWELL Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version No. : R1.0 Edition Time : 20091112 Manual No. : 079584500 Contents Getting started ....................................................................................................................... 1 Phone overview ................................................................................................................. 1 Keys and parts ............................................................................................................... 1 Keypad Functions ......................................................................................................... 3 Indicators and icons ...................................................................................................... 4 Starting up ......................................................................................................................... 5 Installing battery ........................................................................................................... 5 Removing battery .......................................................................................................... 7 Inserting (U)SIM card ................................................................................................... 7 Removing (U)SIM card ................................................................................................ 8 Inserting memory card .................................................................................................. 8 Removing memory card ................................................................................................ 9 Connecting accessories ................................................................................................. 9 Power on/off ................................................................................................................ 10 Charging ...................................................................................................................... 10 Setting date and time ................................................................................................... 11 Keypad lock ................................................................................................................ 12 Quick operation ............................................................................................................... 12 Standby mode .............................................................................................................. 12 Arrow keys .................................................................................................................. 12 Soft keys ...................................................................................................................... 13 Back and exit keys ...................................................................................................... 13 Basic operation ................................................................................................................ 13 Menu ........................................................................................................................... 13 Navigating your phone ................................................................................................ 14 Making a call ............................................................................................................... 15 Receiving a call ........................................................................................................... 15 Getting help ..................................................................................................................... 15 Text input ............................................................................................................................ 16 Text mode ....................................................................................................................... 16 Currency text mode ......................................................................................................... 16 Changing mode ............................................................................................................... 16 ABC/abc mode ................................................................................................................ 16 Number mode .................................................................................................................. 16 Predictive text mode........................................................................................................ 16 Special symbols............................................................................................................... 17 Calls .................................................................................................................................... 18 Voice calls ....................................................................................................................... 18 Making a call ............................................................................................................... 18 Making a call from contacts ........................................................................................ 18 Making a call from call history ................................................................................... 18 Making a speed dial .................................................................................................... 18 Receiving calls .................…

Text truncated - open the document above for the full version.

内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 Gowell Communication Equipment Room1715,17F,Great China lnternational Exchange Square,No.1FuhuaRd, Futian District,Shenzhen,P.R.China. 518048 Date: Dec 18th,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gowell Communication Equipment Tel：+86 0755-82521169 Fax：+86 0755-82521160 E-Mail：[email protected]

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 Gowell Communication Equipment Room1715, 17F, Great China lnternational Exchange Square,No.1FuhuaRd, Futian District, Shenzhen, P.R.China. 518048 Date: 15 th Dec., 2009 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: XZA-GOWELLG328 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Missy Ye GOWELL COMMUNICATION EQUIPEMENT Tel: 0755-82521169 Fax: 0755-82521160 E-Mail: [email protected]

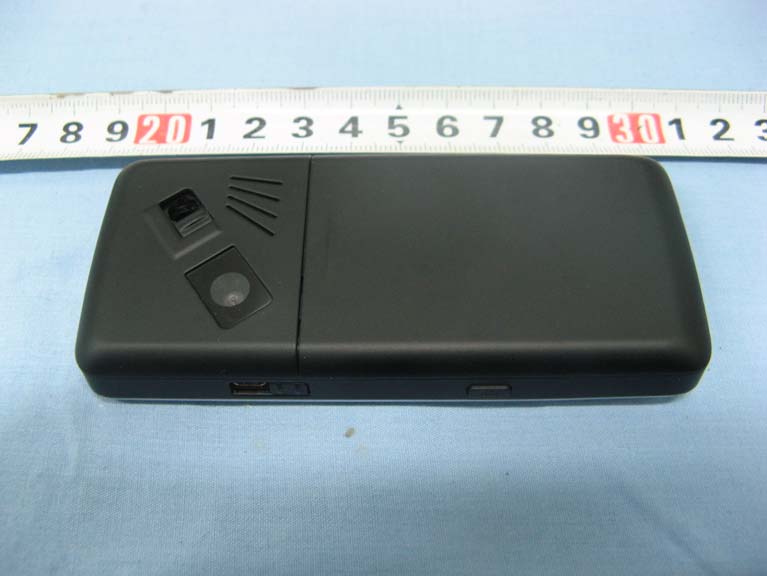

External photo

FCC/IC label placement

Internal photo

Report No.: RZA2009-1439 TESTING No. L2264 OET 65 TEST REPORT Product Name UMTS Mobile Phone Model G328 FCC ID XZA-GOWELLG328 IC ID 8757A-GOWELLG328 Client GOWELL TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name UMTS Mobile Phone Type Name G328 Brand Name GOWELL FCC ID XZA-GOWELLG328 IC ID 8757A-GOWELLG328 Report No. RZA2009-1439 Client GOWELL Manufacturer GOWELL Reference Standard(s) ANSI/IEEE Std C95.1-1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-1:2006 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear. (frequency range of 300 MHz to 3 GHz). IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body. ( frequency rang of 30MHz to 6GHz ) RSS 102-2005: Radio Frequency Exposure Compliance of Radio Communication Apparatus (All Frequency Bands) Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: November 12 th , 2009 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Wang Lu TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 3of 173 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the test report.........................................................................................................5 1.2. Testing laboratory .................................................................................................................5 1.3. Applicant Information ............................................................................................................6 1.4. Manufacturer Information ......................................................................................................6 1.5. Information of EUT................................................................................................................7 1.6. Test Date ..............................................................................................................................8 2. Operational Conditions during Test ..............................................................................................9 2.1. General description of test procedures .................................................................................9 2.2. GSM Test Configuration ........................................................................................................9 2.3. WCDMA Test Configuration ..................................................................................................9 2.3.1. Output power Verification ..............................................................................................9 2.3.2. Head SAR Measurements ...........................................................................................10 2.3.3. Body SAR Measurements ...........................................................................................10 2.4. HSDPA Test Configuration ..................................................................................................10 3. SAR Measurements System Configuration ................................................................................ 13 3.1. SAR Measurement Set-up ..................................................................................................13 3.2. DASY4 E-field Probe System .............................................................................................14 3.2.1. ET3DV6 Probe Specification .......................................................................................14 3.2.2. E-field Probe Calibration ..............................................................................................15 3.3. Other Test Equipment .........................................................................................................15 3.3.1. Device Holder for Transmitters ....................................................................................15 3.3.2. Phantom......................................................................................................................16 3.4. Scanning procedure............................................................................................................16 3.5. Data Storage and Evaluation ..............................................................................................18 3.5.1. Data Storage................................................................................................................18 3.5.2. Data Evaluation by SEMCAD ......................................................................................18 3.6. System check...................................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 121of 173 WCDMA Band IV Towards Ground Low Date/Time: 11/7/2009 12:27:34 PM Communication System: WCDMA Band IV; Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.42 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 – SN1737; ConvF(4.84, 4.84, 4.84); Calibrated: 11/25/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.800 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.2 V/m; Power Drift = 0.089 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.723 mW/g; SAR(10 g) = 0.431 mW/g Maximum value of SAR (measured) = 0.795 mW/g Figure 87 Body, Towards Ground, WCDMA Band IV Channel 1312 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 122of 173 Figure 88 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band IV Channel 1312) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 123of 173 WCDMA Band IV Towards Phantom Middle Date/Time: 11/7/2009 11:24:23 AM Communication System: WCDMA Band IV; Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1733 MHz; σ = 1.44 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 – SN1737; ConvF(4.84, 4.84, 4.84); Calibrated: 11/25/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Phantom Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.177 mW/g Towards Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.36 V/m; Power Drift = 0.025 dB Peak SAR (extrapolated) = 0.266 W/kg SAR(1 g) = 0.163 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.178 mW/g Figure 89 Body, Towards Phantom, WCDMA Band IV Channel 1412 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 124of 173 Figure 90 Z-Scan at power reference point (Body, Towards Phantom, WCDMA Band IV Channel 1412) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 125of 173 WCDMA Band IV with Earphone Towards Ground High Date/Time: 11/7/2009 12:53:59 PM Communication System: WCDMA Band IV; Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1753 MHz; σ = 1.45 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 – SN1737; ConvF(4.84, 4.84, 4.84); Calibrated: 11/25/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.792 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.4 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.711 mW/g; SAR(10 g) = 0.415 mW/g Maximum value of SAR (measured) = 0.771 mW/g Figure 91 Body, Towards Ground, WCDMA Band IV Channel 1513 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 126of 173 Figure 92 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band IV Channel 1513) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 127of 173 WCDMA Band IV+HSDPA Towards Ground High Date/Time: 11/7/2009 1:12:52 PM Communication System: WCDMA Band IV+HSDPA; Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1753 MHz; σ = 1.45 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 – SN1737; ConvF(4.84, 4.84, 4.84); Calibrated: 11/25/2008 Electronics: DAE4 Sn452; Calibrated: 11/18/2008 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.785 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.1 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 1.14 W/kg SAR(1 g) = 0.700 mW/g; SAR(10 g) = 0.411 mW/g Maximum value of SAR (measured) = 0.771 mW/g Figure 93 Body, Towards Ground, WCDMA Band IV HSDPA Channel 1513 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 128of 173 Figure 94 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band IV HSDPA Channel 1513) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 129of 173 ANNEX D: Probe Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 130of 173 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 131of 173 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 132of 173 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 133of 173 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 134of 173 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 Page 135of 173 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009- 1439 …

Text truncated - open the document above for the full version.

No.2009TAR177 Page1 of 80 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2009TAR177 for GOWELL UMTS Mobile Phone Type：G328 FCC ID: XZA-GOWELLG328 IC ID: 8757A-GOWELLG328 with Hardware Version: ws6B Software Version: T106 T01 Issued Date: 2009-12-07 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Information Industry No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2009TAR177 Page2 of 80 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 3.5. EMISSION DESIGNATOR ................................................................................................... 6 EMISSION DESIGNATOR .............................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 11 A.1 OUTPUT POWER ............................................................................................................. 11 A.2 EMISSION LIMT ............................................................................................................... 16 A.3 RECEIVER RADIATION EMISSION .......................................................................................... 31 A.4 CONDUCTED EMISSION ................................................................................................. 35 A.5 FREQUENCY STABILITY ................................................................................................. 38 A.6 OCCUPIED BANDWIDTH ............................................................................................... 40 A.7 EMISSION BANDWIDTH .................................................................................................. 52 A.8 BAND EDGE COMPLIANCE ............................................................................................ 64 A.9 CONDUCTED SPURIOUS EMISSION ............................................................................. 70 No.2009TAR177 Page3 of 80 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MII Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Oct 30,2009 Testing End Date: Nov 28,2009 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2009TAR177 Page4 of 80 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: GOWELL Address /Post: Room1715,17F,Great China International Exchange Square, No.1 Fuhua Rd, Futian District,Shenzhen,P.R.China City: Shenzhen Postal Code: 518048 Country: China Telephone: 0086 755-82521169 Fax: 0086 755-82804609 2.2. Manufacturer Information Company Name: GOWELL Address /Post: Room1715,17F,Great China International Exchange Square, No.1 Fuhua Rd, Futian District,Shenzhen,P.R.China City: Shenzhen Postal Code: 518048 Country: China Telephone: 0086 755-82521169 Fax: 0086 755-82804609 No.2009TAR177 Page5 of 80 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) a…

Text truncated - open the document above for the full version.

No.2009TAR180 Page1 of 38 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2009TAR180 for GOWELL UMTS Mobile Phone Type：G328 FCC ID: XZA-GOWELLG328 IC ID: 8757A-GOWELLG328 with Hardware Version: ws6B Software Version: T106 T01 Issued Date: 2009-12-07 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100083. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2009TAR180 Page2 of 38 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 3.5. EMISSION DESIGNATOR ................................................................................................... 6 EMISSION DESIGNATOR .............................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 11 A.1 OUTPUT POWER ............................................................................................................. 11 A.2 EMISSION LIMT ............................................................................................................................ 14 A.3 RECEIVER RAD…

Text truncated - open the document above for the full version.
