XZW6190Bluetooth Stereo Headset

13 2 5 4 7 6 1. Introduction The Bluetooth Stereo works with all Bluetooth enabled compatible phone or music device that supports Advanced Audio Distribution Profile (A2DP) and Audio Video Remote Control Profile (AVRCP). Listening to music, answering calls, adjusting volume, and track controls are easily accessible on the buttons of the headset - the ideal solution for integrating wireless mobile music and calls. 2. Diagram (1) Speaker (2) Microphone (3) Volume up (4) Volume down (5) Backward (6) Forward (7) Play/Stop (8) MFB (On/Off/Answr) (9) Charging socket 3. Charging Your Bluetooth Stereo Headset Make sure that your Stereo Headset is fully charged before using it. Use only the charger provided, do not use chargers from any other devices as it might damage the device. A full charge is approximately 3 hours. 4. To Charge Your Bluetooth Headset 1. Use the charger to charge from a charging outlet (or from your laptop/ PC's USB port if the optional USB Charging Cable is provided). 2. When an LED light indication is red, the headset is charging. 3. The LED light indication goes off when the device is fully charged. 4. Low voltage testing of battery: When the voltage of the battery goes down to 3.3v, the red LED will flash for 4 times; when the voltage goes down to 3.0v, the headset will power off automatically. Note: If the pairing cannot be completed within 2 minutes after the pairing mode is activated, the headset will power off automatically. Please repeat steps above to pair the headset and mobile phone again. 7. Connection/Link between Headset and Mobile Phone After pairing is completed, headset is always under standby mode. Before you place or answer a call, if the headset icon is not shown on phone screen, please follow the steps below to activate the Bluetooth connection/link through your mobile phone or headset until the headset icon is on the screen. (1) On phone: Select the “K&S-W.COM” from the paired list on your phone screen. (2) On headset: Short press “MFB” and select “Accept” on phone screen to accept connection. 8. Disconnection between Headset and Mobile Phone When you need to connect your headset with another Bluetooth-enabled mobile phone, please follow the steps below to disconnect the headset with the pre-paired mobile phone. (1) Power off the Headset. (2) Select “Disconnecting” on the Bluetooth device list of your mobile phone to remove the connection. Note: When losing the connection/link, the headset will be automatically power off in 10 minutes. 9. Using the Headset (1) Answering Call When receiving a phone call, press the “Answer Call/End Call” button to answer the call. (2) Ending Call Press the “Answer Call/End Call” button to end a call. (3) Reject Call When you hear the ringing tone, press and hold the “Answer Call/End Call” button for 3 seconds to reject the call. (4) Voice Dial If your mobile phone is voice dialing enabled, under standby mode, press the “Answer Call/End Call” button and say the voice tag after you hear a beep. Note: Please make sure to record voice tag into the mobile phone before using voice dial function. Functionality varies depending on the mobile phone models. Please refer to your mobile phone user guide for details. (5) Last Number Re-Dialing Under standby mode, short press the “Answer Call/End Call” button twice for last number redial. (6) Adjusting the Volume During a call, press the “V+” or “V-” buttons repeatedly until you reach the desired volume level. (7) Mute & Un-Mute Mute: During talking via the headset, press “V+” or “V-” for 6 seconds until the headset emit a short beep. Un-Mute: Press “V+” or “V-” for 6 seconds until the headset emits a short beep. (8) Transferring Calls a. Headset to Mobile Phone: During a call, press and hold the “Answer Call/End Call” button for 3 seconds, and the call is routed to your mobile phone. b. Mobile Phone to Headset: press and hold the “Answer Call/End Call” button for 3 seconds to route the call to headset. (9) Hold the Call During a call, press “V+” or “V-” for 3 seconds to hold the phone call. Press “V+” or “V-” for 3 seconds button again to resume conversation. (10) Answer the Second Call During conversation in progress, press “V+” or “V-” for 3 seconds to pick up the second call. (11) Switch between 2 Phone Calls headset is paired. If the icon is not present, a reconnection can be established by manually selecting the headset from your mobile phone's Bluetooth menu. If your headset is set as an authorized Bluetooth device on your mobile phone, an automatic reconnection can be established by pressing the headset's “Answer Call/End Call” button once. 13. Care and Maintenance 1. Consider turning your headset off before placing it in your pocket or bag. If the “MFB” is accidentally depressed, your mobile handset may place an unintended call. 2. Do not expose the headset to liquid, moisture or humidity, as it is not waterproof. 3. Do not use abrasive cleaning solvents to clean the headset. 4. Do not place the headset in high temperature, as it will result in an explosion. 5. Do not expose the headset to contact with sharp objects as this will cause scratching and damage. 6. Do not stick anything inside the headset as this may damage internal components. 7. Do not attempt to disassemble the headset, as it does not contain serviceable components. 14. Safety Information 1. Check local laws regarding use of a mobile handset and headset while driving. If you use the headset while diving, ensure your attention and focus remains on your responsibility of driving safety. 2. Never allow children to play with the headset. Small parts may be a choking hazard. 3. Observe all signs that require an electrical device or RF radio product to be switched off in the designated areas. These could include hospitals, blasting areas, and potentially explosive atmospheres. 4. Turn off your headset prior to boarding an aircraft. Do not use your headset in an aircraft. During two calls in progress, press “V+” or “V-…

Text truncated - open the document above for the full version.

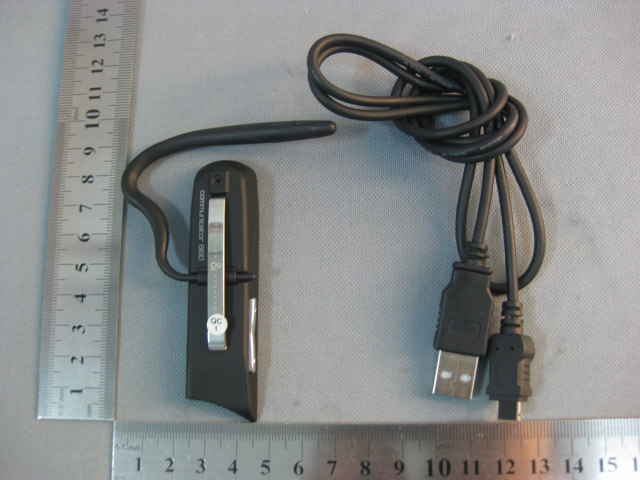

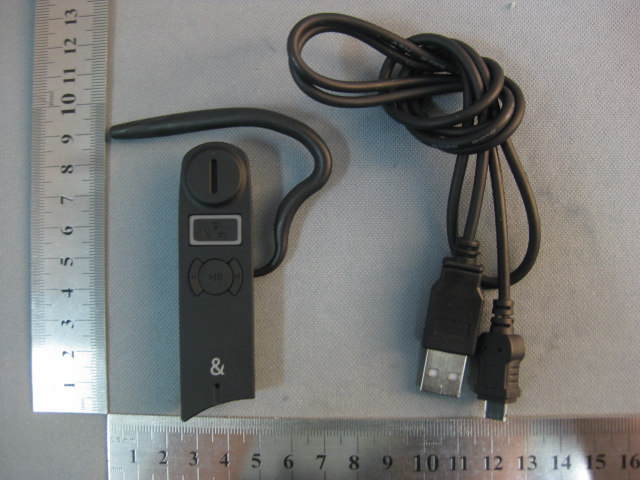

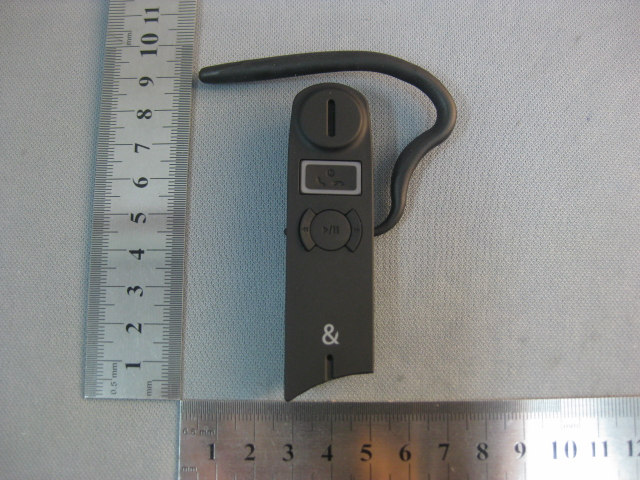

1 Photographs - EUT Constructional Details SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO09120675901 Page: 2 of 3 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO09120675901 Page: 3 of 3 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.”
