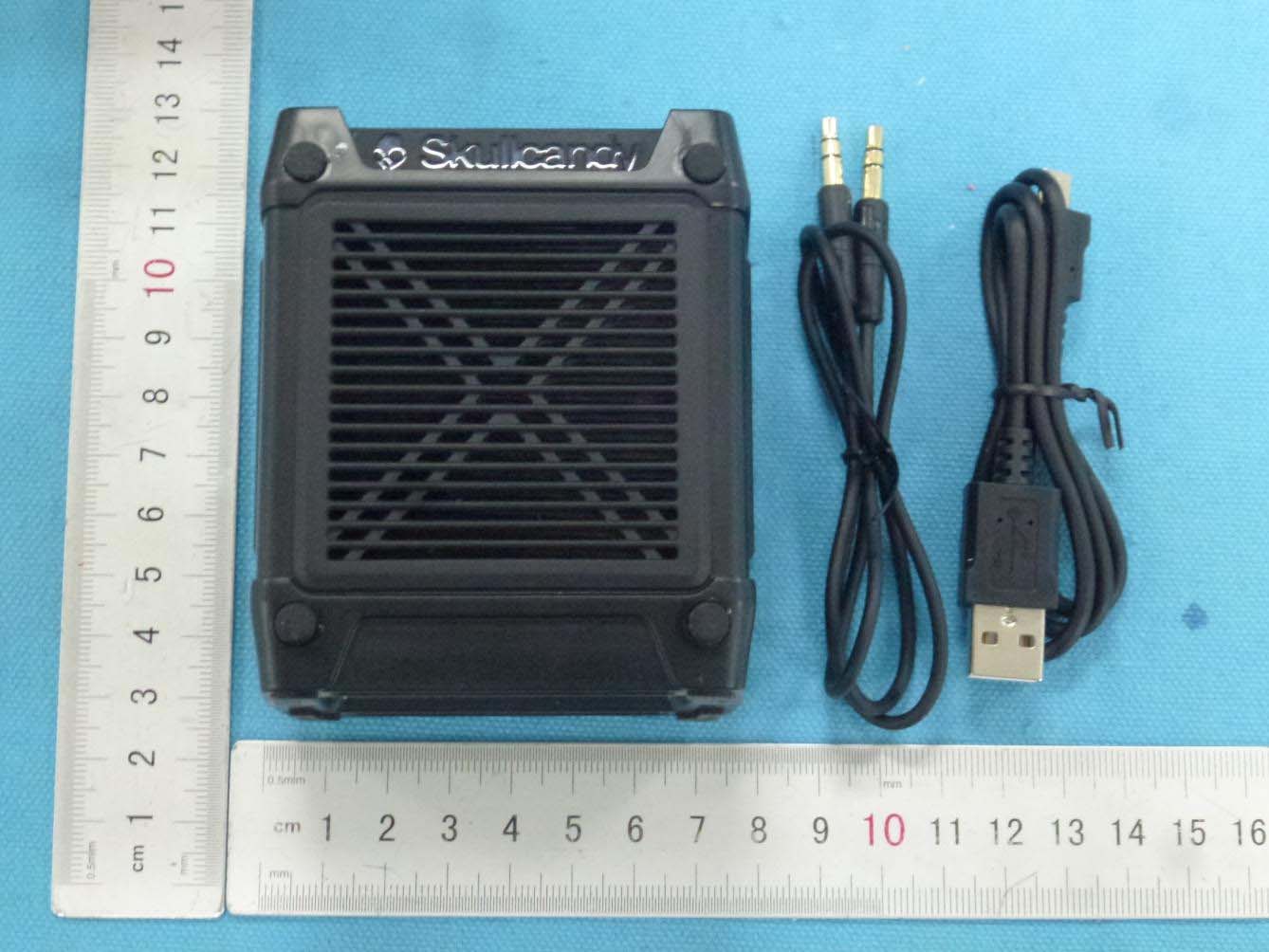

Y22-SK20130009Shrapnel

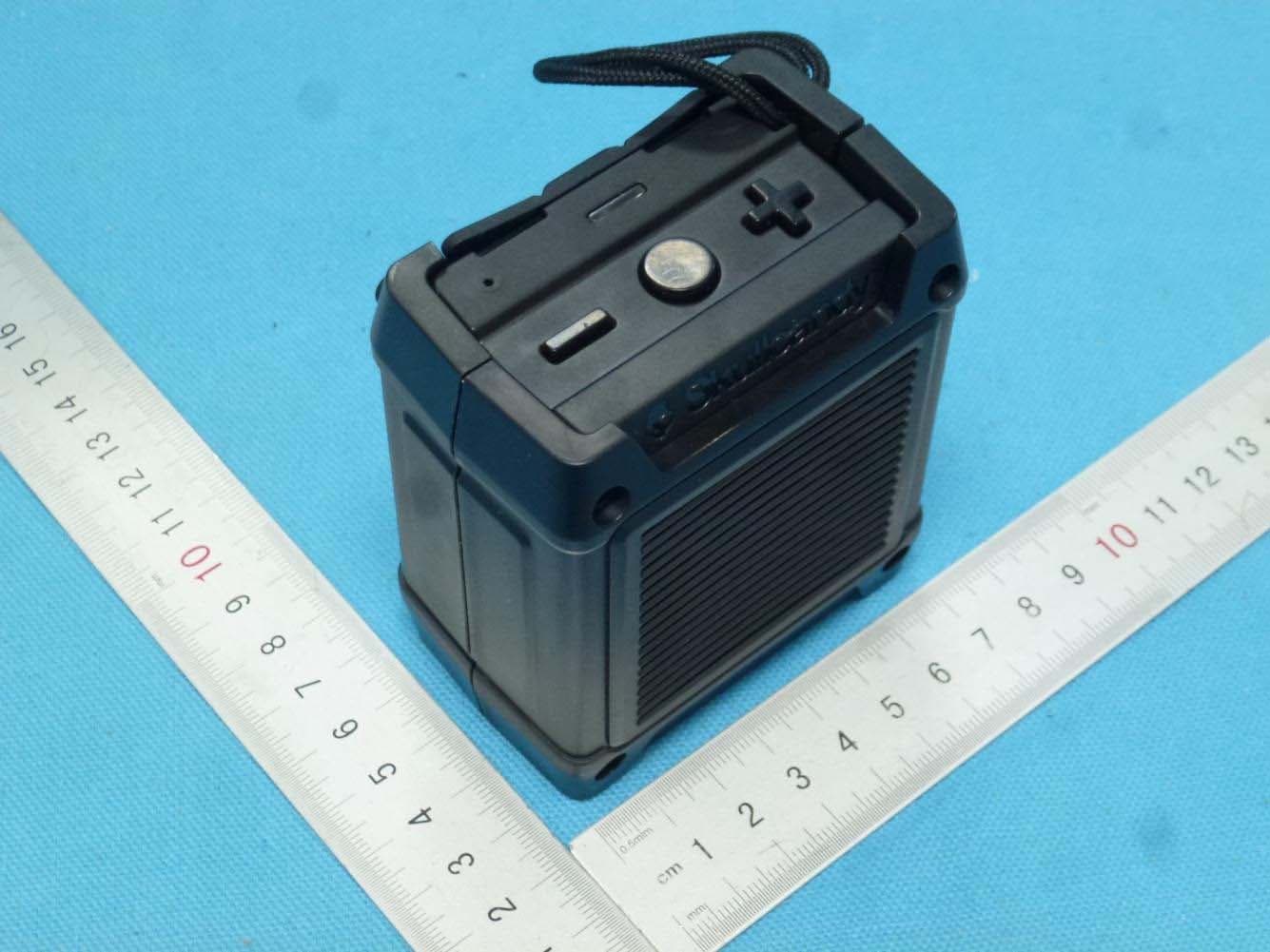

ShrapnelQuick Guide Quick Start, would like to show visually for first page: Power On Power Off Pairing Battery Life Shrapnel User Guide ‐Technical Draft Main Speaker Controls Power On Long press and hold the Power Button. Wait (for up to 3 seconds) for the LED lightto flash magentaand the power on tone to be played. Do not press any other buttons during this time. When Shrapnel is on, the speaker will look to connect to up to 2 devices in the paired device list. If no paired devices are available for connection, the speaker will enter a NOT connected state and the LED will flashred2x every 3 seconds. Power Off Long press and hold the power button at any time while the Shrapnel is ON. As the speaker powers off, it will play the power down tone and the LED will turn magenta. It is recommended to disconnect all Bluetooth streaming devices before powering off. Enter Pairing Mode When the speaker is ON, press and hold the round MFB (main function button) for 5 seconds. You will hear the voice notification, “pairing”, and the LED will alternatered and blue when pairing mode is entered. When a device is successfully paired, the LED will flashred3 times. Connect to device When the speaker is not connected to a device and not in pairing mode, short press the round MFB button to attempt to connect to a device from the list of paired devices.Ensure the device Bluetooth is ON. When the device is connected, you will hear the voice notification “connected”, and the indicator LED will flashblue once every 3 seconds. Unlock the #STAYLOUD Sound Profile While your music is streaming, press and hold the volume + and – buttons together (for up to 3 seconds) to shift gears between the different Skullcandy tuned sound profiles. The #STAYLOUD sound profile boosts the volume of the speaker and is ideal for outdoor use and your extra loud environments, whereas the standard profile has a more balanced sound signature that is best for indoor use and your everyday grind. Clearing the Pairing List To clear the list of paired devices from the speaker, push and hold the + and round MFB simultaneously for 3 seconds while the power is ON. This will reset the speaker to default pairing mode the next time it is powered on. Devices will need to be paired again once this has been done even if previously paired. Battery Status Check When the battery is low it will play the voice notification, “please charge device”. Charging In any state, you may plug in the included micro USB to USB power cable to begin charging the Shrapnel. The LED will flash magenta 2x every 3 seconds to confirm that it is charging. Music Controls Start Music Playback When the speaker is connected to the device but not streaming music, short press the roundMFBto start streaming. When the device is streaming, the frontLED will be off. Pause Music Playback When the speaker is streaming music, short press the round MFBto pause the playback. Volume Up When the speaker is ON and not in pairing mode, short press the + button to increase the volume level. Volume Down When the speaker is ON and not in pairing mode, short press the ‐ button to decrease the volume level. Track Forward When the speaker is connected to a device, long press the+button to track forward. Track backward When the speaker is connected to a device, long press the‐buttonto track backward. 3.5mm Wired Audio Playback When the device is not streaming via Bluetooth, plug in the included3.5mm cableinto the bottomAUX jack. To play music through the wired connectionthe source device must be used to control playback. Track controls on the speaker will be disabled. Volume controls will function normally. Note that Bluetooth streaming takes priority over wired audio playback. Phone Call/Receive Controls On‐Board Mic and Volume function When the Bluetooth is enabled, the on‐board Mic and the volume + ‐ buttons will be activated for full call functionality. Answer and Hang Up Call When streaming BT, an incoming call can be answered with a short press of the round MFB. Once connected, the call can be hung up with another single button press of the round MFB. Reject incoming call Long press (for up to 3 seconds) the round center button and the call will be rejected. While call is active: Put on hold When the call is active, long press (for up to 3 seconds) the round MFB. Once on hold, another long press of the round MFB will release the call on hold. You are also able to toggle between two calls with the same long press of the round center button if you have one on hold. If you would like to end the call on hold or end the active call and return to the call on hold, you must short press the round MFB. Mute Mic function When the call is active, short press the power button to mute the microphone, and again short press the power button to unmute. Volume function Short press the volume + to increase call volume, and short press the volume – to decrease the call volume. 2 nd Incoming call While the active call is connected, short press the round MFB to end the current call and answer the 2 nd incoming call. If you would like to put the active call on hold and answer the 2 nd incoming call, long press (up to 3 seconds) the round MFB. To then return to the call on hold, long press the round MFB. Other Device Features Auto Power Off If the device is idle for 5 minutes, it will turn itself off while the switch is in the on state. To turn the speaker back ON,press and hold the power button. Auto LED off The LED will be powered off after 4.5 minutes for every state. This feature is to conserve battery life. For example, if the BT speaker is at music streaming state for 4.5 minutes, the LED will auto off. The timer will reset whenever there is a change in state. One exception is that the LED indication for pairing mode will remain active during pairing mode as pairing mode itself has a timeout. Multipoint Support The speaker supports connecting to up to TWO audio source devices at the same time. At any one time, o…

Text truncated - open the document above for the full version.

DATE : Jul. 18, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y22-SK20130009 Product Name: Shrapnel Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Agency agreement expiration date: Jul. 18, 2014 to Jul. 17, 2015 By: Thomas Bishop Signature Printed Title: Vice President of Product and Manufacturing On behalf of : Skullcandy Telephone: (435) 940-1545

Model difference The models are S7SHGW-343, S7SHHW-473 and S7SHHW-474, and all models are same product just different surface color and model names. Signature: Name / title: Thomas Bishop / Vice President of Product and Manufacturing Contact information / address: 1441 W. Ute Blvd Suite 250 Park City, UT 84098 United States  electrically identical

Label information:

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [ 5.18dBm（3.3mW） output power] (3.3mW /5mm) ·[√2.480 (GHz)]= 1.04 <3.0 for 1-g SAR Then SAR evaluation is not required

Report No. : EESZG06270010-1 Page 1 of 60 TEST REPORT Product : Shrapnel Trade mark : Skullcandy Model/Type reference : S7SHGW-343, S7SHHW-473, S7SHHW-474 Serial number : N/A Ratings : Charging input: 5V , 500mA lithium Battery: 3,7V 1000mAh, IPX0, Class III FCC ID : Y22-SK20130009 Report number : EESZG06270010-1 Date : Jul. 18, 2014 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.247: 2013 PASS Prepared for: Skullcandy 1441 W. Ute Blvd Suite 250 Park City, UT 84098 United States Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Jul. 18, 2014 Jimmy Li Lab manager Check No.: 1702057749 Report No. : EESZG06270010-1 Page 2 of 60 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................ 4 2. TEST SUMMARY ........................................................................................................... 4 3. PRODUCT INFORMATION ............................................................................................ 5 4. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. TEST EQUIPMENT LIST ............................................................................................... 5 6. SUPPORT EQUIPMENT LIST ....................................................................................... 5 7. 20DB / 99% BANDWIDTH MEASUREMENT ................................................................ 6 7.1. LIMITS ..................................................................................................................... 6 7.2. BLOCK DIAGRAM OF TEST SETUP ..................................................................... 6 7.3. TEST PROCEDURE ............................................................................................... 6 7.4. TEST RESULT ........................................................................................................ 6 8. CARRIER FREQUENCY SEPARATION ..................................................................... 16 8.1. LIMITS ................................................................................................................... 16 8.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 16 8.3. TEST PROCEDURE ............................................................................................. 16 8.4. TEST RESULT ...................................................................................................... 16 9. NUMBER OF HOPPING FREQUENCY ....................................................................... 22 9.1. LIMITS ................................................................................................................... 22 9.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 22 9.3. TEST PROCEDURE ............................................................................................. 22 9.4. TEST RESULT ...................................................................................................... 22 10. TIME OF OCCUPANCY (DWELL TIME) .................................................................. 25 10.1. LIMITS ................................................................................................................... 25 10.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 25 10.3. TEST PROCEDURE ............................................................................................. 25 10.4. TEST RESULT ...................................................................................................... 25 11. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT ................... 31 11.1. LIMITS ................................................................................................................... 31 11.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 31 11.3. TEST PROCEDURE ............................................................................................. 31 11.4. TEST RESULT ...................................................................................................... 31 Report No. : EESZG06270010-1 Page 3 of 60 12. CONDUCTED BANDEDGE EMISSION MEASUREMENT ...................................... 34 12.1. LIMITS ................................................................................................................... 34 12.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 34 12.3. TEST PROCEDURE ............................................................................................. 34 12.4. TEST RESULT ...................................................................................................... 34 13. CONDUCTED SPURIOUS EMISSION MEASUREMENT ........................................ 41 13.1. LIMITS ................................................................................................................... 41 13.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 41 13.3. TEST PROCEDURE ............................................................................................. 41 13.4. TEST RESULT ...................................................................................................... 41 14. RADIATED BANDEDGE EMISSION / RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................................................. 44 14.1. LIMITS ................................................................................................................... 44 14.2. BLOCK DIAGRAM OF TEST SETUP ...............…

Text truncated - open the document above for the full version.
