Y22-SK2013008Portable Bluetooth Speaker

Skullcandy Inc.
Portable Bluetooth Speaker - FCC ID Y22-SK2013008 - Skullcandy Inc.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Aug 02, 2014
Application Purpose
Original Equipment
Date of Application
Aug 02, 2014
Equipment Note
Portable Bluetooth Speaker
Frequency Range
2402.00000000 - 2480.00000000
Company
Skullcandy Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

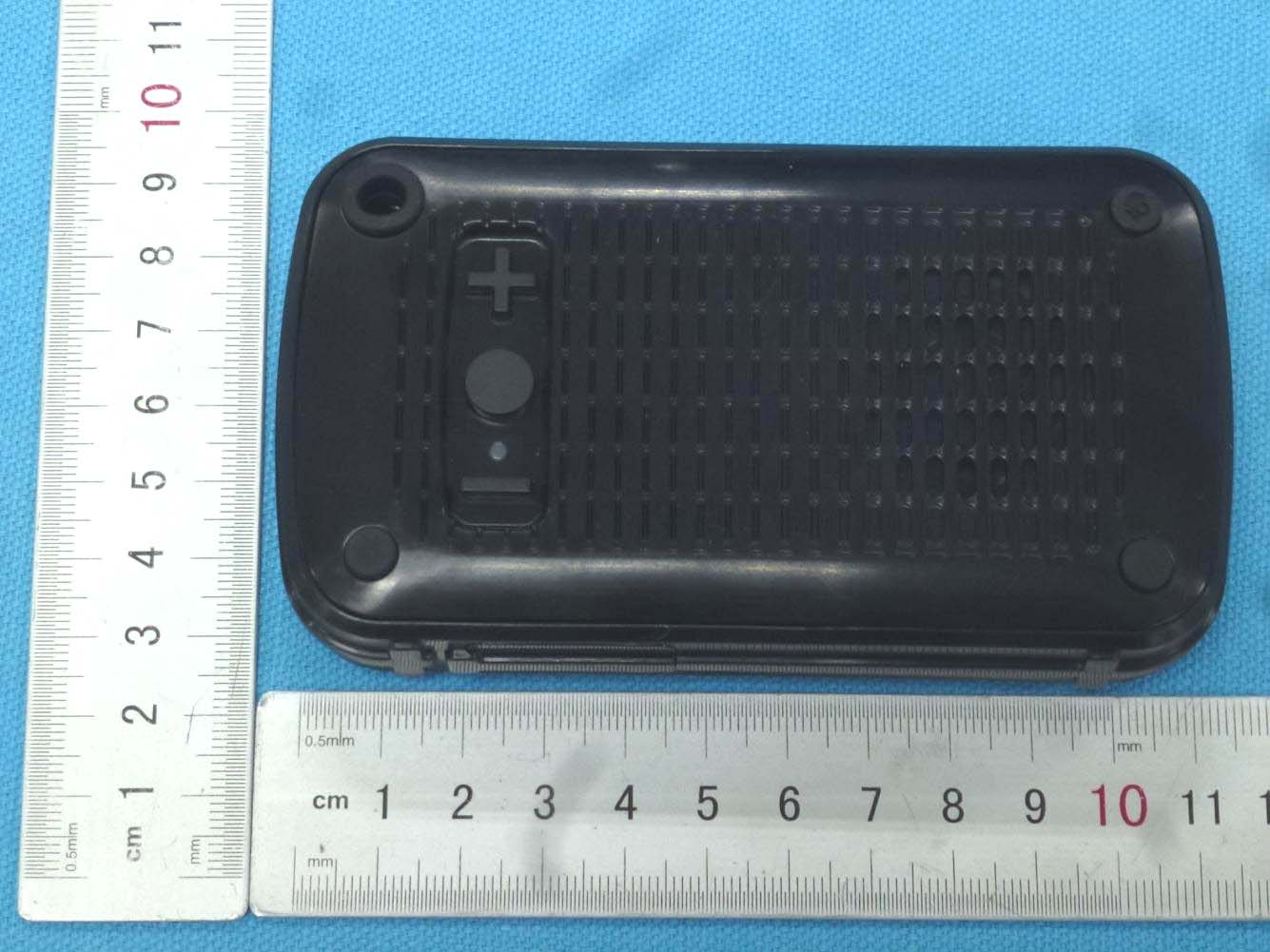

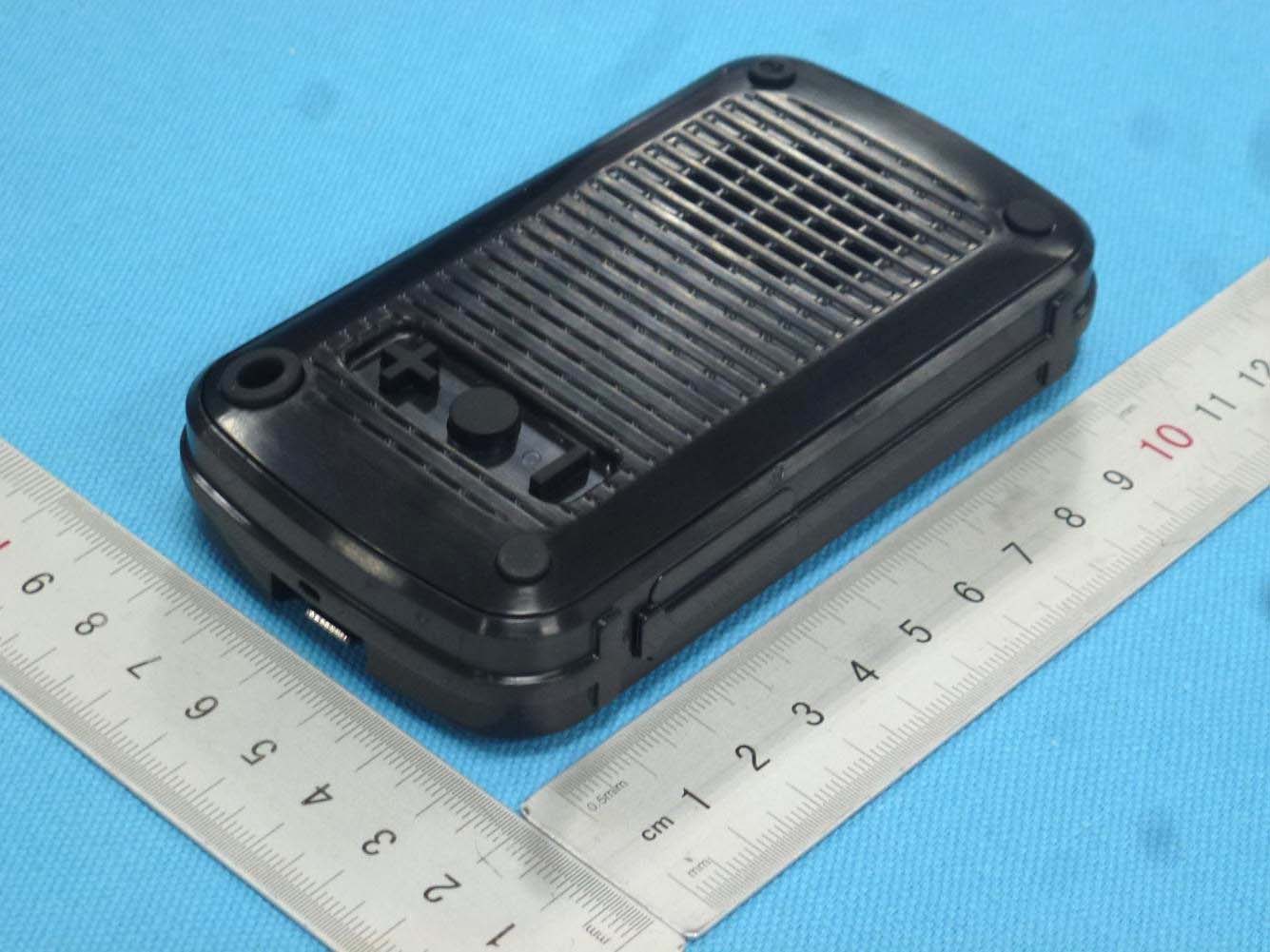

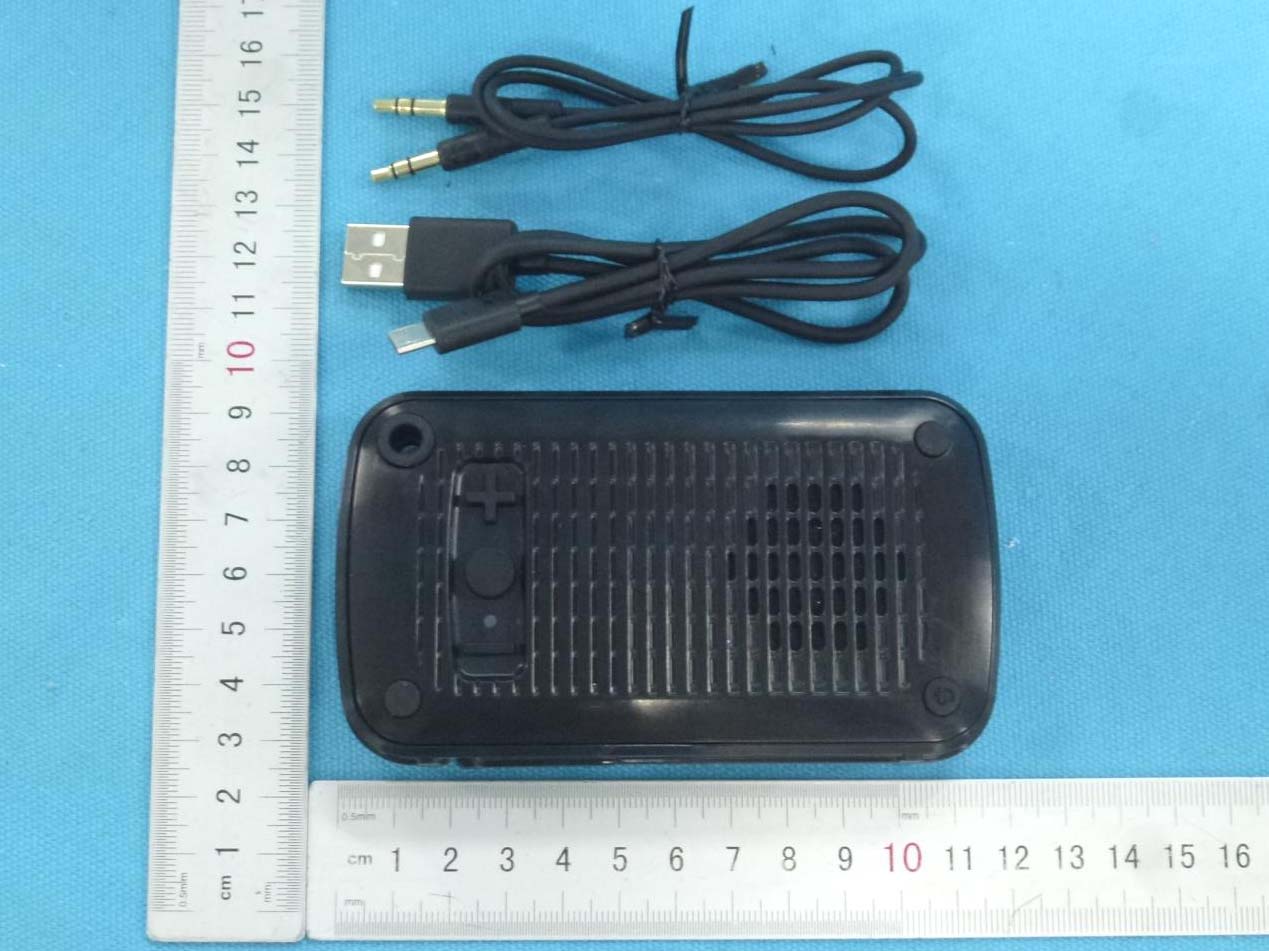

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

DATE : Jul. 18, 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Christy Chen of Centre Testing International (Shenzhen) Corporation / Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with _ Skullcandy / 1441 W. Ute Blvd Suite 250 Park City, UT 84098 United States. Dated this Agency agreement expiration date: Jul. 18, 2014 to Jul. 17, 2015 By: Thomas Bishop Signature Printed Title: Vice President of Product and Manufacturing On behalf of : Skullcandy Telephone: (435) 940-1545

Cover Letter(s)

DATE : Jul. 18, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y22-SK2013008 Product Name: Portable Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Agency agreement expiration date: Jul. 18, 2014 to Jul. 17, 2015 By: Thomas Bishop Signature Printed Title: Vice President of Product and Manufacturing On behalf of : Skullcandy Telephone: (435) 940-1545

ID Label/Location Info

2nd phase of approval and also pending SKU # confirmation. Icons and ID to be engraved. 1 st submission for approval: FCC/IC/CE/RCM. Icons and ID are engraved on back cover. Print to PDF without this message by purchasing novaPDF (http://www.novapdf.com/)

RF Exposure Info

The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where z f(GHz) is the RF channel transmit frequency in GHz z Power and distance are rounded to the nearest mW and mm before calculation z The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3. EUT RF Exposure The Max Conducted Peak Output Power is 6.03dBm (4.00mW) in high channel and the Max Conducted Average Output Power is less than 4.00mW. The best case gain of the antenna is 0dBi. 4.00/5*√2.480=1.26 ≤3.0 Conclusion: No SAR is required.

Test Report

Report No. : EESZG06270006-1 Page 1 of 60 TEST REPORT Product : Portable Bluetooth Speaker Trade mark : Model/Type reference : Ambush Serial number : N/A Ratings : Charging input: 5V , 500mA lithium Battery: 3,7V 1150mAh, IPX0, Class III FCC ID : Y22-SK2013008 Report number : EESZG06270006-1 Date : Jul. 18, 2014 Regulations : See below Test Standards Results 47 CFR FCC Part 15 Subpart C 15.247: 2013 PASS Prepared for: Skullcandy 1441 W. Ute Blvd Suite 250 Park City, UT 84098 United States Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by: Reviewed by: Approved by: Date: Jul. 18, 2014 Jimmy Li Lab manager Check No.: 1702001562 Report No. : EESZG06270006-1 Page 2 of 60 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................ 4 2. TEST SUMMARY ........................................................................................................... 4 3. PRODUCT INFORMATION ............................................................................................ 5 4. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. TEST EQUIPMENT LIST ............................................................................................... 5 6. SUPPORT EQUIPMENT LIST ....................................................................................... 5 7. 20DB / 99% BANDWIDTH MEASUREMENT ................................................................ 6 7.1. LIMITS ..................................................................................................................... 6 7.2. BLOCK DIAGRAM OF TEST SETUP ..................................................................... 6 7.3. TEST PROCEDURE ............................................................................................... 6 7.4. TEST RESULT ........................................................................................................ 6 8. CARRIER FREQUENCY SEPARATION ..................................................................... 16 8.1. LIMITS ................................................................................................................... 16 8.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 16 8.3. TEST PROCEDURE ............................................................................................. 16 8.4. TEST RESULT ...................................................................................................... 16 9. NUMBER OF HOPPING FREQUENCY ....................................................................... 22 9.1. LIMITS ................................................................................................................... 22 9.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 22 9.3. TEST PROCEDURE ............................................................................................. 22 9.4. TEST RESULT ...................................................................................................... 22 10. TIME OF OCCUPANCY (DWELL TIME) .................................................................. 25 10.1. LIMITS ................................................................................................................... 25 10.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 25 10.3. TEST PROCEDURE ............................................................................................. 25 10.4. TEST RESULT ...................................................................................................... 25 11. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT ................... 31 11.1. LIMITS ................................................................................................................... 31 11.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 31 11.3. TEST PROCEDURE ............................................................................................. 31 11.4. TEST RESULT ...................................................................................................... 31 Report No. : EESZG06270006-1 Page 3 of 60 12. CONDUCTED BANDEDGE EMISSION MEASUREMENT ...................................... 34 12.1. LIMITS ................................................................................................................... 34 12.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 34 12.3. TEST PROCEDURE ............................................................................................. 34 12.4. TEST RESULT ...................................................................................................... 34 Π/4-DQPSK: .................................................................................................................... 37 13. CONDUCTED SPURIOUS EMISSION MEASUREMENT ........................................ 41 13.1. LIMITS ................................................................................................................... 41 13.2. BLOCK DIAGRAM OF TEST SETUP ................................................................... 41 13.3. TEST PROCEDURE ............................................................................................. 41 13.4. TEST RESULT ...................................................................................................... 41 14. RADIATED BANDEDGE EMISSION / RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................................................. 44 14.1. LIMITS ...........................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

James Nance
[email protected]435-729-2698Fax: 435-729-2698

Test Firm

Centre Testing InternationalLouisa Lu
[email protected]86-755-33683919

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz4.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted.
