Y2X-TIKEGSM MOBILE PHONE-GSM PORTION

1 User Manual Model Name: Tiké Brand Name: Xeuss FCC ID: Y2X-TIKE Legal Notices z Without the prior written permission; in any form is strictly prohibited to copy, transfer, distribution and storage of the user manual for any of the content. z Spirit of continuous improvement, sustainable development principles, the Company reserves the right to notice, described in this manual for any product right to make changes and improvements. z No matter the circumstances, the Company shall not for any loss of data or income or any special events, accidents caused directly or indirectly responsible for any losses. z The contents of this manual provided as is. Unless the law otherwise provides, not its accuracy, reliability or content of any kind, express or implied, including but not limited to a particular purpose, timeliness and usefulness of the guarantee. z The Company reserves the right to notice, at any time amend or revoke the power of the user manual. All warranty consulting, product features and specifications are subject to change without notice. z As the software version of the update, apply to different networks or using different settings, the ma nual cell phone screen display may be different with your phone. 2 Product Specifications Processor ARM9（156MHZ） memory Nor Flash:128M/PSRAM:32M Support band GSM1900MHZ、850MHZ Main screen of information 2.0〞 QCIF 176*220 Battery Configuration 850mA/H mode Tike mace internal Memory Card Support 4G T-Flash up Bluetooth chip internal Headphone / data line interface 5 PIN Mode of operation Standard keyboard Address Book — 1200 records high-capacity storage — Alphabetical Quick Search — groups and blacklist Note — Short Message — No message content extraction Multimedia — MP3/WMA/AAC/AAC + and other audio formats — 3GP/RMVB and other video formats — FM radio — recorder function — video camera and audio functions — Electronic Album Game — Java — built-in fruit bowl games and e-books The other can Calendar, alarm clock, calculator, stopwatch, countdown timer, world clock, quick list 3 目录 1. Security and Performan ce ...............................5 2. Getting St arted................................................8 2.1. Battery ......................................................... 8 2.1.1. Battery removal and installation............ 8 2.1.2. Battery charge ....................................... 8 2.1.3. Battery................................................... 8 2.1.4. Power of direction ................................. 8 2.2. Connect to th e network ................................... 8 2.2.1. SIM .......................................................... 8 2.2.2. SIM insertion.......................................... 9 2.2.3. SIM card to lock..................................... 9 2.2.4. Connected to the network...................... 9 2.2.5. Standby screen and the content............. 9 2.2.6. Button................................................... 11 2.3. Input .......................................................... 12 3. Make and rece ive ca lls ..................................12 3.1. The phone on / off ..................................... 12 3.2. Call ............................................................. 12 3.2.1. Direct Dial............................................ 12 3.2.2. Call from the phone book..................... 13 3.2.3. Phone not connected............................ 13 3.3. Answer the call .......................................... 13 3.4. Call the process ......................................... 13 3.5. Emergency calls ......................................... 14 4. Main Menu .....................................................14 5. Telephone Di rectory ......................................14 5.1. SIM card and phone phonebook ............... 14 5.2. Contact List ................................................ 14 5.3. Contact ....................................................... 14 5.4. Groups and black ....................................... 15 6. Information Center ....................................... 15 6.1. Written information ................................... 15 6.1.1. SMS.......................................................15 6.1.2. MMS......................................................15 6.2. Inbox .......................................................... 15 6.3. Drafts ......................................................... 16 6.4. Sent Box ..................................................... 16 6.5. Outbox ....................................................... 16 6.6. Template .................................................... 16 6.7. SIM card information ................................ 16 6.8. Voice mail ................................................... 16 6.9. Cell Broadcast ............................................ 16 6.10. Setting ........................................................ 16 6.11. Memory Status ........................................... 16 7. Call Cent er..................................................... 16 8. SetTIN G......................................................... 17 8.1. General Settings ........................................ 17 8.1.1. Personalization settings........................17 8.1.1.1. Display Settings ................................17 8.1.1.2. Standby Interface..............................17 8.1.1.3. Breathing light...................................17 8.1.1.4. Ring setting .......................................17 8.1.1.5. Date / Time..........................................17 8.1.1.6. Profile..................................................17 8.1.1.7. Languages............................................17 8.1.1.8. Automatic Switcher..............................17 8.1.1.9. Mobile..................................................18 8.1.1.10. Security Settings................................18 8.1.1.11. PIN code settings...............................18 8.1.1.12. Handset lock......................................18…

Text truncated - open the document above for the full version.

ADI6548 D7118D CPU MSTAR 8533 MEMORY AUDI O PA SPEAKER LCD RECEIVER MIC T-FLASH SIM KEY VIB FM Battery/Char g e r Crystal 32K Hz Crystal 26M Hz Bluetooth Crystal 27M Hz Antenna

Mastercell LLC FCC ID: Y2X-TIKE POWER OF ATTORNEY December 4, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Mastercell LLC, hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technology Service Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on December 31, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Mastercell LLC, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Mastercell LLC Jasmine Li Manager December 4, 2010

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 29 December 2010 FCC [email protected] To whom it may concern: The exhibit named “Test Report “ was uploaded to supersede the original because the wrong model name was on the original test report and that is the only thing that has changed on the revised test report. This exhibit has been superseded and uploaded correctly. Please feel free to contact us if you have any questions. FCCID: Thank you, Sid Sanders Timco Engineering Inc.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 29 December 2010 FCC [email protected] To whom it may concern: The exhibits named “Test Report & label “were uploaded to supersede the original because the wrong model name was on the original test report and that is the only thing that has changed on the revised test report and a revised label that has the correct model name. These exhibits have been superseded and uploaded correctly. Please feel free to contact us if you have any questions. Thank you, Sid Sanders Timco Engineering Inc.

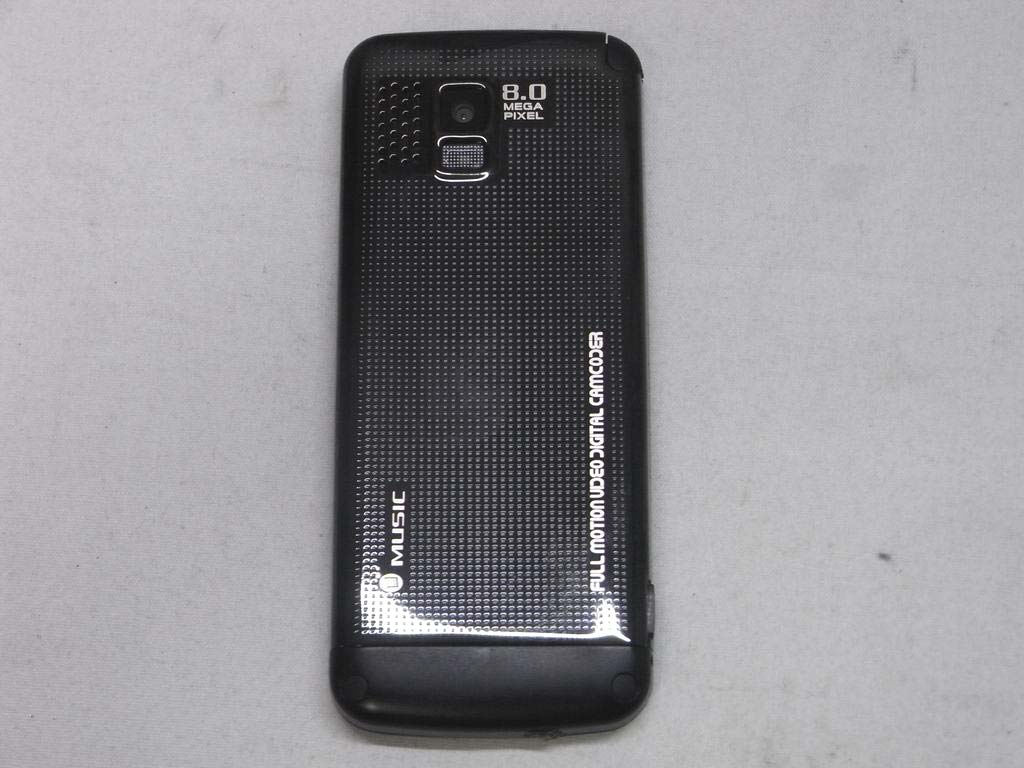

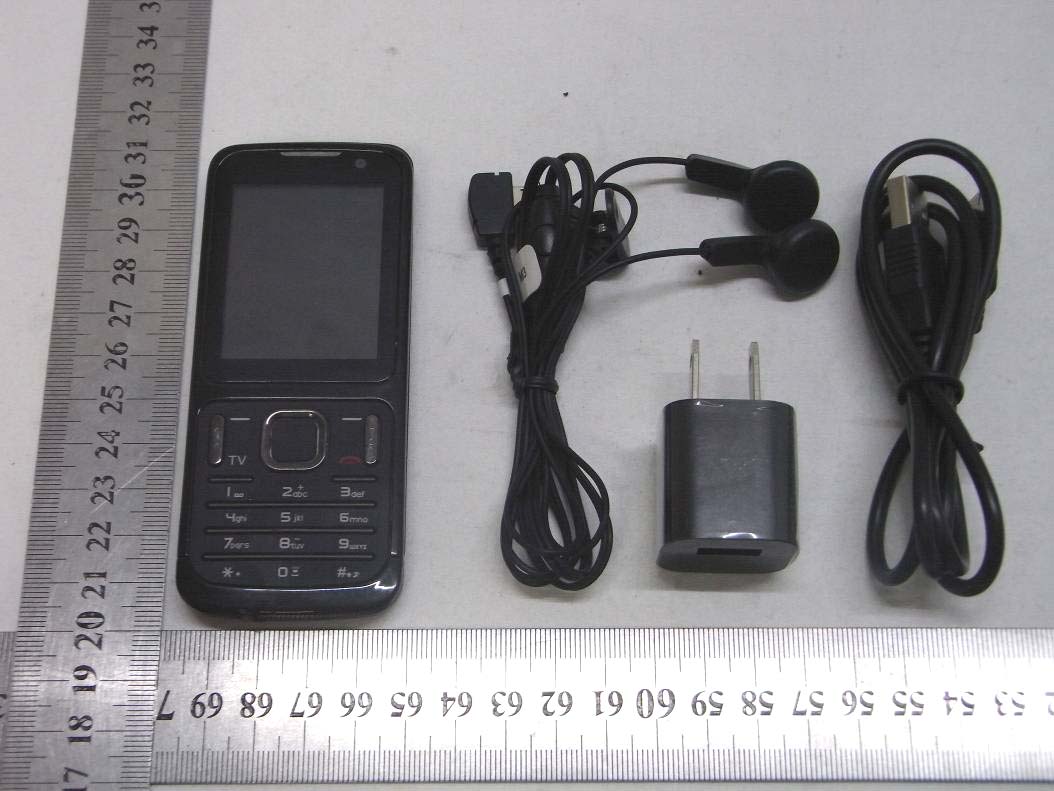

FCC ID: Y2X-TIKE Report No.: STS101109F1 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: Y2X-TIKE Report No.: STS101109F1 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: Y2X-TIKE Report No.: STS101109F1 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: Y2X-TIKE Report No.: STS101109F1 PHOTO OF POWER SUPPLY PHOTO OF USB CABLE FCC ID: Y2X-TIKE Report No.: STS101109F1 PHOTO OF HEADPHONE PHOTO OF BATTERY FCC ID: Y2X-TIKE Report No.: STS101109F1 PHOTO OF THE ENTIRE SAMPLE

FCC ID: Y2X-TIKE Report No.: STS101109F1 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE –2 FCC ID: Y2X-TIKE Report No.: STS101109F1 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF POWER SUPPLY-1 FCC ID: Y2X-TIKE Report No.: STS101109F1 Page 40 of 40 INTERNAL PHOTO OF POWER SUPPLY-2

1/2 Operation Description OPERATIONAL DESCRIPTION APPLICANT: Mastercell LLC Manufacturer: Shenzhen Main Tech Asia Limited. FCC ID: Y2X-TIKE Instruction Book: Users Manual Frequency Range GSM Transmit Frequency Band: 824.2-848.8 MHz Receive Frequency Band: 849.2-893.8 MHz Transmit Frequency Band: 1850.2-1909.8 MHz Receive Frequency Band: 1930.2-1989.8 MHz Specific Operating Power Range: Power Class 1; Power Control Level 0 +30dBm +2.0dB/-2.0dB Power Control Level 1 +28dBm +3.0dB/-3.0dB Power Control Level 2 +26dBm +3.0dB/-3.0dB Power Control Level 3 +24dBm +3.0dB/-3.0dB Power Control Level 4 +22dBm +3.0dB/-3.0dB Power Control Level 5 +20dBm +3.0dB/-3.0dB Power Control Level 6 +18dBm +3.0dB/-3.0dB Power Control Level 7 +16dBm +3.0dB/-3.0dB Power Control Level 8 +14dBm +3.0dB/-3.0dB Power Control Level 9 +12dBm +4.0dB/-4.0dB Power Control Level 10 +10dBm +4.0dB/-4.0dB Power Control Level 11 +8dBm +4.0dB/-4.0dB Power Control Level 12 +6dBm +4.0dB/-4.0dB Power Control Level 13 +4dBm +4.0dB/-4.0dB Power Control Level 14 +2dBm +5.0dB/-5.0dB Power Control Level 15 +0dBm +5.0dB/-5.0dB Note; Effective radiation efficiency is –3.7dB DC Voltage and Current into the Final Amplifier Module: Supply Voltage = 3.6Vdc Supply Current = ~0.8Amp. Tune-up Procedure: Tune-up Procedure Equipment Identification: Equipment's Identification label and its intended Location are as shown in EXHIBIT Type “ID Label / Location Information” (FCC ID Nameplate), and in EXHIBIT Type “Internal Photo”(Photograph of inside) Photographs: A complete set of the Photographs showing External and Internal Views of Circuit Details and Construction are provided by from EXHIBIT Type “External Photos” and “Internal Photos”. Accessories: 2/2 Operation Description Figure 1.2: Terminal Components (Accessories) Technical Descriptions TX synthesizer uses an Offset-PLL circuit. The Offset-PLL circuit consists of PLL-IC and TX_VCO and loop filter. Reference frequency of the above synthesizers is 26MHz and generated by VCTCXO. Control signal is sent from Baseband section and keeps frequency stability. TX IQ signal is input from Baseband section to MT6225, The Bluetooth signal is input form MT6601 and FM signal is input form MT6188C section to MT6225. TX IQ signal is applied to the quadrature up-converter, and the up-converter LO signal is generated from the transceiver VCO within MT6139B. This up-converter translates the GMSK-modulated signal to an intermediate frequency (IF) that forms one input to a frequency/phase detector circuit. This IF signal is the reference input to an Offset-PLL circuit. The feedback path of this Offset-PLL circuit includes a down-conversion from the RF output frequency range to the IF range. The two inputs to this down-conversion mixer are formed the TX_VCO output and the LO generation circuits. The mixer output is the offset feedback signal that forms the variable input to a frequency/phase detector circuit. The detector compares its variable input to its reference input and generates an error signal that is low-pass filtered by the loop filter and applied to TX_VCO to force the RF frequency in the direction that minimizes errors. The TX_VCO output passes PA, Antenna SW, Coaxial connector with switch and emitted from embedded antenna. Digital Modulation: Analog speech produced by a microphone is encoded to digital PCM samples using a CODEC. The PCM samples are passed to a Vocoder for AMR (Advanced Multi Rate) encoding, to compress the speech samples. The encoding rate is determined by the Vocoder which formats the speech samples as data packets. A new data packet with data rate information is read by the microprocessor every 20 ms. The speech CODEC becomes AMR, FR(Full Rate), EFR(Enhanced FR) and HR(Half Rate). The microprocessor then sends the data packet to the transmit subsystem, and passed DAC to covert analog signal. I/Q base band signal is filtered and is inputted into RTR6250 containing quadrature phase modulator. The Data Required (EXHIBIT “Test Report”): (2.1046) RF power output (2.1047) Modulation characteristics (2.1049) Occupied bandwidth (2.1051) Spurious emission at antenna terminals (2.1053) Field strength of spurious radiation (2.1055) Frequency stability (2.1057) Frequency spectrum to be investigated Battery AC Charger Accessories

WRITERCHECKAPPROVE quantity materiel number manufacturer spec and type of pruduct of the manufacturer remark 3 CC15641P0MU0 GRM1555C1H1R0CZ01D Murata 5 CC15641P8MU0 GRM1555C1H1R8CZ01D Murata 4 CC15642P7MU0 GRM1555C1H2R7CZ01D Murata 1 CC15644P7MU0 GRM1555C1H4R7CZ01D Murata 3 CC136410PMU0 GRM1555C1H100JZ01D Murata 1 CC136415PMU0 GRM1555C1H150JZ01D Murata 2 CC136418PMU0 GRM1555C1H180JZ01D Murata 3 CC136422PMU0 GRM1555C1H220JZ01D Murata 6 CC136433PMU0 GRM1555C1H330JZ01D Murata 1 CC136439PMU0 GRM1555C1H390JZ01D Murata 3 CC136447PMU0 GRM1555C1H470JZ01D Murata 1 CC1364101MU0 GRM1555C1H101JZ01D Murata 2 CC1261221MU0 GRM155R71H221KA01D Murata 1 CC1261471MU0 GRM155R71H471KA01D Murata 10 CC1261102MU0 GRM155R71H102KA01D Murata 2 CC1231103MU0 GRM155R71E103KA01D Murata 2 CC1232473MU0 GRM155R71C473KA01D Murata 33 CC1222104MU0 GRM155R71A104KA01D Murata 1 CC2222105MU0 GRM188R61A105KA61D Murata 39 CC1212105MU0 GRM155R60J105KE19D Murata 2 CC2212225MU0 GRM188R60J225KE19D Murata 3 CC2212475MU0 GRM188R60J475KE19D Murata 4 CC3112106MU0 GRM21BR60J106ME19L Murata 3 CC3112106MU1 GRM219R60J106KE19L Murata 1 CT4116106NI0 F930J107MBA Nichicon 2 LI143N9SL000 SDCL1005C3N9ST(f), Sunlord 1 LI144N7MU000 LQG15HS4N7S02D Murata 2 LI145N6SL000 SDCL1005C5N6STDF Sunlord 1 LI1115NMU000 LQG15HS15NJ02D Murata 2 LI1122NSL000 SDCL1005C22NJTDF Sunlord 1 LI1147NMU000 LQG15HS47NJ02D Murata 1 LI1156NSL000 SDCL1005C56NJT(f), Sunlord 2 LI11121MU000 LQG15HSR12J02D Murata 1 LI33103MU000 LQM18FN100M00D MURATA 1 LI43472MU000 LQH32CN4R7M53 Murata 20 RC1200R0YA00 RC0402JR-070RL Yageo 1 RC3110R2YA00 RC0805FR-070R2L Yageo 2 RC1205R1YA00 RC0402JR-075R1L Yageo 2 RC22015RYA00 RC0603JR-0715RL Yageo 3 RC12018RYA00 RC0402JR-0718RL Yageo 8 RC12033RYA00 RC0402JR-0733RL Yageo 1 RC120221YA00 RC0402JR-07220RL Yageo 4 RC120271YA00 RC0402JR-07270RL Yageo 11 RC120331YA00 RC0402JR-07330RL Yageo 1 RC120471YA00 RC0402JR-07470RL Yageo 1 RC120681YA00 RC0402JR-07680RL Yageo H609 MB PCB V1.0 1 RC120102YA00 RC0402JR-071KL Yageo 1 RC120202YA00 RC0402JR-072KL Yageo 2 RC120222YA00 RC0402JR-072K2L Yageo 1 RC120332YA00 RC0402JR-073K3L Yageo 2 RC120362YA00 RC0402JR-073K6L Yageo 2 RC120472YA00 RC0402JR-074K7L Yageo 6 RC120103YA00 RC0402JR-0710KL Yageo 2 RC120333YA00 RC0402JR-0733KL 2 RC120513YA00 RC0402JR-0751KL Yageo 7 RC120104YA00 RC0402JR-07100KL Yageo 1 RC120154YA00 RC0402JR-07150KL Yageo 1 RC120105YA00 RC0402JR-071M Yageo 2 BF14121MU000 BLM15AG121SN1D Murata 2 BF24471MU000 BLM18PG471SN1D, Murata 7 BF14102SL000 HZ1005K102T(f) Sunlord 6 RV140500EP00 B72590T0140L060 EPCOS 1 U047030AL000 AON4703 A LPHA&OMEG A 1 D052030CJ000 RB520S30-2/TR 江苏长江 1 Q010120DI000 DMG1012T-7 DIODES 1 U071630RF000 RF7163 RFMD 1 U085330MS000 MSW8533_LF MSTAR 1 U042100NX000 AER04210HN1WMS00 NXP 1 U058680RD000 RDA5868+ RDA 1 U058880RD000 ,RDA5888 RDA 1 U071128SP300 S71WS128PC0HF3TR SPANSION 1 X0260000TX00 7M26000314 TXC 1 X032768SE000 SSP-T7-F Seiko 1 X027000ND000 EXS00A-CS02111 NDK 1 U095000SO000 HMD950T-T soshin 1 U010030ED000 TS1003 EDISON 3 U031570SG000 SGM3157YC6/TR SGMICRO 1 JCU05254LI00 UAF95-05254-1500 Linkconn 1 JCS02241JS00 WKSM022-4101 JTCONN(杰顺) 1 JCA03057CS00 03-0003-3057 昌讯 1 F019600EP000 B39202-B9403-K610 EPCOS 1 F050000MU000 SAFEA881MFL0F00R12 murata 1 F095000EP000 B39182B9500L310 Epcos 1 H609MBPCB100 1 PBZH917BB000 1 PBZH917BT000 1 PBZH609TV000 1 PBZH917RF000 SM-14J 32.768KHZ 12 . 32KHZ, crystal KDS MS2V-T1S 32KHZ, crystal MICRO CRYSTAL 7M26000018 26MHZ，crystal TXC TZ1387A 26MHZ，crystal TAISAW EXS00A-CS01422 26MHZ，crystal NDK X1E000021031400 26MHZ，crystal EPSON MC3117 2 MHZ，crystal 瑞信半导体

Tune Up Description a. Frequency Range GSM 850 TX 824-849 MHz RX 869-894 MHz GSM 900 TX 880-915 MHz RX 925-960MHz DCS 1800 TX 1710-1785MHz RX1805-1880MHz PCS 1900 TX 1850-1910MHz RX 1930-1990MHz b. Channel Space:200KHz C. Total Channel Number: Carriers*8(TDMA) d. Modulation:GMSK e. Frequency Tolerance:≤+/- 0.1ppm 1) Frequency Distribution GSM 850 EGSM900 DCS1800 PCS1900 Transmit (TX): 824-849MHZ 880-915MHZ 1710-1785MHZ 1850-1910MHZ Receive( RX): 869-894MHZ 925-960MHZ 1805-1880MHZ 1930-1990MHZ 2) Absolute channel Number:128-251 1-124 512-885 512-810 3) TX RX Space: 45MHZ 45MHZ 95MHZ 80MHZ 4) TX/RX time solt Differential: 3 3 3 3 5) Modulation bit rate: 270.833kbit 270.833kbit 270.833kbit 270.833kbit 6) Frame Cycle: 4.615ms 4.615ms 4.615ms 4.615ms 7) Slot Cycle: 576.9us 576.9us 576.9us 576.9us 8) Bit Cycle time: 3.692us 3.692us 3.692us 3.692us 9) Channel Space: 200KHZ 200KHZ 200KHZ 200KHZ 10. Time slot /Frame: 8 8 8 8 11. Modulation Type: GMSK GMSK GMSK GMSK 12 Max TX Power: 2W (33dbm) 2W (33dbm) 2W (33dbm) 2W (33dbm) 13. Min TX Power: 2.0mW 3.3mW 1mW 1.3mW 14 RF Impedance: 50Ω 50Ω 50Ω 50Ω 15. Synthesizer Frequency: T X : 3296-3396MHZ 3520-3660MHZ 3420-3570MHZ 3700-3820MHZ R X 3476-3576MHZ 3700-3840MHZ 3610-3760MHZ 3860-3980MHZ 18.Crystal Frequency: 26MHZ 19.Operating Voltage: Max:4.2V Normal:3.8V Min:3.6V 20. Demodulation Type: I/Q 21.Max Frequency Tolerance:<±0.1PPM 22. Max Phase Error: Peak Value <20 degree RMS<5 degree 23.. RX bit error rate:（-102dbm: 2.44% 24. Conduct Spurious: 9Khz-1GHZ ≤-36dbm 1GHZ-12.75GHZ ≤-30dbm 25.Class3 Bluetooth Frequency 2.4-2.5Ghz

Submit 1 System Validation Plots Report No: KS101130B01 Page 1 Date of measurement: 12/3/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM850 Channels Middle Signal CW B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 835 Antennessa (DIPC32,SN 48/05) Calibration Due: 02/09/2011 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A System Performance Check Data (850MHz Head) Report No: KS101130B01 Page 2 C. SAR Measurement Results Frequency (MHz) 835.000024 Relative permitivity (real part) 41.097999 Relative permitivity (imaginary part) 20.020350 Conductivity (S/m) 0.908279 Variation (%) -0.470000 Ambient Temperature: 21 °C Liquid Temperature: 20 °C ConvF: 20.66, 20.51, 28.36 Crest factor： 1:1 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-5.00 SAR 10g (W/Kg) 6.377661 SAR 1g (W/Kg) 9.395156 Z Axis Scan Report No: KS101130B01 Page 3 Date of measurement: 12/3/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM850 Channels Middle Signal CW B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 835 Antennessa (DIPC32,SN 48/05) Calibration Due: 02/09/2011 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A System Performance Check Data (850MHz Body) Report No: KS101130B01 Page 4 C. SAR Measurement Results Frequency (MHz) 835.000024 Relative permitivity (real part) 54.707999 Relative permitivity (imaginary part) 21.866249 Conductivity (S/m) 0.971052 Variation (%) -0.740000 Ambient Temperature: 21 °C Liquid Temperature: 20 °C ConvF: 20.00, 19.88, 27.77 Crest factor： 1:1 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-5.00 SAR 10g (W/Kg) 6.853908 SAR 1g (W/Kg) 9.720830 Z Axis Scan Report No: KS101130B01 Page 5 Date of measurement: 12/3/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM1900 Channels Middle Signal CW B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 1900 Antennessa (DIPG35,SN 48/05) Calibration Due: 02/09/2011 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A System Performance Check Data (1900MHz Head) Report No: KS101130B01 Page 6 C. SAR Measurement Results Frequency (MHz) 1900.000000 Relative permitivity (real part) 40.901999 Relative permitivity (imaginary part) 13.506150 Conductivity (S/m) 1. 350642 Variation (%) -0.460000 Ambient Temperature 21 °C Liquid Temperature 20 °C ConvF 41.05, 42.35, 55.45 Crest factor 1:1 SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-5.00 SAR 10g (W/Kg) 21.123966 SAR 1g (W/Kg) 40.397130 Z Axis Scan Report No: KS101130B01 Page 7 Date of measurement: 12/3/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM1900 Channels Middle Signal CW B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 1900 Antennessa (DIPG35,SN 48/05) Calibration Due: 02/09/2011 Phantom Antennessa (SN:SN41_05…

Text truncated - open the document above for the full version.

Submit 2 SAR Test Plots Report No: KS101130B01 Page 1 I. 850MHz Band RESULTS TYPE PAR AM E TE RS Phone Measurement 1: Right Head with Cheek device position on Low Channel in GSM850 mode Measurement 2: Right Head with Cheek device position on Middle Channel in GSM850 mode Measurement 3: Right Head with Cheek device position on High Channel in GSM850 mode Measurement 4: Right Head with Tilt device position on Low Channel in GSM850 mode Measurement 5: Right Head with Tilt device position on Middle Channel in GSM850 mode Measurement 6: Right Head with Tilt device position on High Channel in GSM850 mode Measurement 7: Left Head with Cheek device position on Low Channel in GSM850 mode Measurement 8: Left Head with Cheek device position on Middle Channel in GSM850 mode Measurement 9: Left Head with Cheek device position on High Channel in GSM850 mode Measurement 10: Left Head with Tilt device position on Low Channel in GSM850 mode Measurement 11: Left Head with Tilt device position on Middle Channel in GSM850 mode Measurement 12: Left Head with Tilt device position on High Channel in GSM850 mode Measurement 13: BackSide toward phantom 15mm, Low Channel in GSM850 mode Measurement 14: BackSide toward phantom 15mm, Middle Channel in GSM850 mode Measurement 15: BackSide toward phantom 15mm, High Channel in GSM850 mode Measurement 16: BackSide toward phantom 15mm, Low Channel in GPRS850 mode Measurement 17: BackSide toward phantom 15mm, Middle Channel in GPRS850 mode Measurement 18: BackSide toward phantom 15mm, High Channel in GPRS850 mode Measurement 19: FrontSide toward phantom 15mm, Low Channel in GSM850 mode Measurement 20: FrontSide toward phantom 15mm, Middle Report No: KS101130B01 Page 2 Channel in GSM850 mode Measurement 21: FrontSide toward phantom 15mm, High Channel in GSM850 mode Measurement 22: FrontSide toward phantom 15mm, Low Channel in GPRS850 mode Measurement 23: FrontSide toward phantom 15mm, Middle Channel in GPRS850 mode Measurement 24: FrontSide toward phantom 15mm, High Channel in GPRS850 mode Report No: KS101130B01 Page 3 MEASUREMENT 1 Date of measurement: 12/3/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels Low Signal GSM B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 835 Antennessa (DIPC32,SN 48/05) Calibration Due: 02/09/2011 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A C. SAR Measurement Results Frequency (MHz) 824.200000 Relative permitivity (real part) 41.466999 Relative permitivity (imaginary part) 19.511101 Conductivity (S/m) 0.923392 Variation (%) -1.490000 Ambient Temperature: 21 °C Liquid Temperature: 20 °C ConvF: 20.66, 20.51, 28.36 Crest factor： 1:8 Report No: KS101130B01 Page 4 SURFACE SAR VOLUME SAR Report No: KS101130B01 Page 5 Maximum location: X=-13.00, Y=-3.00 SAR 10g (W/Kg) 0.854232 SAR 1g (W/Kg) 0.559195 Z Axis Scan Z(mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/kg) 0.0000 0.8491 0.5876 0.4532 0.2756 0.1985 0.1465 Report No: KS101130B01 Page 6 MEASUREMENT 2 Date of measurement: 12/3/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels Middle Signal GSM B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 835 Antennessa (DIPC32,SN 48/05) Calibration Due: 02/09/2011 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A C. SAR Measurement Results Frequency (MHz) 836.600000 Relative permitivity (real part) 41.466999 Relative permitivity (imaginary part) 19.511101 Conductivity (S/m) 0.916616 Variation (%) -0.110000 Ambient Temperature: 21 °C Liquid Temperature: 20 °C ConvF: 20.66, 20.51, 28.36 Crest factor： 1:8 Report No: KS101130B01 Page 7 SURFACE SAR VOLUME SAR Report No: KS101130B01 Page 8 Ma…

Text truncated - open the document above for the full version.
