Y32-ERFBANT0915RF Transceiver Module

TFE: Ken 0 TFE HONG KONG LIMITED Transceiver Technical Manual Model: TRFM915 FCC ID: Y32-ERFBANT0915 Version: 1.0 TFE: Ken 7/6/2011 This is the user guide of RF module TRFM915. TFE: Ken 1 Table of Contents 1 General 2 Feature Summary 3 Block Diagram 4 Pin Assignment 5 Electrical 5.1 ABSOLUTE MAXIMUM RATINGS 5.2 OPERATING CONDITIONS 5.3 ELECTRICAL SPECIFICATION 6 Mechanical Dimension 7 Installation Guide 8 Federal Communication Commission Interference Statement Figures: Figure 1 RF Module Block Diagram Figure 2 Pins Assignment Figure 3 PCB Size TFE: Ken 2 1. General This user guide is used for the model TRFM915. It is included circuitry block diagram, pin assignment, electrical specification, mechanical dimension and installation guide as well as the Federal Communication Commission Interference Statement. 2. Feature Summary
Integrated PCB trace Antenna
Optional MMCX connector for external antenna
10 RF channels
Output Power up to 10mW
Serial UART interface
Low Power Consumption
Compliance Certification:
RoHS Compliant
2dBi external antenna gain
Frequency Table Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 906MHz 908MHz 910MHz 912MHz 914MHz Channel 6 Channel 7 Channel 8 Channel 9 Channel 10 916MHz 918MHz 920MHz 922MHz 924MHz 3. Block Diagram Fig. 1 RF Module Block Diagram TFE: Ken 3 4. Pin Assignment: Fig. 2 Pin Assignment TFE: Ken 4 5. Electrical 5.1 ABSOLUTE MAXIMUM RATINGS Rating Value Unit Power Supply Voltage 3.6 Vdc Voltage on Any Digital Pin -0.3 to (Vdd+0.3) Vdc RF Input Power +10 dBm Storage Temperature Range -40 to 125 °C Pin No. Pin Name Notes 1 BUTTON_IN I/O pin. It is used as input pin of keys. 2 PGD/EXT_VOL_INPUT _FOR_DETECTION One of the programming pins. 3 UART_RX One of series communication pins. 4 PGC/EXT_SOUND _CHIP_TRIGGER One of the programming pins. 5 NURSE_CALL I/O pin. 6 GND Ground pin. 7 LEDOUT0 I/O pin. Use to drive LEDs. 8 LEDOUT1 I/O pin. Use to drive LEDs. 9 SENSOR_SW I/O pin. 10 LEDOUT2 I/O pin. Use to drive LEDs. 11 VDD Power supply pin. 12 MCLR One of the programming pins. 13 UART_TX One of series communication pins. 14 UART_CTS One of series communication pins. 15 UART_RTS One of series communication pins. 16 EXTERNAL_VREF+ _INPUT I/O pin. 17 BUZZER I/O pin. Used as buzzer signal output. 18 LEDOUT3 I/O pin. Use to drive LEDs. 19 ATMEL_IRQ TFE: Ken 5 5.2 OPERATING CONDITIONS Characteristic Min Typ Max Unit Power Supply Voltage (Vdd) 1.8 3.0 3.6 Vdc Input Frequency 902 --- 928 MHz Ambient Temperature Range -40 25 85 °C Logic input Low Voltage Vss --- 0.2Vdd V Logic Input High Voltage 0.8 --- Vdd V 5.3 Electrical Specification (@25°C Vdd = 3.3V, unless otherwise noted) Parameter Min Typ Max Unit General Characteristics RF Frequency Range 903 928.5 MHz RF Data Rate 40 kbps Host Data Rate 19.2 kbps Flash 16 KB RAM 1.5 KB EEPROM 512 Bytes Power Consumption Transmit Mode 40 mA Receive Mode 14 mA Standby Mode 9 μA Transmitter Nominal Output Power 10 dBm Programmable Output Power Range -11 10 dBm Error Vector Magnitude 6 % Receiver Module Sensitivity (1% PER) -89 dBm Receiver Sensitivity (1% PER) -93 dBm Saturation (Maximum Input) -5 dBm Control AC Characteristics Load Condition -1 (for all pins except OSCO) (RL) 464 Ω TFE: Ken 6 Load Condition -1 (for all pins except OSCO) (CL) 50 pF Load Condition -2 (for OSCO)(CL) 15 pF Control DC Characteristics Logic Input Low Vss 0.2Vdd V Logic Input High 0.8Vdd Vdd V Logic Output Low 0.4 V Logic Output High 3.0 V I/O pin pull-up and pull-down resistor 2 kΩ 6. Mechanical Dimension
PCB Thickness: 1.6mm
Thickness with shield: 4.5mm
Thickness w/MCCX Connector: 6.0mm Fig. 3 PCB Size 7. Installation Guide 1. This RF Module can be mounted to the end product by direct soldering. 2. Please follow the pin assignment and dimension of RF module for the end product design. 3. The thick and short PCB trace for VDD and GND should be made. 4. Decoupling capacitor is recommended to place next to the VDD pin. 5. Make sure there are no metallic objects placed on to or below the RF module after it is installed. TFE: Ken 7 6. Only one antenna should be used when the RF module installed, either trace antenna or external antenna. 7. Each antenna has relative capacitor to be populated, C12 is for external antenna and the C11 is for trace antenna. 8. Make sure that the specified supply voltage is not exceeded. 9. Make sure that the power supply is clean from noise and ripple. 10. Unused pins should be disconnected. 11. The RF module is self-sufficient to function without the need of external components. 12. One type specified external antenna was provided. Other type of external antenna shall not be used. Important notes: Please note that the module is only approved for use when installed in devices produced by a specific manufacturer for professional installation. 8. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. TFE…

Text truncated - open the document above for the full version.

Balun / Filter RF Front End AT86RF212 Base Band Controller PIC24F16KA102 Battery SPI Interface External I/O 2.4GHz RF Module

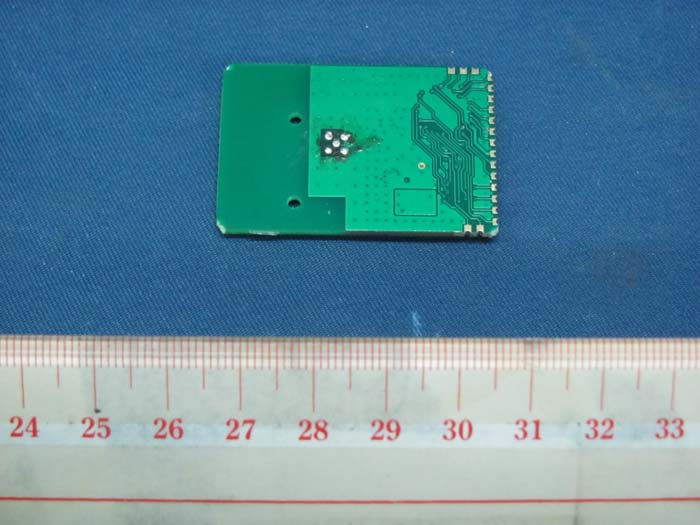

INTERTEK TESTING SERVICE Report No.: HK11040905-2 FCC ID: Y32-ERFBANT0915 Equipment Photographs Model : TRFM915 (External) External Antenna INTERTEK TESTING SERVICE Report No.: HK11040905-2 FCC ID: Y32-ERFBANT0915 Equipment Photographs Model : TRFM915 (External) Trace Antenna

Label Artwork FCC ID: Y32-ERFBANT0915 External Antenna Trace Antenna Label Location Label Location

INTERTEK TESTING SERVICE Report No.: HK11040905-2 FCC ID: Y32-ERFBANT0915 Equipment Photographs Model : ERFM915 (Internal) External Antenna INTERTEK TESTING SERVICE Report No.: HK11040905-2 FCC ID: Y32-ERFBANT0915 Equipment Photographs Model : ERFM915 (Internal) External Antenna INTERTEK TESTING SERVICE Report No.: HK11040905-2 FCC ID: Y32-ERFBANT0915 Equipment Photographs Model : ERFM915 (Internal) Trace Antenna INTERTEK TESTING SERVICE Report No.: HK11040905-2 FCC ID: Y32-ERFBANT0915 Equipment Photographs Model : ERFM915 (Internal) Trace Antenna

TFE Hong Kong Limited Issued by: Ken 1 TFERFM915 RF Module Circuit Description RF module ‘TFERFM915’ is a 900 MHz RF transceiver. The communication between transmitter and receiver is based on direct sequence spread spectrum with different modulation scheme (BPSK & OQPSK) and spreading code. The operation of RF chip and user data can be handled by the on board microcontroller. The transmit power can be set up to 10mW by software setting. The microcontroller’s I/O can be assigned by application software. It can be used as LED drive pin, signal I/O pin etc. This RF module schematic is divided into 3 parts, an Antenna circuit, RF Chip circuit and Microcontroller circuit. See Figure 1. Antenna Circuit Either an on board antenna (ANT1) or external antenna can be used for this RF module. C11 and L1 are populated for on board antenna and the C12 and CN1 are populated for external antenna. C13 is used for circuit fine tune only. Don’t need to populate here. RF Chip Circuit The AT86RF212 is a single-chip transceiver. It acts as radio interface between the antenna and microcontroller. T1 is a Combination of 896 MHz Balun and Filer. Frequency band is from 863 MHz to 928 MHz. It can block the other frequency from this band and let the band frequency pass with minimum power lost. The XTAL1 is RF chip external crystal. C3 and C8 are RF chip power supply bypass capacitors. Capacitors C3 and C7 are by pass capacitors for RF chip internal regulators to ensure stable operation. Details of the internal operation see IC specification. Microcontroller Circuit The PIC24F16KA102 is 16-bit flash microcontroller. It is mainly used to control the RF chip operation and data transition through the SPI interface and a few I/O pins. SPI pin assignment is listed here. - P21(RB13) : MOSI - P18(RB10) : MISO - P19(RB11) : SCLK - P22(RB14) : /SEL And other pins are connected to the edge connector CN2. It is used for the connection between RF module and main system. It is included UART port, In System Programming (ISP) port and other General Purpose Input Output pins. TFE Hong Kong Limited Issued by: Ken 2 Figure 1.
