Y36FD4003-DRECEIVER

Size: mm，印在正反两面，中间折 LM-001 2.4G wireless optical mouse Feature: 2.4G frequency，digital cordless with distance up to ten meters PAN3204 chipset，high-precision and high- stabilization Default CPI value(800-1600) Low power remind function，change the battery in time Operation 1，Take the mouse and receiver from the packing. Referring to pictrue one. 2，Open the battery cover，put into 1 AA battery（Pay attention to the battery polarity） Referring to pictrue two. 3， Pull the key to ON. The led will flash a few seconds. Referring to pictrue three. 4，Plug the mini wireless receiver (Nano) into the USB port. Referring to pictrue four 5，Now you can use it and enjoy it. On-Off Product Specification for 2.4G Wireless Mouse Wireless Frequency: 2402MHz-2480MHz Work Frequency: 64 hopping Rated work voltage: 1.5V Rated work electric current: 15mA Battery: AA×1PCS Locomotive perceptive system: Laser Resolution: Default CPI value(800-1600) USB Port version USB1.1/2.0 *The spec above decribtion, we will not inform you if any changes. Warning: Any change or modification not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. This limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates radio frequency, if not installed and used according to the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measure, * Reorient or relocate the receiving antenna * Increase the separation between the equipment and receiver * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected *Consult with the dealer or an experienced radio/TV technician for help Exclusive Function: 1，Low battery remind function When you using the mouse, if the low-power indication light flickers, it shows the batteries are drains up to empty, then you should change a new battery at once Don’t use old battery.Only valid for alkaline dry battery，other battery will effect the use of mouse. ２，Sleeping function The mouse will power off by itself if you don’t use it for about 8 minutes Just press any key or scroll the wheel to wake up the mouse when it is sleeping. Please turn off it when you go outside or don’t use it for a long time. Turn off it if you don’t use it for a long time,it will avoid to canker accessories of mouse. 3, CPI adjusting function Default CPI value is 1200. 4，Built-in receiver It has a super Nano receiver，you can put it into the USB connect of PC or notebook, it will not infect your computer at all. If you just want to take the mouse outside, you can also put it into the bottom of the mouse. Reset: It has the ID memory function automatical, please reconnect ID if you lost the memory code. High magnetic field and libration will lead to these two distinguish code disappear. you need reset it. 1，Reconnect the receiver 2，Press and hold on to and the scroll wheel of the mouse together for about 15 seconds .。 3，You are now ready to the wireless world. Remark: This mouse uses laser light as transfer checking, it comply with correlative safe prescript, please do not look into the bottom of the mouse directly. Regards to 2.4GHZ wireless data transfer, the distance is 10 meters. The distance will be less if there are obstacles or blockage. The unsmooth or anti-optical surfaces will infect the function. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

China Etech Groups Ltd. Tel:(86)755-29402910 Fax:(86)-755-27956859 web:www.wooapple.com Authorization Letter We, (the approval holder) Company name China Etech Groups Ltd. Addresss 4th Floor,A3 Building,Huafeng centery Industrial park,Xixiang town,Baoan district City Shenzhen,Guangdong Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Timco for product certification below Product Description Receiver Type or Model(s) FD4003 Tradename or Brand(s) N/A Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2012/12/3 Paul Huang Manger

China Etech Groups Ltd. Tel:(86)755-29402910 Fax:(86)-755-27956859 web:www.wooapple.com FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name China Etech Groups Ltd. Addresss 4th Floor,A3 Building,Huafeng centery Industrial park,Xixiang town,Baoan district City Shenzhen,Guangdong Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Y36 FD4003-D of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2012/12/3 Paul Huang Manger

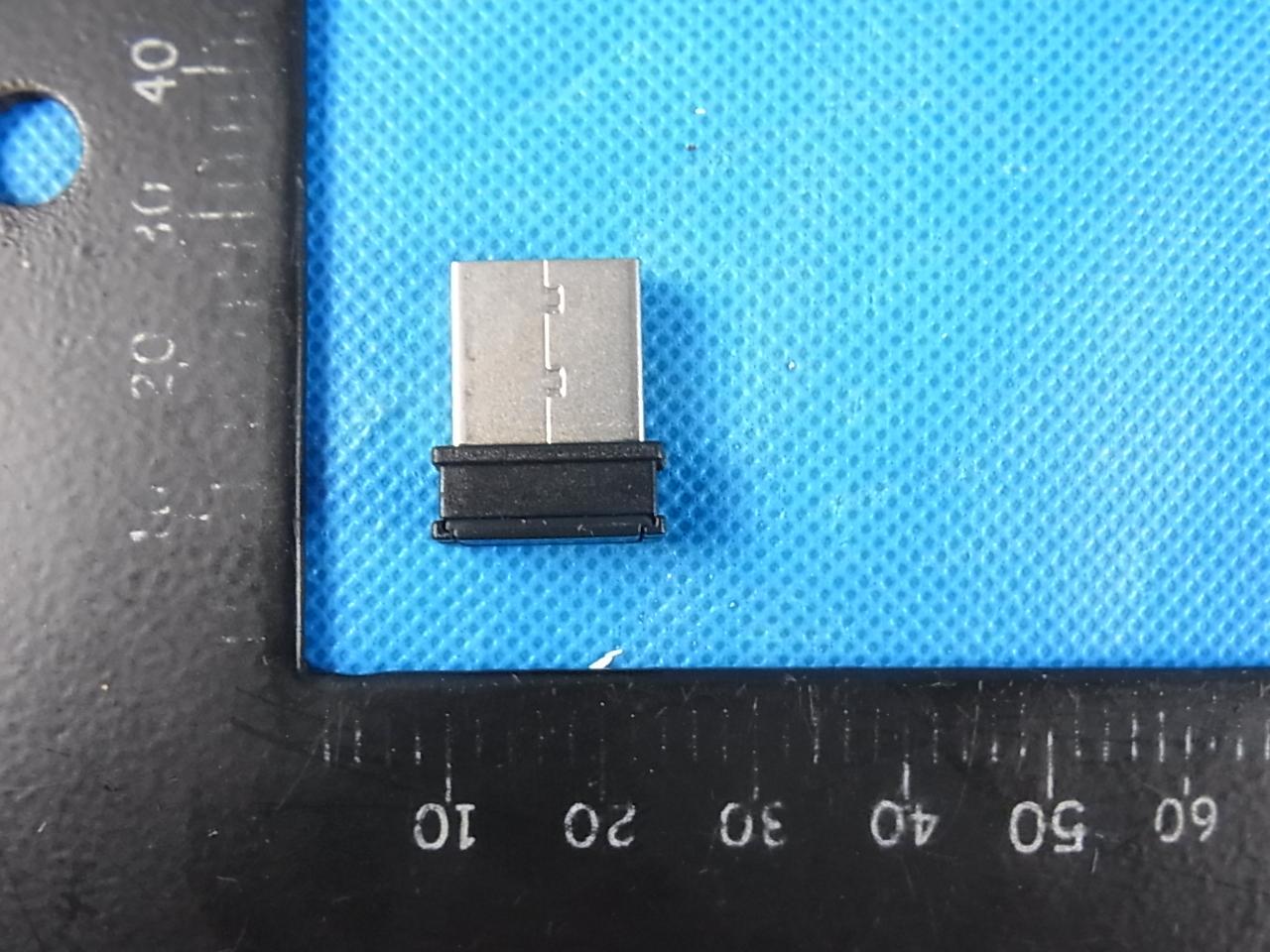

Page 22 of 24 Report No.: NTEK-2012NT1207017F-1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2

w*l: 0.5*1.0 cm FCC ID: Y36FD4003-D

Page 23 of 24 Report No.: NTEK-2012NT1207017F-1 Photo 3 Photo 4 Page 24 of 24 Report No.: NTEK-2012NT1207017F-1 Photo 5

FCC RADIO TEST REPORT FCC ID: Y36FD4003-D Product： Receiver Trade Name： N/A Model Number： FD4003 Prepared for China Etech Groups Ltd. 4th Floor, A3 Building, Huafeng centery Industrial park, Xixiang town, Bao’an district, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website: www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2012NT1207017F-1 TEST RESULT CERTIFICATION Applicant’s name ................. : China Etech Groups Ltd. Address ................................. : 4th Floor, A3 Building, Huafeng centery Industrial park, Xixiang town, Bao’an district, Shenzhen City, China Manufacturer's Name .......... : China Etech Groups Ltd. Address ................................. : 4th Floor, A3 Building, Huafeng centery Industrial park, Xixiang town, Bao’an district, Shenzhen City, China Product description Product name............................ : Receiver Model and/or type reference : FD4003 Standards ............................. : FCC Part15B:2012 ANSI C63.4:2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 20 Dec. 2012 ~24 Dec. 2012 Date of Issue .......................................... : 25 Dec. 2012 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Jim He) Authorized Signatory : (Bovey Yang) Page 3 of 26 Report No.: NTEK-2012NT1207017F-1 Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 DESCRIPTION OF TEST SETUP 8 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.5 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 3.2.2 TEST PROCEDURE 15 3.2.3 TEST SETUP 16 3.2.4 EUT OPERATING CONDITIONS 16 3.2.5 TEST RESULTS 18 3.2.6 TEST RESULTS(Above 1GHz) 20 4 . EUT TEST PHOTO 21 ATTACHMENT PHOTOGRAPHS OF EUT 24 Page 4 of 26 Report No.: NTEK-2012NT1207017F-1 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark FCC Part15B:2012 ANSI C63.4: 2003 Conducted Emission Class B PASS Radiated Emission Class B PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report Page 5 of 26 Report No.: NTEK-2012NT1207017F-1 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKC01 ANSI 150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKA01 ANSI 30MHz ~ 1000MHz 4.7 1GHz ~6GHz 5.0 Page 6 of 26 Report No.: NTEK-2012NT1207017F-1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Receiver Model Name FD4003 Serial No N/A Model Difference N/A Product Description The EUT is a Receiver. Operating frequency: N/A Connecting I/O port: USB Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Power Source DC Voltage Power Rating DC 5V from PC 120V/60Hz Page 7 of 26 Report No.: NTEK-2012NT1207017F-1 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 Running For Conducted Test Final Test Mode Description Mode 1 Running For Radiated Test Final Test Mode Description Mode 1 Running Page 8 of 26 Report No.: NTEK-2012NT1207017F-1 2.3 DESCRIPTION OF TEST SETUP Mode 1: C-2 C-5 C-1 C-4 C-3 E-5 PC E-1 EUT E-6 Monitor E-3 Mouse E-4 KB1 E-7 HD E-2 Printer Page 9 of 26 Report No.: NTEK-2012NT1207017F-1 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 Receiver N/A FD4003 N/A EUT E-2 Printer Canon L11121E LBP2900 E-3 Mouse DELL MS111-P cn-011d3v-71581-11e-1th7 E-4 Keyboard DELL SK-8185 OY526KUS E-5 PC DELL FT4Y23X 34413561645 E-6 Monitor DELL IN2020MB cn-0y6mhx-74261-11f-67es E-7 HD Buffalo inc. HD-PET320U2 55571500924085 Item Shielded Type Ferrite Core Length Note C-1 NO NO 120cm C-2 NO NO 180cm C-3 NO NO 180cm C-4 NO NO 150cm C-5 NO NO 50cm Note…

Text truncated - open the document above for the full version.

Page 20 of 25 Report No.: NTEK-2012NT1207017F-1 4. EUT TEST PHOTO Radiated Measurement Photos Page 21 of 25 Report No.: NTEK-2012NT1207017F-1 Conducted Measurement Photos Page 22 of 25 Report No.: NTEK-2012NT1207017F-1 Receiver Page 23 of 25 Report No.: NTEK-2012NT1207017F-1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2
