Y3B-T166-T168vooma peel

1 T166/T168 User Manual 2 Contents 1 Safety ........................................................................................................................................3 2 Switch on safely ........................................................................................................................3 3 Interference ...............................................................................................................................3 4 Accessories and batteries ..........................................................................................................3 5 About software updates.............................................................................................................3 6 Vooma Peel Parameter ..............................................................................................................4 7 Outside view .............................................................................................................................5 8 Operation step ...........................................................................................................................6 8.1 Hardware installation ......................................................................................................6 8.2 Menu Description............................................................................................................6 Note: The vooma peel is operated with iPod-Touch-v2 (FCC ID: BCGA1288) ONLY. It cannot be operated with the following devices: 1. iPod-Touch-v1; 2. iPod-Touch-v3. The combined-device (vooma peel + iPod-Touch-v2) does not has capability of data modes (GPRS or etc.). 3 1 Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. 2 Switch on safely Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger. 3 Interference All wireless devices may be susceptible to interference, which could affect performance. Switch the device off in aircraft, near medical equipment, fuel, chemicals, or blasting areas. Follow may restrictions. 4 Accessories and batteries Use only approved accessories and batteries. Do not connect incompatible products. 5 About software updates Software updates may include new features and enhanced functions that were not available at the time of purchase of your device. Updating the software may also improve the device performance. Make sure that the device battery has enough power, or connect the charger before starting the update. 4 6 Vooma Peel Parameter Network standard：GSM Apply frequency：850/900/1800/1900MHz Weight：60 Gram Size/Bulk：120mm64.5XmmX15.2mm Appearance Style：Straight,the new matte shell embedded design Optional color： black ,pink ,blue ,white Earphone jack：3.5mm Earphone jack Support system：MacOSX Apply scope：ipod touch 2nd generation Talk time：14 hours standby time0：300 hours standard Configuration: vooma peel host、battery、Guide System requirements：Mac computer with USB2.0 port MacOSXv10.5.8 or later iTunes9.2 or later Free download from www.apple.com.cn/itunes/download/ Internet access Windows system requirements PC computer with USB2.0 port Windows 7；Windows Vista；Windows XP Home or with Service Pack3 or a later version of Windows Professional Environmental requirements Operating temperature：0°to 35 C Non-Operating temperature：-20°to 45 C Relative humidity: non-condensing %5-95% under To use the vooma peel，iPod-Touch-v2 firmware version needs to upgraded to firmware version iOS3.X and iOS4.01 (include iOS4.01) the following version.The firmware version iOS4.02 is not supported with the vooma peel. Firmware version will be upgraded to the corresponding version (recommended to upgrade to low and stable version of firmware). You can use our software to change the version 0.9.4 of the vooma peel has been updated to support the 4.0 firmware version of iPod-Touch-v2. Because jailbreak more difficult to operation! It is recommended that you first have adjusted to the appropriate version of the firmware, and then jailbreak, after the preparatory work to do to buy vooma peel, only after the arrival of a relatively simple process of installation. The latest version 0.9.4 has been updated to support the 4.0 firmware version. Please follow the instructions on page no. 6. 5 7 Outside view 6 8 Operation step 8.1 Hardware installation The touch screen in the lock state of carefully inserted vooma peel, and then install the SIM card, then install the battery, press the start button next to the small battery about 5 seconds, turn to the music can be heard, the back cover! It means you can make phone call after installation of the vooma peel with iPod-Touch-v2 and switch on both devices. 8.2 Menu Description Dial When the network provider’s logo appears on the display, you can dial or receive calls in the play. This feature is in a total of three interfaces: call, call and call; display the upper left corner of the bar shows the network signal strength information. Call quality is relatively large by the obstacle, so the movement in a small area can increase the signal strength.) Note: In any country using digital GSM network, if you are in network coverage (check the phone display through the upper left corner of the network signal strength indicator that), you should be able to use calling features. If your ISP does not provide roaming services in the region, the display will show "can make emergency calls (Emergency)", to tell you can only carry on that call. Call： 7 1 Direct dial Click the "Phone" icon to enter, select the "keyboard" function, you can directly enter a phone number on the keypad, then tap "call." Need to correct input errors, please click the icon to delete.) 2 Through contact Click "Contacts" icon to enter all of the contacts list, select the person you need. After entering information, click the mobile phone number, start dialing. )…

Text truncated - open the document above for the full version.

LINNAEA TECHNOLOGY CO., LTD. Rm.1909-1910,Block West,ShengTang Building,TaiRan road9, Futian District,ShenZhen,GuangDong Attestation Letter December 20, 2010 FCC ID: Y3B-T166-T168 Federal Communications Commission Authorization and Evaluation Division After installation of the vooma peel to iPod-Touch-v2, no any third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. After the vooma peel have been installed to iPod-Touch-v2, it will not influence the software or configuration control of iPod-Touch-v2 and both devices (FCC ID: Y3B-T166-T168 and FCC ID: BCGA1288) still comply with the technical rules under which each was certified. Therefore, both continue complying with the FCC Rules. Sincerely, Li Jiuchao/ Manager LINNAEA TECHNOLOGY CO., LTD.

LINNAEA TECHNOLOGY CO., LTD. Rm.1909-1910,Block West,ShengTang Building,TaiRan road9, Futian District,ShenZhen,GuangDong USB Letter Declaration December 15, 2010 Federal Communications Commission Authorization and Evaluation Division Part 15B testing is not necessary for this device because the USB port is for power charging only, no data transmission function. End users are not able to connect to PC for data transmission via USB port. Due to above reasons, this device didn’t perform Part 15B testing, and FCC logo shouldn’t be on the label. Your understanding will be highly appreciated. Sincerely, Li Jiuchao/ Manager LINNAEA TECHNOLOGY CO., LTD.

Antenna R F PA Tranceiver Crystal 26MHz CPU+PMU 32.768KHz SIM CARD KEY IO Memory Receiver MOTOR MIC Voice PA Speaker Batter USB UART CHARGE

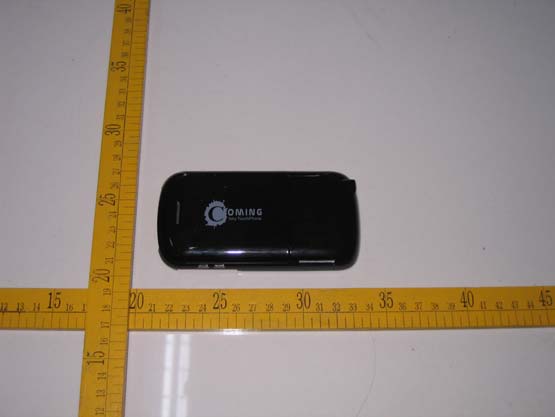

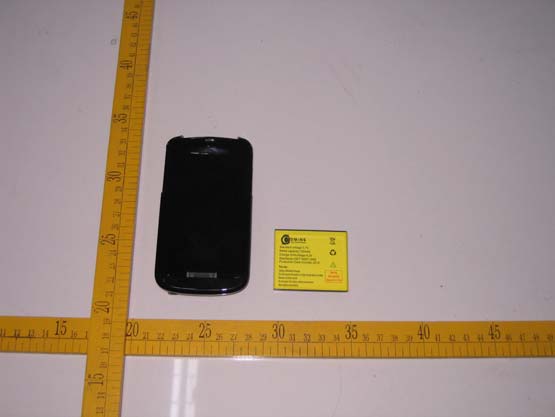

6. External and Internal Photos of the EUT External Photos

Applicant: LINNAEA TECHNOLOGY CO., LTD. FCC ID: Y3B-T166-T168 Model Name: T166 LINNAEA TECHNOLOGY CO., LTD. Model Name: T166 FCC ID: Y3B-T166-T168 Proposed Label Location on EUT

Internal Photos

Max Power calibration: Software used for max power calibration:“T166” Max power rang: 27dBm to 33dBm Read Default TX PDM value corresponding to 3 0dBm Read CMU 200 Channel Power Value ∣Channel Power-30 ∣< Channel Power>33 dBm Decrease PDM value Increase PDM vale Record PDM value in Flash memory Finish Y Y N N

Report No：10CS015R-HP-US-P03V01 Page: 1 of 93 SAR Test Report Product Name : vooma peel Model No. : T166, T168 FCC ID : Y3B-T166-T168 Applicant : LINNAEA TECHNOLOGY CO., LTD. Address : Rm. 1909-1910, Block West, ShengTang Building, TaiRan road9, Futian District, ShenZhen, GuangDong Date of Receipt : Dec. 09, 2010 Date of Test : Dec. 13, 2010 Issued Date : Dec. 14, 2010 Report No. : 10CS015R-HP-US-P03V01 Report Version : V1.2 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：10CS015R-HP-US-P03V01 Page: 2 of 93 Test Report Certification Issued Date: Dec. 14, 2010 Report No: 10CS015R-HP-US-P03V01 Product Name : vooma peel Applicant : LINNAEA TECHNOLOGY CO., LTD. Address : Rm. 1909-1910, Block West, ShengTang Building, TaiRan road9, Futian District, ShenZhen, GuangDong Manufacturer : LINNAEA TECHNOLOGY CO., LTD. Address : Rm. 1909-1910, Block West, ShengTang Building, TaiRan road9, Futian District, ShenZhen, GuangDong FCC ID : Y3B-T166-T168 Model No. : T166, T168 EUT Voltage : DC 3.7V Applicable Standard : FCC OET65 Supplement C June 2001 IEEE Std. 1528-2003, 47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.234 W/kg Body: 0.326 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Tested By : (Engineering Supervisor: Marlin Chen) Approved By : (Engineering Manager: Dream Cao) Report No：10CS015R-HP-US-P03V01 Page: 3 of 93 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No：10CS015R-HP-US-P03V01 Page: 4 of 93 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 6 2. SAR Measurement System ........................................................................................ 7 2.1. DASY5 System Description ................................................................................. 7 2.1.1. Applications ..................................................................................................... 8 2.1.2. Area Scans ...................................................................................................... 8 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................ 8 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ........................................... 8 2.2. DASY5 E-Field Probe .......................................................................................... 9 2.2.1. Isotropic E-Field Probe Specification ............................................................... 9 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 10 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 10 2.5. Robot ................................................................................................................. 11 2.6. Light Beam Unit ................................................................................................. 11 2.7. Device Holder .................................................................................................... 12 2.8. SAM Twin Phantom ........................................................................................... 12 3. Tissue Simulating Liquid ........................................................................................... 13 3.1. The composition of the tissue simulating liquid ................................................. 13 3.2. Tissue Calibration Result ................................................................................... 14 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 15 4. SAR Measurement Procedure .................................................................................. 16 4.1. SAR System Validation ...................................................................................... 16 4.1.1. Validation Dipoles .......................................................................................... 16 4.1.2. Validation Result .......................…

Text truncated - open the document above for the full version.

Report No：10CS015R-HP-US-P03V01 Page: 76 of 93 Appendix E. Dipole Calibration Data Report No：10CS015R-HP-US-P03V01 Page: 77 of 93 Report No：10CS015R-HP-US-P03V01 Page: 78 of 93 Report No：10CS015R-HP-US-P03V01 Page: 79 of 93 Report No：10CS015R-HP-US-P03V01 Page: 80 of 93 Report No：10CS015R-HP-US-P03V01 Page: 81 of 93 Report No：10CS015R-HP-US-P03V01 Page: 82 of 93 Report No：10CS015R-HP-US-P03V01 Page: 83 of 93 Report No：10CS015R-HP-US-P03V01 Page: 84 of 93 Report No：10CS015R-HP-US-P03V01 Page: 85 of 93 Report No：10CS015R-HP-US-P03V01 Page: 86 of 93 Report No：10CS015R-HP-US-P03V01 Page: 87 of 93 Report No：10CS015R-HP-US-P03V01 Page: 88 of 93 Report No：10CS015R-HP-US-P03V01 Page: 89 of 93 Report No：10CS015R-HP-US-P03V01 Page: 90 of 93 Report No：10CS015R-HP-US-P03V01 Page: 91 of 93 Report No：10CS015R-HP-US-P03V01 Page: 92 of 93 Report No：10CS015R-HP-US-P03V01 Page: 93 of 93

AA BB CC DD EE FF GG HH A A B B C C D D ED15 ED14 ED13 ED12 ED11 ED10 ED9 ED8 ED7 ED6 ED5 ED4 ED3 ED2 ED1 ED0 EA1 EA2 EA3 EA4 EA5 EA6 EA7 EA8 EA9 EA10 EA11 EA12 EA13 EA14 EA15 EA16 EA17 EA18 EA19 EA20 EA21 EA22 EA23 VDDVMEMVCORE AVDD MICBIASPMICBIASN VCCRF VCCRF VBAT VBAT VCORE AVDD VDDVMEM VDD VBAT VBAT AVDD VBAT VSIM VDD VSIM USB_PWR USB_I USB_I UTXD1 URXD1 SCL SDA KCOL0 KROW1 EA[1..23] /ECS0_FLASH /EUB /ECS1_PSRAM /EWR /ERD /ELB /WATCHDOG /SYSRST 26MHZ HB_RX VLOGIC_BUS0 PA_EN BANDSW_DCS SDATA SCLK LE LCD_SA0 MICN0 MICP0 VAFC I IB QB Q VAPC MP3_OUTR FM_INRFM_INL CLK_32K ADC2_HF_MIC EINT5_HEADSET ED[0..15] PWRKEY VIB ADC0_TBAT /SYSRST ADC0_TBAT VIB PCS_RX ISENSE LCD_SDA LCD_SCLK ADC0_TBAT ISENSE GPIO30_AU_EN LCD_CS0 MICN1 MICP1 MP3_OUTLSPKN0SPKP0 EINT1 URXD2 UTXD2 LCD_RSTB GPIO26 EINT3 KCOL1 GPIO28 GPIO25 TitleSize Document Number Rev Date: Sheet of <Doc> V0.0 K310 A2 15 Saturday, October 09, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> V0.0 K310 A2 15 Saturday, October 09, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> V0.0 K310 A2 15 Saturday, October 09, 2010 DGNDPGND AGND DGND NOTE R101 100 Ω R101 100 Ω U102 DMOS U102 DMOS S1 1 G1 2 D2 3 S2 4 G2 5 D1 6 R11224K Ω R11224K Ω R103 100 Ω R103 100 Ω C1050.1uFC1050.1uF C120NCC120NC C107 0.1uFC107 0.1uF X10032KHZX10032KHZ C12410uFC12410uF T100ESDT100ESD C1104.7uFC1104.7uF T102ESDT102ESD D101PDZ5.6BD101PDZ5.6B C12522pFC12522pF A -+ M100C1026B044F A -+ M100C1026B044F 12 C1151uFC1151uF R120100K Ω R120100K Ω C1030.1uFC1030.1uF U101SI5853DCU101SI5853DC A 1 A 2 K 7 K 8 S 3 G 4 D 5 D 6 R111 3.9K Ω R111 3.9K Ω R109 15 Ω R109 15 Ω JTAG IO RF control circuitry Digital Power and Grounds External Memory Interface Parallel LCD IO Analog Power and Grounds SIM Card IO Ext Interrupt UART Audio Charger & LED CLOCK Keypad Interface System Miscellaneous PMIC LDO Outputs DAI ADC U100 MT6223D JTAG IO RF control circuitry Digital Power and Grounds External Memory Interface Parallel LCD IO Analog Power and Grounds SIM Card IO Ext Interrupt UART Audio Charger & LED CLOCK Keypad Interface System Miscellaneous PMIC LDO Outputs DAI ADC U100 MT6223D EADV_B U15 EWAIT T15 ECLK U16 JTDO R9 TESTMODE J10 SYSRST_B T8 WATCHDOG T14 SRCLKENAI/GPIO31 A17 SRCLKENA A16 KCOL4 A15 KCOL3 B15 KCOL2 A14 KCOL1 B14 KCOL0 A13 KROW4 B13 KROW3 C13 KROW2 A12 KROW1 B12 KROW0 C12 SYSCLK U1 XIN A11 XOUT A10 CHRIN D5 GATEDRV C4 LED_B G10 LED_G G9 LED_R H8 LED D4 VIBRATOR G8 AU_MOUTL F2 AU_MOUTR F1 AU_FMINR E3 AU_FMINL F3 AU_OUT0_N G1 AU_OUT0_P G2 AU_MICBIAS_P G3 AU_MICBIAS_N H2 AU_VREF_PO H4 AU_VREF_NI H3 AU_VIN0_P J1 AU_VIN0_N J2 AU_VIN1_N K1 AU_VIN1_P K2 UTXD1 C10 UCTS1_B D10 URTS1_B C9 URXD1 C7 URXD2 C8 UTXD2 D8 UTXD3 A9 URXD3 B9 EINT0 D12 EINT1 B11 EINT2 C11 EINT3 D11 LCD_SCLK T10 LCD_SDA R10 LCD_SA0 P10 NC U10 NC U11 NC T11 NC R11 NC U12 LCD_RSTB T12 NC R12 NC U13 NC T13 NC R13 LCD_CS0_B R14 NC U14 VSIM A5 VRF A8 VRF_SENSE B8 VCORE A7 VIO B7 VM B6 VA C1 VCTXO E2 VBAT_RF A3 VBAT B3 VBAT B2 VBAT A1 AVBAT A2 BAT_BACKUP D7 BATDET C5 BATSENSE A4 ISENSE B4 RESET C2 RSTCAP D2 VREF B1 VMSEL E4 PWRKEY D3 PGND J8 DGND H7 DGND H11 DGND H10 DGND H9 VSS33 K7 VSS33 L8 VSS33 K8 VSS33 J11 VSS33 J7 VSS33_EMI L9 VSS33_EMI K9 VSS33_EMI L10 VSS33_EMI K10 VSS33_EMI K11 VDDK N4 VDDK P9 VDDK D9 VDDK H14 VDD33 D13 VDD33 P4 VDD33 P5 VDD33_LCD P11 VDD33_EMI P12 VDD33_EMI N14 VDD33_EMI M14 VDD33_EMI G14 VDD33_EMI F14 AVDD_RFE K4 AVDD_MBUFL F4 AVDD_GSMRFRX J4 AVDD_PLL M4 AVDD_AFE E1 AVSS_MBUFL G4 AVSS_PLL T1 AVSS_GSMRFRX M1 AVSS_RFE P1 AVSS_AFE J3 AGND D1 AGND_RF A6 AGND_AFE H1 AGND_RFE K3 AVDD_RTC B10 BDLAQP L1 BDLAQN L2 BDLAIN L3 BDLAIP L4 APC N1 AUXADIN0 M2 AUXADIN1 M3 AUXADIN2 N2 AUX_REF N3 AFC R1 AFC_BYP P2 BPI_BUS0 R2 BPI_BUS1 T2 BPI_BUS2 R3 BPI_BUS3 U3 BPI_BUS4 T3 BPI_BUS5 P3 BPI_BUS6 R4 BPI_BUS7 T4 BPI_BUS8 U4 BPI_BUS9 U5 BSI_CS0 T5 BSI_DATA R5 BSI_CLK U6 DAICLK T6 DAIPCMOUT U7 DAIPCMIN T7 DAIRST R6 DAISYNC P6 ALERTER R7 PWM P7 JRTCK U8 JTRST_B R8 JTCK U9 JTDI P8 JTMS T9 ED0 T16 ED1 U17 ED2 T17 ED3 P14 ED4 R16 ED5 R17 ED6 P17 ED7 P16 ED8 P15 ED9 N17 ED10 N16 ED11 N15 ED12 M17 ED13 M16 ED14 M15 ED15 L17 EA0 J16 EA1 J15 EA2 J14 EA3 H17 EA4 H16 EA5 H15 EA6 G17 EA7 G16 EA8 G15 EA9 F17 EA10 F16 EA11 F15 EA12 E17 EA13 E16 EA14 E15 EA15 E14 EA16 D17 EA17 D16 EA18 D15 EA19 D14 EA20 C17 EA21 C16 EA22 C14 EA23 B17 EA24 B16 EA25 P13 ERD_B L16 EWR_B L15 ECS0_B L14 ECS1_B K17 NC K16 NC K15 ELB_B K14 EUB_B J17 SIMIO B5 SIMRST C6 SIMCLK D6 C1191nFC1191nF 2 13 2.2K 47K Q2 DTC123JUA 2 13 2.2K 47K Q2 DTC123JUA C1124.7uFC1124.7uF C1160.1uFC1160.1uF C109 0.1uFC109 0.1uF C1211uFC1211uF R11010K Ω R11010K Ω C1144.7uFC1144.7uF T101ESDT101ESD R102 100 Ω R102 100 Ω C1266pFC1266pF C1131uFC1131uF C108 0.1uFC108 0.1uF C10022pFC10022pF C13010uFC13010uF C10247nFC10247nF R1070.2 Ω R1070.2 Ω BT100 PAN31-03733-3000 BT100 PAN31-03733-3000 1 1 2 2 3 3 B100 BLM18HD102SN1B100 BLM18HD102SN1 D100RB520S-30D100RB520S-30 C1184.7uFC1184.7uF C1171uFC1171uF C1060.1uFC1060.1uF R1210 Ω R1210 Ω C10122pFC10122pF R104 100 Ω R104 100 Ω SIM100CAF99-06193-1504SIM100CAF99-06193-1504 CLK 1 I/O 2 RST 3 VPP 4 VC 5 G 6 G 7 G 8 G 9 G 10 C1040.1uFC1040.1uF 11 22 33 44 55 66 77 88 A A B B C C D D MICBIASP MICBIASN MICBIASP VBAT AVDD VDD MICN1 MICP1 ADC2_HF_MIC EINT5_HEADSET MICP0 MICN0 MP3_OUTL MP3_OUTR XMICP XMP3_LXMP3_R GPIO30_AU_EN MP3_OUTR FM_INRFM_INL CLK_32K SCL SDA EGNDIMP3_RIMP3_L EINT3 SPKN0SPKP0 TitleSize Document Number Rev Date: Sheet of <Doc> V0.0 K310 A2 25 Tuesday, November 30, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> V0.0 K310 A2 25 Tuesday, November 30, 2010 TitleSize Document Number Rev Date: Sheet of <Doc> V0.0 K310 A2 25 Tuesday, November 30, 2010 T202 ESD T202 ESD R2081K Ω R2081K Ω R21810KΩR21810KΩ C2000.1uFC2000.1uF C220 1uFC220 1uF R2101.5K Ω R2101.5K Ω R203470 Ω R203470 Ω R2001K Ω R2001K Ω U200 LM4990ITLX U200 LM4990ITLX /SHUTDOWN C3 BYPASS C1 +IN A3 -IN A1 Vo1 A2 VDD B3 GND B1 Vo2 C2 GND B2 B205BLM15BB750SN1DB205BLM15BB750SN1D C22533pFC22533pF C2120.1uFC2120.1uF R21910K Ω R21910K Ω C21633pFC21633pF C20922uFC209…

Text truncated - open the document above for the full version.

5. Test Setup Photos of the EUT
