4 Microphone Wireless Systems Sistema de 4 micrófonos inalámbricos USERS MANUAL for Professional Series Models: › AVT-QUAD1 › AVT-QUAD2 › AVT-QUAD2B (AVT-4BP1 and AVT-4BP2 Beltpack Transmitters) Please read and keep for future reference. Distributed by: www.avtronicsworld.com * * * CONSUMER ALERT * * * Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 mil- liwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless micro- phone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones. TRANSMITTER SPECIFICS AVT-QUAD1 and AVT-4BP1 Handheld Transmitters: Channel A (Purple) 696.65 MHz FCC ID: Y3I-AVTQUADHH8 Channel B (Yellow) 693.65 MHz FCC ID: Y3I-AVTQUADHH7 Channel C (Pink) 631.75 MHz FCC ID: Y3I-AVTQUADHH6 Channel D (Gray) 625.15 MHz FCC ID: Y3I-AVTQUADHH5 Beltpack Transmitters: Channel A (Purple) 696.65 MHz FCC ID: Y3I-AVTQUADBP8 Channel B (Yellow) 693.65 MHz FCC ID: Y3I-AVTQUADBP7 Channel C (Pink) 631.75 MHz FCC ID: Y3I-AVTQUADBP6 Channel D (Gray) 625.15 MHz FCC ID: Y3I-AVTQUADBP5 AVT-QUAD2, AVT-QUAD2B and AVT-4BP2 Handheld Transmitters: Channel A (Red) 697.85 MHz FCC ID: Y3I-AVTQUADHH4 Channel B (Green) 680.45 MHz FCC ID: Y3I-AVTQUADHH3 Channel C (Blue) 621.55 MHz FCC ID: Y3I-AVTQUADHH2 Channel D (Orange) 619.15 MHz FCC ID: Y3I-AVTQUADHH1 Beltpack Transmitters: Channel A (Red) 697.85 MHz FCC ID: Y3I-AVTQUADBP4 Channel B (Green) 680.45 MHz FCC ID: Y3I-AVTQUADBP3 Channel C (Blue) 621.55 MHz FCC ID: Y3I-AVTQUADBP2 Channel D (Orange) 619.15 MHz FCC ID: Y3I-AVTQUADBP1 NOTE: The manufacturer, distributor, and supplier is not responsible for any radio or TV interfer- ence caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. AVT-QUAD1R and AVT-QUAD2R Receiver: FCC INFORMATION 2 FEATURES AND SPECIFICATIONS LIST ›Use up to 4 wireless microphones at once (8 with an additional system – to use 2 systems use separate frequency groups such as AVT-QUAD1 and AVT-QUAD2 or AVT-QUAD2B) ›Far reaching working distance: 200 feet ›Reliable sturdy construction ›Operates on 4 single channel fixed frequencies (UHF 600MHz band) ›Carrier wave stability: 10PPM ›Sensitivity: -105dB @ sinad = 12dB ›S/N Ratio: >105dB (virtually eliminates distortion) ›Great frequency response: 50Hz~18KHz ›Squelch control: dual-squelch circuit eliminates static and stray signals ›4 individual volume controls ›Max. output level: balanced (0 – 400mv), unbalanced (0 – 200mv) ›Power supply: external DC power supply, 0.8A, 12~18V DC ›Output connectors: 4 XLR balanced, 1 mixed unbalanced 1⁄4” TRS ›Requires 2 AA batteries for each transmitter ›Compact size: 16.5”(L) x 1.8”(H) x 9.8”(D) (approximate dimensions) ›Lightweight: (approx.) 13.2 lbs for receiver and 4 microphones in carton AVAILABLE MODELS AVT-QUAD1Comes with 4 handheld microphones, 1 receiver, and power cord. Frequency group 1. AVT-QUAD2Comes with 4 handheld microphones, 1 receiver, and power cord. Frequency group 2. AVT-QUAD2BComes with 3 handheld microphones, 1 beltpack and lavalier mic, 1 receiver, and power cord. Frequency group 2. AVT-4BP1Comes with 4 beltpacks and lavalier mics. Frequency group 1. AVT-4BP2Comes with 4 beltpacks and lavalier mics. Frequency group 2. Optional Accessories: To add optional accessories such as a pack of 4 beltpacks or a second system go to www.avtronicsworld.com to find a dealer. Congratulations on purchasing a fine wireless microphone system from AVTronics. This product should give you trouble free service throughout it’s life. We trust you will enjoy it’s performance. 3 Power Switch Botón de Encendido Channel A Volume Control Control de Volumén Channel B Volume Control Control de Volumén Channel C Volume Control Control de Volumén Channel D Volume Control Control de Volumén FRONT ()()()()() HELPFUL DIAGRAMS Channel D XLR Output Channel C XLR Output Channel B XLR Output Channel A XLR Output Mixed 1⁄4” TRS Output Mezcla de Salida Cable Power Cord Input Entrada de Cable de Energía (Actual frequencies will vary by model)(Actual frequencies will vary by model) BACK 4 Opening the device may void your warranty. Do not dispose of this device by putting in the trash. () (Canales de las Salidas XLR) ( de Cable de ( de Cable de ) 5 On/Off Switch Botón de Encendido On/Off Switch Botón de Encendido RECEIVERBELTPACK color coded by frequency codigo de color de frecuencia CAUTION! To lower the risk of potentially harmful electric shocks please do not perform any of the following procedures: › Do not disassemble, remove screws, or otherwise in any way open the enclosure. › Keep receiver and transmitters away from water including rain and moisture. › Make sure there are no breaks in the A/C power cable. › Make sure the switch is to the off position when you turn on the unit. › Do not use this device in the rain, swimming pools or in moist damp environments. PRECAUCIÓN Para disminuir el riesgo potencial de un golpe de corriente peligroso, por favor no lleve a cabo ninguno de los siguientes procedimientos: ›No desmonte ó remueva tornillos en otras palabras, no abra por ninguna razón. ›Mantenga el recibidor y el transmisor lejos de agua incluyendo lluvia ó humedad. ›Asegurese que no existen roturas ó averías en el cable de corriente A/C. ›Asegurese que el interruptor está apagado cuando usted encienda la unidad. ›No use este artefacto bajo la lluvia, en piscinas ó en ambientes húmedos. () () () color coded by frequency codigo de color de frecuencia () TROUBLE SHOOTING Check to make sure the power cord …

Text truncated - open the document above for the full version.

Attention: Federal Communications Commission Authorization and Evaluation Division The following are all permanent confidentialiry requests. AVTronics hereby requests that the name that is used to represents its company name in the FCC public searchable database be its DBA which is AVTronics. AVTronics is the name currently used for representation to the general public. Use of its other name which is not its DBA, listed under Item I on form 73 l, would increase the chances of competitors finding our suppliers. Please list the com- pany name as only AVTronics in the FCC public searchable database. Permanent confidentiality on the following product information represented by their FCC ID numbers is also requested. Thrs request for permanent confidentiality applies to the information regarding the block diagram, frequency setting information, circuitry informa- tion, schematic and parts list which can be kept protected according to FCC rules and applicable laws by this request. Confidentiality Request pertains to the applications for certifications of the following FCC IDs: Transmitters: Y3I-AVTQUADBPl Y3r-AVTQUADBP5 Y3r-AVTQUADHHl Y3I-AVTQUADHH5 Y3l-AVTQUADBP2 Y3I-AVTQUADBP6 Y3I-AVTQUADHH2 Y3I-AVTQUADHH6 Y3r-AVTQUADBP3 Y3I-AVTQUADBPT Y3r-AVTQUADHH3 Y3r-AVTQUADHHT Y3r-AVTQUADBP4 Y3r-AVTQUADBP8 Y3I-AVTQUADHH4 Y3r-AVTQUADHH8 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompany- ing this application as outlined below: Exhibit Type File Name Block Diagram Frequency Setting information Circuit Description Schematic List of ltems (block diagram.doc) (updated tr-rning procedure.pdf) (updated_UHF600MHz-PLL Circuit Description.rtf Updated UHF600MHz-SRYSTAL- schematic.pdf Updated part list.pdf The above product materials information contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified beneflts to its competitors. Sincerely, Authorized Signature Authorized Signer:Mark K. Cass, Treasurer www.avtronicsworld,com

APPLICANT: AVTRONICS FCC ID: Y3I-AVTQUADBP6 EXTERNAL PHOTOS

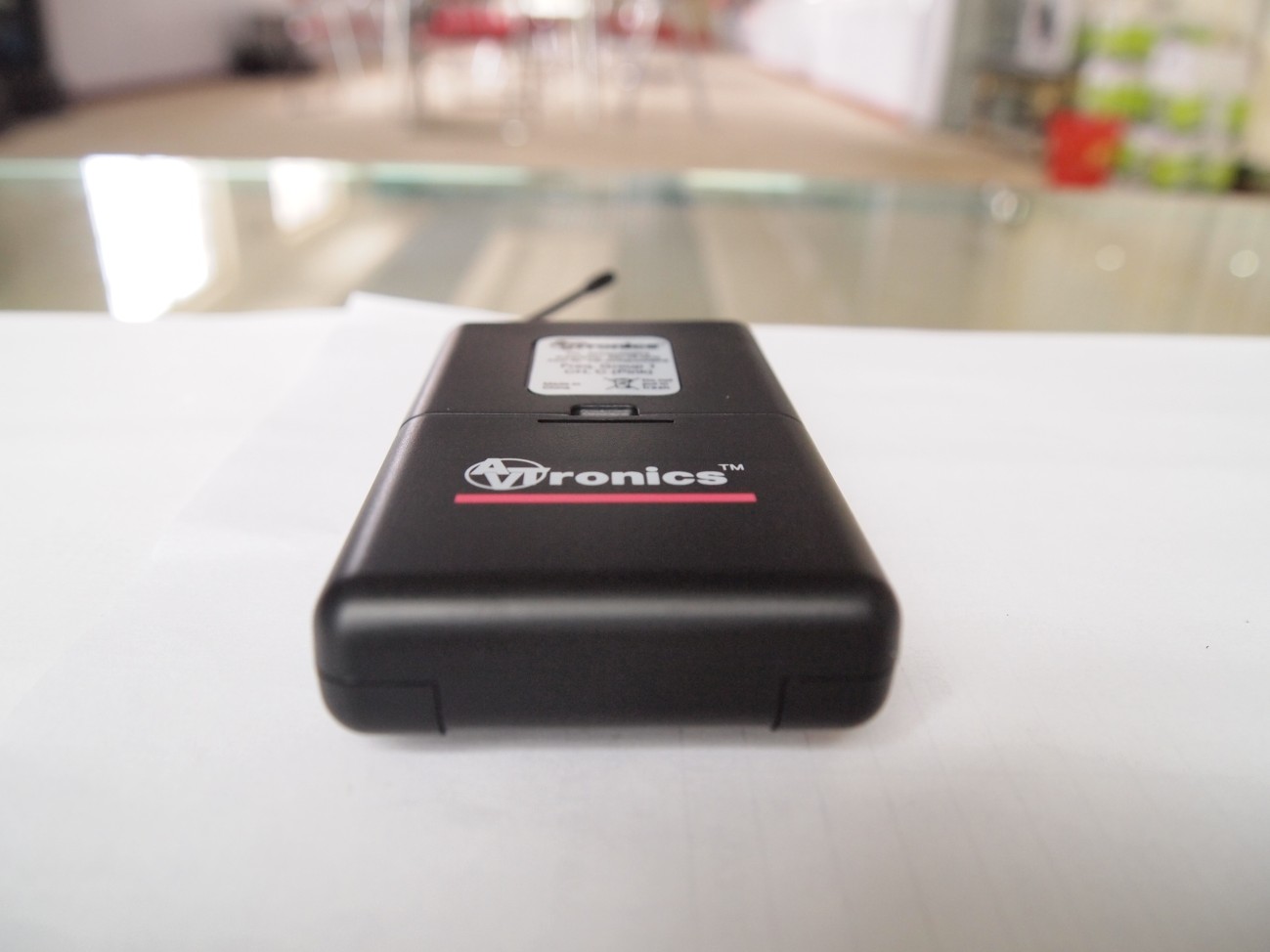

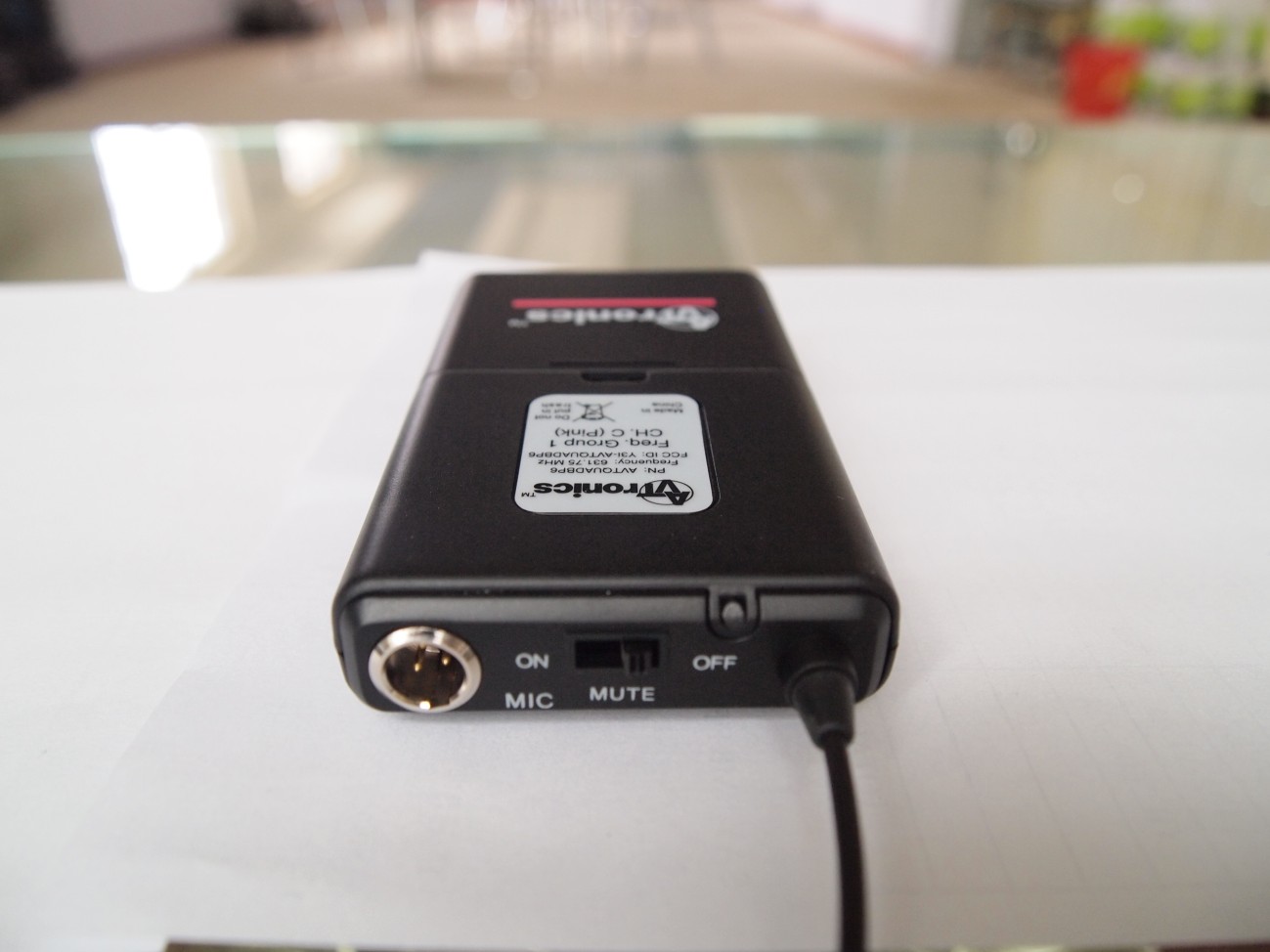

PN: AVTQUADBP1 Frequency: 619.15 MHz FCC ID: Y3I-AVTQUADBP1 Freq. Group 2 CH. D (Orange) Made in China Do not put in trash PN: AVTQUADBP2 Frequency: 621.55 MHz FCC ID: Y3I-AVTQUADBP2 Freq. Group 2 CH. C (Blue) Made in China Do not put in trash PN: AVTQUADBP3 Frequency: 680.45 MHz FCC ID: Y3I-AVTQUADBP3 Freq. Group 2 CH. B (Green) Made in China Do not put in trash PN: AVTQUADBP4 Frequency: 697.85 MHz FCC ID: Y3I-AVTQUADBP4 Freq. Group 2 CH. A (Red) Made in China Do not put in trash PN: AVTQUADBP5 Frequency: 625.15 MHz FCC ID: Y3I-AVTQUADBP5 Freq. Group 1 CH. D (Gray) Made in China Do not put in trash PN: AVTQUADBP6 Frequency: 631.75 MHz FCC ID: Y3I-AVTQUADBP6 Freq. Group 1 CH. C (Pink) Made in China Do not put in trash PN: AVTQUADBP7 Frequency: 693.65 MHz FCC ID: Y3I-AVTQUADBP7 Freq. Group 1 CH. B (Yellow) Made in China Do not put in trash PN: AVTQUADBP8 Frequency: 696.65 MHz FCC ID: Y3I-AVTQUADBP8 Freq. Group 1 CH. A (Purple) Made in China Do not put in trash PN: AVTQUADHH1 Frequency: 619.15 MHz FCC ID: Y3I-AVTQUADHH1 Made in China Freq. Group 2 CH. D (Orange) PN: AVTQUADHH2 Frequency: 621.55 MHz FCC ID: Y3I-AVTQUADHH2 Made in China Freq. Group 2 CH. C (Blue) PN: AVTQUADHH3 Frequency: 680.45 MHz FCC ID: Y3I-AVTQUADHH3 Made in China Freq. Group 2 CH. B (Green) PN: AVTQUADHH4 Frequency: 697.85 MHz FCC ID: Y3I-AVTQUADHH4 Made in China Freq. Group 2 CH. A (Red) PN: AVTQUADHH5 Frequency: 625.15 MHz FCC ID: Y3I-AVTQUADHH5 Made in China Freq. Group 1 CH. D (Gray) Do not put in trash PN: AVTQUADHH6 Frequency: 631.75 MHz FCC ID: Y3I-AVTQUADHH6 Made in China Freq. Group 1 CH. C (Pink) Do not put in trash PN: AVTQUADHH7 Frequency: 693.65 MHz FCC ID: Y3I-AVTQUADHH7 Made in China Freq. Group 1 CH. B (Yellow) Do not put in trash PN: AVTQUADHH8 Frequency: 696.65 MHz FCC ID: Y3I-AVTQUADHH8 Made in China Freq. Group 1 CH. A (Purple) Do not put in trash HANDHELDS BELTPACKS

APPLICANT: AVTRONICS FCC ID: Y3I-AVTQUADBP6 INTERNAL PHOTOS

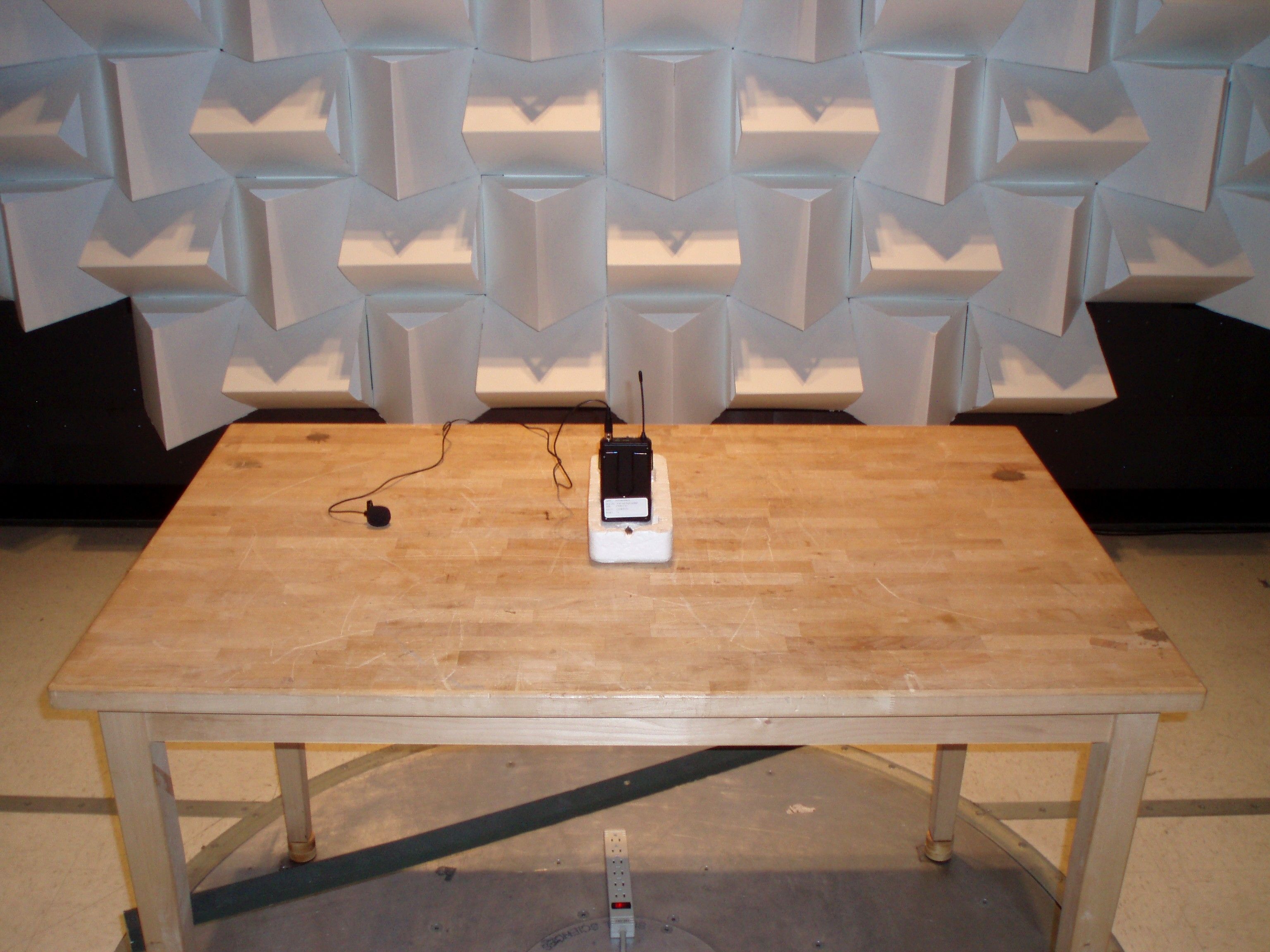

FCC PART 74 WIRELESS MICROPHONE TEST REPORT APPLICANT AVTRONICS CLARK TOWER-MEMPHIS 5100 POPLAR AVENUE - SUITE 2700 MEMPHIS TN 38137 USA FCC ID Y3I-AVTQUADBP6 PRODUCT DESCRIPTION BELTPACK WIRELESS MICROPHONE DATE SAMPLE RECEIVED 12/8/2010 DATE TESTED 1/31/2011 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 2768FT10TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 2 of 16 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................... 3 GENERAL INFORMATION ............................................................................................ 4 TEST PROCEDURES.................................................................................................... 6 RF POWER OUTPUT .................................................................................................... 7 MODULATION CHARACTERISTICS.............................................................................. 8 VOICE MODULATED COMMUNICATION EQUIPMENT ................................................ 9 OCCUPIED BANDWIDTH ........................................................................................... 11 FIELD STRENGTH OF SPURIOUS EMISSIONS .......................................................... 14 FREQUENCY STABILITY ............................................................................................ 15 EMC EQUIPMENT LIST ............................................................................................. 16 Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 3 of 16 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: Function: Engineer/ Lab Supervisor Date: February 8, 2011 Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 4 of 16 GENERAL INFORMATION RULES PART 2.1033 DUT TECHNICAL DESCRIPTION The test results relate only to the items tested. DUT Description BELTPACK WIRELESS MICROPHONE FCC ID Y3I-AVTQUADBP6 Modulation FM Type of Emission 110KOF3E Bn = 2M+2DK M = 15000 D = 40 kHz (Peak Deviation) K = 1 Bn = 2(15k) + 2(40k)(1) = 110k Frequency Range 631.75 MHz Test Frequencies 631.75 MHz Power range and controls DUT has no controls Maximum Output Power 0.029 Watts ERP DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 5 of 16 GENERAL INFORMATION Test Facility Timco Engineering, Inc. 849 NW State Road 45, Newberry, FL 32669 Test Condition The temperature was 26ºC with a relative humidity of 50%. Modifications None Test Exercise (e.g software description, test signal, etc.) The DUT was placed in continuous transmit mode of operation. Applicable Standards TIA 603, FCC CFR 47 Parts 2 and 74 Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 6 of 16 TEST PROCEDURES Power Line Conducted Interference: The procedure used was TIA 603 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: For a device with a fixed antenna, RF power is measured as ERP as the antenna is permanently attached. The substitution method was used as described in TIA-603- C. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was TIA 603 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the UUT was 76F with a humidity of 55%. Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 7 of 16 RF POWER OUTPUT Rule Part No.: Part 2.1046(a), Part 74 Test Requirements: Method of Measurement: For a device that has a permanently attached antenna, RF power is measured as ERP. The substitution method was used. With a nominal battery voltage, and the transmitter properly adjusted, the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWER: 0.029 Watts Part 2.1033 (C)(8) DC Input into the final amplifier (3.0V)(0.09A) = 0.27Watts Applicant: AVTRONICS FCC ID: Y3I-AVTQUADBP6 Report: A\AVTRONICS\2768FT10\2768FT10TestReport.doc Page 8 of 16 MODULATION CHARACTERISTICS Ru…
