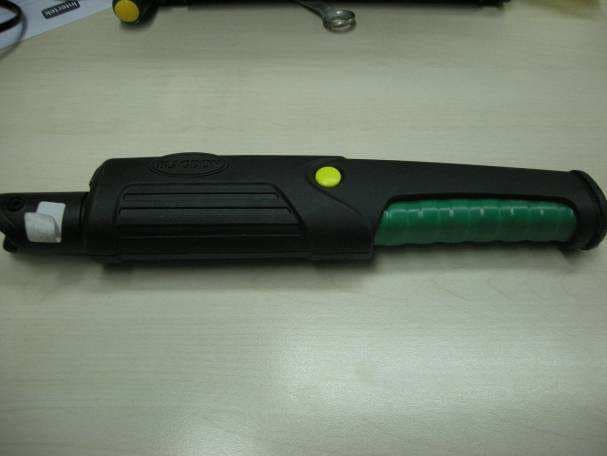

FCC ID: Y3M1050203 Page 1 of 2 External Picture FCC ID: Y3M1050203 Page 2 of 2

Y3M1050203 Page 1 of 3 FCC ID LABLE Y3M1050203 Page 2 of 3 Label Position Y3M1050203 Page 3 of 3 EUT Label

FCC ID: Y3M1050203 Page 1 of 5 Internal Picture FCC ID: Y3M1050203 Page 2 of 5 FCC ID: Y3M1050203 Page 3 of 5 FCC ID: Y3M1050203 Page 4 of 5 FCC ID: Y3M1050203 Page 5 of 5

FCC ID: Y3M1050203 Page 1 of 18 EMC TEST REPORT No. SH10100992-001 Applicant : Interpet Limited Hamwood, Bishops Hull Hill, Bishops Hull, Taunton, Somerset, England. TA1 5EA. Manufacturer : Hangzhou Cheerland Household Articles Co.,Ltd No.69 TongYun Road, GouZhuang, Yu Hang District, Hangzhou, China Equipment : Wireless Hand Held Transmitter Product number : 1050203 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2009): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: Dec 22, 2010 Prepared by: Reviewed by: Johnson Chen (Project Engineer) Daniel Zhao (Reviewer) FCC ID: Y3M1050203 Page 2 of 18 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: Y3M1050203 Page 3 of 18 Content DESCRIPTION OF TEST FACILITY................................................................................................................... 2 1. GENERAL INFORMATION...................................................................................................................... 4 1.1 Applicant Information............................................................................................. 4 1.2 Identification of the EUT........................................................................................ 4 1.3 Technical specification........................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used.............................. 5 2. TEST SPECIFICATION............................................................................................................................ 6 2.1 Instrument list.......................................................................................................... 6 2.2 Test Standard.......................................................................................................... 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION............................. 8 3.1 Test limit................................................................................................................... 8 3.2 Test Configuration.................................................................................................. 9 3.3 Test procedure and test setup.............................................................................. 9 3.4 Test protocol.......................................................................................................... 10 4. DEACTIVATING TIME.......................................................................................................................... 11 4.1 Test limit .................................................................................................................. 11 4.2 Test Configuration ................................................................................................... 12 4.3 Test procedure and test setup ................................................................................... 12 4.4 Test protocol ............................................................................................................ 12 5. EMISSION BANDWIDTH....................................................................................................................... 13 5.1 Test limit .................................................................................................................. 13 5.2 Test Configuration ................................................................................................... 13 5.3 Test procedure and test setup ................................................................................... 13 5.4 Test protocol ............................................................................................................ 14 ANNEX I. PHOTO OF TEST SETUP................................................................................................................. 15 APPENDIX II: PHOTOGRAPH OF EUT .......................................................................................................... 18 FCC ID: Y3M1050203 Page 4 of 18 1. General Information 1.1 Applicant Information Application : Interpet Limited Hamwood, Bishops Hull Hill, Bishops Hull, Taunton, Somerset, England. TA1 5EA. Name of contact : Adam J Newick Tel : 44(0)1823 250134 Manufacturer : Hangzhou Cheerland Household Articles Co.,Ltd No.69 TongYun Road, GouZhuang, Yu Hang District, Hangzhou, China Sample received date : 2010-11-17 Date of test : 2010-11-26 1.2 Identification of the EUT Equipment : Wireless Hand Held Transmitter Type/model : 1050203 FCC ID : Y3M1050203 FCC ID: Y3M1050203 Page 5 of 18 1.3 Technical specification Operation Frequency Band : 434.00MHz Modulation : ASK Antenna Designation : Internal antenna, non-user removable. Rating : Built-in Battery: DC 12V Working frequency: 434.00MHz Description of EUT : There is one model only. The EUT is a transmitter to transmit wireless signal so as to control the on/off condition of receiver. Channel Description : There is one channel only and working at the central frequency of 434.00MHz. 1.4 Mode of operation during the test / Test peripherals used Within this test report, EUT was tested with modulation and tested under its rating voltage and frequency. The EUT is a portable device, so three axes were observed while the test receiver worked as “max hold” continuously and the highest reading among the whole test procedure was recorded. FCC ID: Y3M1050203 Page 6 of 18 2. Test Specification 2.1 Instrument list Equipment Type Manu. Internal no. Cal. Date Due date Test Rec…

Text truncated - open the document above for the full version.

FCC ID: Y3M1050203 Page 1 of 12 Test Data FCC ID: Y3M1050203 Page 2 of 12 1. Fundamental & Spurious Emission & Restrict band radiated emission X Horizontal, PK Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x MES 1211v_red MES 1211v_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x Marker: 216 MHz 43.5 dBμV/m x MES 1211h_red MES 1211h_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Y3M1050203 Page 3 of 12 Horizontal, PK Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G 4G 4.5G Frequency [Hz] x x x x x x MES 12116v_red MES 12116v_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G 4G 4.5G Frequency [Hz] x x x x x x x MES 12116h_red MES 12116h_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Y3M1050203 Page 4 of 12 Y Horizontal, PK Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x MES 1211v1_red MES 1211v1_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x MES 1211h1_red MES 1211h1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Y3M1050203 Page 5 of 12 Horizontal, PK Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G 4G 4.5G Frequency [Hz] x x x x x x MES 12116v1_red MES 12116v1_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G 4G 4.5G Frequency [Hz] x x x x x x x MES 12116h1_red MES 12116h1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Y3M1050203 Page 6 of 12 Z Horizontal, PK Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x MES 1211v2_red MES 1211v2_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x MES 1211h2_red MES 1211h2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Y3M1050203 Page 7 of 12 Horizontal, PK Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G 4G 4.5G Frequency [Hz] x x x x x x x MES 12116v2_red MES 12116v2_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 1.5G 2G 2.5G 3G 3.5G 4G 4.5G Frequency [Hz] x x x x x x MES 12116h2_red MES 12116h2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: Y3M1050203 Page 8 of 12 2. Deactivating time FCC ID: Y3M1050203 Page 9 of 12 3. Emission Bandwidth FCC ID: Y3M1050203 Page 10 of 12 4. Duty Cycle Pulse Train of “On” key FCC ID: Y3M1050203 Page 11 of 12 Long Pulse FCC ID: Y3M1050203 Page 12 of 12 Short Pulse The coding have 15 long pulse and 10 short pulse. Duty cycle= (15*1.02+10*0.39)/35.33=0.54 As a result, the duty cycle of 0.54 is taken into calculation. Duty cycle correction factor =20 log (Ton/T)= 20 log 0.54= -5.35dB

FCC ID: Y3M1050203 Page 1 of 4 Test Setup FCC ID: Y3M1050203 Page 2 of 4 X axis 30Mhz-1Ghz 1Ghz-4.5Ghz FCC ID: Y3M1050203 Page 3 of 4 Y axis 30Mhz-1Ghz 1Ghz-4.5Ghz FCC ID: Y3M1050203 Page 4 of 4 Z axis 30Mhz-1Ghz 1Ghz-4.5Ghz
