Y4O-AW50Wireless Electronic Wind Instrument

Quickstart Guide English ( 3 – 5 ) Guía de inicio rápido Español ( 6 – 8 ) Guide d'utilisation rapide Français ( 9 – 11 ) Guida rapida Italiano ( 12 – 14 ) Schnellstart-Anleitung Deutsch ( 15 – 17 ) Appendix English ( 18 – 19 ) 3 Quickstart Guide (English) Introduction Box Contents EWI 5000 Neck Strap USB Wireless Receiver EWI 5000 Editor Software (download) USB Cable Quickstart Guide USB Power Adapter Safety and Warranty Manual Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit akaipro.com/ewi5000. (We recommend downloading the full EWI 5000 User Guide and sound editor software from the website, too.) For additional product support, visit akaipro.com/support. Getting Started Important Before operating the EWI 5000, please note the following:  Do not bite the mouthpiece too hard—this can damage the vibrato sensor. Use the mouthpiece cover after using or while carrying the EWI 5000.  Always touch the grounding plate and octave rollers when playing. These are sensors which use the performer's body as the ground.  Keep the mouthpiece clean before, during, and after using the EWI 5000. You can clean its outer surface with disinfectant alcohol. 1. Power the EWI 5000 The EWI 5000 has an internal rechargeable battery. Charge it by using the included USB cable to connect the EWI 5000's USB port to one of the following:  the included USB power adapter, connected to a power source  an available USB port on your computer, powered on When the battery power is low, an LED on the Program/Data Display will blink to indicate that you should charge the battery. When you are finished playing, power off the EWI 5000 to preserve its battery life. 2. Hold the EWI 5000 Properly 1. Secure the neck strap to the EWI 5000's neck strap mount. 2. Place the strap around your neck and hold the EWI 5000 in the same way you would hold a saxophone or clarinet, with the instrument vertically right in front of you. 3. When playing, place your left thumb on the octave rollers in the back, and place your right thumb on the grounding plate between the pitch bend plates. This will ensure the best possible conductivity and performance of the instrument. 4 3. Connect To play EWI 5000 audio wirelessly: 1. Use the included USB cable to connect the USB wireless receiver to your computer. 2. Press the EWI 5000's Power Button to power it on. 3. Press the USB wireless receiver's Pair Button. 4. Set the EWI 5000's Wireless Switch to On. It will then "connect" to the USB wireless receiver. The USB wireless receiver will send the EWI 5000's audio to your computer and to its Line Outs. (The USB wireless receiver's Line Outs will not play any signal from your computer.) To play EWI 5000 audio through an external amplifier, audio interface, etc.: 1. Use a standard 1/4" (6.35mm) cable to connect the EWI 5000's Line Out to the line-level input of your keyboard amplifier, audio interface, etc. 2. Press the EWI 5000's Power Button to power it on. 3. Set the EWI 5000's Wireless Switch to Off. The EWI 5000 will then send audio to your keyboard amplifier, audio interface, etc. when you play. To play EWI 5000 audio through headphones: 1. Connect standard 1/8" (3.5mm) stereo headphones to EWI 5000's Phones jack. 2. Press the EWI 5000's Power Button to power it on. 3. Set the EWI 5000's Wireless Switch to Off. The EWI 5000 will then send audio to your headphones when you play. To play EWI 5000 as a wired MIDI controller: 1. Use the included USB cable to connect the EWI 5000's USB port to your computer. 2. Press the EWI 5000's Power Button to power it on. 3. Set the EWI 5000's Wireless Switch to Off. The EWI 5000 will then send MIDI data to your computer via USB when you play. (It will not send any audio.) LINE OUT PAIRED/POWER LR AmplifierAmplifier or 5 4. Play! Hold the mouthpiece gently between your lips with your teeth, and exhale so your breath passes through both sides of your mouth. The EWI 5000 detects this wind pressure with the breath sensor and expresses the change in sound volume and character, depending on how you blow. (It should not take much breath to activate the instrument.) Tips:  There is a vibrato sensor in the mouthpiece. You can produce a vibrato effect by gently biting the mouthpiece, which will bend the pitch down each time you bite, but do not bite too hard.  You can create small bursts of air by tonguing the mouthpiece for even more expressive control. Note Keys: The note keys are sensors that let you produce sound with only a light touch. The EWI 5000 has multiple fingering options, so it can feel familiar to saxophonists, flutists, etc. You can adjust the position of the three lowest keys by loosening the screws that hold each of them in place. Octave Rollers: Place your left thumb between any two octave rollers (and over the grounding plate) on the EWI 5000's back panel. Slide your thumb up or down across the octave rollers to shift its octave range up or down. While playing, keep your left thumb in contact with the octave rollers. The position between the two knurled octave rollers indicates the standard pitch. Glide Plate: While playing a note, move your thumb across the octave rollers (without rolling them) while touching the glide plate on their right side to create a "glide" effect. This will smoothly and continuously slide the pitch up or down—a technique known as portamento. Pitch Bend Plates: Touch your thumb to either of these plates to move the pitch of the note you are playing up or down. Touch the upper plate to bend the pitch upward or the lower plate to bend the pitch downward. Before you get accustomed to using these plates, you may produce unexpected sounds by touching them accidentally. You can adjust the position of each plate by loosening its screw. Important: If the EWI 5000's note keys, octave rollers, pitch bend plates, or glide plates are not very responsive, it could be because you are playing with dry…

Text truncated - open the document above for the full version.

Date: December 27, 2013 Federal Communications Commission Authorization and Evaluation Division FCC ID：Y4O-AW50 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: XXXXX/XXXXXX Applicant: XXXXXXXXXX ADDRESS: XXXXXXXXXX TEL: XXXXXXXXX FAX: XXXXXXXXX Email: XXXXXXXXXXXX

Date: December 27, 2013 FCC ID：Y4O-AW50 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: AKAI / EWI5000 FCC ID: Y4O-AW50 Product Name: Wireless Electronic Wind Instrument Signature Name: David Gill Title: Engineering Director Tel: 401-658-3131x1337 E-mail: [email protected]

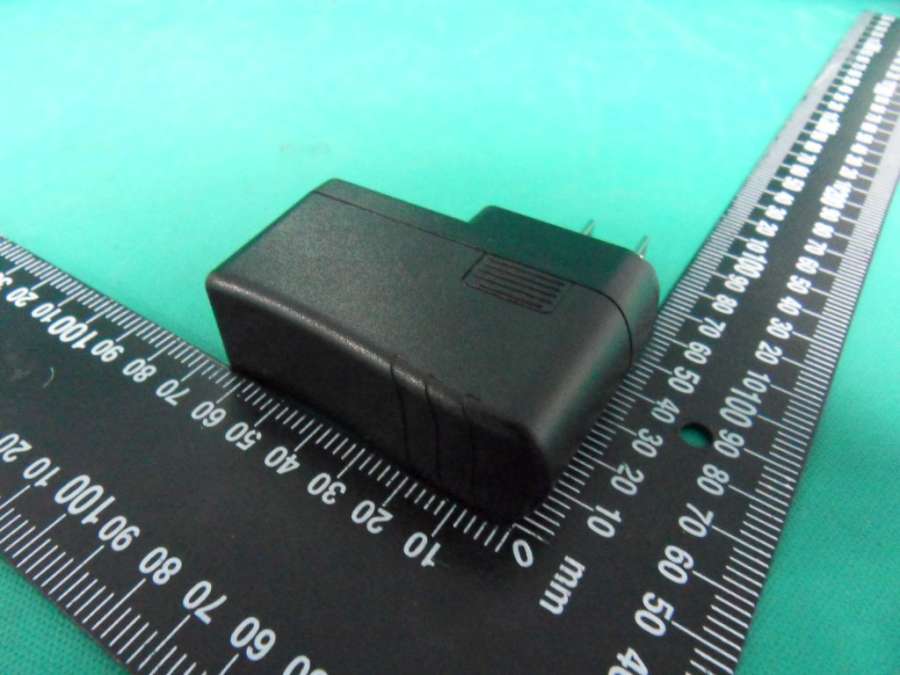

Compliance Certification Services Inc. Report No.：T131111N01 Page A1 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A2 / 23 External Photo ( EWI5000 ) Compliance Certification Services Inc. Report No.：T131111N01 Page A3 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A4 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A5 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A6 / 23

Label Drawing and Location Company: inMusic Brands, Inc. Product : Wirless Electronic Wind Instrument Model : EWI5000 Rear Side of Product Label Here

Compliance Certification Services Inc. Report No.：T131111N01 Page A7 / 23 Internal Photo Compliance Certification Services Inc. Report No.：T131111N01 Page A8 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A9 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A10 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A11 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A12 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A13 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A14 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A15 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A16 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A17 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A18 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A19 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A20 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A21 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A22 / 23 Compliance Certification Services Inc. Report No.：T131111N01 Page A23 / 23

RF EXPOSURE STATEMENT FCC ID: Y4O-AW50 According to KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498, no SAR required if power is lower than the flowing threshold: Frequency Rang Low Frequency (MHz) High Frequency (MHz) Center Frequency (MHz) SAR Limitation 2406 2474 2442 10 Peak and average measured transmitter power of this device is: Mode CH AV Output power(mW) Antenna Gain(dBi) Maximum AV EIRP(mW) CH1 6.71 1.16 8.80 8FSK CH6 6.11 1.16 8.00 CH11 6.04 1.16 7.91 Threshold at which no SAR required is 10 mW. Maximum Tx Average power is 8.80 mW EIRP. Conclusion: No SAR is required.

Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 1 / 59 FCC 47 CFR PART 15 SUBPART C: 2012 AND ANSI C63.4: 2009 TEST REPORT For Wireless Electronic Wind Instrument Model Number: EWI5000 Brand: AKAI Issued for inMusic Brands, Inc. 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: December 4, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 2 / 59 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 4, 2013 Initial Issue ALL Eva Lin Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 3 / 59 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ..........................................................................................4 2. EUT DESCRIPTION ...............................................................................................................5 3. DESCRIPTION OF TEST MODES .........................................................................................6 4. TEST METHODOLOGY .........................................................................................................7 5. FACILITIES AND ACCREDITATIONS...................................................................................7 5.1 FACILITIES ....................................................................................................................................... 7 5.2 EQUIPMENT ..................................................................................................................................... 7 5.3 LABORATORY ACCREDITATIONS LISTINGS ................................................................................ 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS .............................................................................. 8 6. CALIBRATION AND UNCERTAINTY....................................................................................9 6.1 MEASURING INSTRUMENT CALIBRATION ................................................................................... 9 6.2 MEASUREMENT UNCERTAINTY ....................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST..............................................................................10 7.1 SETUP CONFIGURATION OF EUT ............................................................................................... 10 7.2 SUPPORT EQUIPMENT................................................................................................................. 11 7.2 SUPPORT EQUIPMENT................................................................................................................. 12 7.3 EUT OPERATING CONDITION ...................................................................................................... 13 8. APPLICABLE LIMITS AND TEST RESULTS......................................................................15 8.1 6DB BANDWIDTH........................................................................................................................... 15 8.2 MAXIMUM PEAK OUTPUT POWER .............................................................................................. 19 8.3 POWER SPECTRAL DENSITY ......................................................................................................25 8.5 CONDUCTED SPURIOUS EMISSION ........................................................................................... 32 8.6 RADIATED EMISSIONS ................................................................................................................. 37 8.7 POWERLINE CONDUCTED EMISSIONS ...................................................................................... 50 9. ANTENNA REQUIREMENT .................................................................................................54 9.1 STANDARD APPLICABLE.............................................................................................................. 54 9.2 ANTENNA CONNECTED CONSTRUCTION.................................................................................. 54 APPENDIX I SETUP PHOTOS ................................................................................................55 APPENDIX II PHOTOGRAPHS OF EUT.....................................................................A1 Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 4 / 59 1. TEST REPORT CERTIFICATION Applicant ： inMusic Brands, Inc. Address ： 200 Scenic View Drive, Suite 201 Cumberland, RI 02864, U.S.A. Equipment Under Test ： Wireless Electronic Wind Instrument Model Number ： EWI5000 Brand Name ： AKAI Date of Test ： November 14, 2013 – November 25, 2013 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C: 2012 AND ANSI C63.4 : 2009 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 5 / 59 2. EUT DESCRIPTION Product Name Wireless Electronic Wind Instrument Model Number EWI5000 Brand Name AKAI Received Date November 11, 2013 Operating Frequency Range 8GFSK Mode : 2406MHz~2474MHz Transmit Power 8GFSK Mode : 14.43 dBm Channel Spacing 8GFSK Mode : 4 MHz Channel Number 8GFSK Mode : 18 Channels Transmit Data Rate 8GFSK Mode…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 57 / 61 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 58 / 61 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 59 / 61 Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 60 / 61 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：Y4O-AW50 Report No.：T131111N01-A-RP1 Page 61 / 61 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
