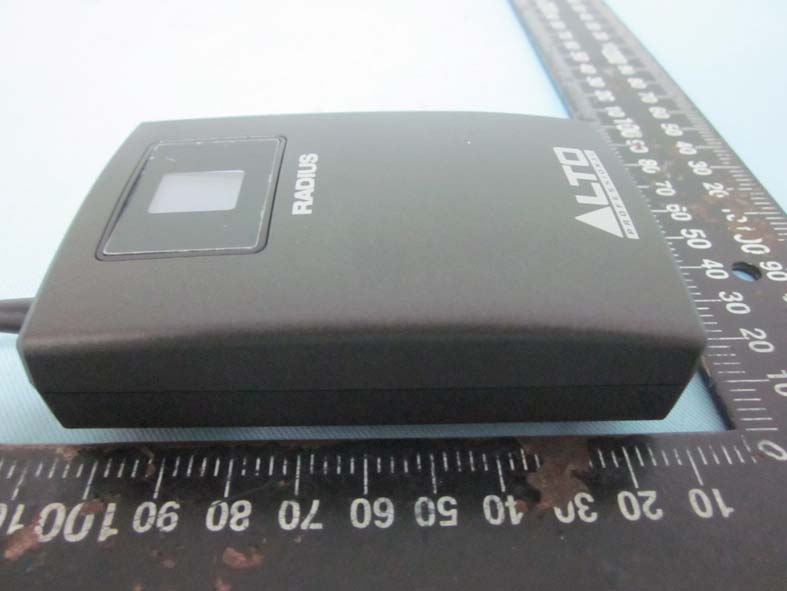

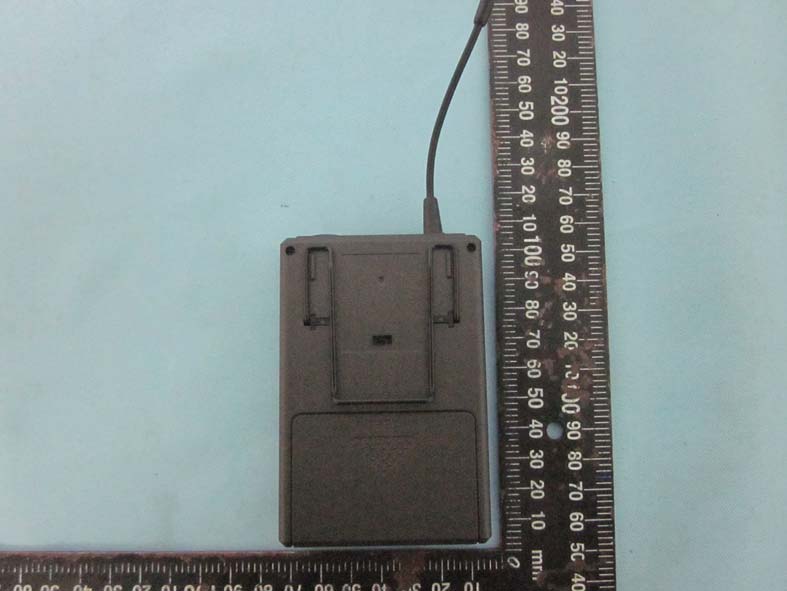

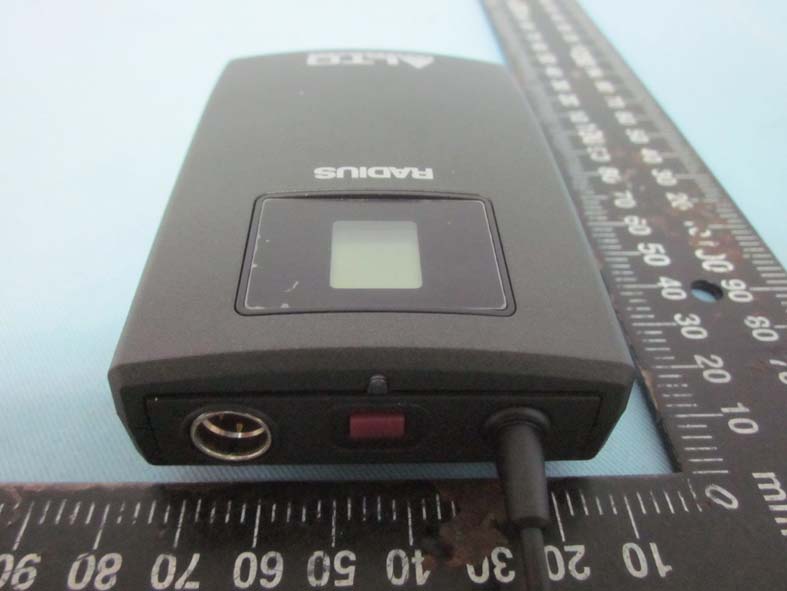

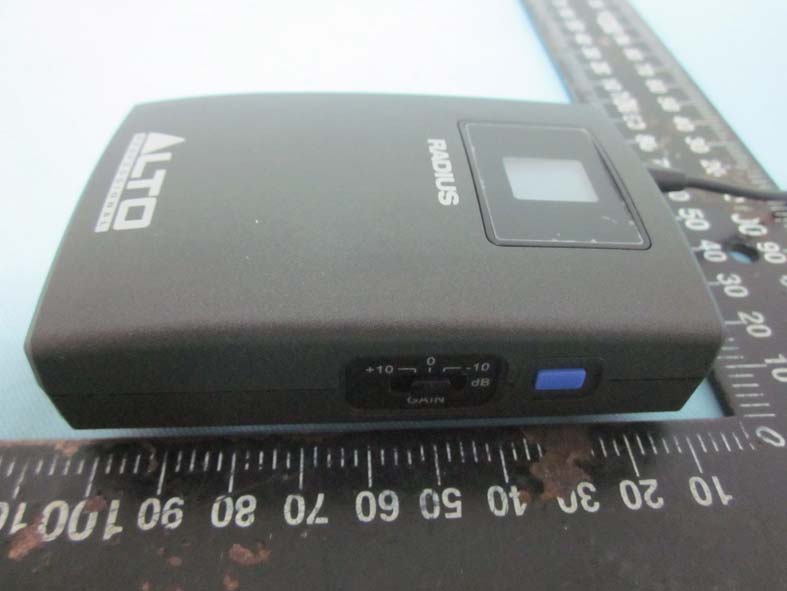

Y4O-BPTWireless Bodypack Transmitter Microphone

User Guide English ( 3 – 11 ) Guía del usuario Español ( 12 – 20 ) Guide d’utilisation Français ( 21 – 29 ) Guida per l’uso Italiano ( 30 – 38 ) Benutzerhandbuch Deutsch ( 39 – 47 ) Gebruikershandleiding Nederlands ( 48 – 56 ) Appendix English ( 58 – 59 ) 3 User Guide (English) Introduction Features • All-in-one, easy-to-use wireless microphone system for professional applications • Dual-antenna UHF diversity receiver for increased reliability and signal consistency • UHF band operation (520–937.5MHz), regionally selected • Receiver includes a high-visibility back-lit LCD display: Displays RF frequency and channel, AF and RF signal levels and other critical functions • Radius 100: Hand-held condenser vocal microphone transmitter with integrated LCD display • Radius 100H: High-quality headset microphone and wireless belt-pack transmitter • Radius 100L: High-quality lavalier/lapel microphone with included clip and wireless belt-pack transmitter • Radius 100M: Wireless belt-pack transmitter and 1/4” (6.35mm) instrument cable • Single-button scan feature for quickly identifying the optimal operating frequency • Sync function automatically synchronizes transmitter and receiver frequency • Squelch control for maximum clarity and dynamic range • Front-panel rotary volume control • Balanced XLR and unbalanced 1/4” (6.35mm) mic or line-level outputs Box Contents Radius 100 Radius 100 Receiver Radius HHT Condenser Microphone Transmitter Rackmount and Coupling Brackets (screws included) 1/4” (6.35mm) Unbalanced Audio Cable (3 feet / 1 meter) Power Adapter 2 AA Batteries User Guide Safety & Warranty Manual Radius 100H Radius 100 Receiver Radius HSM Headset Microphone Transmitter Radius BPT Wireless Belt-Pack Transmitter Rackmount and Coupling Brackets (screws included) 1/4” (6.35mm) Unbalanced Audio Cable (3 feet / 1 meter) Power Adapter 2 AA Batteries User Guide Safety & Warranty Manual Radius 100L Radius 100 Receiver Radius LVM Lavalier Microphone Transmitter Radius BPT Wireless Belt-Pack Transmitter Rackmount and Coupling Brackets (screws included) 1/4” (6.35mm) Unbalanced Audio Cable (3 feet / 1 meter) Power Adapter 2 AA Batteries User Guide Safety & Warranty Manual Radius 100M Radius 100 Receiver Radius BPT Wireless Belt-Pack Transmitter Rackmount and Coupling Brackets (screws included) 1/4” (6.35mm) Instrument Adapter Cable 1/4” (6.35mm) Unbalanced Audio Cable (3 feet / 1 meter) Power Adapter 2 AA Batteries User Guide Safety & Warranty Manual Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit altoprofessional.com. 4 Important Safety Precautions Please note: Alto Professional and inMusic are not responsible for the use of its products or the misuse of this information for any purpose. Alto Professional and inMusic are not responsible for the misuse of its products caused by avoiding compliance with inspection and maintenance procedures. Please also refer to the included safety and warranty manual for more information. Cables Make sure your cables are out of the way of performers, production crew, and audience so they will not trip over them. Sound Level Permanent hearing loss may be caused by exposure to extremely high noise levels. The U.S. Occupational Safety and Health Administration (OSHA) has specified permissible exposures to certain noise levels. According to OSHA, exposure to high sound pressure levels (SPL) in excess of these limits may result in hearing loss. When using equipment capable of generating high SPL, use hearing protection while such equipment is under operation. Hours per day SPL (dB) Example 8 90 Small gig 6 92 Train 4 95 Subway train 3 97 High level desktop monitors 2 100 Classical music concert 1.5 102 Riveting machine 1 105 Machine factory 0.50 110 Airport 0.25 or less 115 Rock concert 5 Features Transmitter Your Radius 100 includes one of the following transmitter systems: • Radius 100: a hand-held condenser vocal microphone transmitter • Radius 100H: a headset microphone and wireless belt-pack transmitter • Radius 100L: a lavalier microphone and wireless belt-pack transmitter • Radius 100M: a 1/4” (6.35mm) instrument adapter cable and wireless belt-pack transmitter Condenser Microphone Transmitter (Radius 100) 1. Power/Mute Button: Press this button for 4 seconds to power the transmitter on or off. When the transmitter is on, press this button briefly to mute or unmute the microphone. 2. Power/Mute LED: This light indicates the power or mute status: • Red light: The transmitter is on. • Flashing red light: The transmitter is low on battery power. • Blue light: The transmitter is muted. • Flashing blue light: The transmitter is muted and low on battery power. 3. Sync Button: Press this button to synchronize the transmitter with the receiver. See Operation to learn more. 4. Display: This display shows the current channel and battery power level. 5. Battery Compartment (not pictured): Insert 2 AA batteries into the compartment. Make sure the polarities of the batteries (+ and –) are correct. 6. Grille: This mesh protects the microphone capsule and reduces noise from air and breath. 6 4 3 5 2 1 6 Belt-Pack Transmitter (for Radius 100H headset, Radius 100L lavalier microphone, or Radius 100M instrument cable) 1. Power/Mute Button: Press this button for 2 seconds to power the transmitter on or off. Press this button briefly to mute or unmute the transmitter. 2. Power/Mute LED: This light indicates the power or mute status: • Red light: The transmitter is on. • Flashing red light: The transmitter is low on battery power. • Blue light: The transmitter is muted. • Flashing blue light: The transmitter is muted and low on battery power. 3. Sync Button: Press this button to synchronize the transmitter with the receiver. See Operation to learn more. 4. Display: This display shows the current channel and battery power level. 5. Battery Compartment (not pictured): Insert 2 AA batteries into th…
