Y4O-ENVOIGOPortable Speaker System (Tentative)

8 9 PACKAGE PA SYSTEM Free Traveller series FT6500 FT6500 Speaker Mixer Amplifier 6 channel inputs 2 mic/line channel inputs(XLR&TRS) 2 stereo selectable front AUX inputs (1/8'' /1/4'' /RCA) 1 stereo preamp inputs (1/4'' TRS) USB/SD input with MP3/WMA player Wireless by Blue-Tooth connection Pre-amp out (L/R) & FX ouput 2*75W RMS TRS jack power output jack Base and Tremble EQ per channel 16 preset model with DSP control EFX volume control per channel separatley Volume control per channel / main volume control 115V / 230V ~50/60 Hz switchable DC12V/2.8AH*2 rechargeable battery Class D amplifier and switching power design LED power / siganl / clip indicator Molded plastic cabinet / 35mm stand pole Built-in rechargeable battery delivers up to 5 hours of cordless sound 2 way vented design 90-20K Hz 92dB/M/W 8 ohm 2*3 inch full-range driver 6.5 inches woofer driver 1/4'' jack input molded plastic cabinet with handle steel with foam inside 35mm stand pole 62.5*26.5*49.5CM/1PC/17KG Inputs Outputs Power output Equalizer Echo EFX Volume power supply Features Type Frequecny response Senstivity Impedance Driver Connector Cabinet Grill Pole MEAS / G.W. F T 610 0 Speaker Mixer Amplifier 6 channel inputs 2 mic/line channel inputs(XLR&TRS) 2 stereo selectable front AUX inputs (1/8'' /1/4'' /RCA) 1 stereo preamp inputs (1/4'' TRS) Pre-amp out (L/R) & FX ouput 150W RMS TRS jack power output jack Base and Tremble EQ per channel AUX volume control per channel separatley Volume control per channel / main volume control 115V / 230V ~50/60 Hz switchable Class D amplifier and switching power design LED power / siganl / clip indicator Molded plastic cabinet 35mm stand pole 2 way vented design 90-20K Hz 92dB/M/W 8 ohm 2*3 inch full-range driver 6.5 inches woofer driver 1/4'' jack input molded plastic cabinet with handle steel with foam inside 35mm stand pole 62.5*26.5*49.5CM/1PC/17KG Inputs Outputs Power output Equalizer AUX Volume power supply Features Type Frequecny response Senstivity Impedance Driver Connector Cabinet Grill Pole MEAS / G.W. 4 LDPE 4 LDPE 6 Channel 150W RMS 6 Channel 2*75W RMS (DSP+BlueTooth +MP3+Battery) Accessaries: Speaker Cable x 2 Power Cable Portable PA System FT6500 6 Channel 2x75W 10 Channel 2x300W FT8500 12V/2.8AH*2 BATTERY Envoi GO Portable Speaker System (Tentative) DENON PROFESSIONAL FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction.

DATE : 2015-11-27 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _ Y4O-ENVOIGO __________ Product Nam e:_ Portable Speaker System (Tentative)_________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this: 2015-11-27 Agency agreement expiration date: Usually Give 8 - 12 Months By: Jacky Liao Signature Printed Title: Saty/EMI Dept Manager On behalf of : INMUSIC BRANDS INC Telephone: +866-2-2717-2389

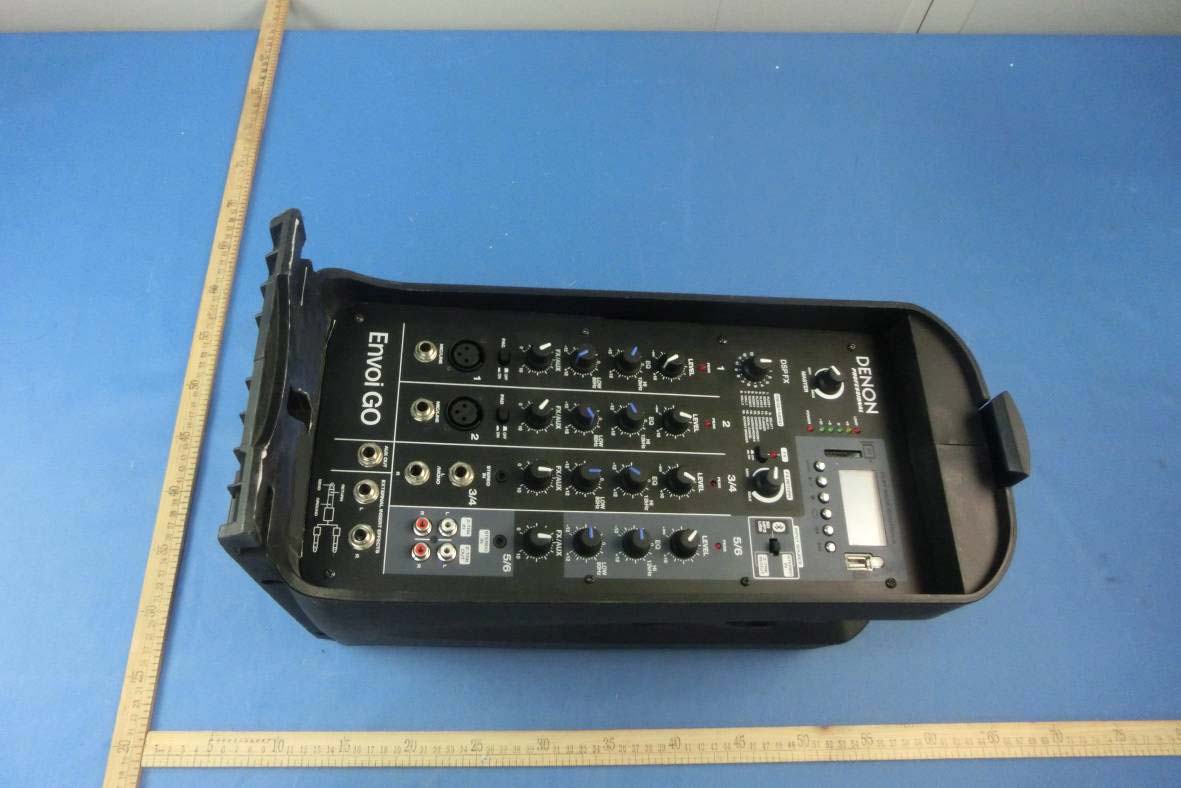

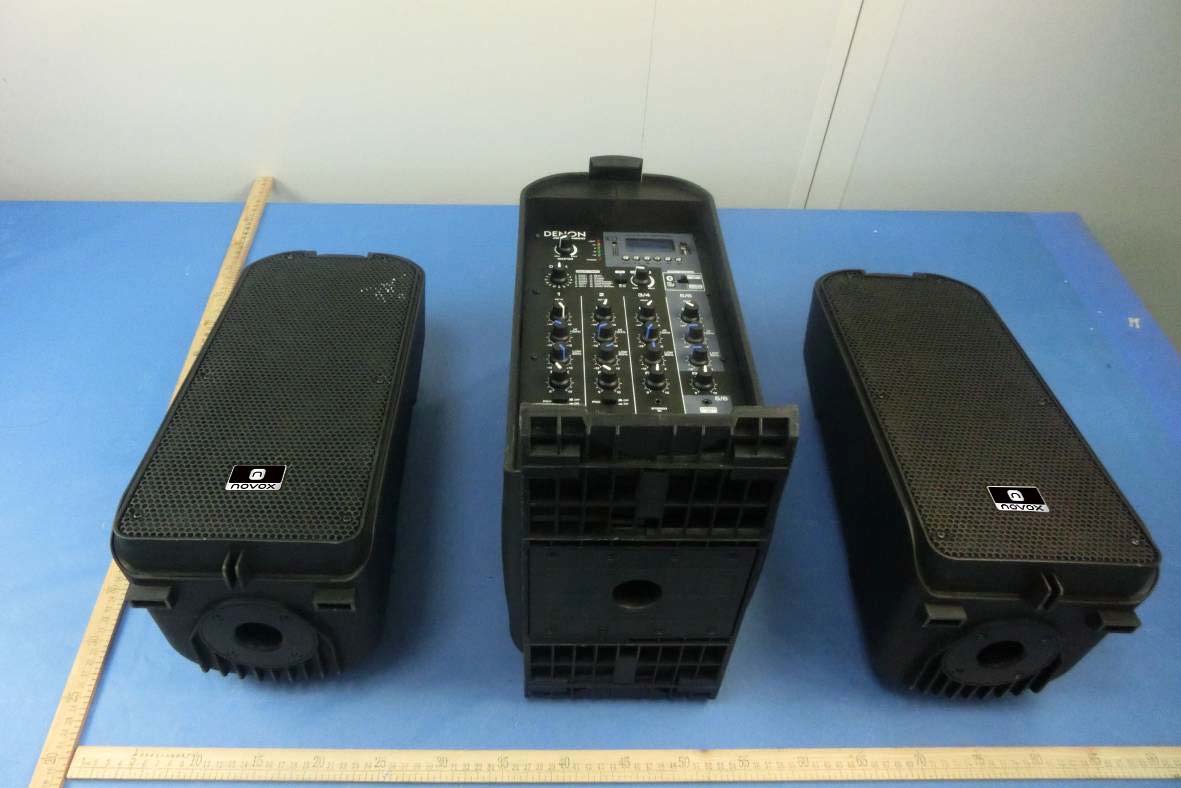

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15

FCC ID LABELING AND LOCATION FCC ID Label FCC ID: Y4O-ENVOIGO This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 ANT Photo 9 Photo 10 Photo 11 Photo 12

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480 MHz -0.713dBm（0.849 mW）output power] (0.849 mW /5mm) ·[√2.480(GHz)]= 0.27 <3.0 for 1-g SAR Then SAR evaluation is not required

FCC RADIO TEST REPORT-BT FCC ID:Y4O-ENVOIGO Product烉 Portable Speaker System (Tentative) Trade Name 烉 DENON PROFESSIONAL Model Name烉 Envoi GO Serial Model烉 N/A Report No.烉 NTEK-2015NT0907659F Prepared for INMUSIC BRANDS INC 200 Scenic View Drive, Suite 201 CUMBERLAND, Rhode Island 02864, United States Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn  Page 2 of 67 Report No.:NTEK-2015NT0907659F TEST RESULT CERTIFICATION Applicant’s name ................. : INMUSIC BRANDS INC Address ................................. : 200 Scenic View Drive, Suite 201 CUMBERLAND, Rhode Island 02864, United States Manufacture's Name ............ : INMUSIC BRANDS INC Address ................................. : 200 Scenic View Drive, Suite 201 CUMBERLAND, Rhode Island 02864, United States Product description Product name ........................... : Portable Speaker System (Tentative) Model and/or type reference : Envoi GO Serial Model烉 N/A Standards ............................. : FCC Part15.247: 01 Oct. 2015 Test procedure ..............................ANSI C63.10-2013 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 07 Sep. 2015 ~29 Oct. 2015 Date of Issue ........................................... : 29 Oct. 2015 Test Result ............................................... : Pass Testing Engineer : (Jason Chen) Technical Manager : (Brown Lu) Authorized Signatory : (Sam Chen) Page 3 of 67 Report No.:NTEK-2015NT0907659F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . NUMBER OF HOPPING CHANNEL 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . AVERAGE TIME OF OCCUPANCY 27 5.1 APPLIED PROCEDURES / LIMIT 27 Page 4 of 67 Report No.:NTEK-2015NT0907659F Table of Contents Page 5.1.1 TEST PROCEDURE 27 5.1.2 DEVIATION FROM STANDARD 27 5.1.3 TEST SETUP 28 5.1.4 EUT OPERATION CONDITIONS 28 5.1.5 TEST RESULTS 29 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 35 6.1 APPLIED PROCEDURES / LIMIT 35 6.1.1 TEST PROCEDURE 35 6.1.2 DEVIATION FROM STANDARD 35 6.1.3 TEST SETUP 35 6.1.4 EUT OPERATION CONDITIONS 35 6.1.5 TEST RESULTS 36 7 . BANDWIDTH TEST 42 7.1 APPLIED PROCEDURES / LIMIT 42 7.1.1 TEST PROCEDURE 42 7.1.2 DEVIATION FROM STANDARD 42 7.1.3 TEST SETUP 42 7.1.4 EUT OPERATION CONDITIONS 42 7.1.5 TEST RESULTS 43 8 . PEAK OUTPUT POWER TEST 49 8.1 APPLIED PROCEDURES / LIMIT 49 8.1.1 TEST PROCEDURE 49 8.1.2 DEVIATION FROM STANDARD 49 8.1.3 TEST SETUP 49 8.1.4 EUT OPERATION CONDITIONS 49 8.1.5 TEST RESULTS 50 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 56 9.1 DEVIATION FROM STANDARD 56 9.2 TEST SETUP 56 9.3 EUT OPERATION CONDITIONS 56 9.4 TEST RESULTS 57 10 . ANTENNA REQUIREMENT 65 10.1 STANDARD REQUIREMENT 65 10.2 EUT ANTENNA 65 11 . EUT TEST PHOTO 66 Page 5 of 67 Report No.:NTEK-2015NT0907659F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 67 Report No.:NTEK-2015NT0907659F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y² U炻 where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2炻 providing a level of confidence of approximately 95 % ˤ No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 67 Report No.:NTEK-2015NT0907659F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Portable Speaker System (Tentative) Trade Name DENON PROFESSIONAL Model Name Envoi GO Serial Model N/A Model DifferenceN/A Product Description The EUT is …

Text truncated - open the document above for the full version.

Page 66 of 67 Report No.:NTEK-2015NT0907659F 11. EUT TEST PHOTO Radiated Measurement Photos Page 67 of 67 Report No.:NTEK-2015NT0907659F CONDUCTED EMISSION Photos
