Y4O-ENVOISPortable AC/Battery-Powered Speaker System

INMUSIC BRANDS INC
Portable AC/Battery-Powered Speaker System - FCC ID Y4O-ENVOIS - INMUSIC BRANDS INC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Aug 25, 2015
Application Purpose
Original Equipment
Date of Application
Aug 25, 2015
Equipment Note
Portable AC/Battery-Powered Speaker System
Frequency Range
2402.00000000 - 2480.00000000
Company
INMUSIC BRANDS INC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Envoi User Guide English ( 3 – 10 ) Guía del usuario Español ( 11 – 18 ) Guide d'utilisation Français ( 19 – 26 ) Guida per l'uso Italiano ( 27 – 34 ) Benutzerhandbuch Deutsch ( 35 – 42 ) Appendi x English ( 43 ) 3 User Guide (English) Introduction • 2-way active speaker (10" woofer, 1" compression HF driver) • Built-in rechargeable battery provides up to 12 hours of sound • Full-range, highly musical frequency response: 55–20kHz • 360 watts Class D power (AC power line), 240 watts (DC battery-powered) • Bluetooth connection for wireless audio streaming • USB/SD MP3/WMA Player for unattended playback with LCD display • Pole-mount socket, telescoping handle and transport wheels built-in Please see this guide’s Setup chapter to learn how to integrate Envoi with your audio system, and then refer to the Operation chapter to start using Envoi. 1. Make sure all items listed in the Box Contents are included in the box. 2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT. 3. Study the connection diagram. 4. Make sure all input devices such as microphones, CD players, or digital media players are turned off and volume settings are set at "zero." 5. Connect all devices as shown. 6. Switch everything on in the following order: • audio input sources (i.e. microphones, instruments, CD players) • Envoi 7. When turning off, always reverse this operation: • Envoi • any input devices Box Contents Envoi Power Cable (standard IEC) 2 AA Batteries Wireless Microphone Wireless Microphone Antenna 1/8” – 1/8” cable User Guide Safety Instructions & Warranty Information Booklet Support The microphone, antenna, and 1/8” (3.5mm) cable can be stored in the top compartment. For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit denonpro.com . 4 Rechargeable Batteries Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery. General Usage Charge fully before use. Charge fully before storing. Storage For best product longevity, do not store at exceedingly hot (greater than 90°F / 32°C) or exceedingly cold (less than 32°F / 0°C) temperatures. It is acceptable to leave your sound system plugged in. This will not overcharge the battery. If you leave the battery level low and do not charge it for 6 months, it may permanently lose capacity. Repair If the battery fails to charge, check the fuse near the power cable input. If the fuse is not intact, please replace it. The battery can be replaced (details in the Technical Specifications). For Warranty and Parts, visit denonpro.com . Disposal Bring the unit to a recycling center or dispose of in accordance with local ordinances. Setup Connection Diagram Items not listed under Introduction > Box Contents are sold separately. Tablet Power Smartphone Microphone Wireless Microphone 5 Features Rear Panel 1. Display: Displays the Media Panel modes for Bluetooth, USB, and SD. 2. USB Port: Connect your USB flash drive to play MP3 and WMA music files. 3. SD Card Slot: Insert your SD card here to play MP3 and WMA music files. 4. Media Panel: Controls for the Bluetooth, SD, and USB sources. The Media Panel Mode source symbol will illuminate when that source is playing. 5. Mic Input (1/4" / 6.35mm and XLR): Connect a dynamic microphone to the 1/4” (6.35mm) or XLR inputs. Control the volume of these inputs using the Mic Input volume knob. When connecting a microphone, make sure the Line/Mic button is pressed down for Mic mode. When connecting a line-level device, such as a keyboard, drum machine, CD player, etc, make sure the button is in the raised position for Line mode. 6. Aux Input (1/8" / 3.5mm): Connect a CD player, digital media player, or other audio source to this 1/8” (3.5 mm) stereo auxiliary input. Control the output volume using the Aux/MP3 Level knob (with the switch in the Aux position). 7. RCA Inputs: Connect a CD player, digital media player, mixer, or other media source to these inputs. Remove the rubber covers on the inputs to attach your cables. 8. Line Output (1/4" / 6.35mm): Connect this 1/4" (6.35mm) output to another active (powered) speaker. The level of the output is controlled by each channel’s Level knob and the Master Volume knob. 9. High EQ: Increases or decreases the high (treble) frequencies at a range between -12dB to + 12dB. 10. Low EQ: Increases or decreases the low (bass) frequencies at a range between -12dB to + 12dB. 11. Power/Clip LED: This LED will be solid green when powered on. The LED will flash red if the signal from the inputs or Media Panel source is clipping. If this happens, decrease the setting of the Mic Input volume knob, Line Level volume knob, or Media Panel volume knob. 12. Aux/MP3 Switch: When the button is depressed, the Aux signal will pass through. When the button is raised, the MP3/Bluetooth signal will pass through. Use the Aux/MP3 Level knob below it to control the volume of sound source. 13. Power On/Off Switch: Turns Envoi on or off. 14. Power Cable Input (IEC): Insert the included power cable here to power the unit. 2 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 20 21 22 17 6 15. Voltage Selector: If your unit has a voltage selector switch, change its setting only when necessary (e.g., when traveling to a country or region with a different voltage), and replace the fuse with one with an appropriate rating (printed under the unit’s power cable input, next to the desired voltage). Selecting an improper voltage setting or using a fuse with an incorrect rating can damage the unit and/or fuse. 16. Fuse: If the fuse needs replacing, use a fuse rated at T2.5AL/250V for voltages of 220-240V; for voltages of 100-120V, use a fuse rated at T5AL/250V. 17. Charge Indicator: When connected to AC powe…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 INMUSIC BRANDS INC 2015-07-29 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ INMUSIC BRANDS INC __ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product: Portable AC/Battery-Powered Speaker System Trade Name: DENON PROFESSIONAL Model Name: Envoi Serial Model: N/A FCC ID: Y4O-ENVOIS Sincerely, Signature Client’s name / title : Jacky liao / Saty/EMI Dept Manager Contact information / address : 200 Scenic View Drive, Suite 201 CUMBERLAND, Rhode Island 02864, United States

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 INMUSIC BRANDS INC 2015-07-29 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: Y4O-ENVOIS We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title : Jacky liao / Saty/EMI Dept Manager Contact information / address : 200 Scenic View Drive, Suite 201 CUMBERLAND, Rhode Island 02864, United States

External Photos

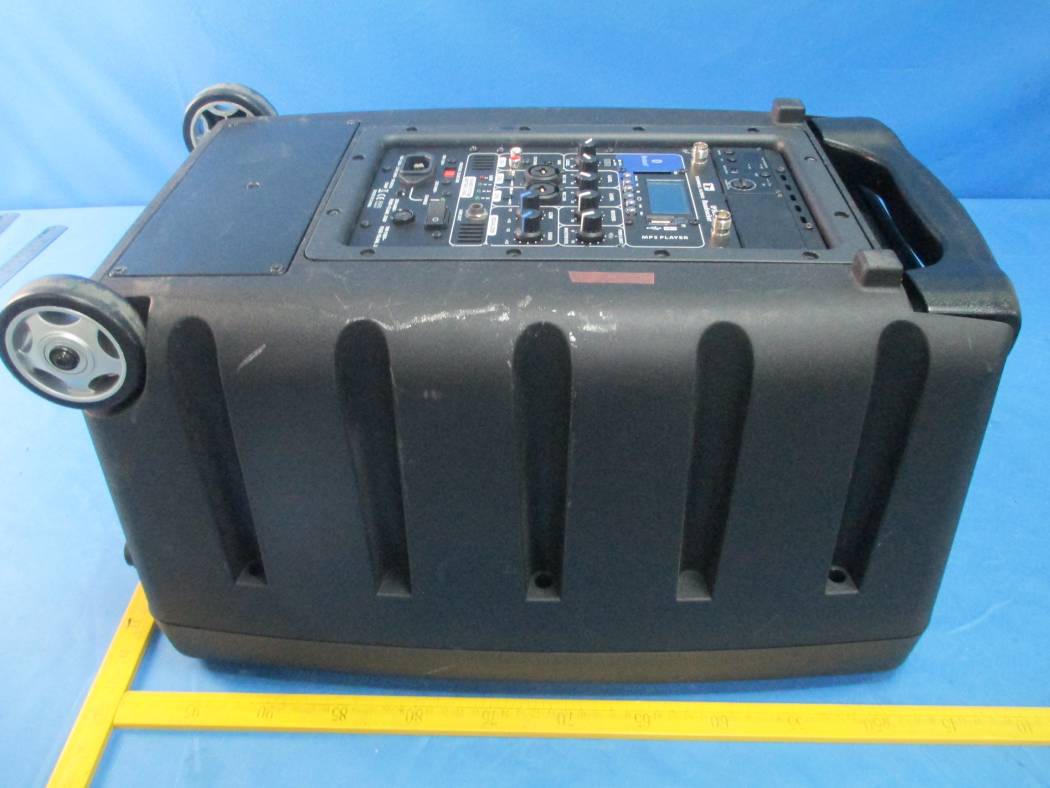

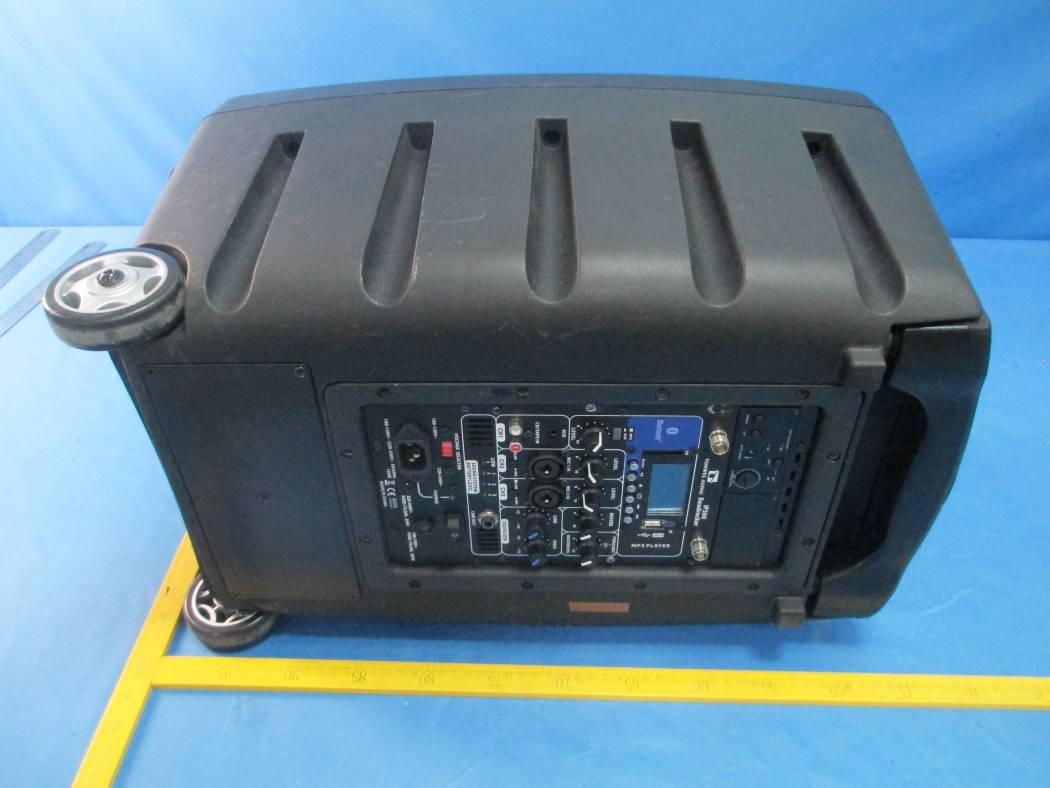

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6
