Y4O-ISP15Bluetooth Speaker

Planter Speaker QUICKSTART GUIDE ENGLISH ( 3 – 6 ) 3 QUICKSTART GUIDE (ENGLISH) 1. Make sure all items listed in the BOX CONTENTS are included in the box. 2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT. 3. MAKE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE. 4. Study this setup diagram. Go to www.ionaudio.com for product registration. INTRODUCTION Thank you for purchasing the ION Audio Planter Speaker! Planter Speaker features a classic style pot, with a rechargeable battery-powered, water-resistant speaker. Equipped with Bluetooth® technology, you can listen to your favorite music wirelessly. Its full-range speaker provides clear, undistorted audio indoors and outdoors. RECHARGEABLE BATTERIES Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery. GENERAL USAGE • FULLY CHARGE THE BATTERY BEFORE USING IT. • CHARGE THE BATTERY COMPLETELY AFTER EACH USE. • AVOID COMPLETELY DRAINING THE BATTERY. • You may leave the unit plugged in for up to two weeks. • For maximum life, drain the battery 80% once a month. STORAGE • For long-term storage, periodically recharge the battery. • If you do not charge the battery for six months, it may not charge. RECONNECT • As the battery nears the end of its life, it may lose its ability to recharge. If this occurs, contact ION Audio technical support at www.ionaudio.com/support . DISPOSAL • Bring the unit to a recycling center or dispose of in accordance with local ordinances. BOX CONTENTS ƒ Planter Speaker ƒ Charging Adapter ƒ Quickstart Guide ƒ Safety Instructions & Warranty Information Booklet Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and any use by ION Audio is under license. Other trademarks and trade names are those of their respective owners. WARNING : Keep any non-water-resistant devices (phones, music players, etc.) in a dry place where they will not be affected by water and cause a risk of electric shock. 4 CONNECTION DIAGRAM Setup Scenario 1 Setup Scenario 2 Setup Scenario 3 PARTS DESCRIPTION 1. Aux/Linking Connector: This 3.5mm jack can be used to connect a CD player, MP3 player, or other audio source using a 3.5mm TRS cable*. This can also be used to link two Planter Speakers together using a 3.5mm TRS cable. Note: Since this connector functions as an output when Planter Speaker is connected to a Bluetooth device, you can connect headphones to it and the internal speaker will still output sound. 2. Connecting LED: Indicates when a device is connected to Planter Speaker. 3. Aux LED: Indicates when Planter Speaker is playing audio from a device connected to the Aux/Linking Connector. 4. Connecting Button: Press the Connecting button for 5 seconds to begin Bluetooth Connecting. The Connecting LED will blink blue when searching for Bluetooth devices to connect to. The Connecting LED will be lit solid blue when a device is connected to Planter Speaker. Press the Connecting button to disconnect a connected Bluetooth device. 5. Vol +/-: Adjusts the speaker’s volume. 6. Power LED: Indicates whether Planter Speaker is powered on or off. 7. Battery LED: Indicates whether the battery needs to be charged or is charging. This LED will turn off once charging is complete. 8. Charging Adapter Input**: Insert the included charging adapter here to charge Planter Speaker’s battery. 9. Speaker: This full-range speaker will play audio from a connected Bluetooth device or a source connected to the Aux/Linking Connector. Connect an MP3 Player to Planter Speaker. Connect two Planter Speakers together to extend the output fo r more spacious sound. Planter Speaker LED activity: Solid Red Power LED = Power is on. Solid Blue Connecting LED = Connected to a Bluetooth device. Solid Green Battery LED = Battery is charging. Solid Amber Aux LED = When Aux is set as an input. Blinking Blue Connecting LED = Searches for Bluetooth devices to connect to. Blinking Green Battery LED = Battery needs to be charged. Connect a Bluetooth device with Planter Speaker. 9 23 4 5 6 8 1 7 *For details on how to purchase a 3.5mm TRS cable, visit https://www.ionaudio.com/pro ducts/details/planterspeaker **Note: Planter Speaker cannot be used to play audio while it is charging. Also, you will need to re-pair your Bluetooth device after disconnecting the charger. 5 CONNECTING A BLUETOOTH DEVICE 1. Turn on Planter Speaker by firmly pressing the power button once, located on the bottom of the pot. 2. Press and hold the Connecting button for 5 seconds until the blue Connecting LED blinks. 3. Navigate to your Bluetooth device’s setup screen, find “Ion Planter spk” and connect. 4. If your Bluetooth device is not able to connect to Planter Speaker, press the Connecting button on Planter Speaker to break previous Bluetooth connections and reset the Bluetooth module. Note: Maximum range will be achieved when using devices with Bluetooth 4.0. 5. To connect a new device, press and hold the Connecting button for 5 seconds. Repeat Step 3. 6. To disconnect a connected Bluetooth device, press the Connecting button on Planter Speaker. Note: If you experience trouble connecting or playing music, update your device's OS. LISTENING TO MUSIC FROM THE AUX/LINKING CONNECTOR 1. Press and hold the Connecting button for 5 seconds until the blue Connecting LED flashes. 2. Connect a 3.5mm TRS cable* from the music source to Planter Speaker’s Aux/Linking Connector. 3. Press and hold the Vol + button for 3-5 seconds to switch the Aux/Linking Connector function as an input. 4. To listen to the signal from a connected Bluetooth device instead of the signal from the Aux/Linking Connector, press the Connecting button for 5 seconds or remove the audio cable which will disengage the Aux/Lin…

Text truncated - open the document above for the full version.

inMusic Brands, Inc. inMusic is the exclusive distributor of SoniVox. To whom it may concern, Letter of Agency I, an officer of inMusic Brands, Inc. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, David Gill Engineering Director 2013/4/1

inMusic Brands, Inc. inMusic is the exclusive distributor of SoniVox. 2013/4/1 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: Y4O-ISP15 Request is hereby submitted by inMusic Brands, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and inMusic Brands, Inc. reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of inMusic Brands, Inc. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, David Gill Engineering Director

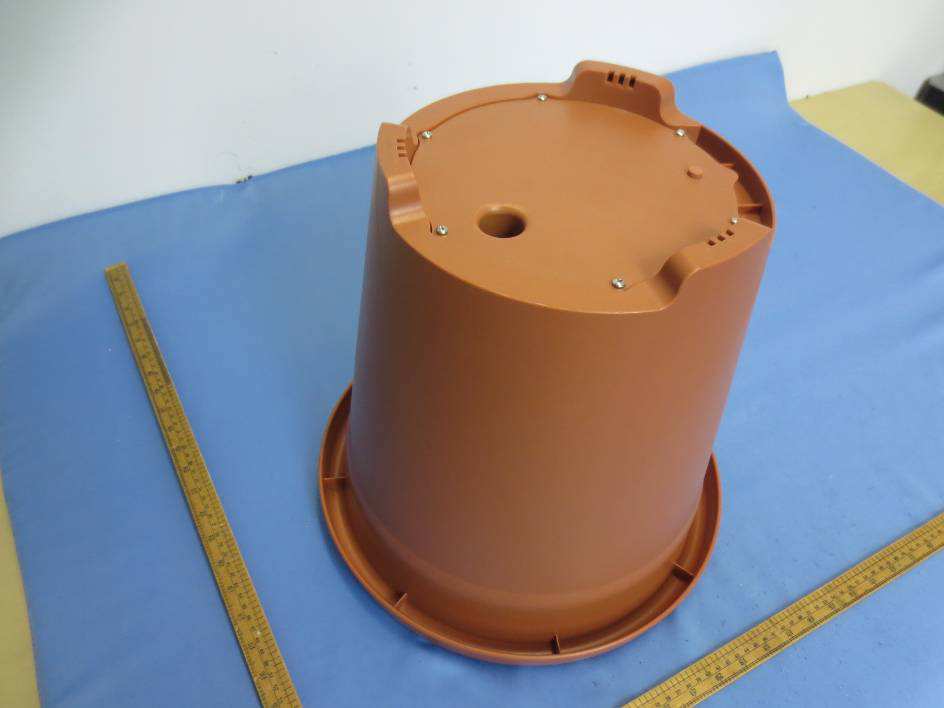

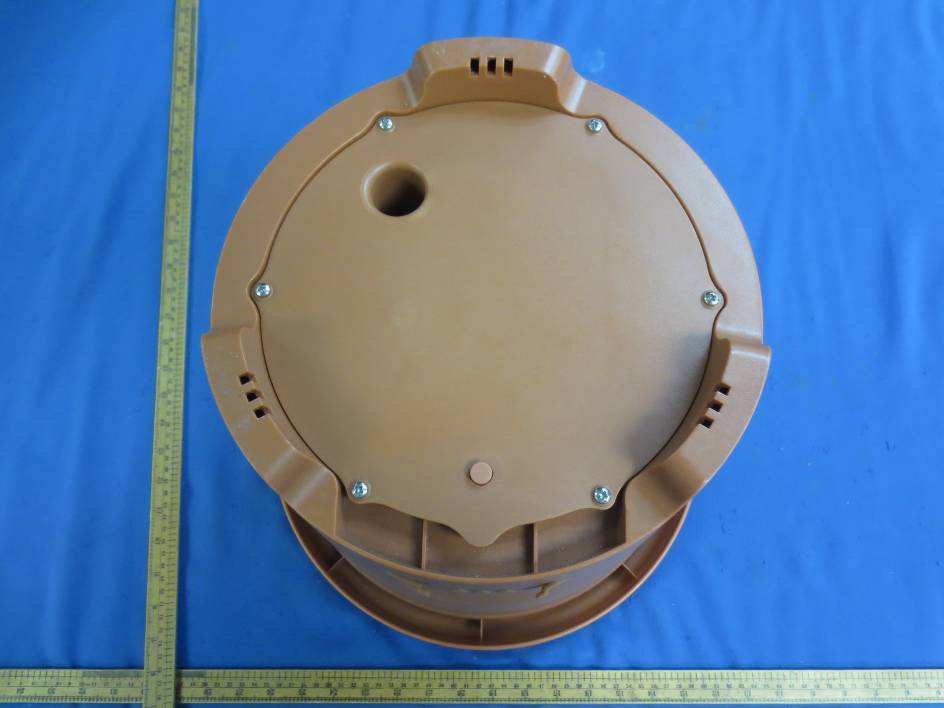

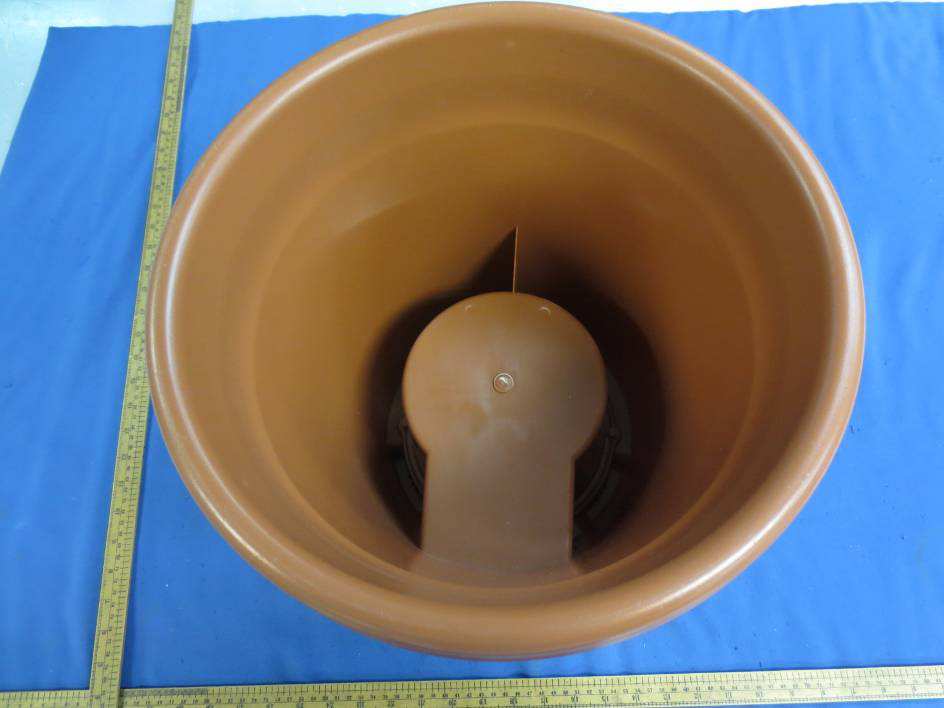

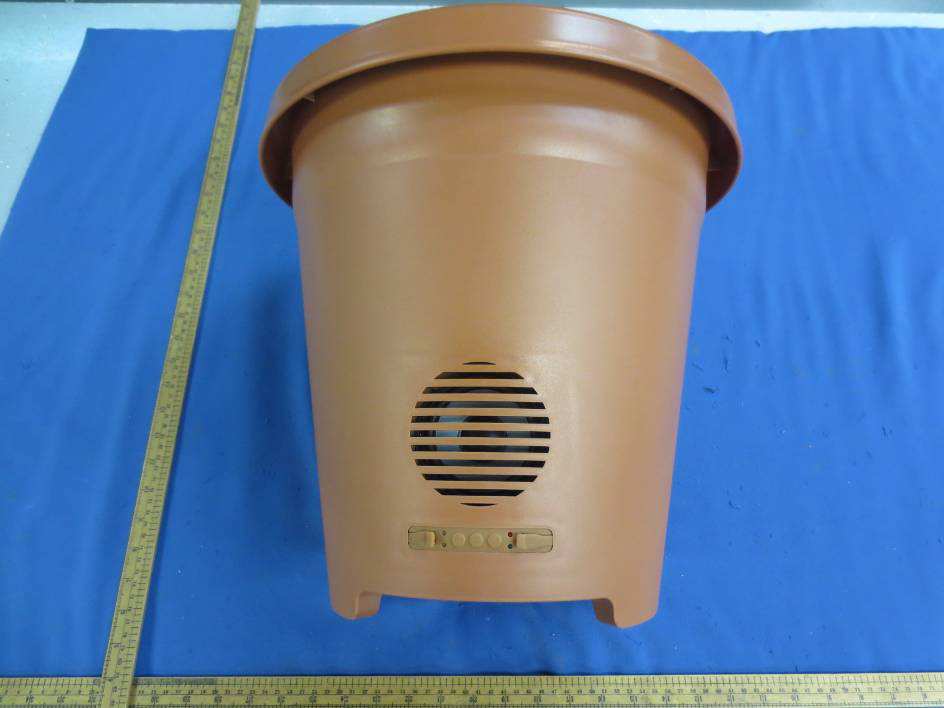

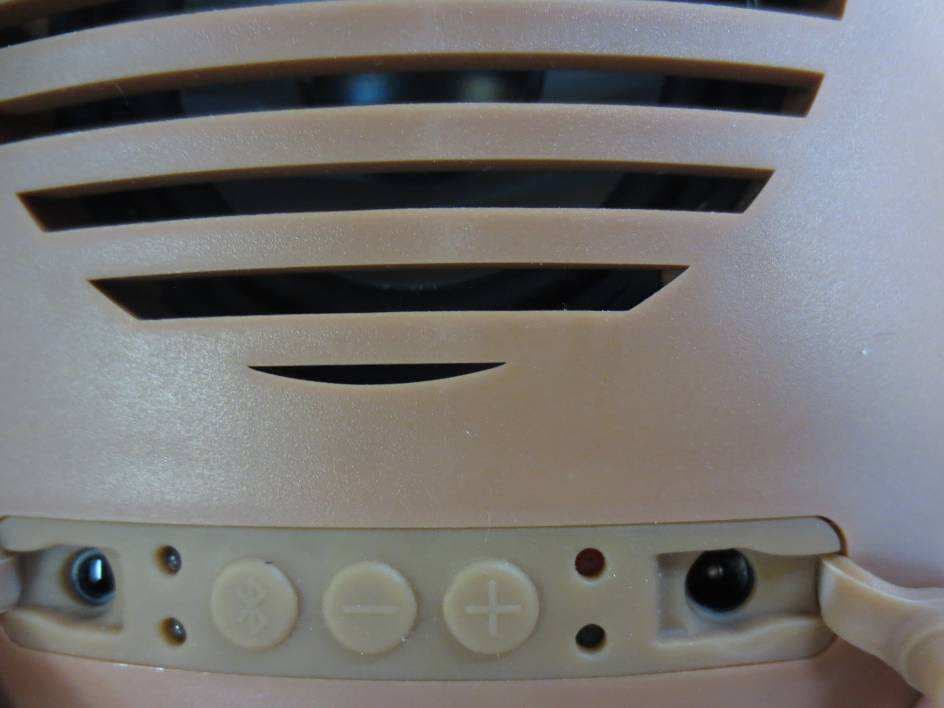

External Photos

Label Location and Size Label Size: 90mm(L) x 30mm(W)

Internal Photos

FCC ID: Y4O-ISP15 1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Bluetooth Speaker. The EUT was powered by DC 6V (Lead-acid rechargeable battery, 6V 4.5Ah), EUT can be charging by external adaptor, but it’s can’t working when charging. For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4-DQPSK, 8-DPSK Bl uetooth Version: 2.1 with EDR function and without AFH mode Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) is: 0dBm (tolerance: +/- 3dB). The nominal conducted output power is: 0dBm (tolerance: +/- 3dB). According to the KDB 447498: T he Maximum peak radiated emission for the EUT is 94.2dBμV/m at 3m in the frequency 2441MHz The EIRP = [(FS*D) ^2 / 30] mW = -1.0dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 93.7dBμV/m at 3m in th e frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -1.5dBm which is within the production variation. The maximum conducted output power specified is 3dBm = 2.0mW The source- based time-averaging conducted output power = 2.0 * Duty factor mW= 1.7 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: Y4O-ISP15 2 Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1 with EDR function and without AFH mode), transmitter ON time is independent of packet type (DH1, DH3 and DH5) For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty factor = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com INMUSIC BRANDS, INC. Application For Certification FCC ID: Y4O-ISP15 Bluetooth Speaker Model: Planter Speaker 2.4GHz Transceiver Report No.: 130401005SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Chris Chen Engineer Billy Li Supervisor Date: 6 May 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: Y4O-ISP15 Report No.: 130401005SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: Y4O-ISP15 Report No.: 130401005SZN-001 ii MEASUREMENT/TECHNICAL REPORT INMUSIC BRANDS, INC. Model: Planter Speaker FCC ID: Y4O-ISP15 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0645 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: Y4O-ISP15 Report No.: 130401005SZN-001 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 2 1.4 Test Facility........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software.................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 4.0 Equipment Photographs................................................................................... 16 5.0 Product Labelling.............................................................................................. 18 6.0 Technical Specifications ................................................................................... 20 7.0 Instruction Manual............................................................................................ 23 8.0 Miscellaneous Information.…

Text truncated - open the document above for the full version.

Radiated Emission
