Y4O-ISP17BLUETOOTH iPhone/iPad SPEAKER

ROOM ROCKER QUICKSTART GUIDE ENGLISH ( 2 – 5 ) GUÍA DE INICIO RÁPIDO ESPAÑOL ( 6 – 9 ) GUIDE D'UTILISATION RAPIDE FRANÇAIS ( 10 – 13 ) GUIDA RAPIDA ITALIANO ( 14 – 17 ) KURZANLEITUNG DEUTSCH ( 18 – 21 ) SNELSTARTGIDS NEDERLANDS ( 22 – 25 ) www.ionaudio.com MANUAL VERSION 1.3 2 QUICKSTART GUIDE (ENGLISH) BOX CONTENTS Make sure that the items listed below are included in the box : • ROOM ROCKER • Remote Control (batteries included) • Power Adapter • 1/8" stereo cable • Quickstart Guide • Safety Instructions & Warranty Information Booklet READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT ION Audio technical support can be contacted at www.ionaudio.com/supporthome. FEATURES TOP PANEL 1. iOS Device Dock – Connect your compatible iOS device here. When docking iPod/iPhone/iPad, insert it at a vertical position and then push the device back. When dismounting the iPod/iPhone/iPad, pull it forward and then lift to remove the device. See the PAIRING A BLUETOOTH® DEVICE section for more details. • Note: If you are using ROOM ROCKER with a Bluetooth device, ROOM ROCKER will no longer play audio from an iOS device connected to the dock connector until the Bluetooth device is unpaired. • Note: iPad (3 rd generation) may not charge while in use and high screen brightness. To charge iPad (3 rd generation) let the screen go to sleep. • Note: It is recommended to remove your iPad or other device from the cradle before transporting or traveling with ROOM ROCKER. 2. Power Button – Press this button to turn ROOM ROCKER on/off. 3. Volume - – Press this button to decrease the volume. 4. Volume + – Press this button increase the volume. 5. Connect/Disconnect – Press this button to unpair your iOS device from ROOM ROCKER. You can also press this to re-connect to Bluetooth devices after 'forget this device' has been selected from the device. 6. Speakers – 2.5” full range drivers. For optimal performance, place on a table about 3-3 ½ feet tall and about 10 inches away from a wall. 7. Tweeter- 1” tweeter for output of the high frequencies. 8. Blue LED – A power LED that tells you the unit is turned on. Note: If you are using ROOM ROCKER with a Bluetooth device, ROOM ROCKER will no longer play audio from an iOS device connected to the dock connector until the Bluetooth device is unpaired. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ION Audio is under license. 6 1 2 3 4 6 8 7 7 3 1 2 4 5 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC's RF exposureguidelines, place the product at least 20cm from nearby persons. Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 3 REAR PANEL 1. Bass Reflex Port – Efficiently projects air and sound energy from the back port, enhancing the reproduction of low frequencies generated by the woofer. 2. Power – Use the included power adapter to connect to a wall outlet. 3. Aux In – 1/8” input for connecting devices such as a CD player, MP3 player, tapedeck, mixer, etc. Note: The Aux In signal will always be mixed in with the Bluetooth or dock connector signal. 4. Subwoofer (Bottom panel) - This is the downward-firing subwoofer, enhancing the lowest bass frequencies. Note: If nearby objects on a table are rattling, move these items or turn down the bass EQ from your device. REMOTE CONTROL 1. Power 2. Mute 3. Previous Track 4. Next Track 5. Play/Pause 6. Volume Down 7. Volume Up 8. Connect/Disconnect 9. Shuffle Note: Room lighting and battery life can affect the operating range of the remote control. Note: In order to use the remote control for the first time, first pull out the tab attached to the battery compartment. PAIRING A BLUETOOTH DEVICE Pairing Instructions 1. Turn on your Bluetooth device. 2. Power on ROOM ROCKER. 3. To pair ROOM ROCKER, simply find ‘ION Room Rocker’ on your Bluetooth device and connect to it. ROOM ROCKER will be paired when it’s LED is lit. Note: If prompted for a pairing code, enter ‘0000’. 4. To break connection and use a different device, click the Disconnect button on the top of ROOM ROCKER. 5. If you are not seeing ION Room Rocker as a choice on your Bluetooth device, press the Connect/Disconnect button on ROOM ROCKER. Note: If you are having difficulty pairing, make sure your Android® device is upgraded to the latest software version. Also, ensure you are within the Bluetooth range of up to 50 feet. Maximum range will be achieved when using devices with Bluetooth 4.0. Note: if you select 'forget this device' on your iOS device, you will need to press the Connect/Disconnect button once on ROOM ROCKER in order to re-pair with that same device. Android is a trademark of Google Inc. Shuffle 1 99 2 3 4 56 7 8 6 1 2 3 4 6 8 7 7 18V 3000 mA 3 1 2 4 5 26 SOUND CHART SPECIFICATIONS POWER ADAPTER: …

Text truncated - open the document above for the full version.

Block Diagram Clock: 46MHz BT Module(FD-BT02) Block Diagram BC57F687A chip internal block

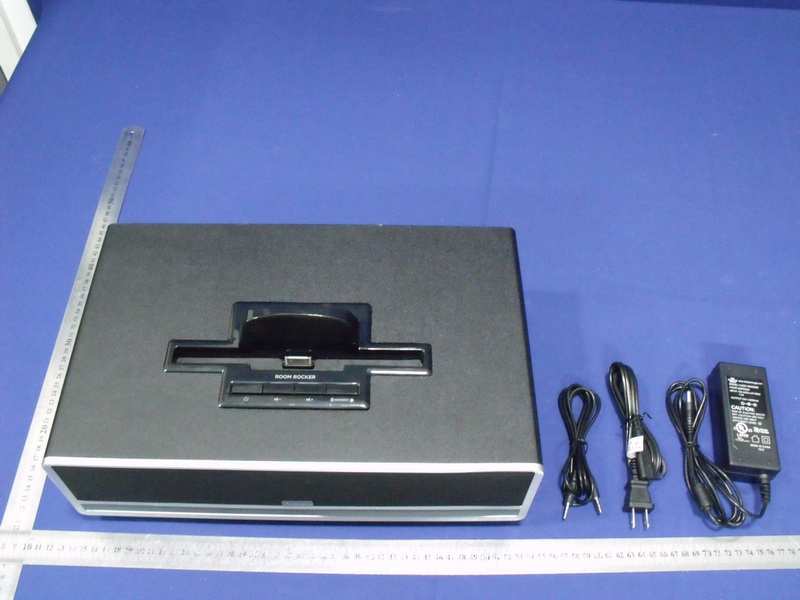

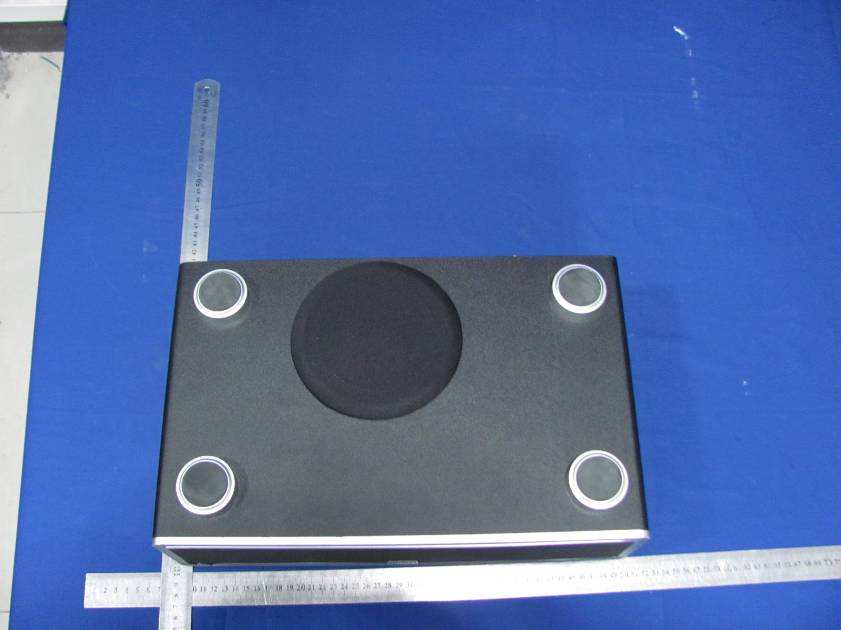

External Photos

Label Artwork and Location

Internal Photos
