Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
TransActive Bluetooth USER GUIDE ENGLISH ( 3 – 5 ) GUÍA DEL USUARIO ESPAÑOL ( 6 – 8 ) GUIDE D’UTILISATION FRANÇAIS ( 9 – 11 ) GUIDA PER L'USO ITALIANO ( 12 – 14 ) BENUTZERHANDBUCH DEUTSCH ( 15 – 17 ) 3 USER GUIDE (ENGLISH) 1. Make sure all items listed on the front of this guide are included in the box. 2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT. 3. MAKE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE. 4. Study this setup diagram. 5. Make sure all input devices such as microphones, CD players, or MP3 players are turned off and volume settings are set at "zero." 6. Connect all devices as shown. 7. Switch everything on in the following order: • audio input sources (i.e. microphones, instruments, CD/MP3 Players) • TransActive Bluetooth 8. When turning off, always reverse this operation: • TransActive Bluetooth • last, any input devices Go to www.alesis.com for product registration. RECHARGEABLE BATTERIES Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery. GENERAL USAGE • FULLY CHARGE THE BATTERY BEFORE USING IT . • CHARGE THE BATTERY COMPLETELY AFTER EACH USE . • AVOID COMPLETELY DRAINING THE BATTERY . • You may leave the unit plugged in for up to two weeks. • For maximum life, drain the battery 80% once a month. STORAGE • Avoid storing in high temperatures and moist places. • For long-term storage, periodically recharge the battery. • If you do not charge the battery for six months, it may not charge. REPAIR • As the battery nears the end of its life, it may lose its ability to recharge. If this occurs, contact technical support at www.alesis.com/supporthome. DISPOSAL • Bring the unit to a recycling center or dispose of in accordance with local ordinances. BOX CONTENTS TransActive Bluetooth Power Cable (standard IEC) User Guide Safety Instructions & Warranty Information Booklet TOP PANEL MICROPHONE* TABLET OR OTHER DEVICE* iPad is a trademark of Apple Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of suchmarks by Alesis is under license. Other trademarks and trade names are those of their respective owners. REAR PANEL POWER *SOLD SEPARATELY 4 DIAGRAM AND PARTS DESCRIPTION 1. Microphone Input with Volume Control (XLR-1/4"): This mono input accepts a XLR-1/4" input such as a microphone or other musical instrument. 2. Instrument/Microphone Input with Volume Control: 1/4” TS input, high-impedance for guitar. 3. Auxiliary Input with volume Control: This stereo 1/8” input can be used to connect a CD player, MP3 player, or other audio source. Volume control adjusts auxiliary input and Bluetooth volume. 4. Bluetooth: The Paired LED will be lit when a device is paired to TransActive Bluetooth. This LED will not be lit when TransActive Bluetooth is first powered on (unless it was previously paired with a device). Press the Disconnect button to disconnect a paired Bluetooth device. 5. Master Volume Control: This adjusts the speaker’s main mix volume, which includes Instrument/Microphone Input, Auxiliary Input, Tuner, and the audio of a paired Bluetooth device. 6. Power LED: Indicates whether TransActive Bluetooth is on or off. 7. Device Charge: Connect your device’s charge cable here to charge it. USB charging only functions when the unit’s power is turned on. Note : Users with iPad (3 rd generation) may experience slower charging. We recommend charging with the screen locked when using iPad (3 rd generation). 8. Device Cradle: Place your iPad/iPod touch ® /iPhone ® , Android ® or other device here to be held. 9. Power Cable Input (IEC): Insert the included power cable here to charge the unit. Note that the TransActive Bluetooth can run off the power adapter while it simultaneously charges the battery. The charge indicator illuminates when the battery is charging. 10. Voltage Selector*: If your unit has a voltage selector switch, change its setting only when necessary (e.g., when traveling to a country or region with a different voltage). Selecting an improper voltage setting can damage the unit. To change its setting, only remove *one* screw of the cover and slide it aside to expose the selector. 11. Power ON/OFF Switch: Turns TransActive Bluetooth on or off. Please note that while TransActive Bluetooth is connected to a power source, it does not need to be powered on to charge the battery. 12. Battery Level Indicator: While the unit is powered ON, these four lights indicate the power left in the battery. Battery life varies based on volume and usage. *WARNING: If your unit has a voltage selector switch, change its setting only when necessary (e.g., when traveling to a country or region with a different voltage). Selecting an improper voltage setting can damage the unit. To change its setting, only remove *one* screw of the cover and slide it aside to expose the selector. Android is a trademark of Google Inc. iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. 1 2 5 4 3 3 6 8 7 9 101 0 111 1 121 2 5 TROUBLESHOOTING If the sound is distorted: Try lowering the volume control of your sound source or musical instrument. Also, try to reduce the overall volume of TransActive Bluetooth. If there is too much bass: Try adjusting the tone or EQ control on your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs. If there is a high-pitched whistling noise when using microphones: This is probably feedback. Point the microphones away from the speaker. If you can’t hear the microphone over the music volume: Turn down the music volume from your source. PAIRING A BLUETOO…
Text truncated - open the document above for the full version.
DOC Letter Aug. 21, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Regulatory Authority, We, the undersigned, hereby declare that FCC Part 15B Declaration of Conformity procedures will be applied to the digital device portion of the following product: Product: BT Wireless Speaker Model: TRANSACTIVE WIRELESS FCC Part 15B DoC report number: F15060902-1 This Device complies with Part 15B DoC of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, Including interference that may cause undesired operation TEST LABORATORY WH Technology Corp. 4F., No.27-1, Ln. 169, Kangning St., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Accredited Lab. Assigned under FCC number: TW1083 Sincerely, InMusic Brands, Inc 200 Scenic View Drive, Cumberland, RI 02864, U.S.A
Date: Aug. 13, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y40-LGAC-2 Product Name: BT Wireless Speaker Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: Test Setup Photos External Photos Internal Photos User Manual These documents contain detailed system and equipment description and related information about the product which InMusic Brands, Inc considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, InMusic Brands, Inc considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Dated this 08/13/2015 By: Jacky Liao Signature Printed Title: Director On behalf of : InMusic Brands, Inc Telephone: +886-2-2717 2389
Date: Aug. 13, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y40-LGAC-2 Product Name: BT Wireless Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08/13/2015 By: Signature Title: Compliance On behalf of : InMusic Brands, Inc Telephone: +886-2- 2717 2389

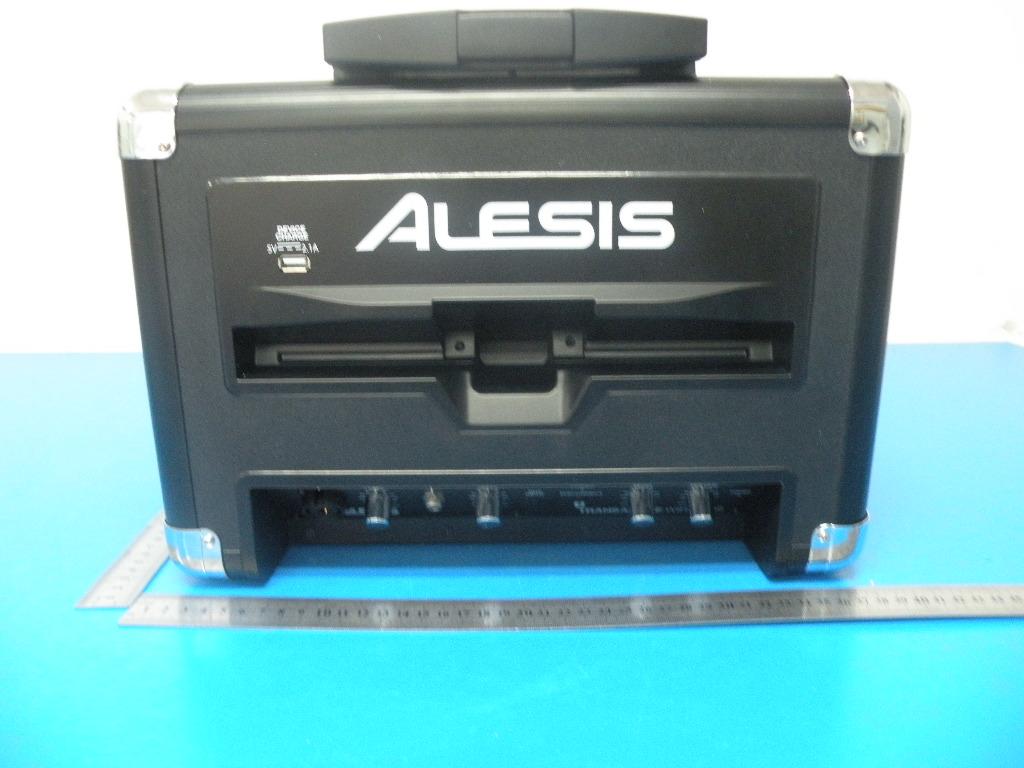

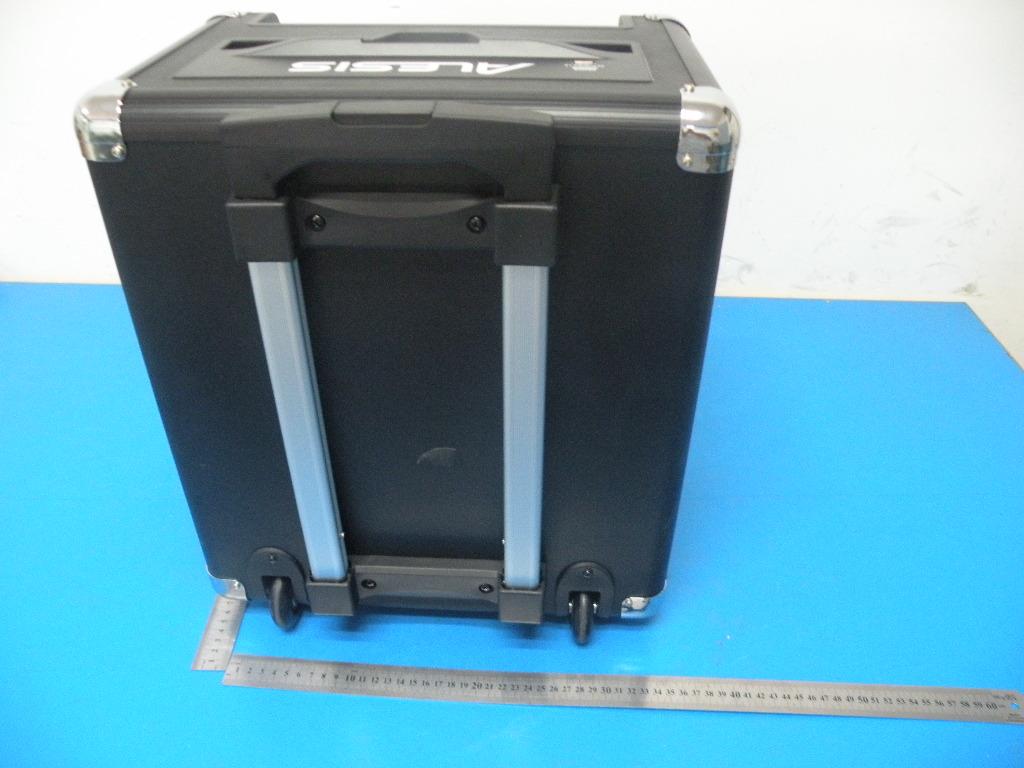

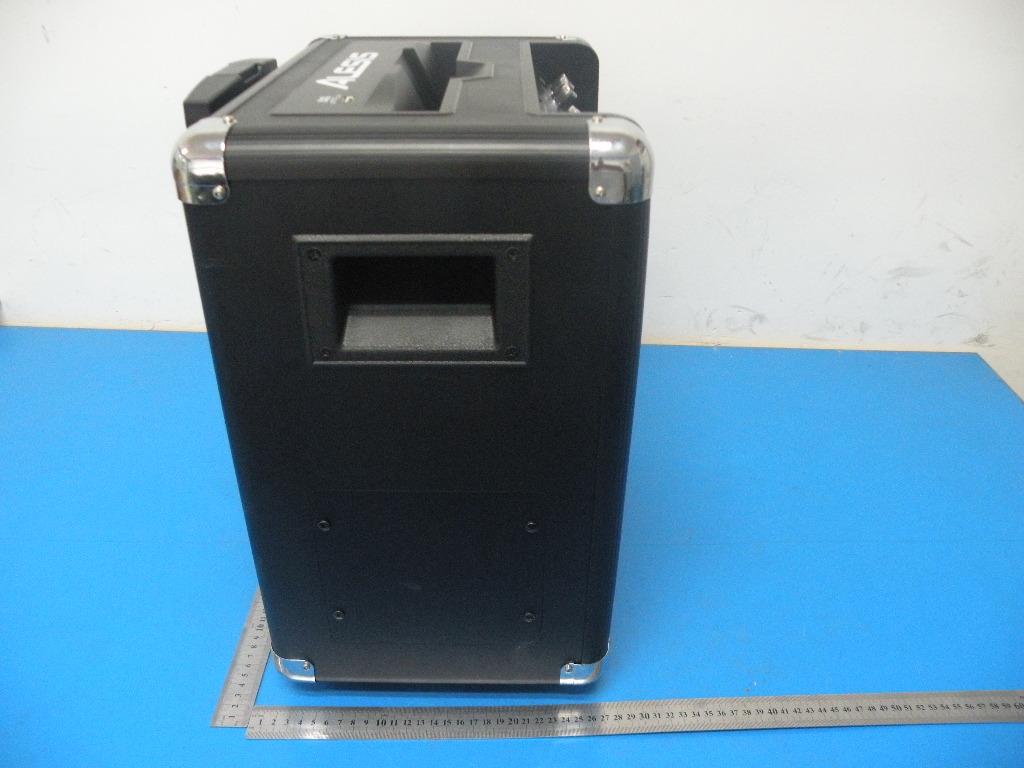

WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 77 of 88 13. Photos of EUT WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 78 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 79 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 80 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 81 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 82 of 88
Product DevelopmentArtwork Release product name / description revision print date description code AlesisTransactive Wireless System Walter 07_20_2015 REV W Ink Print created changes from last revision AndrewWang LGAC RevS: REMOVED RCM LOGO,ADDED PSE & FCC LOGO, COMBINED UL/EU/JP COMPLIANCE Layer 1 -- Reference/Info -- DO NOT PRINT PART COLOR: Layer 2 -- Mechanical Dieline/Drawing - DO NOT PRINT Layer 3 -- Pantone White C checked Rear Panel Silkscreen 1:1 scale UL / EU / JP RevT: REMOVED ETL & REPLACED WITHTUV, COMBINED JP INFO, REVISED FCC ID, REVISED PWR RATING RevV: SWAPPED DIELINES, RE-ALIGNED SILKSCREEN RevW: REMOVED EXTRA PSE ICON, ADDED INMUSIC JAPAN KK.
WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 83 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 84 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 85 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 86 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 87 of 88 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 88 of 88 ---------END OF THE REPORT-------
WH Technology Corp. Date of Issue: Aug. 20, 2015 Report No. :M15060902 Page No. : 1 of 1 Radio Frequency Exposure EUT INFORMATION EUT BT Wireless Speaker Frequency band (Operating) Bluetooth: 2.402 GHz ~ 2.480 GHz Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power GFSK: -5.051dBm (0.313 mW) Antenna gain (Max) 2 dBi TEST RESULT According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] *[√ f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 0.313 mW @ 2480 MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *[√ f(GHz)] = 0.099 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body.
WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 1 of 88 TEST REPORT Applicant : InMusic Brands, Inc Address : 200 Scenic View Drive, Cumberland, RI 02864, U.S.A Equipment Under Test (EUT): Name : BT Wireless Speaker Model : TRANSACTIVE WIRELESS Trademark : ALESIS Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) ANSI C63.4:2014 ; ANSI C63.10:2013 Report No : F15060902 Date of Test : July 02, 2015- July 14, 2015 Date of Issue : July 31, 2015 Tset Result : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature Mike Lee WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 2 of 88 Contents 1. General Information ............................................................................................................... 4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................5 1.3. Test Lab information ............................................................................................5 2. Summary of test ...................................................................................................................... 6 2.1. Summary of test result .........................................................................................6 2.2. Assistant equipment used for test .........................................................................6 2.3. Block Diagram .....................................................................................................7 2.4. Test mode .............................................................................................................7 2.5. Test Conditions .....................................................................................................8 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.7. Test Equipment .....................................................................................................9 3. Maximum Peak Output power ............................................................................................ 10 3.1. Limit ...................................................................................................................10 3.2. Test Procedure ....................................................................................................10 3.3. Test Setup ...........................................................................................................10 3.4. Test Result ..........................................................................................................10 4. Bandwidth ............................................................................................................................. 11 4.1. Limit ................................................................................................................... 11 4.2. Test Procedure .................................................................................................... 11 4.3. Test Result .......................................................................................................... 11 5. Carrier Frequency Separation............................................................................................. 17 5.1. Limit ...................................................................................................................17 5.2. Test Procedure ....................................................................................................17 5.3. Test Result ..........................................................................................................17 6. Number Of Hopping Channel.............................................................................................. 20 6.1. Limit ...................................................................................................................20 6.2. Test Procedure ....................................................................................................20 6.3. Test Result ..........................................................................................................20 7. Dwell Time ............................................................................................................................. 23 7.1. Test limit ............................................................................................................23 7.2. Test Procedure ....................................................................................................23 7.3. Test Results ........................................................................................................23 8. Radiated emissions ................................................................................................................ 31 8.1. Limit ...................................................................................................................31 8.2. Block Diagram of Test setup ..............................................................................32 8.3. Test Procedure ....................................................................................................33 8.4. Test Result ..........................................................................................................33 WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 3 of 88 9. Band Edge Compliance ........................................................................................................ 49 9.1. Block Diagram of Test Setup .............................................................................49 9.2. Limit ...................................................................................................................49 9.3. Test Procedure ..........................................................…
Text truncated - open the document above for the full version.
WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 75 of 88 12. Test setup photo 12.1. Photos of Radiated emission WH Technology Corp. Date of Issue: Jul. 31, 2015 Report No. :F15060902 Page 76 of 88 12.2. Photos of Conducted Emission test
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 313.00 µW |
