Y4O-NK31DONGLEWireless MIDI Controller

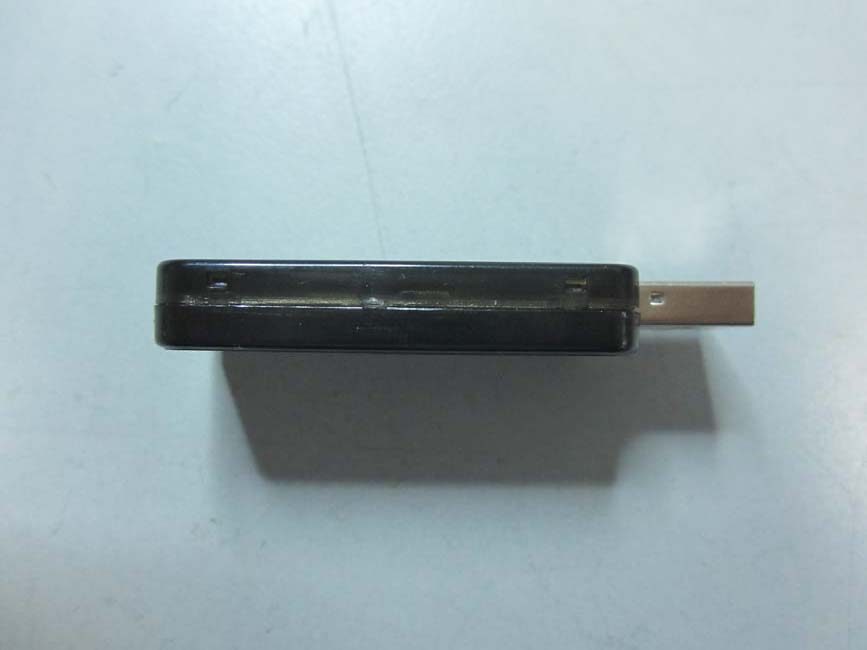

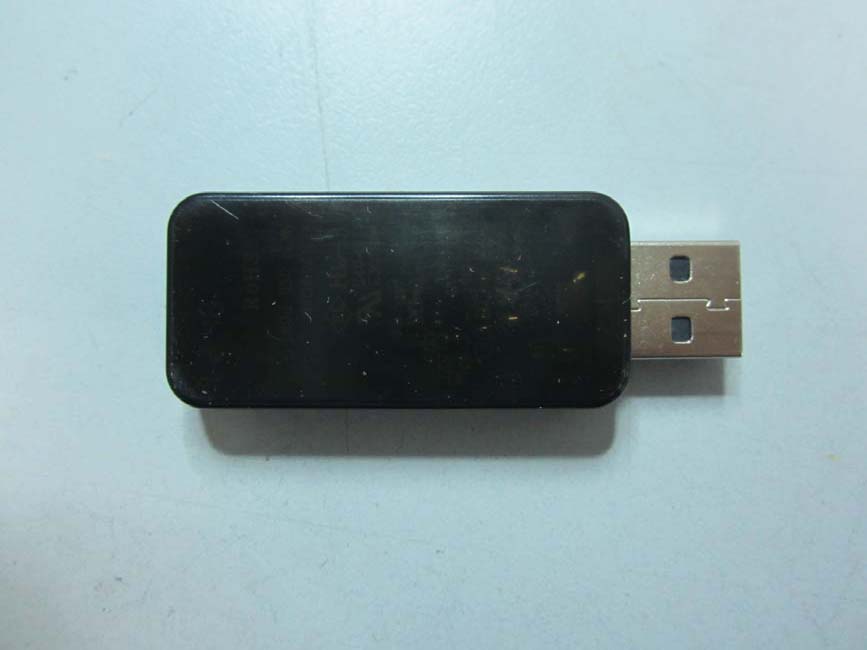

User Guide English ( 3 – 5 ) Guía del usuario Español ( 6 – 8 ) Guide d'utilisation Français ( 9 – 11 ) Guida per l'uso Italiano ( 12 – 14 ) Benutzerhandbuch Deutsch ( 15 – 17 ) 3 User Guide (English) Box Contents • Orbit • Mini-USB Cable • Wireless USB Receiver • User Guide • Safety & Warranty Manual Product Registration & Support Take a minute to register your Orbit at www.numark.com. Registering it ensures that we can keep you updated with any new product developments and provide you with world-class technical support if you have any issues. Also, visit www.numark.com/orbit for the latest information about Orbit, including pre-made control mappings, a mapping editor, tutorial videos, and more. For additional product support, visit www.numark.com/support. Quickstart 1. Visit www.numark.com/orbit for free software or to download a control map for your existing software. The control map specifies which software commands Orbit will operate. You can also download the Orbit Editor, which lets you change what messages Orbit sends to your software. 2. Install and open the software you downloaded, or open your own MIDI-controllable software. 3. Connect the wireless USB receiver to your computer. 4. Power Orbit on (using the power switch on its underside). 5. In your software's Preferences or Settings, select Orbit as the hardware controller or device, and import the Orbit control map file into your software. 6. Step away from the computer—start using Orbit! For tips to ensure the best possible wireless reception and performance, see the Tips for Optimal Performance section of this manual. Charging and Power Usage To charge Orbit, use the included mini-USB cable to connect it to (A) your computer's USB port (with the computer powered on) or (B) a standard USB power adapter connected to a power source. (You can control your software with Orbit as it is charging.) The charge LED next to Orbit's mini-USB port will light up when it is charging and turn off when it is fully charged. It takes approximately 3 hours to charge Orbit's battery fully. You can use Orbit for approximately 8 hours with a fully charged battery. The 4 bank buttons will flash when Orbit's battery is low and needs to be charged again. After 5 minutes of inactivity, Orbit's power-save mode will activate, and Orbit will "go to sleep" to preserve its battery charge. Move Orbit again to "wake it up." 4 Features Top View Bottom View PAD BANK 2 3 4 1 K 2 K 3 K 4 K 1 1 6 6 5 5 1 2 3 4 ab 7 8 9 10 All of Orbit's controls are MIDI-mappable, so they can control any MIDI-assignable command in your software, giving you countless performance possibilities. Below are descriptions of the controls' general behavior. To download pre-made control mappings for your software—and an editor to create your own mappings—visit www.numark.com/orbit. 1. Pads: These 16 multicolor pads control various software commands as assigned in the MIDI mapping. Switch between the 4 banks (of 16 pads each) with the Pad Bank Selectors. You can assign different colors to these pads, as well. For more information, see the Selecting Colors for the Pads section of this manual. Note: The pads labeled "a" and "b" in the above diagram are used while pairing Orbit to the wireless USB receiver, if you ever need to re-establish the wireless connection. See the Pairing Orbit to the Wireless USB Receiver section of this manual for more information. 2. Pad Bank Selectors (1, 2, 3, 4): Use these buttons to switch between the 4 banks of Pads. The current Pad Bank Selector will light up. These buttons flash to indicate Orbit's battery is low. When this happens, connect Orbit's mini-USB port to your computer with a mini-USB cable. 3. Virtual Knob: This wheel adjusts various software features as assigned in the MIDI mapping. Switch between the 4 functions with the Virtual Knob Selectors. 4. Virtual Knob Selectors (K1, K2, K3, K4): Use these buttons to switch between the 4 functions of the Virtual Knobs: • K1, K2, and K3: The Virtual Knob acts as a 270° knob—ideal for mapping to knobs controlling filters, EQs, effects parameters, etc.). • K4: The Virtual Knob acts as a 360° encoder for scrolling through your music library or acting as a virtual platter (so you can search through the current track, scratch, or pitch-bend). 5. Shoulder Buttons: Hold down either or both of these buttons to activate Orbit's accelerometer, and then tilt Orbit to affect it. The left shoulder button activates the accelerometer on the left-right axis. The right shoulder button activates the accelerometer on the forward-back axis. The Pad LEDs will "stream" in the directions it detects, and the streams will get faster as the tilt increases. Tip: You can "latch" a shoulder button in the "on" position by double-pressing it. Return it to its default "momentary" behavior by pressing it once. 6. Hooks: Attach a lanyard to these hooks to hang Orbit from your neck. 7. Strap Attachment: Unscrew the strap attachment and loop Orbit over an armband or belt, and then re- tighten the strap attachment. 8. Charging LED: This light will turn on when Orbit's internal lithium-ion battery is charging and turn off when it is fully charged. See the Charging and Power Usage section of this manual for more information about charging Orbit. 9. Mini-USB Port: Use the mini-USB cable to connect this port to a USB port on your computer. This connection charges Orbit's internal lithium-ion battery (whether Orbit is powered on or not). It also allows you to use Orbit "wired" instead of wirelessly. 10. Power Switch: Flip this switch to power Orbit on or off. 5 Selecting Colors for the Pads You can select the color of the light for each pad in each bank, allowing you to color-code your pads or banks to distinguish between their different functions in your software. To select a color for a pad: 1. Press and hold down any Pad Bank Selector, and then press either shoulder button. The Virtual Knob Selectors will flash to indicate Orbit is in Color …
