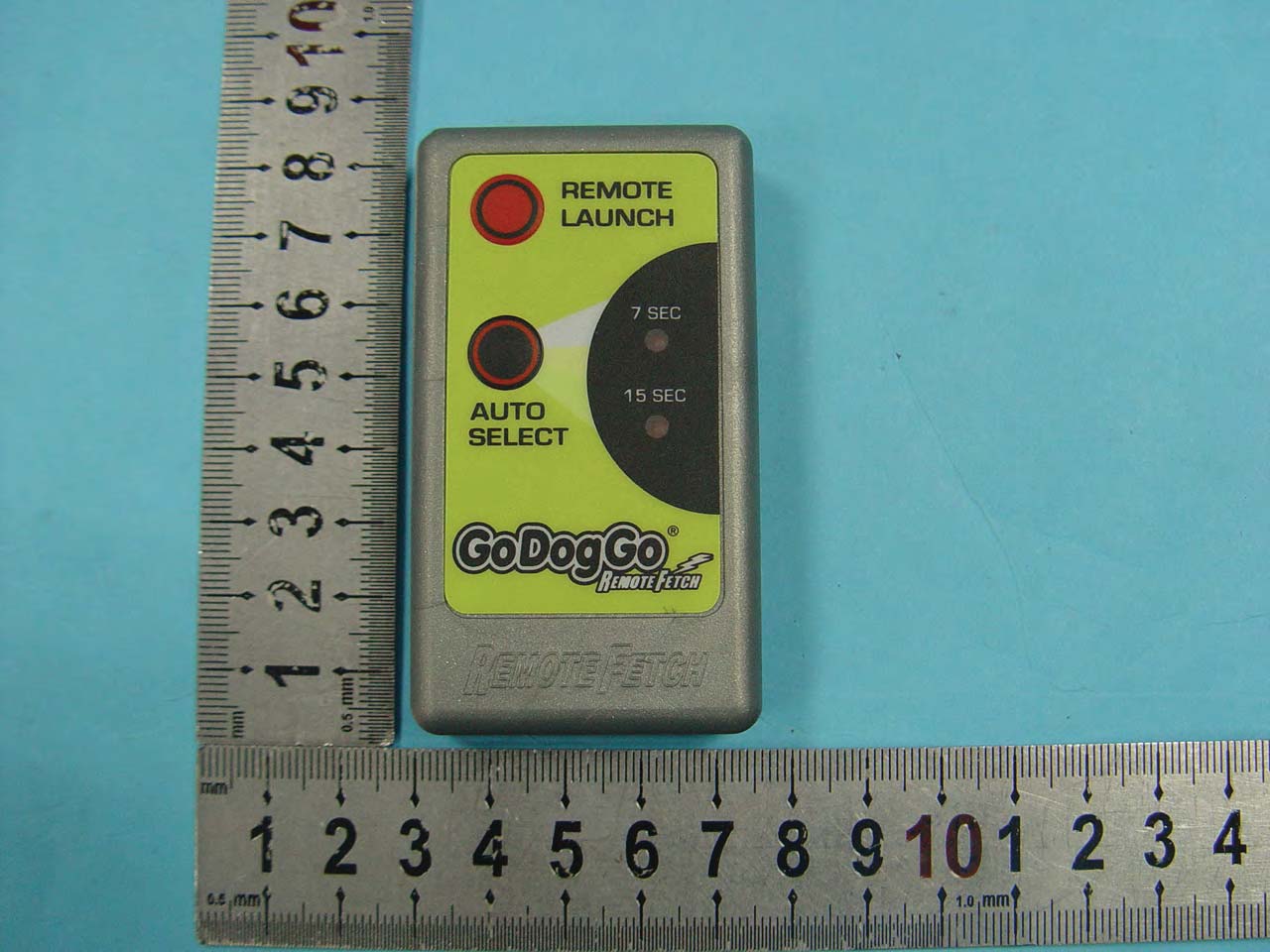

Y4TGD003-1Dog Trainer

Applicant: Ho Lee Co., Ltd. FCC ID: Y4TGD003-1 BLOCK DIAGRAM TX 315MHz FUNCTION SWITCH CONTROL CIRCUIT DIGITAL ENCODE RF MODULATOR CRYSTAL Y1: 9.84375MHz

FCC Certification label Sample

FCC Certification Label Location Sample Label location

Antenna

Applicant: Ho Lee Co., Ltd. FCC ID: Y4TGD003-1 Operation Description The transmitter use a MICREL chip MICRF113 and MCU (PIC16F616), most of function can be finished by these chips. Such as press tact button detective, and MCU encode, and data transmit. The transmitter is made of U2 (RF manage CHIP MICRF113). Clock oscillator is made of U2 internal circuit and C13, C14 surrounding circuit, they are make up RF transmitter circuit. The tact button, R4, R3, and U1 I/O (PIN12, PIN13) etc, they make up function choice circuit. The MCU (PIC16F616) execute encode, and LED1, LED2, display operation station. Once start the press button switch, U1 will finish all the data code internal and modulate, then enlarged by internal circuit, then these data of code will drive U2(micrf113), at last it delivered to the air by antenna. After the receiver code connect together successfully. When receiver gets code, it will drive LED, and motor execute itself operation. Antenna is formed by a copper trace on the PCB. Common grounding on PCB is not connected to real external ground. Power supply is DC 3V by two “AG13” batteries.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 17-Dec-2010 Sheet of File: H:\ 设计文件 \go do ggo \remot e co nt rol ler.dd b Drawn By: 1 1 2 2 K1 1 1 2 2 K2 Q2 IN 1 G 2 OUT 3 RFMODMOD LED1red LED2red R1332 R2332 +3V +3V R53.3K R4332R3332 1 BT1CN1 1 BT2]CN1 1 BT3CN1 1 BT4CN1 +3V VCC R332 VDD 1 RA5 2 RA4 3 RA3 4 RC5 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RA2 11 RA1 12 RA0 13 VSS 14 C?PIC16F616 + EC1 220uf/6.3v ANT C1327p C2100P C5 15P C10106 C1427p R70ohm L482nH L1470nH Y19.84375MHz C112.2p C710p VDD VDDDATA 123 J1CON3 DATA VDD PAOUT 1 VSS 2 VDD 3 XTLOUT 4 XTLIN 5 ASK 6 U2 MICRF113 C1105 R2100k

Page 1 of 33 FCC ID: Y4TGD003-1 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20102667 APPLICATION CERTIFICATION On Behalf of Ho Lee Co., Ltd. Dog Trainer Model No.: GD003-1 FCC ID: Y4TGD003-1 Prepared for : Ho Lee Co., Ltd. Address : 27 th FL., No. 29-3, Sec. 2, Zhongzheng E. Rd., Danshui Town, Taipei County 251, Taiwan Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20102667 Date of Test : December 23-25, 2010 Date of Report : December 27, 2010 Page 2 of 33 FCC ID: Y4TGD003-1 ACCURATE TECHNOLOGY CO., LTD REPORT NO. ATE20102667 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION.......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT..................................................................... 6 3. SUMMARY OF TEST RESULTS................................................................................................... 7 4. THE FIELD STRENGTH OF RADIATION EMISSION............................................................ 8 4.1. Block Diagram of Test Setup....................................................................................................................8 4.2. The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3. Configuration of EUT on Measurement...................................................................................................9 4.4. Operating Condition of EUT....................................................................................................................9 4.5. Test Procedure........................................................................................................................................10 4.6. The Field Strength of Radiation Emission Measurement Results..........................................................11 5. 20DB OCCUPIED BANDWIDTH................................................................................................ 13 5.1. Block Diagram of Test Setup..................................................................................................................13 5.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c)................................13 5.3. EUT Configuration on Measurement.....................................................................................................14 5.4. Operating Condition of EUT..................................................................................................................14 5.5. Test Procedure........................................................................................................................................14 5.6. Measurement Result...............................................................................................................................15 6. RELEASE TIME MEASUREMENT............................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. Release Time Measurement According To FCC Part 15 Section 15.231(a)..........................................16 6.3. EUT Configuration on Measurement.....................................................................................................17 6.4. Operating Condition of EUT..................................................................................................................17 6.5. Test Procedure........................................................................................................................................17 6.6. Measurement Result...............................................................................................................................18 7. AVERAGE FACTOR MEASUREMENT.................................................................................... 19 7.1. Block Diagram of Test Setup..................................................................................................................19 7.2. Average factor Measurement according to ANSI 63.4: 2003.................................................................19 7.3. EUT Configuration on Measurement.....................................................................................................20 7.4. Operating Condition of EUT..................................................................................................................20 7.5. Test Procedure........................................................................................................................................20 7.6. Measurement Result...............................................................................................................................21 APPENDIX I ( TEST CURVES) (11 pages) Page 3 of 33 Test Report Certification Applicant : Ho Lee Co., Ltd. Manufacturer : Dongguan Tiger Point Metal & Plastic Products Co., Ltd. EUT Description : Dog Trainer (A) MODEL NO.: GD003-1 (B) SERIAL NO.: N/A (C) TRADE NAME: (D) POWE R SUPPLY: 3V DC (“AG13” batteries 2) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231 ANSI 63.4: 2003 The device described above is tested by ACCURATE TECHNO…

Text truncated - open the document above for the full version.

Radiated emissions test < 1GHz Radiated emissions test > 1GHz
