Y4WYPZ120S23WCFL

User Manual Dear Customer, Thank you for buying Sichuan Topluck Lighting Co., Ltd CFL. Please read carefully the product instruction before using! The models of YPZ120/13-T3S、YPZ120/19-T3S、YPZ120/23-T3S, use only on 120 volt, 60 Hz circuit. The wattage marked on the lamp. And the operating Frequency is more than 50kHz and less than 60kHz Features Energy Saves up to 75% compared to common incandescent Lamps One years limited warrant; Rapid on/off with silent operation; Reduces Carbon Dioxide Electromagnetic Volume Consumes natural resources Generate less heat in the building Note & Attention Always turn-off power before re-lamping; Avoid installing lamp by gripping the glass tube; Do not use with electronic timers Reliable operating temperature -15°C~50°C Not suitable for damp surroundings or sealed occasions Risk of electric shock-use in dry locations For best result use in proper voltage range as mentioned on lamp base Applications: Home, Office, Hotel, Shop, Restaurant...and so on lighting Wa r n i n g : For use in 120V/60HZ circuits only. Do not expose to moisture or water. Not for use in totally enclosed recessed luminaries. Do not open-no user-serviceable parts inside. Do not use with dimmer. To install or remove, handle bulb by grasping base--Do not grasp glass portion. This bulb is not intended for use with emergency Exit Fixtures or Emergency Exit Lights, Photocells, and electronic timers. And enclosed fixtures is required for outdoor use. Optimum operating temperatures -18'C (-15'F) to 50'C (122'F). Starting temperature -18'C (-15'F). This bulb complies with Part 18 of FCC Rules (ICES-005 CLASS B), but may cause interference to radios, Tvs, Wireless phones and Remote controls. If interference occurs, move Bulb away from affected device, or plug device into another outlet. Do not install this product near maritime safety equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. FCC Information 1. This device complies with Part 18 of the FCC Rules. 2. Information on the following matters shall be provided to the user in the Instruction manual: (a) The interference potential of the device or system; (b) Maintenance of the system; (c) Simple measures that can be taken by the user to correct interference; (d) Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating is between 0.43 kHz and 30kHz. Variations of this language are permitted provided all the points of the statement are addressed.

Sichuan Topluck Lighting Co.,Ltd FCC Confidential Authorization Date: Dec 18, 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: Y4WYPZ120S23W In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Sichuan Topluck Lighting Co.,Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram --- (Long term) • Schematics --- (Long term) • BOM --- (Long term) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Client’s signature: Client’s name/ title: Changyan Chen/ Manager Contact information/address: Sichuan Topluck Lighting Co.,Ltd Add：No.1 Electrical Industry Zone Taiji Road Suining Development Area,Sichuan, China P.C：629000 Tel：+86-0825-5815132 Fax：+86-0825-5898789 E-mail: [email protected]

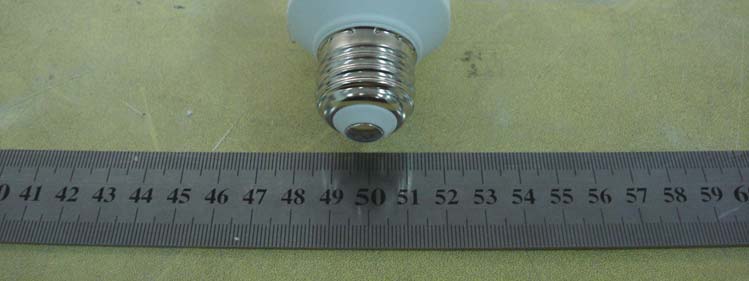

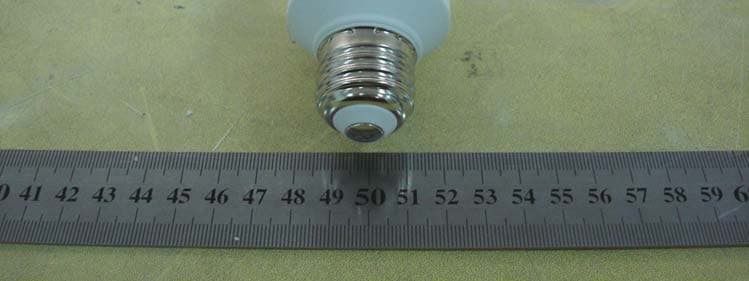

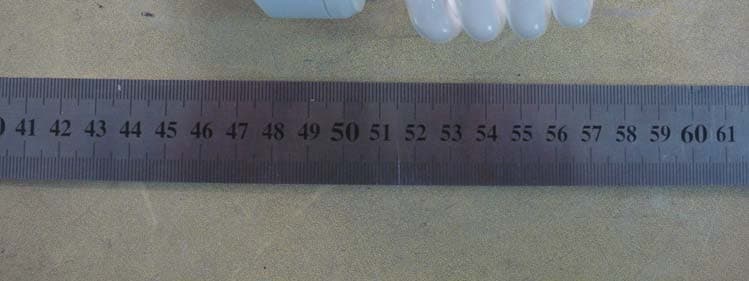

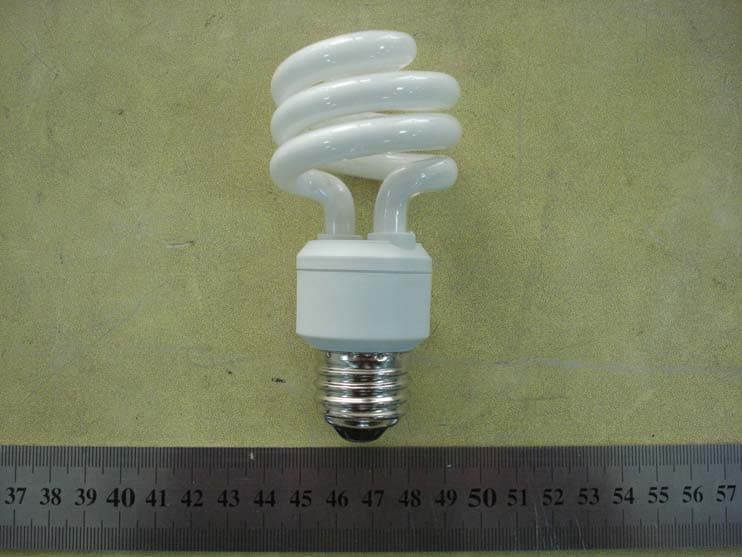

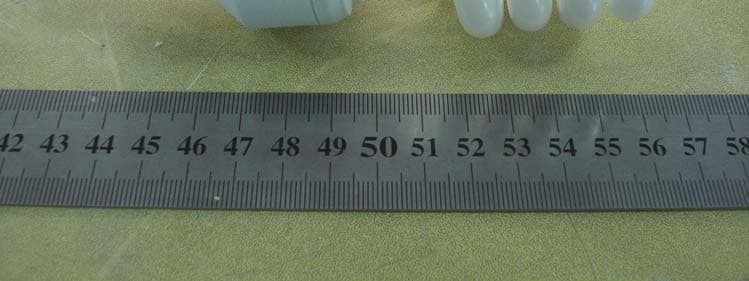

EXHIBIT B – EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT - Side View

EXHIBIT A – FCC LABELING AND LABEL LOCATION FCC ID Label FCC ID Label Location on EUT

EXHIBIT C – EUT INTERNAL PHOTOGRAPHS EUT - Uncovered View EUT - PCB Front View EUT - PCB Rear View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 MEASUREMENT AND TEST REPORT For Sichuan Topluck Lighting Co., Ltd. No.1 Electrical Industry Zone, Taiji Road, Suining Development Area, Suining, Sichuan, China FCC ID: Y4WYPZ120S23W Model Number: YPZ120/23-T3S RD This Report Concerns: Original Report Equipment Type: Energy Saving Lamp Test Engineer: Fisher He Sally Ni Report Number: RSC101111003 Report Date: 2010-12-05 Reviewed By: David Li Prepared By: Bay Area Compliance Laboratories Corp. (Chengdu) 5040, HuiLongWan Plaza, No. 1, ShaWan Road, JinNiu District, Chengdu, China www.baclcorp.com Sichuan Topluck Lighting Co., Ltd. FCC ID: Y4WYPZ120S23W Report #: RSC101111003 Page 2 of 13 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION............................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................ 3 OBJECTIVE........................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 3 TEST METHODOLOGY.......................................................................................................................................... 3 TEST FACILITY..................................................................................................................................................... 3 SYSTEM TEST CONFIGURATION .................................................................................................................. 4 DESCRIPTION OF TEST CONFIGURATION.............................................................................................................. 4 EUT EXERCISE SOFTWARE.................................................................................................................................. 4 SPECIAL ACCESSORIES......................................................................................................................................... 4 EQUIPMENT MODIFICATIONS...............................................................................................................................4 EXTERNAL I/O CABLE.......................................................................................................................................... 4 CONFIGURATION OF TEST SYSTEM...................................................................................................................... 4 TEST SETUP BLOCK DIAGRAM............................................................................................................................. 5 SUMMARY OF TEST RESULTS ....................................................................................................................... 6 FCC §18.307 – AC LINE CONDUCTED EMISSIONS ..................................................................................... 7 MEASUREMENT UNCERTAINTY............................................................................................................................ 7 EUT SETUP.......................................................................................................................................................... 7 EMI TEST RECEIVER SETUP................................................................................................................................. 8 TEST EQUIPMENT LIST AND DETAILS................................................................................................................... 8 TEST PROCEDURE................................................................................................................................................ 8 SUMMARY OF TEST RESULTS...............................................................................................................................8 CONDUCTED EMISSIONS TEST DATA & PLOTS..................................................................................................... 9 FCC §18.305 – FIELD STRENGTH.................................................................................................................. 12 MEASUREMENT UNCERTAINTY.......................................................................................................................... 12 EUT SETUP........................................................................................................................................................ 12 EMI TEST RECEIVER SETUP...............................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS................................................................................................................. 12 TEST PROCEDURE.............................................................................................................................................. 12 CORRECTED AMPLITUDE & MARGIN CALCULATION......................................................................................... 13 Sichuan Topluck Lighting Co., Ltd. FCC ID: Y4WYPZ120S23W Report #: RSC101111003 Page 3 of 13 FCC Part 18 Test Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The Sichuan Topluck Lighting Co., Ltd.’s product, model number: YPZ120/23-T3S RD (…

Text truncated - open the document above for the full version.

EXHIBIT D – TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Front View Conducted Emission Test Setup Side View
