RETRO BLUETOOTH PHONE INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE PRODUCT DESCRIPTION The Retro Bluetooth Phone combines high style with high functionality. This device unites comfort and safety of a telephone with the convenience of a mobile phone, making use of mobile phones at home and work, in non-mobile environments, more practical. The design combines classic style with modern elegance, resulting in a fashionable and comfortable Phone finished with a soft luxurious texture. GETTING STARTED • Remove the Bluetooth Retro Phone from the box. • Remove any packaging from the product. • Please read all instructions and retain all packaging until you have checked and counted all of the parts. PACKAGE CONTENTS • Bluetooth Retro Phone • USB Cable • Instruction Manual KEY FEATURES • Compatible with most Bluetooth enabled mobile phones. • Noise-reducing technology for crisp and polished sound. • Reduces the impact of radiation emitted by mobile phones (on direct contact). • Luxurious soft-touch finish, for ultimate comfort and feel. UNPARALLELED CONVERSATION COMFORT The Bluetooth Retro Phone is specially designed to transform any type of smart/mobile phone into a comfortable and convenient conversational device. The ergonomic design provides incomparable comfort, making the mobile phone practical for any type of conversation in any type of environment. The ability to leave the mobile phone untouched while talking allows the user to enjoy the convenience of utilizing all other functions of the mobile device mid-conversation, making plans, access emails, browsing the internet and access to calendars easier than ever. Compatible with most Bluetooth Enabled Mobile Phones. REDUCES RADIATION While the debate about potentially harmful mobile phone radiation and the health-related consequences rages on, our Bluetooth Retro Phone offers state of the art technology, with high quality speaker and microphone ensures polished sound while the design helps to reduce the impact of harmful mobile phone radiation. USING YOUR RETRO PHONE Step 1: Connect the Retro Bluetooth Phone to the USB Cable and plug into computer. Allow it to charge for 6-8 hours before the first use. Step 2: You will need to pair the Bluetooth Retro Phone with your cell phone (Bluetooth pairing is the process of establishing a wireless link between two devices). Refer to your cell phone manual for instructions on how to use the Bluetooth pairing function on your phone. Step 3: Press and hold the silver button on the Bluetooth Retro Phone. After about 5 seconds, the blue LED indicator light will illuminate briefly and the Bluetooth Retro Phone will make a short sound. Continue holding the silver button for another 3 to 4 seconds until the blue LED starts to blink rapidly. When the blue LED is blinking rapidly the Bluetooth Retro Phone is in pairing mode. Step 4: Follow your cell phone’s instruction manual. This normally involves going to “Setup”, “Connect”, “Connection” or “Bluetooth” menu on your cell phone and then selecting the option to “Look for Device” or “Discover” to initial the Bluetooth pairing process. Step 5: Your cell phone will scan for local Bluetooth devices and should locate the Retro Bluetooth Phone in about 10-20 seconds. Step 6: When you pair your cellphone with the Retro Bluetooth Phone it will prompt you to enter a PIN– enter “0000”. Step 7: At this point, you should be able to place a call using your cell phone keypad, phone book, or Voice dial and use Retro Bluetooth Phone instead of your normal cell phone handset. The Retro Bluetooth Phone should function much like any handsfree headset. - To answer an incoming call, press the silver button. - To end the current call, press the silver button. - To Turn Off the Retro Bluetooth Phone press and hold the silver button for about 3 seconds until you hear short sound and the blue LED turns off. TROUBLESHOOT TIPS Problem Possible Solution Unable to turn the Bluetooth Retro Phone On Ensure the Bluetooth Retro Phone is sufficiently charged Ensure the Bluetooth Retro Phone is sufficiently charged Ensure that Bluetooth option on the Bluetooth Retro Phone & the mobile phone is turned on Unable to pair the device using Bluetooth Technology Ensure that you enter the correct PIN (0000) on your cell phone, when prompted to. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

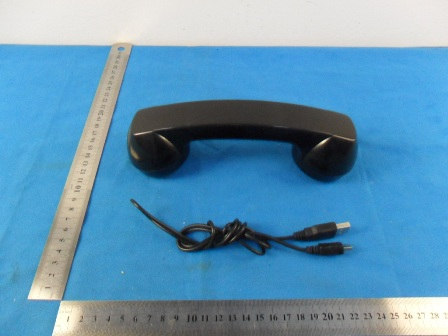

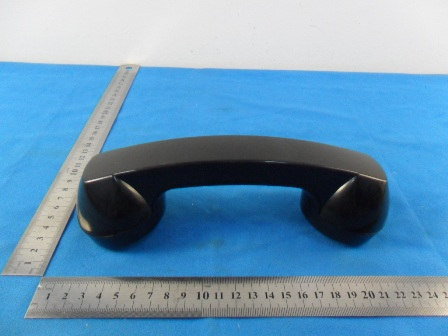

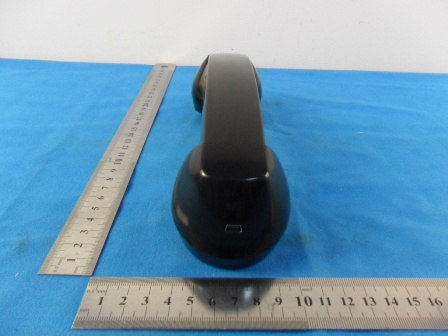

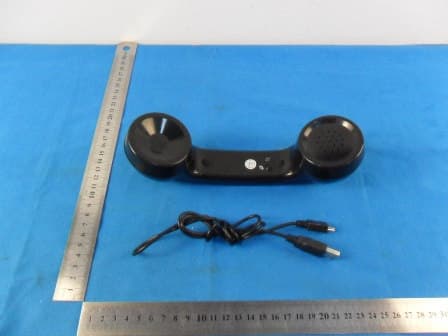

1 Photographs - EUT Constructional Details(Test Model No.: BK-011)

Label:

1 Photographs - EUT Constructional Details (Test Model No.: BK-011)

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: Y56BK011 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is 2.23dBm(1.671mW) in highest channel; The best case gain of the antenna is 0dBi. 0dB logarithmic terms convert to numeric result is nearly 1. According to the formula. calculate the EIRP test result: EIRP= P x G = 1.671mW x 1= 1.671mW ① SAR requirement: S= 60 / f(GHz) = 60/2.480 = 24.19mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM111000439401 Page: 1 of 48 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEM1110004394RF Applicant: SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD. Product Name: Bluetooth Retro Phone Operation Frequency: 2.402GHz to 2.480GHz FCC ID: Y56BK011 Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2010 Date of Receipt: 2011-10-31 Date of Test: 2011-11-01 to 2011-11-10 Date of Issue: 2011-11-11 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM111000439401 Page: 2 of 48 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................... 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 E.U.T OPERATION MODE...................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS......................................................................................................................... 6 4.5 TEST FACILITY..................................................................................................................................................... 7 4.6 TEST LOCATION................................................................................................................................................... 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................................ 7 4.8 TEST INSTRUMEN…

Text truncated - open the document above for the full version.

1 Photographs - Test Setup Photo (Test Model No.: BK-011) Radiated Emission Test Setup Conducted Emission Test Setup
