Y56QSLFH09Bluetooth Phone and Speaker

1 FH-0 09 BLUETOOTH PHONE & SPEAKER INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE FEI HAO 2 Getting Started • Remove the unit from the box. • Remove any packaging from the product. •Please retain all packaging until you have checked and counted all the parts and the contents against the parts list . Package Contents • Bluetooth Phone & Speake r • Charging Cradle • AUX Cable • USB Charging Cable • Powe rAdaptor • Instruction Manual Key Features • Bluetooth®3.0 Phone & Conference Speaker • Compatible with most Bluetooth enabled devices such as Smart Phones, Tablets, etc. • Wired Connection also available forcomputers, netbooks, laptops etc. • Syncs in Seconds • Wireless Range (8 -10) Meter (26 - 33) Feet Safety Instructions Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the unit. Do not use the unit if it has been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. Do not use the unit with wet hands. Do not put objects into any of the openings. Keep the unit free from dust, lint etc. Do not use this unit for anything other than its intended use. Keep the unit out of reach of children. This appliance is not a toy. Do not use the handset at excessive levels as damage to hearing may occur. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. 3 Description of Parts Handset Photo 4 ButtonFunctionOperation 1Mode ButtonSlide to left side and it would function as Bluetooth Speaker; Slide to right side and it would function as Bluetooth Phone 2Play/PausePress this button once to Play or Pause Music once you are connected to any Bluetooth enabled device 3Skip Forward / Increase Volume Long Press this button and music would skip to next track; Press once and it would increase volume of the speaker or phone (Note: Sound alert when it reach maximum sound level of the speaker) 4Skip Backward / Decrease Volume Long Press this button and music would skip to previous track; Press once and it would decrease volume of the speaker or phone (Note: Sound alert when it reach minimum sound level of the speaker) Power On/Off Power On/OffLong Press for 5 to 6 seconds to turn ON or OFF the Speaker/Phone 5 INSTRUCTIONS FOR USE Installation Place the phone/speaker on the cradle. For first time use, we suggest you to charge the device for 4 to 5 hours. Charging the Phone/Speaker – 1) Connect power adaptor to the DC jack of the speaker and the power adaptor connect to the power supply. 2) Or, connect the USB charging cable (provided) to the USB charging port o fthe speaker. The other end of the charging cable which connect to your computer / other suitable USB outlet. Place the Phone/Speaker on the Cradle. Red light would light up to indicate that device is charging. Once the device is fully charged, the red LED will be turned off. How to Turn ON the Bluetooth Phone/Speaker – Long Press the Power ON/OFF Button for 5 to 6 seconds until you hear the beep tone. How to go on Bluetooth Pairing Mode – Long Press the Power ON/OFF Button for 8 to 10 seconds until you hear the beep tone. (Note: While you long-press the ON/OFF Button, first you would hearbeep tone but do not release the button as device first turns on, continue pressing the button until you go into Pairing Mode. ) Once you go into pairing mode, you would see both Blue & Red lights blinking Connect using Bluetooth Technology To connect to any Bluetooth enabled device, you need to first go on Pairing Mode. Long Press the Power ON/OFF Button for 8 to 10 seconds until you hear Beep Tone and you see both Blue & Red Light flashing. You are now in Pairing Mode. Activate the Bluetooth function on your Bluetooth Device (Mobile Phone or Tablet). Please refer to manufacturer’s instructions for instructions on enabling Bluetooth on your device. 6 Once you have activated Bluetooth on your device, select “SL SpeakerPhone” from the list of available Bluetooth devices. If required, enter the password ‘0000’ to confirm to finalize pairing. Once paired successfully, the LED flashes blue several times and beep tone will be heard. Choose music from your Bluetooth® device and play music wireless through the speakers. (Note: When you listen to the music, make sure the mode button turn to left and in speaker mode. Otherwise, the sound volume will be very small.) Connect through AUX Jack‐ Turn ON the unit Connect the 3.5mm AUX cable to the output jack on your Personal music player like Mobile Phone or Tablet Play music from your personal music player. (Note: Once AUX cable is connected to the Bluetooth Phone & Speaker, music through the Bluetooth will be stopped.) (Note: Microphone function doesn’t work in auxiliary mode). (Note: Suggest you turn off the Bluetooth connection manuallybetween Bluetooth Phone & Speaker and your mobile phone before you using your phone to play the music through the AUX cable.) Switch from Speaker to Phone Mode – Turn ON the unit and make sure your phone is connected to the Bluetooth Phone & Speaker via Bluetooth. Pick up a call: To answer an incoming call (sound alert through the speaker), short press the On/off button of the Bluetooth Phone & Speaker and slide the mode button to the right side to turn on the Bluetooth Speaker. You can answer the call through the mic of the Bluetooth Phone & Speaker. End a call: To end a call, short press the On/off button of the Bluetooth Phone & Speaker and slide the mode button the left side and it will become the speaker mode. Redial: Press the On/off button around 2 seconds. A beep tone would be heard. It will redial the last number you called out on your phone. Slide the mode…

Text truncated - open the document above for the full version.

SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD. ——————————————————————————————— Date: September 28, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID: Y56QSLFH09 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name：Huang Derong Company name: SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD.

SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD. ——————————————————————————————— AGENCY AUTHORIZATION LETTER FCC ID: Y56QSLFH09 Date: September 28, 2012 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Shenzhen Co. Ltd Dongguan Branch., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BVDG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name：Huang Derong Company name: SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD.

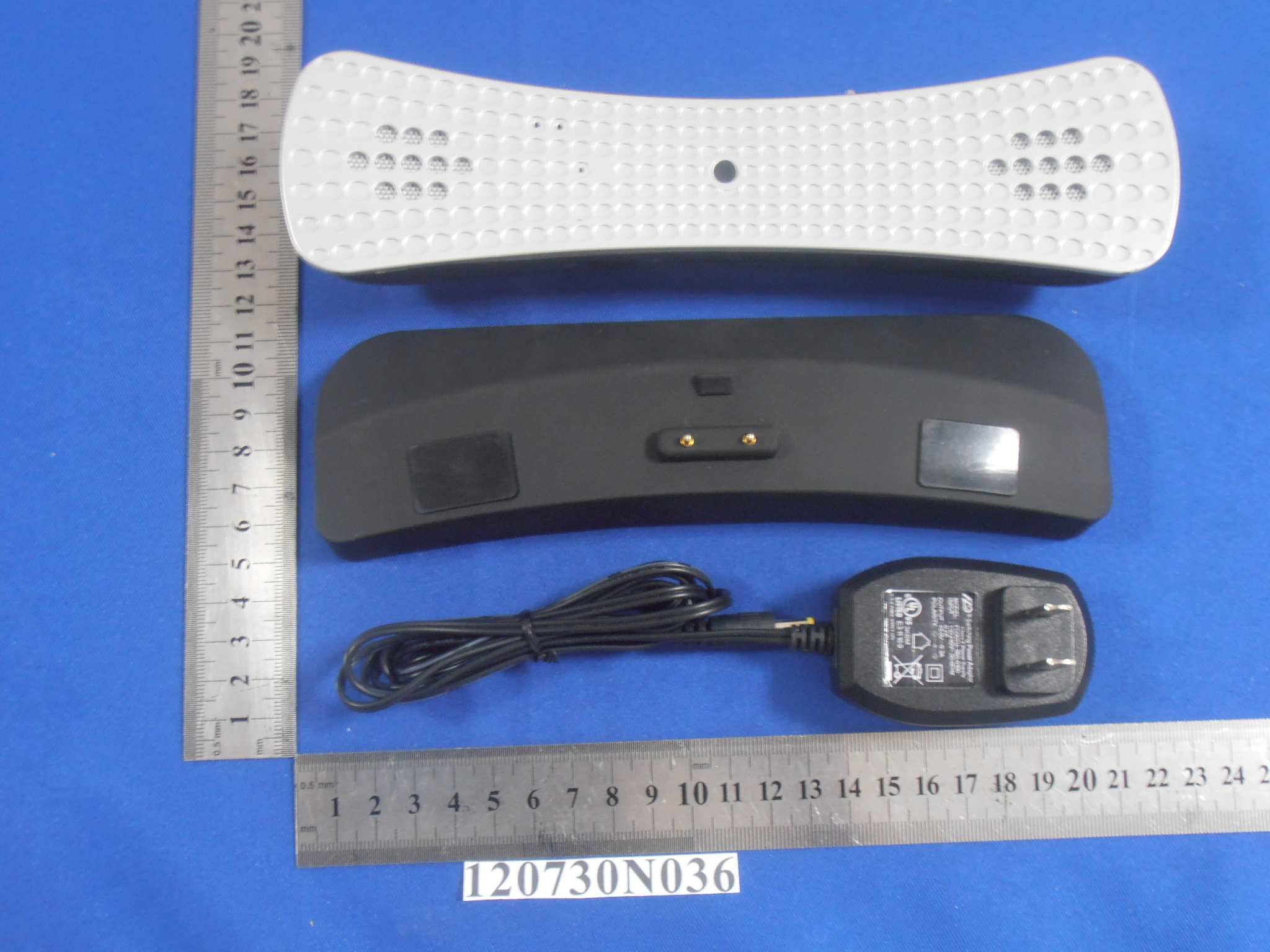

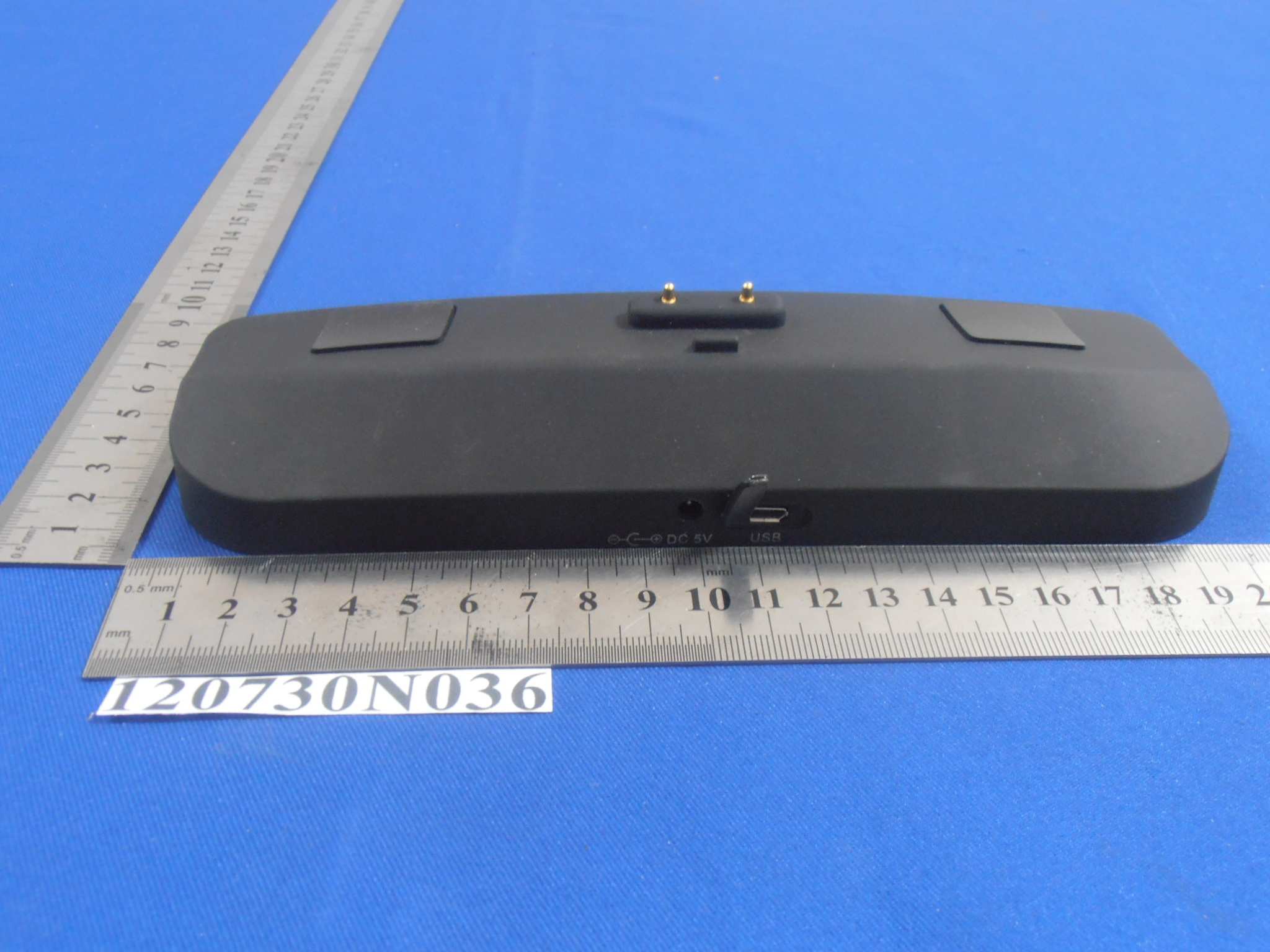

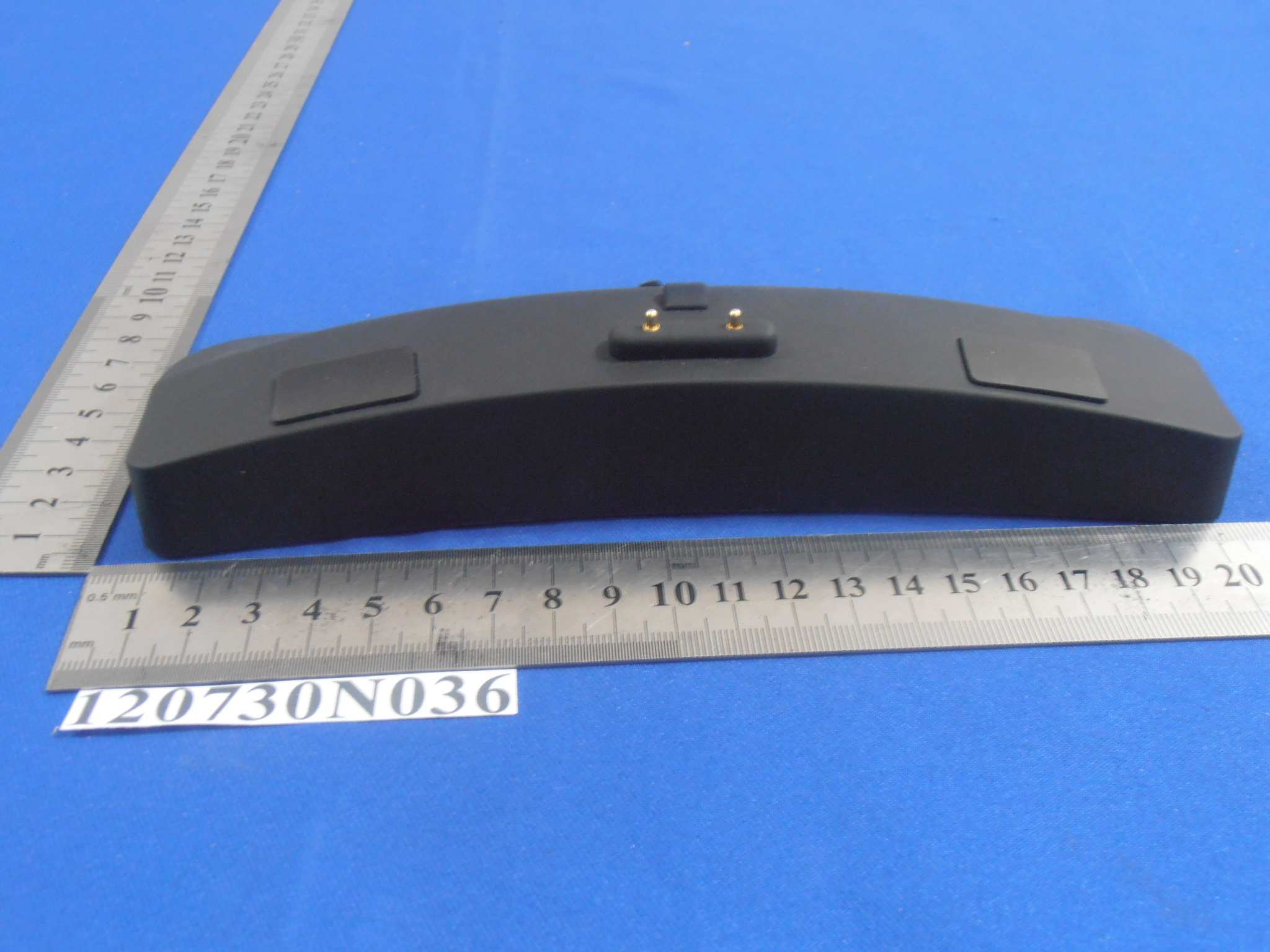

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 120903N006 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 120903N006 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 120903N006

Stick on the bottom of product Label size: 4*3CM FCC ID: Y56QSLFH09 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

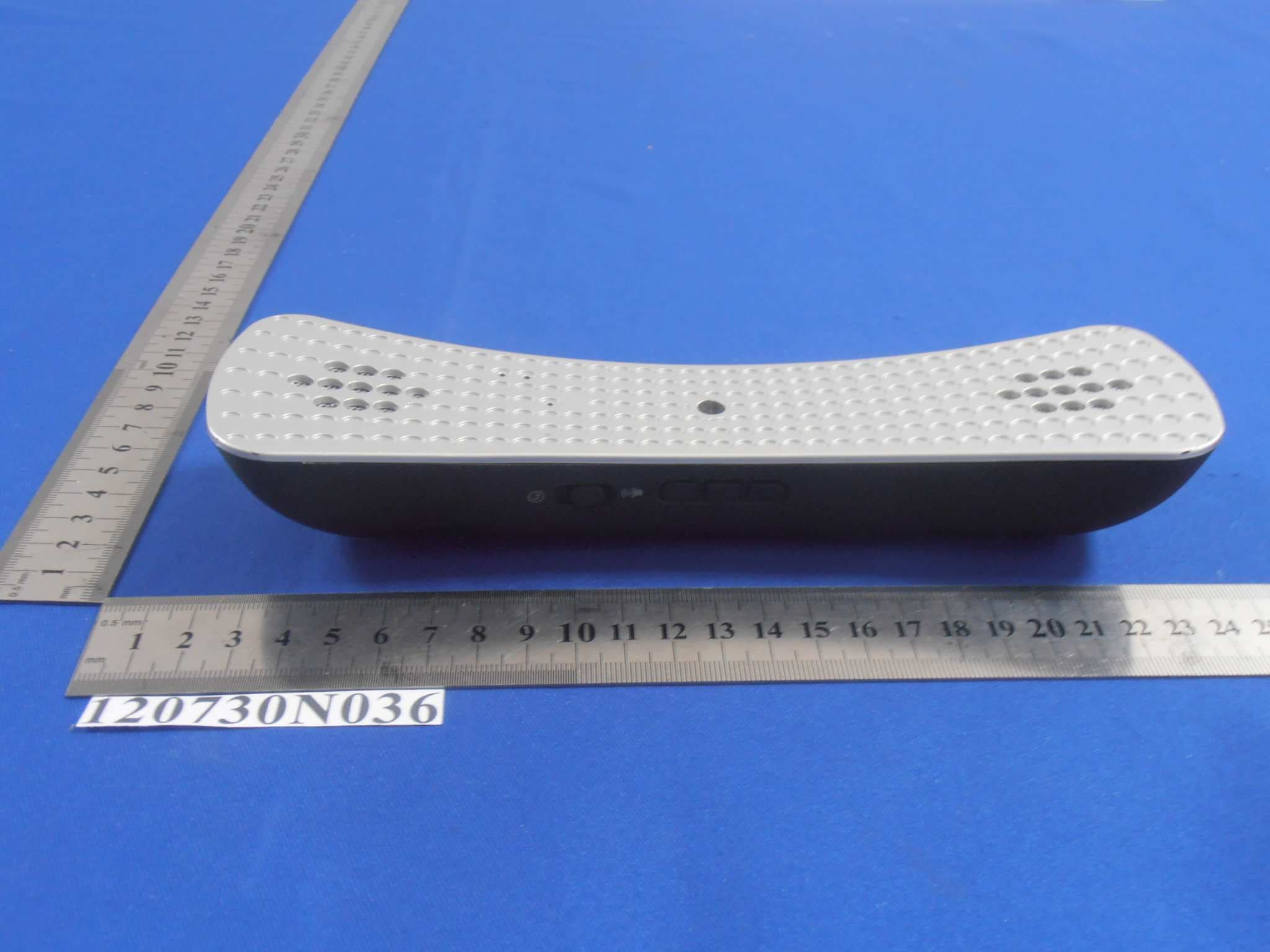

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: 120903N006 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: 120903N006 ANT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: 120903N006 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: 120903N006

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 on 31 Report Version 1 Test Report No.: FC120903N006 TEST REPORT Applicant: SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Address: 5F., Blk 6A, Jing Nan Industry, Bai Ge long, Buji, Shenzhen, China Manufacturer or Supplier DONGGUAN FEIHAO INDUSTRIALIST CO., LTD Address No.8, Fengyi Road, Dakan Village, Huangjiang, DongGuan, China Product: Bluetooth Phone And Speaker Brand Name: N/A Model: FH-09 Additional Model & Model Difference: See Section 3.1 Date of tests: Sep. 03~ Sep. 26, 2012 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C (Section 15.249) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Glyn He Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: Sep. 26, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 on 31 Report Version 1 Test Report No.: FC120903N006 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS.................................................................................................... 5 2 MEASUREMENT UNCERTAINTY ................................................................................................ 5 3 GENERAL INFORMATION ............................................................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES............................................................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................................... 8 4. TEST TYPES AND RESULTS........................................................................................................ 9 4.1 CONDUCTED EMISSION MEASUREMENT............................................................................. 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................................. 9 4.1.2 TEST INSTRUMENTS....................................................................................................... 9 4.1.3 TEST PROCEDURES ..................................................................................................... 10 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................... 10 4.1.5 TEST SETUP....................................................................................................................11 4.1.6 EUT OPERATING CONDITIONS .....................................................................................11 4.1.7 TEST RESULTS .............................................................................................................. 12 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................... 14 4.2.2 TEST INSTRUMENTS..................................................................................................... 15 4.2.3 TEST PROCEDURES ..................................................................................................... 16 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 16 4.2.5 TEST SETUP................................................................................................................... 17 4.2.6 EUT OPERATING CONDITIONS .................................................................................... 17 4.2.7 TEST RESULTS .............................................................................................................. 18 4.3 20dB BANDWIDTH MEASUREMENT ..................................................................................... 23 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT.......................................................... 23 4.3.2 TEST INSTRUMENTS................................................................…
