Y56QSLHD042BWireless Gun TV Game

Console Gun Launcher AVCable UserManual ACAdaptor UserManual Yourpackageincludefollowingaccessories UserManual (15V*4AA). Reset Built-in IR Launcher Power Power LED Light BAR port DC Jack Console Batteries Case TV Video TV Audio(Left) TV Audio(Right) Main Unit Front ViewMain Unit Rear View Gun Key Functions Back to Main Menu Communication Reset GunSpecial Function Keys Battery Box(1.5V* 4AA Batteries) Power LED Shooting Switch PowerSwitch Switch for Magazine Console Connected to the TV Launcher Location Launcher Location 1 Connect the console with TV via the AV cable with 6 color joint respectively 2 Power the console with the AC adaptor. 3 Put the launcher on the up or down frame of the TV and connect to the light BAR port , please note that there shouldn’t have barrier before the launcher. 4 When it inconvenient for use the launcher, ensure the console in the middle place before the TV in order for the veracity of the light gun. 5 Put 4*AA batteries on the gun and turn on the switch, the red LED light. 6 It would be perfect by stand 1.5 meters away from launcher, angel should be 25 degree from the middle of the TV. ± sencer 1Aim at the Red area on the upper left, shoot and go to the next frame 2Enter into next frame and aim at the red area ,shoot and go to the mext frame 3In the third picture, aim at the point in the middle and shoot, until now, calibration completed, it will enter into the menu section. 、 、 、 1Itwillenterintothemenuselectionmodeafteryoucompletedcalibration. Yon can find the game picture on the left screen while on the right will show the game name. 2After you select the game, enter it by aim at the picture and shoot. 、 、 Menu selection modeLight gun calibration mode First Second Third 10 1It will show the “LOADING” on the screen after you selected the game, just wait for a while you can start the exciting game. 、DuringplayingprocessPressexitontheguntoquitthegameandreturn back to menu. it will go to select mode for you to choose continue or exit the menu. , Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution:

2.404GHz-2.475GHz LDO3.3V COMS SENSOR :EM78447P :24DT-50DSUJA R ESET LDO3.3V 24DT-50DSUJA LDO5V IR V I D EO A UD I OL A UD I OR TCP535COB_1GBIT 48LC8M16A2 . 1 2 3 1 2 Q1 12M 1 2 Q2 16M R1 0 S5 LED 1 2 3 1 2 Q3 12M 1 2 Q4 6M R2 LED 1 2 3 U1 CON/DC R4 Encrpytion software Program memorizer Data memorizer Module Function Description:MCU process data sent by camera , MCU Function keys connect to mainframe by module Function Description: CPU process all datas and output video and audio signal shoot Key1 Key2 Key3 MCU Control IC IC Model Camera Module 2.4G Model CPU GPL16258 V 2.404GHz-2.475GHz V Main control IC Gun Console

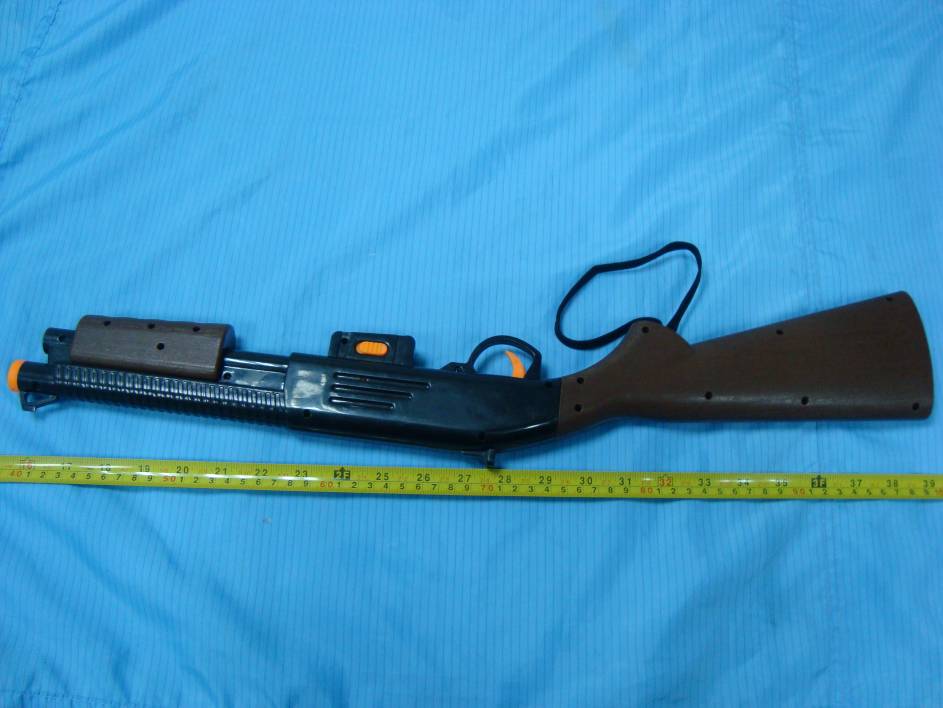

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View Antenna EUT – Power Board Top View EUT – Power Board Bottom View EUT – Sencer Board Top View EUT – Sencer Board Bottom View

Description TX-block diagram description: Connect the Console with power cable, and connect the video cable, audio cable to TV, Then turn switch to “ON”, the CPU (GPL16258) loaded data from the Program memorizer (COB-1GBIT)’s into the data memorizer (48LC8M16A2), and CPU read out data from data memorizer and output image and sound, CPU and encryption IC (TP535) is verified the data later. Turn the gun's switch to “ON”, the Console and the Gun will identify each other, CPU control the Console’s 2.4G module (24DT-50DSUJA) and output connection request, when the guns receives the request data, and it was assigned a valid ID data randomly for connect , the gun-side’s MCU IC (EM78447P) collect data from the function keys and the camera and output data through 2.4G module (24DT-50DSUJA), the Console CPU read out data sent by the 2.4G module , complete to control the game.

11 REV:SIZE:CODE: DRAWN:DATED: DATED:CHECKED: QUALITY CONTROL:DATED: DATED:RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OFSCALE: REVISION RECORD APPROVED:ECO NO: A B D DATE: 123456 D C A B C LTR 1 P55 2 P54 3 TCC 4 VDD 5 NC 6 VSS 7 /INT 8 P50 9 P51 10 P52 11 P53 12 P60 13 P61 14 P62 15 P63 16 P64 17 P65 18 P66 19 P67 20 P70 21 P71 22 P72 23 P73 24 P74 25 P75 26 P76 27 P77 28 OSCO 29 OSCI 30 /RESET 31 P57 32 P56 U1 EM78P447 R1 3.9k R2 3.9k R3 5.6k R4 5.6k R5 1K R6 33K D1 C1 105 1 2 Q1 16M C2 22P C3 22P R7 4.7K R8 4.7K 1 PWDM 3 SCL 5 SDA 7 NC 8 RST 6 NC1 4 VDD 2 VSS U2 MM0200BA R9 10K R10 3.9k R11 10K R12 5.6K 1 EXTI2M 2 VDD 3 SPI_MISO 4 CE 5 SPI_CLK 6 SPI_MOS1 7 CSN 8 RSSI 9 DR_IRQ 10 GND J4 2.4G 3.3V PWR GND 1 3 2 U4 C4 100U C5 100U C7 104 C8 106 C10 106 R13 330 12 U6 SIP/2P 12 U7 SIP/2P D2 1 T1 PADTEST 1 T2 PADTEST 1 T3 PADTEST 123456 J2 SIP6 R14 0 KEY9 KEY10 KEY11 KEY12 KEY1 KEY2 KEY3 KEY4 KEY5KEY6 KEY7 KEY8 CSN CE SPI_MISO RSSI DR_IRQ INPUT/OUTPUT_A INPUT/OUTPUT_B INPUT/OUTPUT_CINPUT/OUTPUT_D INPUT/OUTPUT_E OSCI OSCO OSCIOSCO SPI_CLK SPI_MOSI KEY1 KEY2 KEY3 SPI_MISO CE SPI_CLK SPI_MOSI CSN RSSI DR_IRQ VCC VCC1 KEY7 KEY8 KEY5KEY6 VCCVCC1 KEY11 KEY12 RESET RESET VCC LED LED GND KEY8KEY7 RET RET VCC1 2.404GHz-2.475GHz

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 MEASUREMENT AND TEST REPORT For Shenzhen Qi Shenglong Industrialist Co., Ltd. 5F. Blk 6A, Jing Nan Industry, Bai Ge long, Buji, Shenzhen, Guangdong, China FCC ID: Y56QSLHD042B Report Type: Original Report Product Type: Wireless Gun TV Game Test Engineer: Phoenix Liu Report Number: RSZ10122781-15.247 Report Date: 2011-02-21 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Shenzhen Qi Shenglong Industrialist Co., Ltd. FCC ID: Y56QSLHD042B Report No.: RSZ10122781-15.247 Page 2 of 35 FCC Part15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §15.247 (i) & §2.1093 – RF EXPOSURE INFORMATION..................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC §15.209, §15.205 & §15.247(d) – RADIATED SPURIOUS EMISSIONS......................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP..............................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.247(a) (1) - CHANNEL SEPARATION TEST ..........................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Spurious Radiated Emissions - Front View Below 1 GHz: Spurious Radiated Emissions - Rear View Above 1 GHz: Spurious Radiated Emissions - Front View Above 1 GHz: Spurious Radiated Emissions - Rear View
