MINI TOWER BLUETOOTH SPEAKER Instruction Guide MODEL NO.: KM-BT04 PDF created with pdfFactory trial version www.pdffactory.com Know your Bluetooth speaker 1. Disconnect Bluetooth 2. Volume+ 3. Skip – 4. Volume – 5. Skip + 6. Play/Pause *****Back of the remote is the battery compartment (Requires 2 x AAA batteries – NOT INCLUDED) 7. Charging indicator light 8. USB DC 5V 9. On / Off buttonVolume – 10. AUX PDF created with pdfFactory trial version www.pdffactory.com Using Bluetooth Speaker - To turn ON, slide the [POWER ON/OFF] switch to the ON position, the LED flashes BLUE 6 times quickly then once every few seconds. - To turn OFF, slide the [POWER ON/OFF] switch to the OFF position, the LED illuminates and the speaker will power OFF. Product Specifications - Dimension Dimension: L=120 W=120 H=432 - Standard Battery: Built in rechargeable 800mAh Lithium battery - Charge condition: Charge time: 3-4 hours Power input: DC 5V/300mA. Speaker Specifications - Diameter: φ90 mm - Impedance: 4Ω - Power output: 3W - Dbspl: 80±3dB 1W/M Wireless function - Frequency: 2.402-2.480 GHz - Receiving sensitivity: -82dBm - Transmission distance: within 10 meters Package & accessories - Bluetooth Speaker - AUX cable - DC Power - Instruction manual PDF created with pdfFactory trial version www.pdffactory.com FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment should be installed and operated with minimum distance 20cm between the radiator & your body PDF created with pdfFactory trial version www.pdffactory.com

SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. 5F.,Blk 6A, Jing Nan Industry,Bai Ge long,Buji,Shenzhen,China FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Addresss 5F.,Blk 6A, Jing Nan Industry,Bai Ge long,Buji,Shenzhen,China City Shenzhen Country China FF request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Y56 QSLKMBT04 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Operational Description √ Block Diagrams √ Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China 2013-06-07 Huang Derong manager

SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. 5F.,Blk 6A, Jing Nan Industry,Bai Ge long,Buji,Shenzhen,China FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 . We, (the approval holder) Company name SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Addresss 5F.,Blk 6A, Jing Nan Industry,Bai Ge long,Buji,Shenzhen,China City Shenzhen Country China declare that the following representative (agent): Name (person) Ruby Zhang Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description MINI TOWER BLUETOOTH SPEAKER Type or Model(s) KM-BT04 Tradename or Brand(s) N/A We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China 2013-06-07 Huang Derong manager

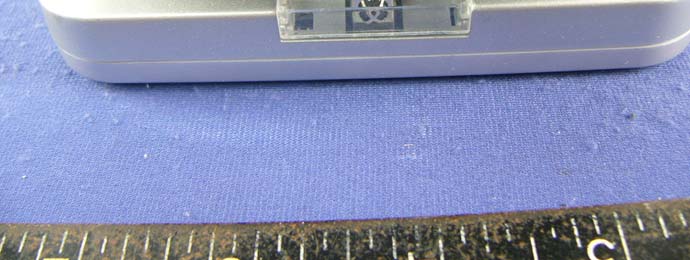

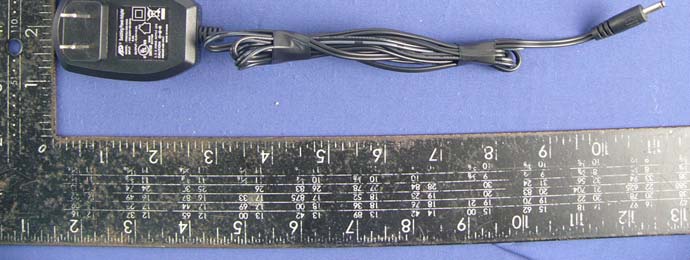

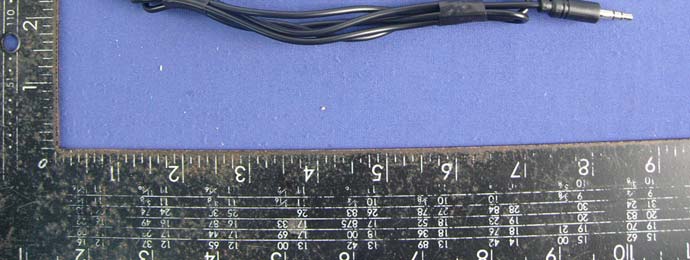

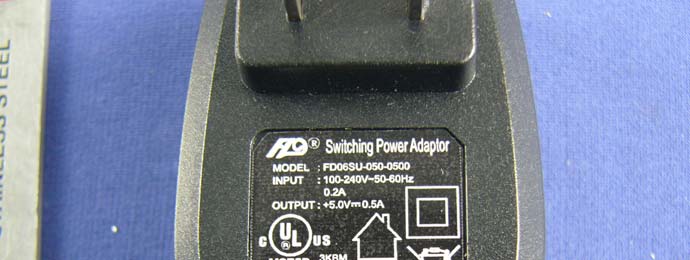

Report No: C130521Z03-RP1 Page 1 / 5 External Photos of EUT Report No: C130521Z03-RP1 Page 2 / 5 Report No: C130521Z03-RP1 Page 3 / 5 Report No: C130521Z03-RP1 Page 4 / 5 Report No: C130521Z03-RP1 Page 5 / 5
