Y56QSLMA861Bicycle Bluetooth Speaker

MA-861

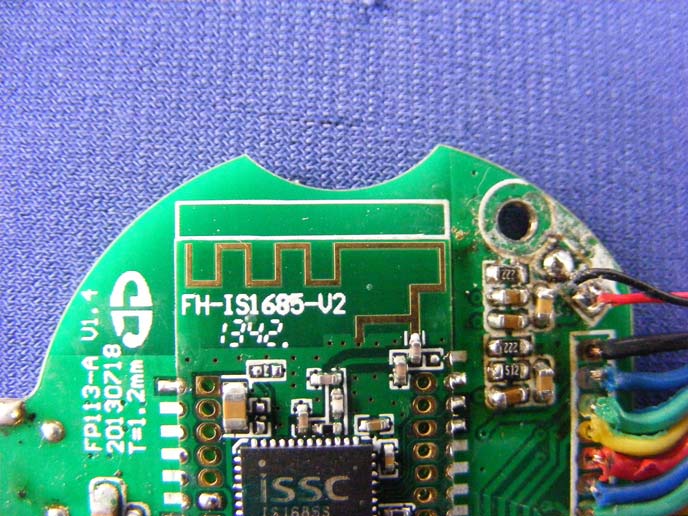

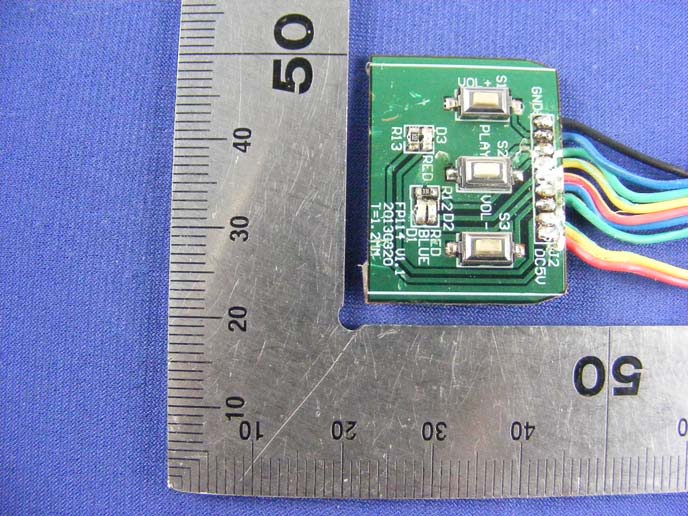

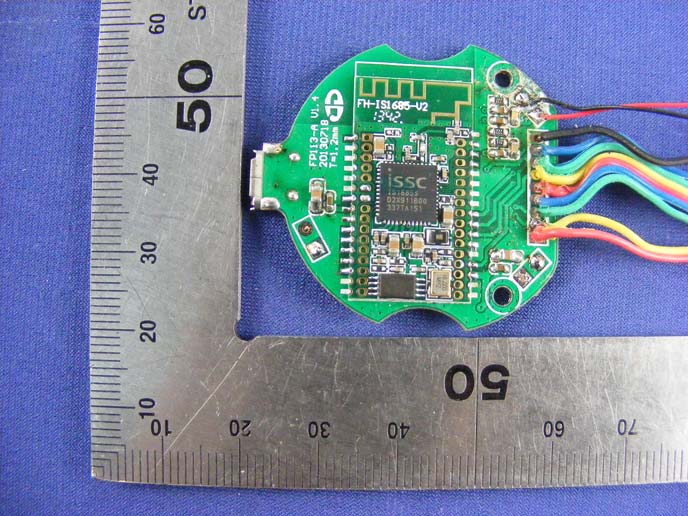

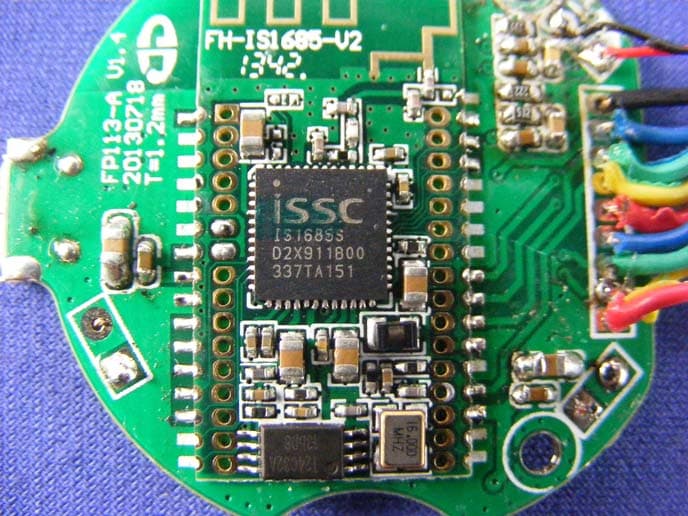

Report No: C140109Z01-RP1 Page 1 / 5 Internal Photos of EUT Report No: C140109Z01-RP1 Page 2 / 5 Report No: C140109Z01-RP1 Page 3 / 5 Report No: C140109Z01-RP1 Page 4 / 5 Report No: C140109Z01-RP1 Page 5 / 5

Compliance Certification Services Inc. Report No: C140109Z01-RP1_MPE FCC ID: Y56QSLMA861 Date of Issue: January 24, 2014 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Bluetooth: 2.402GHz~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 4.64dBm (2.91mW) Antenna gain (Max) 0dBi (Numeric gain:1.0) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 4.64dBm (2.91mW) at 2441MHz (with 0dBi numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C140109Z01-RP1_MPE FCC ID: Y56QSLMA861 Date of Issue: January 24, 2014 2 Calculation Given 2 4d GP S Π × = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=2.91mW Numeric antenna gain=1 Substituting the MPE safe distance using d=20 cm into Equation 1 : Fields The power density S = 2.91 × 1/ (4∏ × 400) cm 2 =5.79*e -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C140109Z01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: Y56QSLMA861 Page 1 / 60 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bicycle Bluetooth Speaker Model: MA-861 Brand: N/A Test Report Number: C140109Z01-RP1 Prepared for SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD 5F., BlK 6A, Jing Nan Industry, Bai Ge Long, Buji, Shenzhen, China Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: January 24, 2014 Report No.: C140109Z01-RP1 FCC ID: Y56QSLMA861 Page 2 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C140109Z01-RP1 Initial Issue ALL Sabrina Wang Report No.: C140109Z01-RP1 FCC ID: Y56QSLMA861 Page 3 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20dB BANDWIDTH........................................................................................................9 6.2 PEAK POWER.............................................................................................................13 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................14 6.4 BAND EDGES MEASUREMENT ................................................................................16 6.5 FREQUENCY SEPARATION ......................................................................................26 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................29 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................32 6.8 SPURIOUS EMISSIONS .............................................................................................39 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................58 Report No.: C140109Z01-RP1 FCC ID: Y56QSLMA861 Page 4 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Bicycle Bluetooth Speaker Model: MA-861 Brand: N/A Tested: January 9~24, 2014 Applicant: SHENZHEN QI SHENGLONG INDUSTRIALIST CO., LTD 5F., BlK 6A, Jing Nan Industry, Bai Ge Long, Buji, Shenzhen, China Manufacture DONGGUAN FEIHAO INDUSTRIALIST CO., LTD No.8, Fengyi Road, Dakan Village, Huangjiang, DongGuan, China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140109Z01-RP1 FCC ID: Y56QSLMA861 Page 5 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Bicycle Bluetooth Speaker Model Number MA-861 Brand N/A Model Discrepancy N/A Identify Number C140109Z01-RP1 Power Supply DC 3.7V Supplied by the battery or DC 5V Supplied by the notebook USB cable Unshielded, 0.70m Received Date January 9, 2014 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : 4.64dBm 8DPSK : 3.53dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) Number of Channels 79 Channels Antenna Specification PCB Antenna with 0dBi gain(Max) Temperatu…

Text truncated - open the document above for the full version.

Report No.: C140109Z01-RP1 FCC ID: Y56QSLMA861 Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C140109Z01-RP1 FCC ID: Y56QSLMA861 Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
