Y5AH5GELB-001SUSPENSION FORK

1 4 5 23 6 Wireless remote module feature instruction Top cap Chargeable Micro USB-PORT B Type Wireless remote controller usage instruction Wireless suspension fork feature instruction Information of transformer and battery Insert the battery plug into the fork plug Twist the fork plug by 180 degree (see photo 5), then put the fork plug above the battery slot Insert the plug into the battery slot Tighten the top cap

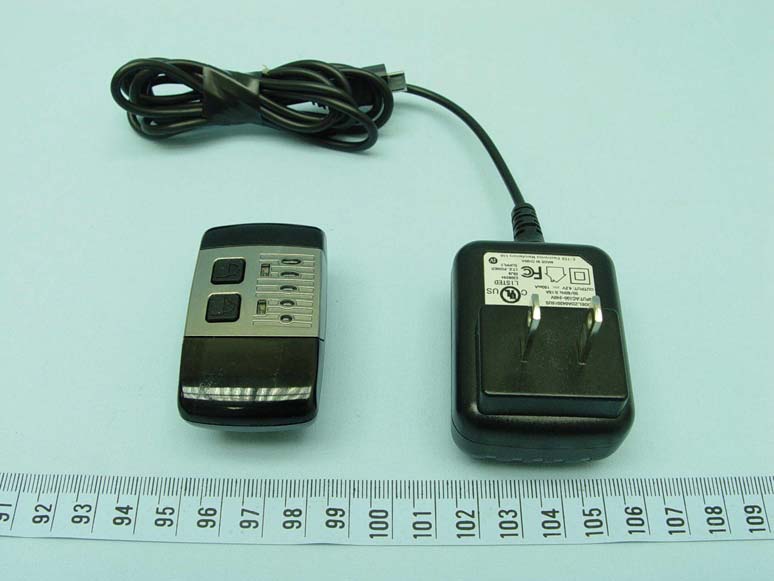

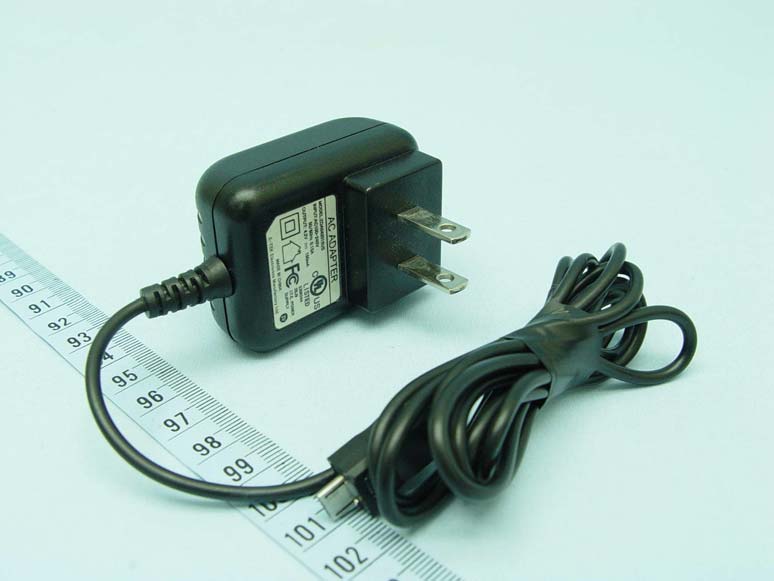

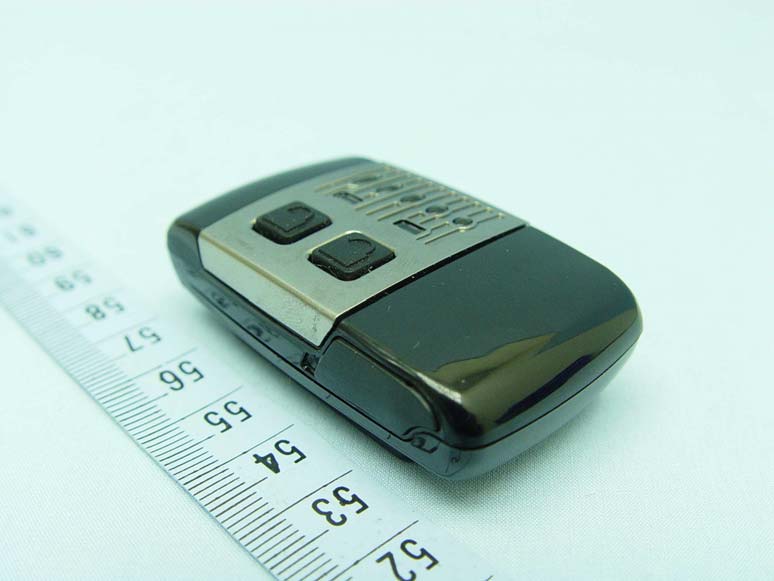

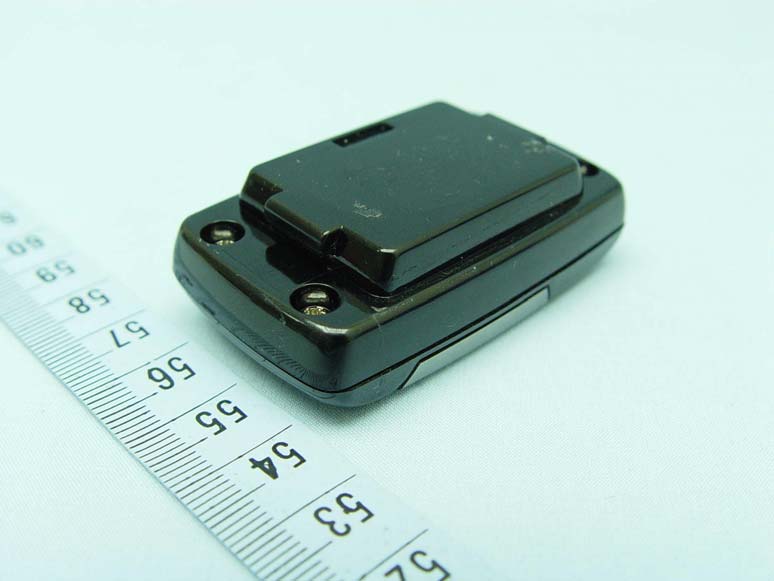

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8

FCC ID: Y5AH5GELB-001 Report No.: RF991221C19 Operational Description The transmitter of the EUT (Wireless Suspension Fork) is powered by 4.2Vdc from power adapter or 3.7Vdc from batteries. The antenna is Printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF991221C19 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO. : RF991221C19 MODEL NO. : F1RST WIRELESS FCC ID: Y5AH5GELB-001 RECEIVED : Dec. 21, 2010 TESTED : Jan. 06, 2011 ISSUED : Jan. 14, 2011 APPLICANT : DAH KEN IND. CO.,LTD ADDRESS : NO. 2, Lane 371, Hwa Chen RD., Hsin Chuang City, Taipei Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF991221C19 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD...............................................................................................3 1. CERTIFICATION ...........................................................................................................4 2. SUMMARY OF TEST RESULTS ...................................................................................5 2.1 MEASUREMENT UNCERTAINTY ................................................................................5 3. GENERAL INFORMATION............................................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................................6 3.2 DESCRIPTION OF TEST MODES................................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................................9 3.4 DESCRIPTION OF SUPPORT UNITS ..........................................................................9 4. TEST TYPES AND RESULTS .....................................................................................10 4.1 RADIATED EMISSION MEASUREMENT ...................................................................10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................10 4.1.2 TEST INSTRUMENTS ................................................................................................ 11 4.1.3 TEST PROCEDURES .................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .......................................................................12 4.1.5 TEST SETUP ..............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ................................................................................13 4.1.7 TEST RESULTS ..........................................................................................................14 4.2 BAND EDGES MEASUREMENT ................................................................................16 4.2.1 LIMITS OF BAND EDGES MEASUREMENT .............................................................16 4.2.2 TEST INSTRUMENTS ................................................................................................16 4.2.3 TEST PROCEDURE ...................................................................................................16 4.2.4 DEVIATION FROM TEST STANDARD .......................................................................16 4.2.5 EUT OPERATING CONDITION ..................................................................................16 4.2.6 TEST RESULTS ..........................................................................................................17 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................................19 6. INFORMATION ON THE TESTING LABORATORIES ................................................20 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.........................................................................................21 Report No.: RF991221C19 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release N/A Jan. 14, 2011 Report No.: RF991221C19 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: SUSPENSION FORK MODEL NO.: F1RST WIRELESS BRAND: RST APPLICANT: DAH KEN IND. CO.,LTD TESTED: Jan. 06, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (model: F1RST WIRELESS ) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jan. 14, 2011 Andrea Hsia / Specialist APPROVED BY : , DATE :Jan. 14, 2011 Gary Chang / Assistant Manager Report No.: RF991221C19 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission Test NA Power supply is 3.7Vdc from battery. 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
