1. Description & Coverage and Range Passive Infrared Detector SB-5HNW Installation Instructions Locate this sensor where intrusion can be made well. 3. Cautions on Installation Please avoid to install where electric noise or heavy vibration can happen. Install where direct or reflected light doesn’t affect sensor or sensor zone area. Do not install this sensor outside but inside only. Caution :It is not possible to repair for free that failure’s cause belongs to followings; not used by the instructions, careless use, fire/flood damage /thunderbolt/robbery, wrong repair or remodeling, unusual power supply, externally damage. Side viewTop view 1 AREA 4 AREA 2 AREA 3 AREA 1 AREA 3 AREA 12 8 9 7 10 11 1 5 4 3 6 2 구분 1 2 3 4 5 6 명 칭 MAIN BODY COVER TOP COVER LED COVER DECORATION 7 BOTTOM 8 9 전원 S/W 10 BATT COVER 11 BASE 12 등록 S/W TAMPER S/W FOOT 감지영역 S/W & 감도 설정 S/W 2. Protection range No.Description 1Main Body Cover 2Top Cover 3LED Cover 4Decoration 5Base 6Bottom 7Power S/W 8Battery Cover 9Sensor Area S/W & Sensitivity S/W 10Tamper S/W 11Registration S/W 12Foot 4. Installation 2) Power is on, Red LED is flickering and warming up proceeds for 60sec. 1) Turn Power S/W on. 3) When warming up completes, click Registration S/W and register this sensor with wallpad. Power S/W Red LED First click Registration S/W in ‘point of contact transmitter’ and click Registration S/W in this sensor to register. 5) Restart this sensor. < Caution> - Restart takes 3 sec. Power S/W 6) When power is on, Green LED is flickering and warming up proceeds for 60sec. - In case of when registration completes and wallpad and communication are made normally. Green LED 4) Set up with DIP S/W. DIP S/W In addition to sending an alarm for the transient, the device sends and receives a signal once only to synchronize. 2) Tumble Check function 3) When power is on and battery has low power, boozer inside keeps beeping repeatedly. 4) In addition to sending an alarm for the transient, the device sends and receives a signal once only to synchronize 5. Function Item DIP S/W Set upRemark Sensor Area 1 ON1 AREA AlertDefault OFF1 AREA Clear 2 ON2 AREA AlertDefault OFF2 AREA Clear 3 ON3 AREA AlertDefault OFF3 AREA Clear 4 ON4 AREA AlertDefault OFF4 AREA Clear Set up sensitivity 5 ONSlow Sensor OFFFast SensorDefault 1) DIP S/W Set up DIP S/W 감지영역 감 도 설 정 12345 제품이 넘어지거나 떨어 질 경우 알람 발생 Tamper S/W Set Up Sen- sitivi- ty Sensor Area Alarm when sensor tumbles or falls off 7. Specification & Dimension ※NOTE : specification is able to be changed without notice to improve function. Model No.SB-5HNW MethodPassive Infrared motion detecting Sense range/zone Solid Alert Type Detect Range: 5m / 360 ̊ Zone dimension12pair (24 Zone) x 4 (96 Zone) Power supplyDC3V (Alkaline-Battery 1.5V_AA x 2EA) Consume current Less than 60㎂ (less than 30㎃ when alarming) LED Green When warming up, sensor is flickering for 60sec. (in case of sensor is registered into wall-pad) Red When warming up, sensor is flickering for 60sec. (in case of sensor is not registered into wall-pad) When sensing, light is on(about 2sec.) Temperature-20°C ~ +60°C Install placeindoor MaterialCover, Base: ABS, Lens: PE DimensionΦ103.4 x 193.9mm Weight300g Function360 ̊ sensing, set up 4 sense Area, set up sensitivity Copyrightⓒ 2011 KMT design REV.0 Security&Best Co., Ltd 430-821 #1005, Dojeong B/D, 548-6, Anyang8-Dong, Manan-Gu, Anyang-City, Gyeonggi-Do Tel : +82-31-341-8513~4,8247 / Fax : +82-31-341-8669 www.secuandb.com / e-mail : [email protected] Problem CauseMeasure Power is on, warming up (LED is not flickering). DC 3V Alkaline Battery power is out. DC 3V Alkaline Battery power is in. This doesn’t sensor Human body. Problem with point of contact- transmitter circuit in wall-pad Consult A/S Delay times(2mins) extends since first sensing or inside circuit problem Consult A/S This malfunctions or doesn’t sense anything. Cover is dirtyClean with smooth cloth. Direct light touches sensor Adjust location and block direct light. Sensor doesn’t sense normally.Adjust sense range/zone. 6. Troubleshooting Radio Post Company LTD FCC Compliance Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Do Not. Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.

SECURITY&BEST CO., LTD. #1005, Dojeong B/D, 548-6, Anyang8-Dong, Manan-Gu, Anyang-City, Gyeonggi-Do, Korea, 430-821 Date: July. 12, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, John Lee / President REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SECURITY&BEST CO., LTD. #1005, Dojeong B/D, 548-6, Anyang8-Dong, Manan-Gu, Anyang-City, Gyeonggi-Do, Korea, 430-821 If you have not received all pages, please call the direct phone number. FAX : 031-441-8511 TEL : 031-441-8663 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, IR Robot Co., Ltd.., would like the following documents regarding this submission for FCC ID: Y5CSB5HNW to be kept confidential. 1. Schematics 2. Operational Description 3. Block diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, John Lee / President

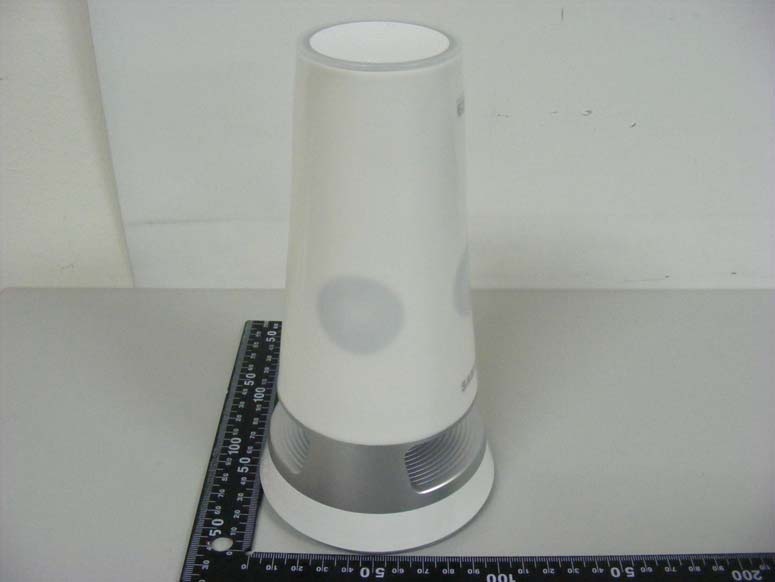

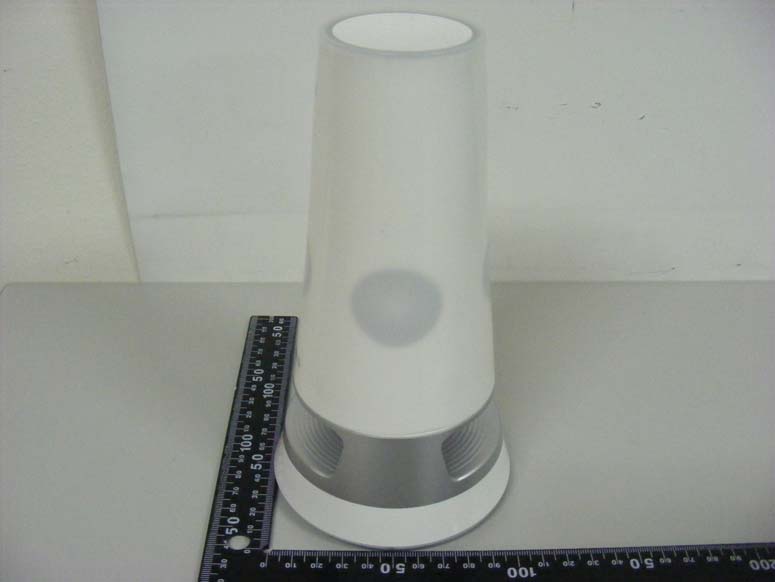

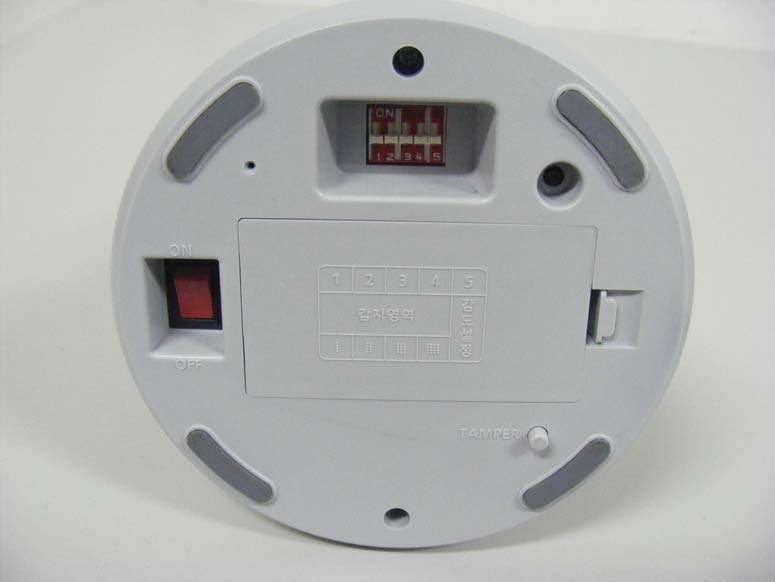

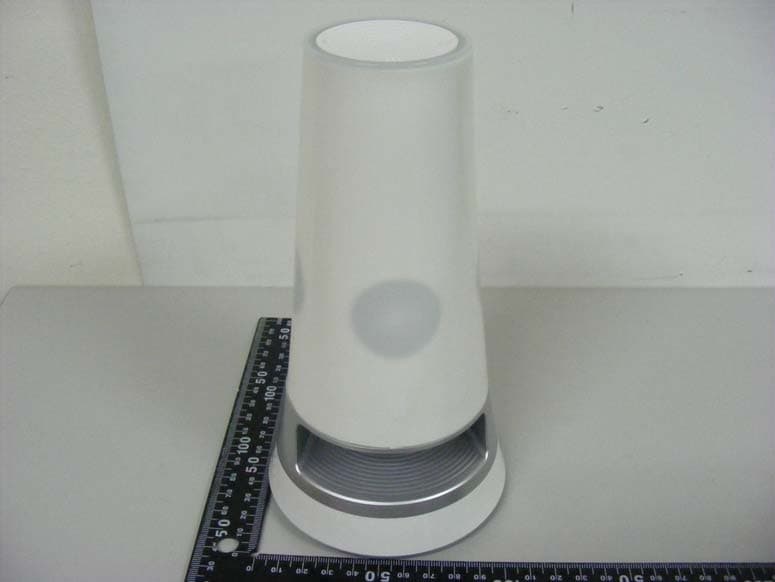

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT Top view of EUT Bottom view of EUT

FCC Label 1. FCC Label Drawing 2. FCC/IC Label Location SB-5HNW FCC ID : Y5CSB5HNW Made in Korea

Internal photos of EUT Inner view EUT Top view of Main PCB Bottom view of Main PCB Top view of RF module PCB Antenna Bottom view of RF module PCB Top view of Sensor Part Bottom view of Sensor Part Top view of Sensor module PCB Bottom view of Sensor module PCB

Report Number: F690501/RF-RTL004430 Page: 2 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------- 3 2. Field Strength of Fundamental ------------------------------------------------------ 6 3. Spurious Emission ----------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency ------------------------------------------------ 13 5. Transmission Time ----------------------------------------------------------------------- 15 6. The total duration of transmission ------------------------------------------------- 17 Report Number: F690501/RF-RTL004430 Page: 3 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. 705,Dongchun-dong, Yongin-city, Gyeonggi-Do, Korea 449-840 www.electrolab.kr.sgs.ccom Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Security & Best Co., Ltd. Address : #1005, 1006, Dojeong B/D, 548-6, Anyang8-dong, Manan-gu, Anyang-city, Gyeonggi-do, Korea Contact Person : MinJung Kim Phone No. : +82 +31 341 8513 Fax No. : +82 +31 341 8669 1.3. Description of EUT Kind of Product Wireless Motion Sensor Model Name SB-5HNW Serial Number N/A Power Supply DC 3 V Frequency Range 447.275 ㎒ Modulation Technique FSK Number of Channels 1 Antenna Type Integral Type (PCB Antenna) 1.4. Details of Modification -This is an alarm system for the security and the equipment transmits RF alarm signal when it detects changes of light and temperature. Report Number: F690501/RF-RTL004430 Page: 4 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C Mar. 31, 2011 Spectrum Analyzer Rohde & Schwarz FSV30 Mar. 31, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Agilent 8449B Mar. 31, 2011 Attenuator Agilent 8494B Apr. 02, 2011 Test Receiver Rohde & Schwarz ESU26 Apr. 21, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK 396 Jul. 22, 2011 Horn Antenna Rohde & Schwarz HF906 Oct. 08, 2011 DC power Supply Agilent U8002A Jan. 05, 2012 Anechoic Chamber SY Corporation LxWxH 9.6 mx6.4 m x6.6 m N. C. R. Report Number: F690501/RF-RTL004430 Page: 5 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC 15 Subpart C §15.209 Test Item Result 15.209(a) 15.231(b) Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) Bandwidth of Operation frequency Complied 15.231(a)(2) Transmission Time Complied 15.231(a)(3) Total duration of transmissions Complied 1.7 Test Report Revision Revision Report number Description 0 F690501/RF-RTL004430 Initial Report Number: F690501/RF-RTL004430 Page: 6 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 kHz to 30 MHz Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 MHz to 1 GHz Emissions. Report Number: F690501/RF-RTL004430 Page: 7 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com The diagram below shows the test setup that is utilized to make the measurements for emission from 1 GHz to 18 GHz Emissions. Report Number: F690501/RF-RTL004430 Page: 8 of 17 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2.2. Limit 2.2.1. Radiated emission limits, general requirements Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the follow…
