Y5NKV-831STEREO BLUETOOTH HEADSET
SCUD (GuangZhou) Digital Technology CO., LTD.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jan 02, 2011
- Application Purpose
- Original Equipment
- Date of Application
- Jan 02, 2011
- Equipment Note
- STEREO BLUETOOTH HEADSET
- Frequency Range
- 2402.00000000 - 2480.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
External Photos

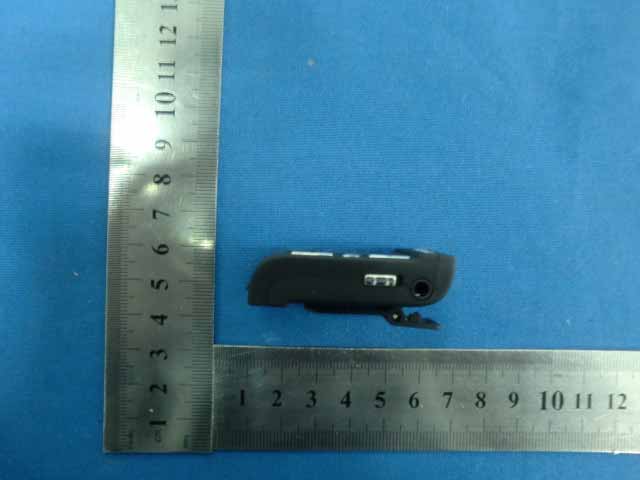

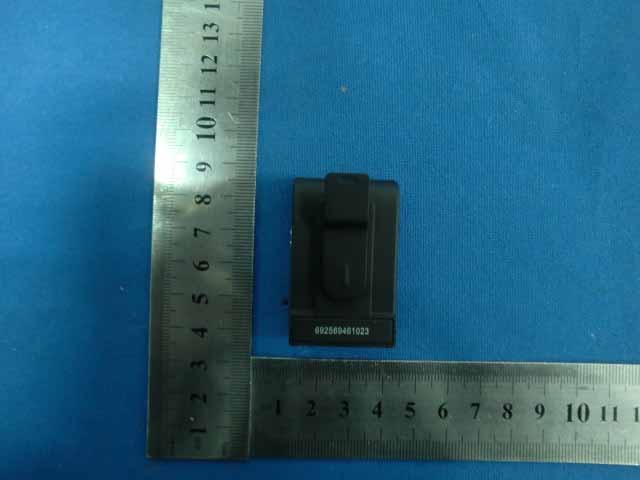

External Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229 External Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229 External Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229
ID Label/Location Info
FCC ID LABEL FCC ID:Y5NKV-831 Label Location on EUT EUT Bottom View/ FCC ID Label Location
Internal Photos
Internal Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229 Internal Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229 Internal Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229 Internal Photo for Model: KV-831, KV-830, SBT-201, SBT-202, SBT-203, KV-288, KV-289, KV-820, S69, SBT-215, SBT-225, SBT-229 Antenna
Operational Description
Schematic Description 1. Press S6 key to power on, through U1, L2, & C18 the battery voltage is converted from 4.2V to 1.8V for service to components 2. The signal from MIC is sent to U1 through C15 & C20, then converted into digital signal before transmitted through L1,C4 R1 and the antenna 3. Incoming signal, through L1 C4 R1, is sent to U1 for decoding, then through U1, PIN1, & PIN3 PIN4 PIN6 it is fed to SPK in original sound 4. Charging voltage passes through ADAP U3 before going through U1 to charge the battery
Schematics
is1621n.sch-7 - Wed Feb 18 09:40:43 2009
Test Report
FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For SCUD (GuangZhou) Digital Technology CO., LTD. SCUD Industrial Park, Xia Mao11Commune New Industrial Area, Shi jing Street Baiyun District, Guangzhou FCC ID:Y5NKV-831 Dec.30, 2010 This Report Concerns: Original Report Equipment Type Stereo Bluetooth Headset Test Engineer: Eric Li Report No.: BST10120276ER-3 Receive EUT Date/Test Date: Dec.23,2010/ Dec.23-30,2010 Reviewed By: Christina Deng Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. SCUD (GuangZhou) Digital Technology, CO ., LTD FCC ID: Y5NKV-831 BST FCC ID REPORT : BST10120276ER-3 Page 2/17 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Confihuration of the EUT ...............................................................................................12 7.5. EUT Operating Condition...............................................................................................12 7.6. Radiated Emission Limit.................................................................................................12 7.7. Radiated Emission Test Result .......................................................................................13 8. BAND EDGE .............................................................................................................................15 8.1. Test Equipment ...............................................................................................................15 8.2. Test Procedure ................................................................................................................15 8.3. Configuration of The EUT ..............................................................................................15 8.4. EUT Operating Condition...............................................................................................15 8.5. Band Edge FCC 15.249(d) Limit ....................................................................................15 8.6. Band Edge Test Result ....................................................................................................15 SCUD (GuangZhou) Digital Technology, CO ., LTD FCC ID: Y5NKV-831 BST FCC ID REPORT : BST10120276ER-3 Page 3/17 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Hong Chen(Manager)
Test Firm
emitel (Shenzhen) LimitedLouis Lin
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | - |
