Y7SFRS-318USFRS/GMRS

Win Channel Electronics Company Ltd
FRS/GMRS - FCC ID Y7SFRS-318US - Win Channel Electronics Company Ltd
Click to zoom

Application Details

Equipment Class
FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant
Mar 16, 2011
Application Purpose
Original Equipment
Date of Application
Mar 16, 2011
Equipment Note
FRS/GMRS
Frequency Range
462.56250000 - 467.71250000
Company
Win Channel Electronics Company Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Volume Level/Channel Number changes from 1 to 22 as selected by user US is just convenient of carrying , not using in transmission. 5265.2641 5785.2642 5216.2643 5736.2644 5266.2645 5786.2646 5217.2647 5265.7648 5785.7649 10467.6125 11467.6375 12467.6625 13467.6875 14467.7125 15462.5750 16462.6250 17462.6750 18462.5500 19462.6000 20462.6500 21462.7000 22462.7250 (CH1-14 FRS/ CH15-22 GMRS) Notice:The FRS/GMRS service is only applied to the device.

Cover Letter(s)

WIN CHANNEL ELECTRONICS COMPANY LTD No. 1, Shangxing road, Shangjiao, Changan Town, DongGuan City, GuangDong, China FCC Confidential Authorization Date:20 1 1 - 1-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 2 1046 Confidentiality Request regarding application for certification of FCC LID: Y7SFKS-3 181!S Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Detailed Circuit Schematics of EUT--- (Long term) Block Diagram--- (Long term) Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Title: Manager Company Name: Win Channel Electronics Company Ltd

Cover Letter(s)

WIN CHANNEL ELECTRONICS COMPANY LIMITED No. 1, Shangxing Road, Shangjiao Management District, Changan Town, Dongguan City, Guangdong, China Product Similarity Declaration To Whom It May Concern, We, WIN CHANNEL ELECTRONICS COMPANY LIMITED, hereby declare that our FRSJGMRS, Model Number: KT2022, PF222 are electrically identical with the Model Number: 3 18US that was certified by BACL. KT2022, PF222 and 3 18US are named differently due to marketing purposes. Each model has its own trade name as following, Please contact mefiou have any question. Model Name 3 18US KT2022 PF222 Print Name: Catalina Cheung Trade Name WE HELLO KITTY PAUL FRANK Title: Manager Date: 17-Mar-20 1 1

External Photos

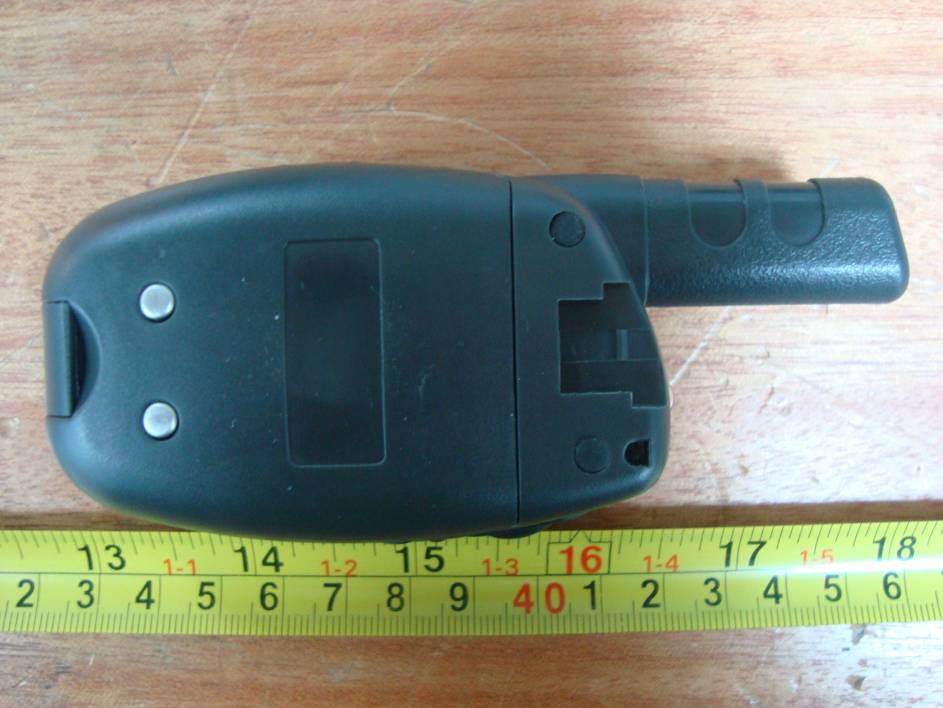

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Top View EUT– Bottom View

ID Label/Location Info

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Model: 318US Model: KT2022 Model: PF222 FCC ID Label Location Label here

Internal Photos

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT- Cover off View 1 EUT- Cover off View 2 EUT- Main Board Top View EUT- Main Board without RF Module Metal Cover Top View EUT- Main Board Bottom View EUT- Antenna View EUT- Battery View

RF Exposure Info

Win Channel Electronics Company Ltd. FCC ID: Y7SFRS-318US Report #: RSZ11012201 Page 7 of 24 FCC Part 95 Test Report FCC §2.1093 - RF EXPOSURE INFORMATION Applicable Standard According to FCC §2.1093 and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to FCC OET KDB447498 D01 section 5, Push-to-talk (PTT) devices: a) RF exposure is evaluated with a duty factor of 50% when the actual operating duty factor is ≤ 50%. Devices supporting higher duty factors shall be evaluated at the maximum duty factor; for example, devices supporting operator-assisted PSTN calls. Contact the FCC Laboratory when unable to test a device at the required duty factor due to hardware limitations or other reasons. b) Portable PTT devices i) The power thresholds and operating conditions in Table 1 are used to determine SAR test requirements for PTT radios required to comply with the general population exposure limit. When the occupational exposure limit applies, these power thresholds are increased by a factor of five (5) to determine the test requirements. SAR is required for PTT devices with maximum output power greater than these thresholds.28 SAR evaluation is also required for separation distances smaller than those in Table 1. Contact the FCC Laboratory to determine if SAR evaluation is necessary for other frequencies or when the SAR is very low. ii) Additional SAR evaluation with a SAM phantom is required for PTT devices with held-to-ear operating mode.29 Contact the FCC Laboratory for device operating and test configurations. Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Result According to FCC KDB447498 generic portable criteria The Max output power: 281.8 mW, Duty factor: 50% The time-averaged output power is: 281.8*0.5= 140.9 mW < 250 mW Stand-alone SAR evaluation for held-face is not required. Note: The device does not have the body-worn capability.

Test Report

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 95 EMI MEASUREMENT AND TEST REPORT For Win Channel Electronics Company Ltd. No. 1, Shangxing road, Shangjiao, Changan Town, DongGuan City, GuangDong, China FCC ID: Y7SFRS-318US Report Type: Original Report Product Type: Portable FRS/GMRS PTT Radio Transceiver Test Engineer: Allan An Report Number: RSZ11012201 Report Date: 2011-03-17 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Win Channel Electronics Company Ltd. FCC ID: Y7SFRS-318US Report #: RSZ11012201 Page 2 of 24 FCC Part 95 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC §2.1093 - RF EXPOSURE INFORMATION .....................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 RESULT........................................................................................................................................................................7 FCC §2.1046, §95.639(a) & §95.639(d) - RF OUTPUT POWER ..............................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST DATA..................................................................................................................................................................8 FCC §2.1047 & §95.637(a) - MODULATION CHARACTERISTIC .....................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC §2.1049 & §95.633(a) (c) - OCCUPIED BANDWIDTH AND EMISSION MASK.......................................17 APPLICABLE STANDARD............................................................................................................................................17 TEST PROCEDURE......................................................................................................................................................17 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................17 TEST DATA................................................................................................................................................................17 FCC §2.1053 & §95.635(b) (7) - RADIATED SPURIOUS EMISSION …

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View (Below 1 GHz) Radiated Emission - Rear View (Below 1 GHz) Radiated Emission - Front View (Above 1 GHz) Radiated Emission - Rear View (Above 1 GHz) Frequency Stability View

Contact Information

Applicant

Catalina Cheung(Manager)
[email protected]+86-769-8 160 619 1Fax: +86-769-8 160 6716

Test Firm

Bay Area Compliance Laboratory Corp. (Shenzhen)John Chan
[email protected]08675533320018Fax: 08675533320008

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
295B462.5625 MHz - 467.7125 MHz281.80 mW4K40F3E2.5 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is ERP. This transmitter must operate in push-to-talk mode with a duty factor not exceeding 50%. 2.5 cm distance must be provided between the transmitter antenna and the end user. End users must be provided with transmitter operating of the face-held for satisfying RF Exposure compliance.
