Y88-AH40R03Aperio Communication Hub

1 Aperio ® AH40 Hub Installation Guide Experience a safer and more open world 2 AH40 - Table of Contents Conforms to EN 62368-1 and UL/CSA 62368-1 AH40 - FCC and ISED Canada Statements .........................................................3 AH40 - Placement of Communication Hub .....................................................5 AH40 - Mounting, Americas Adapter Plate ......................................................6 AH40 - Mounting, Bottom Cover .........................................................................7 AH40 - Connectors ...................................................................................................8 AH40 - Jumpers..........................................................................................................9 AH40 - Communication Hub LED Indications ...............................................10 AH40 - Technical Data ..........................................................................................11 3 AH40 - FCC and ISED Canada Statements FCC Statements Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. ISED Canada Statements This radio transmitter [IC:9504A-AH40R03] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Antenna type Maximum antenna gain (dBi) Impedance (ohm) Internal antenna 3.6 50 AH-ANTENNA-1 2.15 50 4 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le present émetteur radio [IC:9504A-AH40R03] a été approuvé par Innova- tion, Sciences et Développement économique Canada pour fonctionner avec les types d’antenne énumérés ci dessous et ayant un gain admissible maximal. Les types d’antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l’exploitation de l’émetteur. Type d’antenne Gain d’antenne maxima (dBi) Impédance (ohm) Antenne interne 3.6 50 AH-ANTENNA-1 2.15 50 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 5 AH40 - Placement of Communication Hub Example of placement of the Hub with 8 locks. AH40 can manage up to 64 locks Note: AH40 must be installed into a junction box ex European 2-Gang, Aperio bottom cover or with Americas adapter plate to junction box. AH40 must be installed by qualified and trained personal. Indoor installation only! < 25 m / ~ 80 ft 6 AH40 - Mounting, Americas Adapter Plate (US version) 1 34 5 2 AH40 - Mounting, Americas Adapter Plate Americas Adapter Plate Top Cover External Antenna Option Screw (4 x 35 mm) Screw (3 x 10 mm) 7 1 3 2 AH40 - Mounting, Bottom Cover Bottom Cover Top Cover External Antenna Option Screw (4 x 35 mm) Screw (3 x 10 mm) AH40 - Mounting, Bottom Cover (EU version) 8 AH40 - Connectors Note: When PoE (Power over Ethernet) is used, no power supply should be connected to J800. The installation must comply with national wiring regulations. ConneCtorsDesCription J700 Ethernet connector. Connection to the Electronic Access Control system through a 10BASE-T / 100BASE-TX Local Area Network. Can also be used for power supply if connected to a IEEE 802.3.af compliant Power Sourcing Device (PSE). Wire requirements CAT5 or higher. J800 Power supply input, 8-24 VDC, 1.2 W. The power supply shall be 3 A over current protected. Wire requirements 16-22 AWG. PAIR J700 8-24V -+ J800 EXT J…

Text truncated - open the document above for the full version.

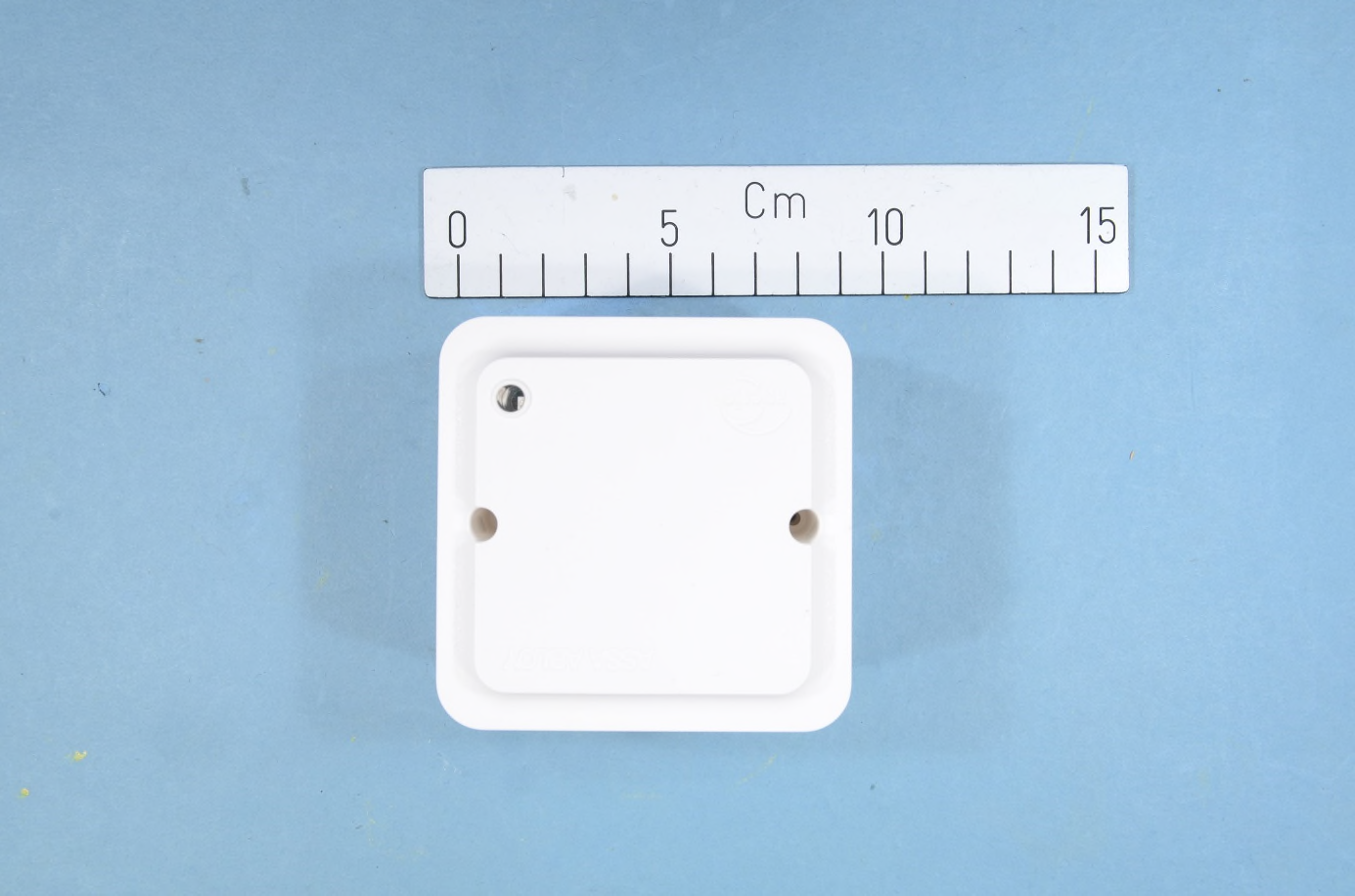

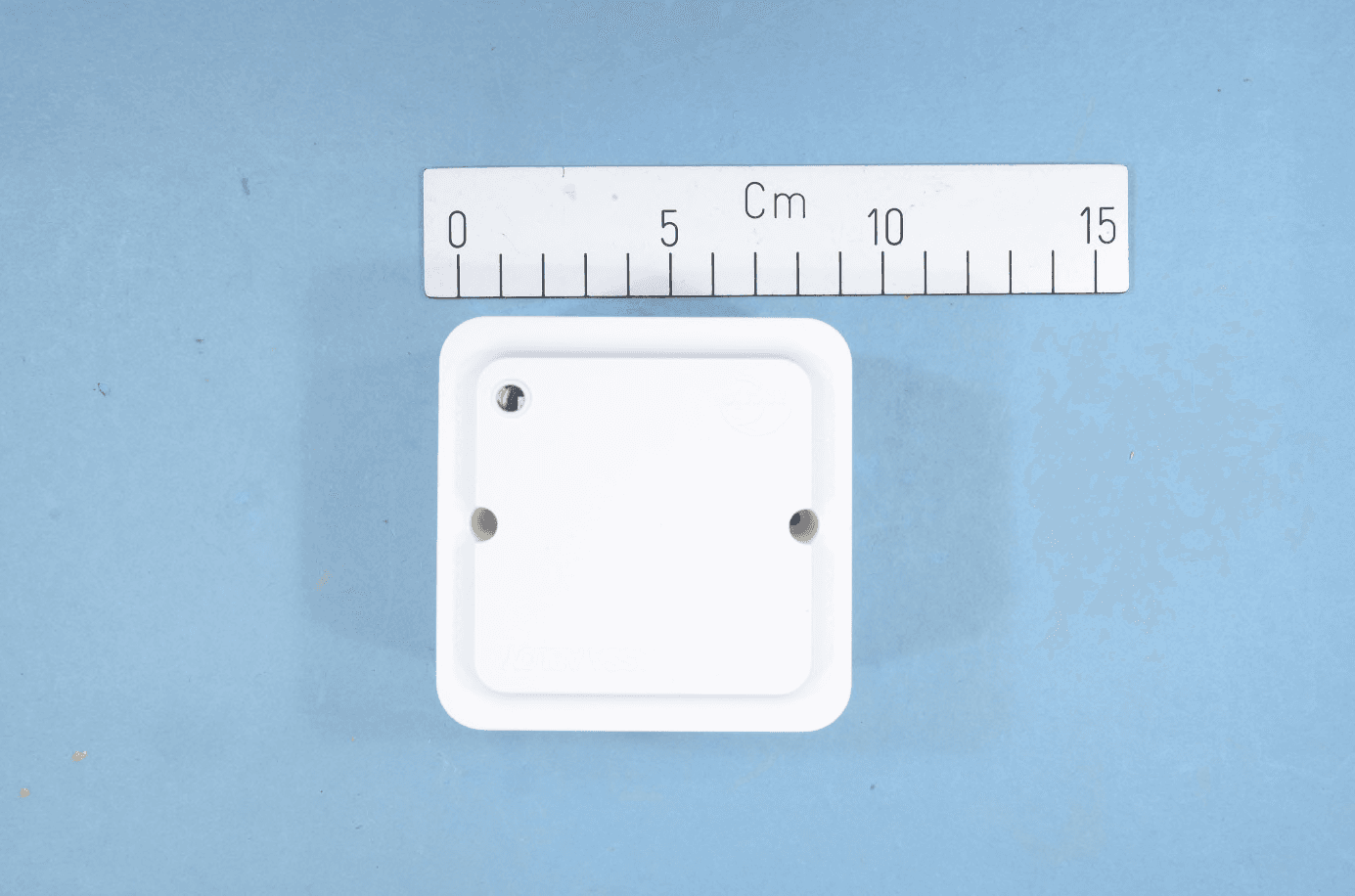

EXTERNAL PHOTOS Projectno.: 371121 FCC ID: Y88-AH40R03 Page 1 (2) EXTERNAL PHOTOS – AH40 Rear side Top side EXTERNAL PHOTOS Projectno.: 371121 FCC ID: Y88-AH40R03 Page 2 (2) View of external antenna and RP-SMA antenna port

Shared Technologies Document ID Revision Seq Date Document Category D001078346 3 1 2019-10-04 Label Author Alternate ID Svedberg, Kari Confidentiality Level Status Page (of) RESTRICTED Approved 1 (3) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001078346&Rev=3 © ASSA ABLOY, All rights reserved Aperio AH40 Internal Label Fifth Generation Hubs Business Entity Shared Technologies Local Business Unit Aperio Related Projects Description AH40 Internal Label description Revision Note Updated that label should be placed on PCBA Legacy Rev Value 1 Legacy Rev Value 2 Owner in PDM Axelsson, Magnus Document Created 2019-09-10 Revision Created 2019-10-04 Revision Sequence Created 2019-10-04 Approved 2019-10-04 Shared Technologies Document ID Revision Seq Date Document Category D001078346 3 1 2019-10-04 Label Confidentiality Level Status Page (of) RESTRICTED Approved 2 (3) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001078346&Rev=3 © ASSA ABLOY, All rights reserved Table of Contents 1 INTRODUCTION ............................................................................................ 3 2 AH40 INTERNAL LABEL ................................................................................. 3 2.1 Internal Label description ............................................................................ 3 2.1.1 Internal Label placement ....................................................................... 3 Revision History Revision Date Changed by Description 1 2019-10-02 Kari Svedberg Updated that label to be placed on PCBA 1 2019-10-02 Kari Svedberg Added label size 1 2019-09-23 Kari Svedberg Updated AH40 picture 1 2019-09-10 Kari Svedberg Created Approved 2019-10-04 Shared Technologies Document ID Revision Seq Date Document Category D001078346 3 1 2019-10-04 Label Confidentiality Level Status Page (of) RESTRICTED Approved 3 (3) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001078346&Rev=3 © ASSA ABLOY, All rights reserved 1 Introduction This document describes the Internal Label for fifth generation of AH40 2 AH40 internal label 49mm x 19mm Internal Label layout 2.1 Internal Label description  R MAC = 802.15.4 MAC address  E MAC = Ethernet MAC address  0017-0001-1.7.2352-1.5.6323= Assa Abloy system info (Boxbuild nr-EU/US version, Main FW, Radio FW)  Barrcode contains: Rmac , Emac, Serial nr , Model , FW 2.1.1 Internal Label placement Label to be placed on AH40 PCBA Note! Orientation Approved 2019-10-04

Shared Technologies Document ID Revision Seq Date Document Category D001078372 3 2 2019-10-22 Label Author Alternate ID Svedberg, Kari Confidentiality Level Status Page (of) RESTRICTED Approved 1 (3) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001078372&Rev=3 © ASSA ABLOY, All rights reserved Aperio AH40 External Label Fifth generation hubs Business Entity Shared Technologies Local Business Unit Aperio Related Projects Description Aperio AH40 External Label description Revision Note Added label size Legacy Rev Value 1 Legacy Rev Value 2 Owner in PDM Axelsson, Magnus Document Created 2019-09-10 Revision Created 2019-10-22 Revision Sequence Created 2019-10-22 Approved 2019-10-22 Shared Technologies Document ID Revision Seq Date Document Category D001078372 3 2 2019-10-22 Label Confidentiality Level Status Page (of) RESTRICTED Approved 2 (3) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001078372&Rev=3 © ASSA ABLOY, All rights reserved Table of Contents 1 INTRODUCTION ............................................................................................ 3 2 AH40 EXTERNAL LABEL ................................................................................. 3 2.1 External Label description ............................................................................ 3 2.2 External Label placement ............................................................................ 3 Revision History Revision Date Changed by Description 3 2019-10-22 Magnus A Update HVIN nr 1 2019-10-02 Kari Svedberg Added label size 1 2019-09-23 Kari Svedberg Updated AH40 picture 1 2019-09-10 Kari Svedberg Created Approved 2019-10-22 Shared Technologies Document ID Revision Seq Date Document Category D001078372 3 2 2019-10-22 Label Confidentiality Level Status Page (of) RESTRICTED Approved 3 (3) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001078372&Rev=3 © ASSA ABLOY, All rights reserved 1 Introduction This document describes the External Label for fifth generation of AH40 2 AH40 External Label 49mm x 19mm 2.1 External Label description  FCC ID = US  IC ID = Canada  CE = EEA, European Econimoc Area  RCM = Australia  ISO7000-434B = Caution Read manual  R MAC= 802.15.4 MAC address 2.2 External Label placement External Label Note! Orientation Approved 2019-10-22

INTERNAL PHOTOS Projectno.: 371121 FCC ID: Y88-AH40R03 Page 1 (1) INTERNAL PHOTOS – AH40 Top view Rear View

Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Author Alternate ID Axelsson, Magnus Confidentiality Level Status Page (of) RESTRICTED Work in progress 1 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved Aperio AH40 Photos Fifth generation hubs Business Entity Shared Technologies Local Business Unit Aperio Related Projects Description Revision Note Legacy Rev Value 1 Legacy Rev Value 2 Owner in PDM Axelsson, Magnus Document Created 2019-10-02 Revision Created 2019-10-02 Revision Sequence Created 2019-10-02 Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Confidentiality Level Status Page (of) RESTRICTED Work in progress 2 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved Table of Contents 1 INTRODUCTION ............................................................................................ 3 2 PCB ............................................................................................................... 3 2.1 Front ........................................................................................................ 3 2.2 Back ......................................................................................................... 3 3 EXTERNAL PICTURES .................................................................................... 4 3.1 Front ........................................................................................................ 4 3.2 Back ......................................................................................................... 4 3.3 Side .......................................................................................................... 5 3.4 Top ........................................................................................................... 5 4 EXTERNAL WITH EXTERNAL ANTENNA .......................................................... 6 4.1 Front ........................................................................................................ 6 4.2 Side .......................................................................................................... 7 Revision History Revision Date Changed by Description 1 20191002 Magnus A First draft Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Confidentiality Level Status Page (of) RESTRICTED Work in progress 3 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved 1 Introduction This document contains photos of the fifth generation Aperio communication HUB AH40 2 PCB 2.1 Front 2.2 Back Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Confidentiality Level Status Page (of) RESTRICTED Work in progress 4 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved 3 External Pictures 3.1 Front 3.2 Back Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Confidentiality Level Status Page (of) RESTRICTED Work in progress 5 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved 3.3 Side 3.4 Top Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Confidentiality Level Status Page (of) RESTRICTED Work in progress 6 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved 4 External with External Antenna 4.1 Front Shared Technologies Document ID Revision Seq Date Document Category D001081159 1 2 2019-10-02 Specification Confidentiality Level Status Page (of) RESTRICTED Work in progress 7 (7) Weblink to the original: https://weblink.assaabloy.net/WebLinkServlet/WebLink?GET&ID=D001081159&Rev=1 © ASSA ABLOY, All rights reserved 4.2 Side

FCC ID: Y88-AH40R03 SAR Exclusion Justification Test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm Guidance document reference: 447498 D01 General RF Exposure Guidance v05r02, page 11, paragraph 4.3.1(1). The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. SAR test exclusion analysis: Assumptions: Since the exact separation distance may vary from sensor to sensor, the minimum separation distance of 5 mm is assumed per the guidance document. Max. power of channel:7.13 mW Min. separation distance:5 mm Max. frequency:2.44 GHz [(Pwr/Dist)*√Freq.] =2.2 Max. power is source-based time-averaged maximum conducted output power, adjusted for tune-up tolerance. The result of the above SAR threshold calculation demonstrates that the result is less than the 1-g numeric threshold of 3 and the 10-g numeric threshold of 7.5. Conclusion: The above analysis shows that the evaluated device qualifies for exemption from SAR testing. Signed: Senior Engneer 12/17/2019

Report No. 371121-01 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL+47 22 96 03 30FAX+47 22 96 05 [email protected] ENTERPRISE NUMBERNO974404532 nemko.com/no Test Report Product Aperio Communication Hub Name and address of the applicant ASSA ABLOY AB Förmansvägen 11, 117 43 Stockholm, Sweden Name and address of the manufacturer ASSA ABLOY AB Förmansvägen 11, 117 43 Stockholm, Sweden Model AH40 Rating 3.5W, 8 – 24Vdc or PoE Trademark Aperio Serial number 00124B001E19F615 Additional information This tested device contains IEEE802.15.4 based radio moule. Tested according to FCC Part 15.247 Frequency Hopping Transmitters / Digital Transmission Systems Industry Canada RSS-247, Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices Order number 371121 Tested in period 2019.09.24 – 2019.09.25 Issue date 2019.10.22 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway CAB Number: FCC: NO0001 ISED: NO0470 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [G.Suhanthakumar]Approved by [Frode Sveinsen] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15.247 Report no.: 371121-01 FCC ID: Y88-AH40R03 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (100) CONTENTS 1INFORMATION ......................................................................................................................... 3 1.1Test Item.................................................................................................................................... 3 1.2Normal test condition ................................................................................................................. 4 1.3Test Engineer(s) ........................................................................................................................ 4 1.4Description of modification for Modification Filing ..................................................................... 4 1.5Family List Rational ................................................................................................................... 4 1.6Antenna Requirement................................................................................................................ 4 1.7Worst-Case Configuration and Mode ........................................................................................ 4 1.8Comments ................................................................................................................................. 4 2TEST REPORT SUMMARY ...................................................................................................... 5 2.1General ...................................................................................................................................... 5 2.2Test Summary ........................................................................................................................... 6 3TEST RESULTS ........................................................................................................................ 7 3.1Number of Frequencies ............................................................................................................. 7 3.2Power Line Conducted Emissions ............................................................................................. 8 3.3Occupied Bandwidth .................................................................................................................. 9 3.4DTS Bandwidth ........................................................................................................................ 13 3.5Peak Power Output ................................................................................................................. 17 3.6Conducted Emissions at Antenna Connector .......................................................................... 33 3.7Restricted Bands of operation ................................................................................................. 37 3.8Spurious Emissions (Radiated) ............................................................................................... 38 3.9Power Spectral Density (PSD)................................................................................................. 93 4Measurement Uncertainty ..................................................................................................... 97 5LIST OF TEST EQUIPMENT .................................................................................................. 98 6BLOCK DIAGRAM .................................................................................................................. 99 6.1Power Line Conducted Emission ............................................................................................. 99 6.2Test Site Radiated Emission ................................................................................................... 99 TEST REPORT FCC Part 15.247 Report no.: 371121-01 FCC ID: Y88-AH40R03 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 3 (100) 1 INFORMATION 1.1 Test Item Name ASSA ABLOY FCC ID Y88-AH40R03 ISED ID 9504A-AH40R03 Model/version AH40 Serial number 00124B001E19F615 Hardware identity and/or version P001035257-000 Rev: A Software identity and/or version FW: 0.1.11 Frequency Range 2400 – 2483.5 MHz Tunable Bands None Number of Channels 16 Operating Modes TX and RX Measured BW (99%) 2.57 MHz Emission clasification F2D Transmitter spurious, dBμV/m@3m PK: 72.39; AV: 53.22 ((2.4835GHz) Type of Modulation O-QPSK modulation with half sine shaped…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Projectno.: 371121 FCC ID: Y88-AH40R03 Page 1 (3) PHOTOS OF TEST SET-UP Conducted power emissions TEST SET-UP PHOTOS Projectno.: 371121 FCC ID: Y88-AH40R03 Page 2 (3) Radiated emission 30 - 1000 MHz TEST SET-UP PHOTOS Projectno.: 371121 FCC ID: Y88-AH40R03 Page 3 (3) Radiated emissions > 1GHz
