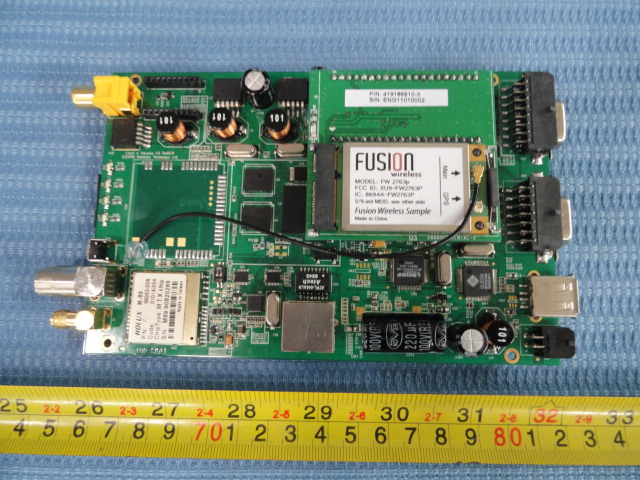

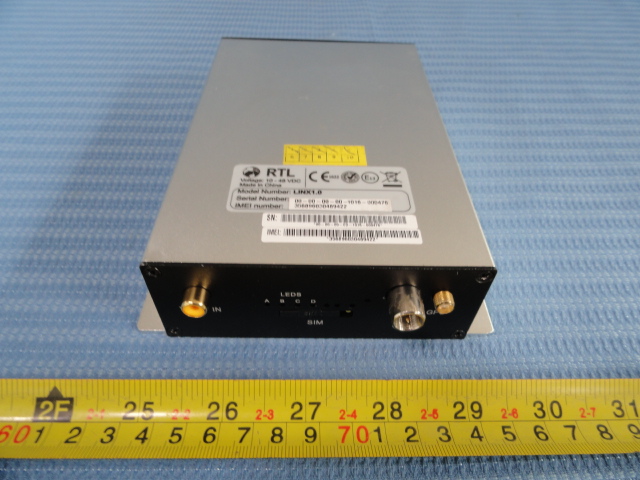

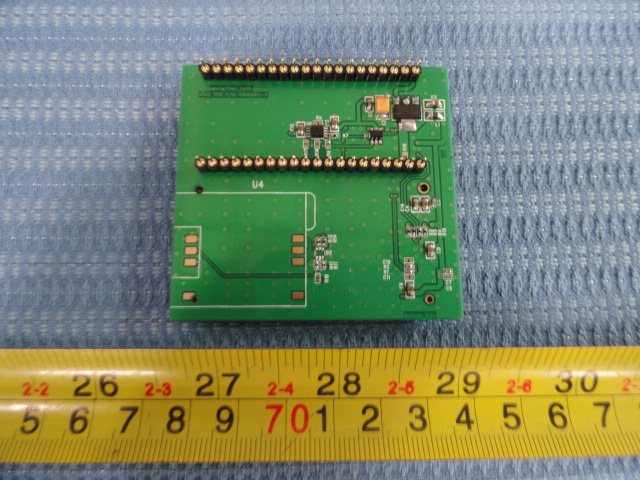

RTL LINX1 User Manual v4.0 Introduction The RTL LINX1 vehicle telematics unit is the In Vehicle Hardware (IVH) part of the RTL Telematics Platform. The RTL Telematics Platform Data Flow is described below: • The data is collected by the IVH from the External Inputs. • The data is stored and processed by IVH until the Mobile Network becomes available. • The data is then send via Mobile Network and the Internet to the Host Platform Database Server. • The data becomes available in form of the reports to the authorised users connected to the DataBase via the WebSite using Internet connection and standard browser. The RTL Telematics Platform System Diagram is below: External Inputs IVH Web Application Users DataBase Power CAN GPS Driver ID Host Platform CDMA Network Internet LINX1 Schematic Diagram Technical Data CoreMain processorARM 926 EJ-S core 32bit 400MHzCore MemoryDDR SDRAM 128MB (Byte) Flash 128MB (Byte) Serial EEPROM for ESN + system options Internal MicroSD card interface PeripheralsReal Time ClockBuilt-in with battery backupPeripherals Dimensions160(W) x 40(H) x 130.5(D) mm Peripherals Weight700g Peripherals HousingExtruded aluminum Peripherals Input voltage10-48 volts Peripherals Power consump.160 mA typical Peripherals Indicators4 bi colored LEDs Peripherals Operation temp.-25C ... +55C Peripherals GPSGPS receiver module Peripherals CDMA1xRTTE ConnectionsPower Ignition Sensor PLC 3 axis accelerometer 8x Digital inputs 4x Digital OC outputs 2x CAN 2.06 interfaces J1708 K Line 1 Wire 2x RS232 USB Host USB OTG GPS antenna CDMA antenna Video Option SoftwareOperating systemLinux 2.6.22 ApprovalsCE markingAccording to directive 89/336/EEC (EMC directive)Approvals e type approvalAccording to directive 95/54/EC (automotive EMC directive) Approvals FCCPending Installation Instructions Full instructions can be found in an Installation Instructions document that depends on the vehicle make/model/year of manufacture. Location of the telematics box depends on the vehicle make/model/year of manufacture. Prior to installation check The vehicle is in network coverage (for commissioning) The installation packing note listed items are present and correct Suitable vehicle CAN connectors are available The CAN network location is known A clean well lit weather proof installation bay is available Wiring Illustration LINX1 Box GPS Power (+) Power (-) Ignition CAN Hi CAN Low CDMA Dual Antenna Step 1 - Choose suitable location and securely fix telematics box Step 2 - Run and connect power wires Step 3 - Connect to Vehicle data link Step 4 - Choose location and fit Aerials Step 5 - Test & Commission unit Troubleshooting Check that all the power is connected Check that all the cables connected correctly If none of the above helps please contact dealer for further assistance Battery replacement procedure To replace the coin cell battery of the RTC open the case and replace the coin cell battery, close the case. Connections ConnectorColourPinDescription CN1 (Power)Green1IgnitionCN1 (Power) Blue2Not Used CN1 (Power) Black3Ground CN1 (Power) Red4+12/24Volts ConnectorColourPinDescriptionComments CN2 Optional (Not used currently) Orange1In 0connect to OUT0 , < 0V-24V>CN2 Optional (Not used currently) 2In 4connected with a 100nF CAP , < 0V-24V> CN2 Optional (Not used currently) 3In 1connect to OUT1 , < 0V-24V> CN2 Optional (Not used currently) 4In 5connected with a 100nF CAP , < 0V-24V> CN2 Optional (Not used currently) 5In 2connect to OUT2 , < 0V-24V> CN2 Optional (Not used currently) 6In 6connected with a 100nF CAP , < 0V-24V> CN2 Optional (Not used currently) 7In 3connect to OUT3 , < 0V-24V> CN2 Optional (Not used currently) 8In 7connected with a 100nF CAP , < 0V-24V> CN2 Optional (Not used currently) Ye l l o w9Out 0connect to IN0 , < 0V-24V> CN2 Optional (Not used currently) 10Out 2connect to IN2 , < 0V-24V> CN2 Optional (Not used currently) 11Out 1connect to IN0 , < 0V-24V> CN2 Optional (Not used currently) 12Out 3connect to IN3 , < 0V-24V> CN2 Optional (Not used currently) 13GroundConnected to GROUND CN2 Optional (Not used currently) 14GroundConnected to GROUND ConnectorColourPinDescriptionComments CN3 (Misc) 1Klineconnected with a 100nF CAP , < 0V-5V>CN3 (Misc) 2NCNull Connection CN3 (Misc) Grey3J1708Aconnected with a 100nF CAP , < 0V-5V> CN3 (Misc) Orange4J1708Bconnected with a 100nF CAP , < 0V-5V> CN3 (Misc) Black5CAN 0 Lconnected to pin6 < CANL1 >, < 0V-5V> CN3 (Misc) 6CAN 1 Lconnected to pin5 < CANL0 >, < 0V-5V> CN3 (Misc) 7CAN ScreenNULL Connection CN3 (Misc) 8CAN ScreenNULL Connection CN3 (Misc) White9CAN 0 Hconnected to pin10 < CANH1 >,< 0V-5V> CN3 (Misc) 10CAN 1 Hconnected to pin9 < CANH0 >,< 0V-5V> CN3 (Misc) Purple11RS232_UAR T7_RXD connect to Pin12 <RS232_UART7_TXD>,< 0V-12V> CN3 (Misc) Purple/ Black 12RS232_UAR T7_TXD connect to Pin11 <RS232_UART7_RXD>,< 0V-12V> CN3 (Misc) Brown (3m) 131-WIRE LEDconnected to a LED , <0V-3.3V> CN3 (Misc) White (3m) 141-WIREconnected to a iButton holder, <0V-3.3V> CN3 (Misc) Grey (3m) 15Ground CN3 (Misc) Black/ Blue 16NULL CONNECTI ON ConnectorColourPinDescription J2 (UART1) used for debug purpose 1NCJ2 (UART1) used for debug purpose Brown2RS232 RX 1 J2 (UART1) used for debug purpose Red3RS232 TX 1 J2 (UART1) used for debug purpose Orange4NC J2 (UART1) used for debug purpose Ye l l o w5Ground J2 (UART1) used for debug purpose Green6NC J2 (UART1) used for debug purpose Blue7RS232 RTS 1 J2 (UART1) used for debug purpose Purple8RS232 CTS 1 J2 (UART1) used for debug purpose 9NC ConnectorColourPinDescription J7 (Option Board)1Option pin 1 2Option pin 2 3Option pin 3 4Option pin 4 5Option pin 5 6Option pin 6 7Option pin 7 8Option pin 8 9Option pin 9 Connection notes 1. Video in port is not going to be used in this model. 2. USB host port is used to firmware upgrade purpose and is not going to be used all the time. 3.RS232 is used for debug purpose and is not going to be used all the time. Caution Changes or modifications not expressly approved by the party responsible…
