Y9K-2H38WCSolar Powered LED Security Light

Motion Activated Solar Powered LED Security Light MODEL: XP-2H38WCPure Digital Version Introduction Thank you for purchasing theXP-2H38WC light with the digitally controlled system. With its easy setup and lightweight design, the XP-2H38WC conforms to most of your lighting needs. It’s the most cost-effective way to illuminate and protect are as around your home, business and recreational area, especially where AC is not accessible. No matter the area, environmentally friendly solar energy is converted to electricity so that lighting is available wherever and whenever you desire. Simply install or set the solar charging panel in a suitable area facing the sky where sun exposure is prevalent. The attached 15’ cable provides sufficient length for easy placement. When fully charged and switched to the ON mode, the XP-2H38WC will provide up to at least 5 hours of continuous illumination. In AUTO mode, (normal operation setting) the light illuminates when it is dark and motion is detected, then automatically resets. Important Safety Information • Do not expose the light to fire or intense heat. • Do not dispose of battery in fire. • Do not immerse in water. • Never look directly into the light or shine in another person’s eyes. • Do not dispose the rechargeable battery in a regular waste system, waterway, stream or any other body of water. • Preserve the environment by disposing battery in accordance with local, state and federal regulations • Consult your local construction safety guidelines for installing the lightfixture on a building. Please do not return this item to the store. 2 What’s Inside the Package • LED XP-2H38WC solar light with battery • Screws • Solar charging panel with 15’ Cable • Anchors • User manual •Receiver • Installation sheet • Adapter • AV line Installation Recommendations • TheXP-2H38WC light fixture should be installed on a flat and stable surface.The higher the installation the larger the area of illumination. • Avoid installing the light near an air conditioner, heater or high voltagesystem as quick changes in temperature may cause the motion detectionsystem to produce false triggers and illuminate the light needlessly. • Avoid positioning the motion sensor head towards street traffic or whereother movements may trigger the light needlessly and therefore drain thebattery prematurely. • The solar panel should be installed in a sunny area facing the sky where direct sunlight can shine on the panel for at least 3 - 5 hours per day. • Motion detection is most sensitive to movement moving across the deviceand less sensitive when motion is moving directly towards or away. • Use a soft damp cloth to periodically clean the solar panel fromaccumulated dust or snow. This will preserve solar panel efficiency whencharging the battery. FCC Part 15 Class B & C CAUTION: Modifications are not approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be 3 determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Installation 1) Mark the holes on the wall through the Installation paper. Drill holes with an appropriate bit and insert plastic anchors into the holes. 2) Place the light on the wall and secure with screws. 3) Find a location for the solar panel that receives direct sunlight for a minimum of 3-5 hours a day and within 15’ of where the solar light will be installed. 4) Mark the holes through the installation sheet of solar panel. Installation Functions & Adjustments • OFF: no illumination; no camera. Product will be completely off. • AUTO: 5 minutes test mode before Self-Induction mode. Test mode working at nighttime and daytime, lamp and camera will working only if product receiving any infrared signal. Camera and LED lamp will turn off after a short time-lapse. Self-Induction mode only working at nighttime, lamp and camera will be working only if product receiving any infrared signal. Camera will turn off after a short time-lapse, and lamp begin to turn off decreasingly. • ON: intellective ON mode. In this mode LED lamps will always be on. If no infrared signal detected, camera will turn off after 1 minute, and then lamp brightness will lower to the lowest brightness (20% of the highest brightness) gradually, LED lamp will be back to the highest brightness if any infrared signal detected. • Switch ON position to AUTO position: back to self-induction mode 6) Completely insert the cable plug from the solar panel into the INPUT hole located at the bottom of the light. 7) Adjust the motion detection sensor and cameral towards the desired coverage area. 5) Drill holes with an appropriate drill bit and insert plastic anchors into stucco, concrete or brick. 4 • When receiver receiving image, buzzer emits warning as “bing bing”, indicator light will flash at the same time. Press the button on receiver to stop buzzer, and the indicator…

Text truncated - open the document above for the full version.

XP-2H38WCᙫփṶമ Sensor Control Part Battery control Battery Solar Panel Antenna LED lamp Receiver Antenna 906MHz Camera

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 TOEC TECHNOLOGY CO., LTD. 2011-2-11 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, TOEC TECHNOLOGY CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Solar Powered LED Security Light, XP-2H38WC) We affirm that between SIEMIC and TOEC TECHNOLOGY CO., LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Yaxin Sun / Engineer E-mail: : [email protected] Phone: 022-28261896 Fax: 022-28226425 Address : NO.6 Taishan Rd., Hexi District, Tianjin-City, China 300211

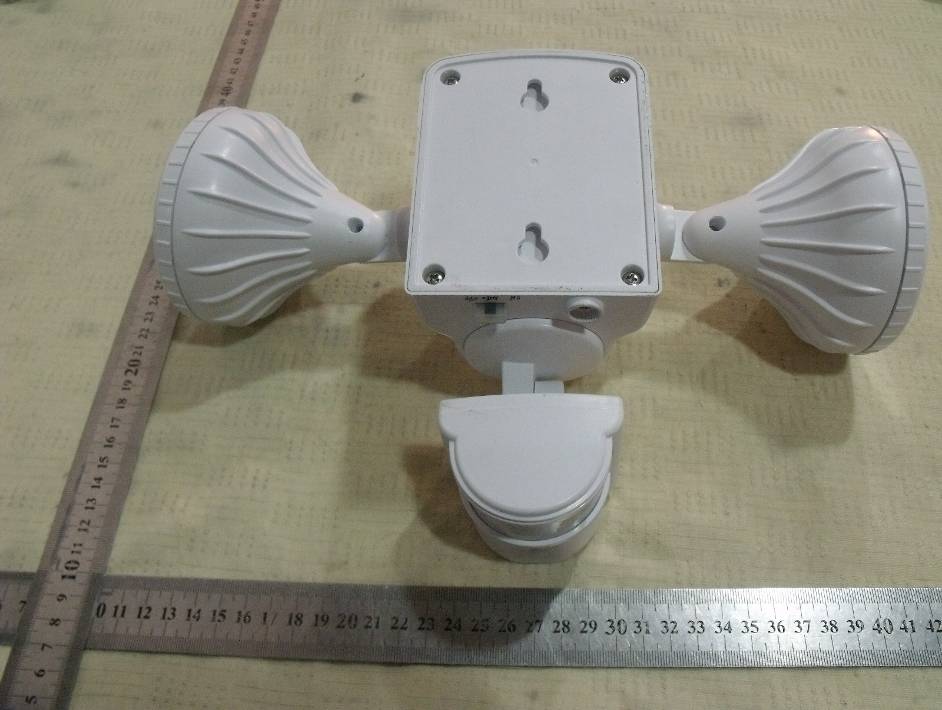

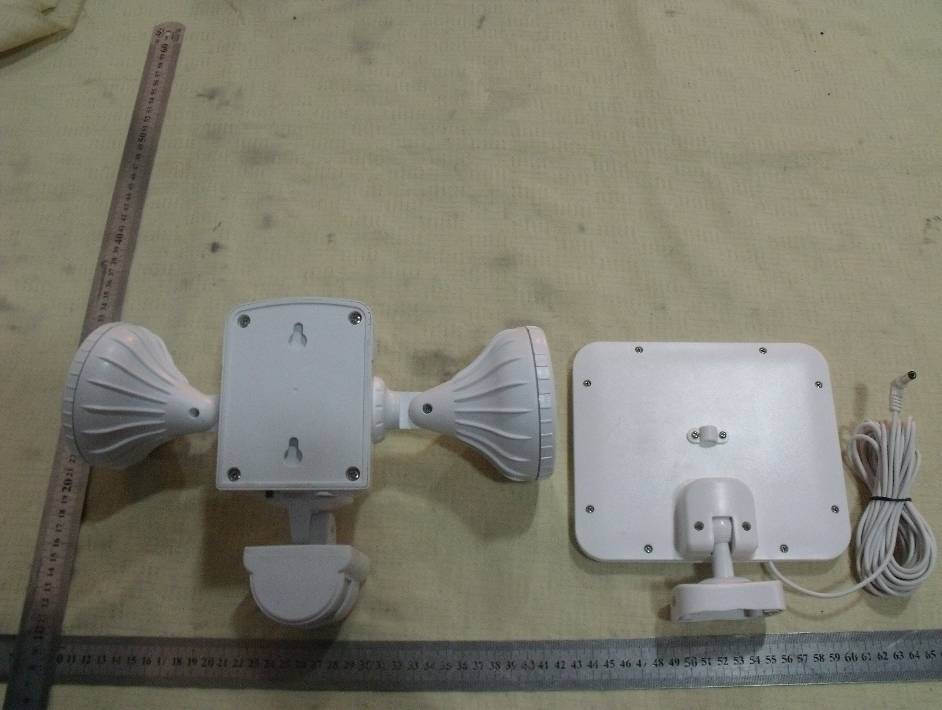

External of EUT External of EUT

FCC ID Label FCC ID: Y9K-2H38WC Model Number: XP- 2H38WC Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Label Location Proposed Label Location on EUT

Internal of EUT Internal of EUT Wireless module and antenna Internal of EUT

Operation description XP-SMD2HWO light with the digitally controlled system. With its easy setup and lightweight design, the XP-SMD2HWO conforms to most of your lighting needs. It’s the most cost-effective way to illuminate and protect areas around your home, business and recreational area, especially where AC is not accessible. No matter the area, environmentally friendly solar energy is converted to electricity so that lighting is available wherever and whenever you desire. Simply install or set the solar charging panel in a suitable area facing the sky where sun exposure is prevalent. The attached 15’ cable provides sufficient length for easy placement. When fully charged and switched to the ON mode, the XP-SMD2HWO will provide up to at least 14 hours of continuous illumination. In AUTO mode, (normal operation setting) the light illuminates when it is dark and motion is detected, then automatically resets. Specifications Rechargeable Battery: 3.7V/2200mah lithium-polymer battery Solar Charging Panel: 5V/1.5W Monocrystalline Continuous Illumination Time: >14hr Complies with FCC Part 15 Class B& C and ICES-003:2004 Emission frequency: 906MHz Color temperature: 6000K~7000K Motion distance: >12m Motion range:160° Switch mode: OFF-AUTO-ON Product size: Lamp: 230mm X125 mm X150mm Solar panel: 180 mm X150 mmX15mm

XP-2H38WC照明部分原理图 XP-2H38WC发射部分原理图

SHENZHEN EMTEK CO., LTD. REPORT NO: ES110124163F FCC ID: Y9K-2H38WC DATE: 02/11/2011 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Solar Powered LED Security Light MODEL No.: XP-2H38WC FCC ID: Y9K-2H38WC REPORT NO: ES110124163F ISSUE DATE: February 11, 2011 Prepared for TOEC TECHNOLOGY CO., LTD. NO.6 Taishan Rd., Hexi District, Tianjin-City, China 300211 Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES110124163F FCC ID: Y9K-2H38WC DATE: 02/11/2011 Page 2 of 15 VERIFICATION OF COMPLIANCE Applicant: TOEC TECHNOLOGY CO., LTD. NO.6 Taishan Rd., Hexi District, Tianjin-City, China 300211 Product Description: Solar Powered LED Security Light Model Number: XP-2H38WC File Number: ES110124163F Date of Test: January 25, 2011 to January 30, 2011 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee / Q.A. Manager SHENZHEN EMTEK CO., LTD. SHENZHEN EMTEK CO., LTD. REPORT NO: ES110124163F FCC ID: Y9K-2H38WC DATE: 02/11/2011 Page 3 of 15 Table of Contents 1. GENERAL INFORMATION ................................................................................................. 4 1.1 PRODUCT DESCRIPTION........................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 4 1.3 TEST METHODOLOGY.............................................................................................................................. 4 1.4 SPECIAL ACCESSORIES............................................................................................................................ 4 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 4 1.6 TEST FACILITY........................................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT CONFIGURATION............................................................................................................................. 6 2.2 EUT EXERCISE........................................................................................................................................ 6 2.3 TEST PROCEDURE.................................................................................................................................... 6 2.4 LIMITATION............................................................................................................................................. 6 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. RADIATED EMISSION TEST ............................................................................................ 11 5.1 MEASUREMENT PROCEDURE................................................................................................................. 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 12 5.4 OUT OF BAND RADIATED MEASUREMENT RESULT.............................................................................. 12 5.5 RADIATED MEASUREMENT PHOTOS:.................................................................................................... 14 6. ANTENNA APPLICATION ........................................................................................................... 15 6.1 ANTENNA REQUIREMENT........................................................................................................................... 15 SHENZHEN EMTEK CO., LTD. REPORT NO: ES110124163F FCC ID: Y9K-2H38WC DATE: 02/11/2011 Page 4 of 15 1. GENERAL INFORMATION 1.1 Product Description The TOEC TECHNOLOGY CO., LTD. Model: XP-2H38WC (referred to as the EUT in this report) The EUT is an short range, lower power. It is designed by way of utilizing the FM modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 906MHz B). Modulation: FM C). Number of Channel: 1 D). Antenna Designation: PCB trace antenna E).Power Supply: DC 2*3.7V Battery 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: Y9K-2H38WC filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules, The composite system (receiver) is compliance with Subpart B is authorized under a VoC procedure. 1.3 Test Methodology Both conducted and radiated testing performed according to the procedures in ANSI C63.4 (2009). Radiated testing was performed at an antenna to EUT distance 3 meters. 1.4 Special Accessories Not available for this EUT intended for grant. 1.5 Equipment Modifications Not availabl…
