YA2ARS3000AAUTO REMOTE SERVICE UNIT

- 1 - Chapter 1 Basic phone call operation..........................................................................................................- 4 - 1.Main Page/First Page/Control Panel ...........................................................................................- 4 - 2.Make a phone call........................................................................................................................- 4 - 3.Answering a call ..........................................................................................................................- 6 - 4.Phone book ..................................................................................................................................- 7 - 5.Call Records ................................................................................................................................- 8 - 6.Call-voice recording ....................................................................................................................- 9 - Chapter 2 Remote Service .........................................................................................................................- 10 - Chapter 3 Driver’s Tips .............................................................................................................................- 12 - Chapter 4 Traffic Condition Information ..................................................................................................- 13 - Chapter 5 Maintenance Reminder .............................................................................................................- 13 - Chapter 6 Center Message.........................................................................................................................- 14 - Chapter 7 Settings .....................................................................................................................................- 18 - Chapter 8 Toolbox .....................................................................................................................................- 28 - Chapter 9 Shortcut keys ............................................................................................................................- 36 - 1. Call/ Hang up............................................................................................................................- 37 - 2. Sound/ Earphone ......................................................................................................................- 37 - 3. Voice Record.............................................................................................................................- 37 - 4.ARS call center..........................................................................................................................- 37 - 5. Digital TV.................................................................................................................................- 37 - 6. Emergency Help .......................................................................................................................- 38 - 7. Screen Power ............................................................................................................................- 38 - Chapter 10 Security and Theft deterrent function .....................................................................................- 38 - 1.Defense On and Defense Off.....................................................................................................- 38 - 2.Vibration Alarm .........................................................................................................................- 38 - 3.Door-unlock Alarm....................................................................................................................- 38 - 4. Airbag Deployment Alarm .......................................................................................................- 39 - 5.Alarm Call .................................................................................................................................- 39 - Chapter 11 AWS warning system ..............................................................................................................- 39 - - 2 - Chapter 12 Monitoring Camera ................................................................................................................ - 39 - Chapter 13 Alcohol Detection................................................................................................................... - 40 - Chapter 14 Traffic Inspection Point Reminding ....................................................................................... - 41 - Chapter 15 Fatigue Driving Reminding ................................................................................................... - 41 - Chapter 16 Fuel Service............................................................................................................................ - 42 - Chapter 17 Backup Camera ...................................................................................................................... - 42 - Chapter 18 Facial Identity......................................................................................................................... - 42 - Chapter 19 Wireless Digital TV................................................................................................................ - 43 - Chapter 20 System Update and Renew .................................................................................................... - 43 - Chapter 21 Product Suitability.................................................................................................................. - 45 - 1. Environment............................................................................................................................. - 45 - 2. Max. Rating........................................................................…

Text truncated - open the document above for the full version.

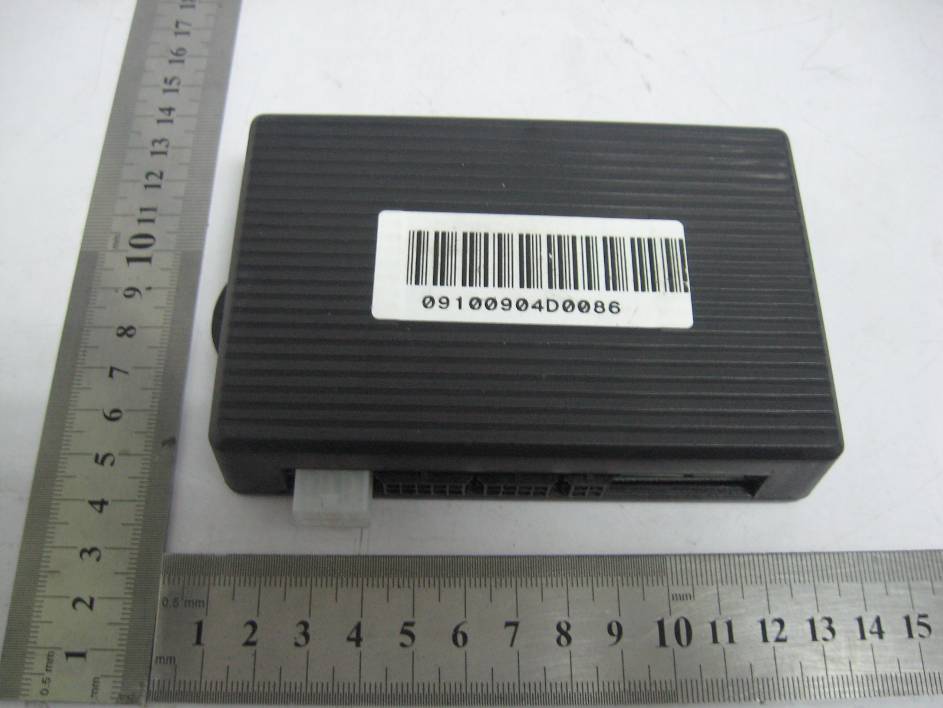

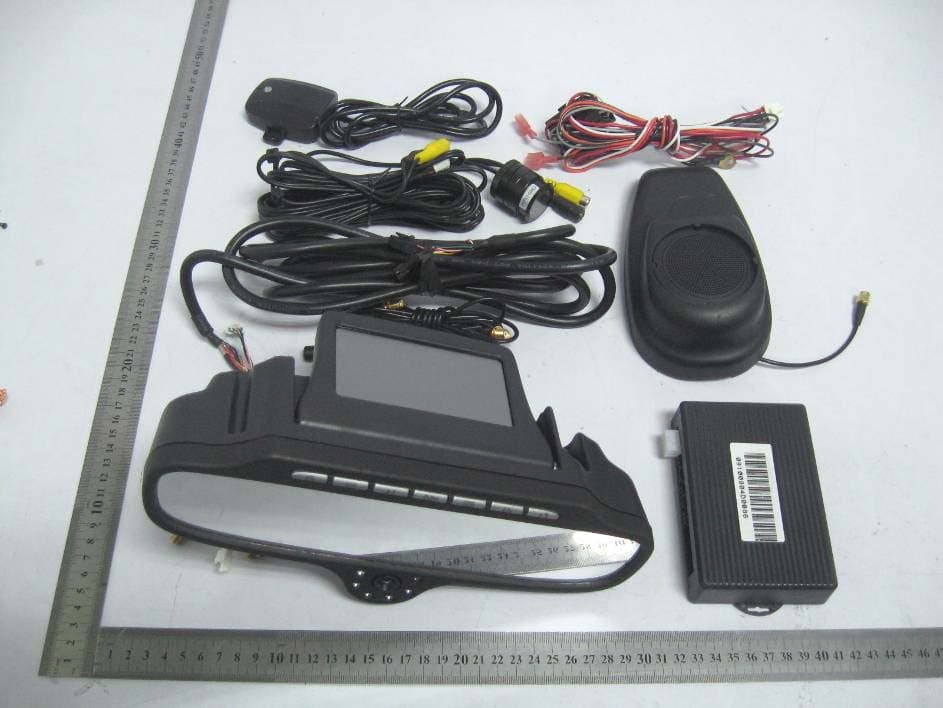

ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E EUT View 3 EUT View 3 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E EUT View 4

ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YA2ARS3000A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YA2ARS3000A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 1 Solder Board-Component View 2 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 3 Solder Board-Component View 4 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 5 Solder Board-Component View 6 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 7 Solder Board-Component View 8 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 9 Solder Board-Component View 10 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 11 Solder Board-Component View 12 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 13 Solder Board-Component View 14 ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 FCC PART24E Solder Board-Component View 15 Solder Board-Component View 16

Circuit description The circuit mainly consists of five major components, including ARM core Board, Host Board, LCD drive Board, Monitoring Camera Board and Alcohol Detection Board. Please see the follow descriptions: 1. ARM core Board The Board is the core part，consists of a SAMSUNG ARM processor（S3C2440A），two pieces of RAM（IS42S16320B），a piece of NOR FLASH（K9F2G08UOA），a piece of NAND FLASH(S29GL512P11TFI010）and a piece of video capture chip（SAA7113）. 2. Host Board The Board mainly helps to realize each hardware’s function, including Hardware watchdog function(Achieved by the chip MAX706), Key driving function（Achieved by the chip P89LPC922FDH）,Audio feature function(Achieved by the chip HWD2190MM, SSM2301RMZ, NLAS4501DTT1G and UDA1341TS), Echo cancellation function(Achieved by the chip MCP2510T-I/SO), CAN port function(Achieved by the chip MCP2510T-I/SO and PCA82C251T), GPS function(Achieved by the module REB-3571), UART transferable function(Achieved by the chip ICL3232IBZ), GSM function(Achieved by the module SIM340), Echo cancellation function(Achieved by the chip FM2010), SD card and motor driving function. 3. Monitoring Camera Board The Board, mainly consists of a USB CMOS camera, realizes the monitoring function. 4. LCD drive Board The Board, mainly consists of a Backlight Driving Chip and a 4.3-inch LCD screen, realizes the 4.3-inch LCD drive function. 5. Alcohol Detection Board The Board, mainly consists of an Alcohol sensor, realizes the Alcohol Detection function.

Monitoring Camera Board BOM Part Name Location Specification package Quantity R62 10K 0603 1 R65R66R67R68R6 9R70 75 Ω 0805 6 flake resistance R64 390 Ω（NC） 0603（NC） 1 Flake dynatron Q17 9013 SOT－23 1 infrared diode D16D17D18D19D2 0D21 850nm,120 degree，φ5 6 4PIN linker J5 J7 12512WS-04B 1.25MM DIP 2 Photosensitive resistance R63 MJ4517（NC） （NC） 1 ARS-3000A-DL-04 ARS-3000A Auto Remote Service System Unit Monitoring Camera Board 4.3”LCD drive Board BOM Part Name Location Specification package Quantity R109 3.3K 0603 1 R25 10K 0603 1 R24 220K 0603 1 flake resistance R145 330Ω 1206 1 C21 2.2uF 0603 1 C34 10uF 1206 1 C37 C54 100uF/25V 7343 2 C3 0.1uF 0603 1 Flake capacitance C35 120pF 0603 1 Flake inductance L2 10uH 1206 1 diode D4 1N5822 MLL41A 1 40PIN FPC linker CON2 05004HR-40A01 0.5MM 1 45PIN FPC linker CON1 05003HR-45B02 0.5MM 1 6PIN linker CON5 12505WR-06 1 U30 LP38693MP-3.3 SOT-223 1 IC U33 LM2733YMF SOT23-5 1 ARS-3000A-DL-03 ARS-3000A Auto Remote Service System Unit 4.3”LCD drive Board BOM ARM core Board BOM Part Name Location Specification package Quantity R7 R19 1.5K 0603 2 R3 1M 0603 1 R5 15K 0603 1 R2 R9 R30 22Ω 0603 3 R52 1K 0603 1 R55R56R58R61 18Ω 0603 4 R54R57R59R62 56Ω 0603 4 R23 0Ω 0603 1 R6 100Ω 0603 1 R15 330Ω 0603 1 R13R14R16R17R18R22 10K 0603 6 flake resistance R1 R8 R21R25R51 NC NC 5 RP6 RP9 10K 0603 2 resistance RP3 RP4 RP5 22Ω 0603 3 C5C6C7C8C9C10C11C12C13C14 C15C16C17C18C19C20C21C22C2 3C24C25C28C30C33C34C35C36C 37C38C39 C40C52C59 0.1uF 0603 33 C60C61C62C63 0.22uF 0603 4 C2 C3 15pF 0603 2 C1，C4, 22pF 0603 2 C55,C56 33pF 0603 2 C53C54 47nF 0603 2 C51 1nF 0603 1 C50 680PF 0603 1 Flake capacitance C26 C29 100uF/16V 7343 2 L1 L2 L3 L4 39nH 0603 4 Flake inductance L8L9 BLM18EG221SN1 0603 2 U9 U10 IS42S16320B-7TLI TSOP54 2 U14 K9F2G08UOA-PIB0TSOP48 1 U8 S29GL512P11TFI010 TSSOP56 1 U1 SAA7113 QFP44 1 U20 LM1117-ADJ SOT-223 1 IC U2 S3C2440A-40-YQ80 BGA272X17 1 ARS-3000A-DL-06 ARS-3000A Auto Remote Service System Unit ARM core Board BOM ARM core Board BOM Part Name Location Specification package Quantity X2 32.768K SMD32K 1 X1 16.9344M DIP 1 crystal Y1 24.576M DIP 1 electrical outlet CON12 12PIN 2.54MM DIP 1 J1 SMW250-02 SIP2 1 linker J2 J3 J4 NC NC 3 linker CON100 100pin1.27mm 1 ARS-3000A-DL-06 Host Board BOM Part Name Location Specificationpackage Quantity R20,R61 1M 0603 2 R3,R10,R12R18,R19,R21,R22,R38 R60,R80,R112,R118,R120,R130, R135,R136R185,R186,R312,R313, R315,R150,R151,R152,R153,R154 R155,R156, R33，R43 10K 0603 31 R74, 47K 0603 1 R119, R321 36K 0603 2 R116, R320 51K 0603 2 R16，R114, R122, R301 4.7K 0603 4 R15,R17R76 2.2K 0603 3 R1,R2,R7,R8,R47,R48R23,R73, R104,R124, R133,R190,R191 1K 0603 13 R36, R420 R71R72 3.9K 0603 4 R100, R101, R140, R141, R142,R143 20K 0603 6 R34R35,R50,R51,R111, R314, 15K 0603 6 R311 3.3K 0603 1 RP9 10K 0603 1 R26, R29, R31, R52, R53, R77,R78, R79 22Ω 0603 8 R5 R6 33Ω 0603 2 R13,R59 47Ω 0603 2 R115 2Ω 2010 1 R9 R75 100K 0603 2 R58 120Ω 0603 1 R400，R401，R402，R403，R404，R405， R406，R407，R408，R409，R410，R411 330Ω 0805 12 R127,R131 R132 R180 330Ω 0603 4 R117 1.5K 0603 1 R303,Q50 0Ω 0603 2 flake resistance R11 R42 NC NC NC ARS-3000A-DL-02 ARS-3000A Auto Remote Service System Unit Host Board BOM Host Board BOM Part Name Location Specificationpackage Quantity C34,C35C36,C37,C192 4.7nF 0603 5 C103,C104,C105,C117,C118 C128,C132,C133,C134C144 C151,C152C153,C180,C181 C182,C183C184C185 10PF 0603 19 C100,C101,C102, C116,C135C137,C154,C155, C156,C158 33PF 0603 10 C51 C52 30PF 0603 2 C15,C16,C124, C125, C160, C161, C170,C171 22PF 0603 8 C17,C18,C38,C42,C43,C49, C50,C53,C92,C95,C112, C113,C130,C131,C136C138, C172,C173,C175,C176 0.1uF 0603 20 C3, C4, C5, C6, C7, C75,C98,C99 C40 C12 2.2uF 0603 10 C129 1nF 0603 1 C8,C13,C14,C19,C20,C22, C23,C30,C32,C33,C74, C157 0.22uF 0603 12 C9C10 0.47uF 0603 2 C142C143C145,C146,C148, C149, 10nF 0603 6 C96C97 470pF 0603 2 R27,R30,R32 330PF 0603 3 C11C39C96C97 NC NC 4 C115,C126,C127 10uF 1206 3 C1,C2,C25C26C45,C46,C64 C71,C190,C191.C301C303 C310, C150 10 uF/16V 3216 14 Flake capacitance C29, C48, C65, C69, C70, C80，C200 100 uF /25V (107E) 7343 7 ARS-3000A-DL-02 Host Board BOM Part Name Location Specification package Quantity L3 2.2uH 0805 1 L9 39nH 0603 1 Flake inductance L5 68uH(SMD105) SMD 1 D30 D31 FR157 MLL41A 2 D15, D40 1N5822 MLL41A 2 D22 D32 IN4007 MLL41A 2 Flake diode D60 IN5226 MLL41A 1 Flake LED D23, D24, D25, D26, D27, D28, D29, D50, D51, D52, D53, D54, D55 D56 LED(blue) 0603 14 Q12,Q21,Q23, Q26, Q27, Q11， Q15 9013 SOT－23 7 Flake dynatron Q20 2SD1664 SOT-89 1 Flake MOSFET Q18, Q19 FDN304P SOT－23 2 U12 U21 U70 LP38693MP-3.3 SOT-223 3 U9 LM2596S-5.0 TO-263 1 voltage regulators U3 MIC29302WU TO-263 1 fv301,FV401 ESDA6V1W5 SOT323-5 2 Fv201 NC NC 1 Z1 1SMA30AT3 SMA 1 ESD diode Z2 ,Z3 1SMA6.0AT3G SMA 2 ARS-3000A-DL-02 Host Board BOM Part Name Location Specification package Quantity U37 MAX706TESA SO-8 1 U19 LM258D SO-8 1 U13 PCA82C251T SO-8 1 U25 HWD2190MM MSOP－8 1 U5 SSM2301RMZ MSOP－8 1 U11 ICL3232IBZ SOIC16 1 U10 MCP2510T-I/SO SOL-18 1 U39U40U41 U42U43 NLAS4501DTT1G SOT23-5 5 U8 P89LPC922FDH TSSOP20 1 U7 UDA1341TS SOT341 1 U6 FM2010 LCC48 1 U4 24LC02B SO-8 1 U16 74HC125 SO-14 1 U15 MIC5207-1.8BM5 SOT23-5 1 IC U22 MIC5207-3.3BM5 SOT23-5 1 GPS REB-3571 baud rate38400 REB-3571 1 module U2 CB0613（NC） CB0613 1 KEY S1~S7 TD-19XA 7 100PIN linker CON100 1.27mm electrical outlet 1 SIM卡卡座 J1 KF-016 1 SIN300 electrical outlet J2 1008-G60N-01R 1 SD card CON7 676008001 1 45PIN FPC linker CON45 05003HR-45B02 1 8PIN linker J5 12505WR-08 1 6PIN linker J7 12505WR-06 1 5PIN linker CON4 12505WS-05 1 3PIN linker CON3 12505WR-03 1 ARS-3000A-DL-02 Host Board BOM Part Name Location Specification package Quantity X4 11.0592M DIP 1 X2 12M DIP 1 crystal (KOAN) X5 13M DIP 1 photocoupler U18 U20 TLP521-1 DIP4 2 relay JDQ1 G6H-2(12VDC) DIP10 1 Electrolytic capacitor C47 1000uF/35V RB.2/.4 1 2PIN linker M1 FAN SPKEAR SPKAMP SMW250-02 SIP2 4 2PIN linker MIC1 MIC2 YMAW025-02R SIP2 2 4PIN linker J3 12512WS-04B 1.25MM 1 7PIN linker J6 SMW250-07 SIP7 1 Key S9 TC…

Text truncated - open the document above for the full version.

Tune Up Procedure To calibration tansmit power before shipping, the tune up procedure is as follows: Measurement Instrument: CMU200 Maximum Permissible Output Power Range: 27dBm to 33dBm Read CMU200 channel power value in dBm Read default TX PDM value corresponding to 30dBm Channel power is 30±3dBm ? Channel power >33dBm Channel power <27dBm Decrease PDM value Increase PDM value Read PDM value and Wirte memory Finish No Ye s

MAXIMUM PERMISSION EXPOSEURE Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density MPE Calculation Method S =(P*G) / (4*∏*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) MPE Calculation Result For GSM mode Maximum peak output power at antenna input terminal: 29.82(dBm) Maximum peak output power at antenna input terminal: 959.4(mW) Prediction distance: 20 (cm) Prediction frequency: 1909.8(MHz) Antenna gain (typical): 1 (dBi) Antenna gain (numeric): 1.2589 (numeric) The worst case is power density at prediction frequency at 20cm: 0.24028 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.24028 (mw/cm 2 ) < 1 (mw/cm 2 ) For GPRS mode Maximum peak output power at antenna input terminal: 29.81(dBm) Maximum peak output power at antenna input terminal: 957.2(mW) Prediction distance: 20 (cm) Prediction frequency: 1909.8 (MHz) Antenna gain (typical): 1 (dBi) Antenna gain (numeric): 1.2589 (numeric) The worst case is power density at prediction frequency at 20cm: 0.23973 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.23973 (mw/cm 2 ) < 1 (mw/cm 2 ) Result: Compliant

ARM core Board SCH ARS-3000A-01－11 ARS-3000A Auto Remote Service System Unit ARM core Board SCH ARM core Board SCH ARS-3000A-01－11 ARS-3000A Auto Remote Service System Unit ARM core Board SCH ARM core Board SCH ARS-3000A-01－11 ARS-3000A Auto Remote Service System Unit ARM core Board SCH ARM core Board SCH ARS-3000A-01－11 ARS-3000A Auto Remote Service System Unit ARM core Board SCH Monitoring Camera Board SCH ARS3000-A-01－12 ARS-3000A Auto Remote Service System Unit Monitoring Camera Board SCH Host Board SCH ARS-3000A-01－13 ARS-3000A Auto Remote Service System Unit Host Board SCH Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 描图：幅面：A4 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Ant. 1850.2-1909.8MHz Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH ARS-3000A-01－13 Host Board SCH clear up echo circuitry ARS-3000A-01－13 4.3”LCD drive Board SCH ARS-3000A-01－14 ARS-3000A Auto Remote Service System Unit 4.3”LCD drive Board SCH Alcohol Detection Board SCH ARS-3000A-01－15 ARS-3000A Auto Remote Service System Unit Alcohol Detection Board SCH

ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 PAGE 1 OF 33 FCC PART 24E FCC PART PART 24E Measurement and Test Report For ARS Global Guilding, Inc. 225 S. LAKE AVE., SUITE 545 PASADENA,CA91101 FCC ID: YA2ARS3000A Report Concerns: Original Report Equipment Type: Auto Remote service Unit Model: ARS-3000A Report No.: STR10038090I-1 Test/Witness Engineer: Test Date: 2010-04-06 to 2010-04-14 Issue Date: 2010-04-16 Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . ARS Global Guiding, Inc. Model: ARS-3000A REPORT NO.: STR10038090I-1 PAGE 2 OF 33 FCC PART 24E TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. RF EXPOSURE .........................................................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. RF OUTPUT POWER ..............................................................................................................................................7 4.1 STANDARD APPLICABLE.........................................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. EMISSION BANDWIDTH .....................................................................................................................................13 5.1 STANDARD APPLICABLE.......................................................................................................................................13 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 5.3 TEST PROCEDURE.................................................................................................................................................13 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................14 6. OUT OF BAND EMISSION AT ANTENNA TERMINAL .................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 6.3 TEST PROCEDURE.................................................................................................................................................18 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................19 7. SPURIOUS RADIATION EMISSIONS................................................................................................................27 7.1 MEASUREMENT UNCERTAINTY.........................…
