YASRX003Tire Pressure Monitoring Systems

User's Manual Tire Pressure Monitoring System TPMS 02 FOREWORDINTRODUCTIONOPERATIONINSTALLATIONTECHNICAL SPECIFICATIONSSERVICE AND WARRANTYWARRANTY CARD 03 04 1 6 20 21 24 01 CONTENTS Sensors 4 Receiver 1 Double-side t ape 1 User Manual 1 Wrench 1 Charger 1 Anti-theft Nozzle 4 Packing List Please make sure that your product includes all the following itemsIn case of short of any items please contact your distributor for consultation : , . Thank you for buying our automobile tire pressure monitoringsystem This product can be used for light vehicle with tire pressure under 35Bar For a safe and correct use of it please read this manual first .; , . INTRODUCTION 03 02 FOREWORD Three different inflation condition of tire A. ormal n B. low pressure C. high pressure According to statistics , about 70% of all traffic accidents are caused by tire blowout , while the figure would be higher to 80% . The statistics of SAE shows that there are over 260000 accidents caused by tire fault , and about 75% tire fault is caused by low pressure or leak . NHTSA in US develop a project which require all vehicles with gross weight less than 4500 Kg should be installed TPMS product .It is because long time driving under abnormal tire pressure or temperature that rubbing abrasion of tire become rapid to cause tire blowout . The aim of TPMS is to notice the driver to keep tires in correct condition when driving. Just as the figures showed below , figure B and C result in stress centralization that is makes the tire sho ulde r be a brad ed ra pidly if u nde r lo w p ressu re c ond itio n while the centre part be abraded rapidly if under high pressure. This product belongs to Pressure-Sensor Based TPMS . The sensor is mounted as valve cap to measure the pressure and temperature . The tire is monitored all the time, and our product can send alarm information to driver to tell the emergency of improper pressure or temperature when it is under abnormal condition.The driver can keep the tire in good condition after having this product , thus the tire life can be extended.The driver can avoid increasing the braking distance and making the auto sideslip on wet road with this product.Gas saving is another important benefit to customers if using this product. This product makes you drive safely . If there’s any abnormal, it can send the message immediately including the value of the pressure and temperature , which makes you drive reliably. Our TPMS product uses reliable integrated circuit, according diffusible silicon sensing principle and RF communication principle, which makes the product perform well, easy to install and work stably. This type product is one of the most advanced TPMS products in the world. OPERATION 05 3. The Power Saving Mode:Power Saving Mode: system will be in power saving mode automatically when the receiver hasn’t detected any vibration in 30 minutes.Status of Power Saving mode: The receiver doesn’t do anything except detecting vibration ( no display in screen ; back light off ; the receiver doesn’t receive any data sent from sensors) when it is in Power Saving mode.Resuming to normal operation mode : in case of any vibration detected by the receiver ,the receiver will return to the normal operation mode . 2. Power onWhen the receiver is turned on , the system starts self-checking . The LCD , LED and back light are on . The screen enters into initiate state as picture 1. The self-checking will be finished in three seconds. Picture 1 Picture 2 OPERATION 04 Up Key Enter Key Down Key DC 5V Switch 1. Key introduction Enter Key : confirm the settings. Up Key : set and increase. Down Key : set and decrease. Switch : to turn on /off the receiver. DC 5V : to be connected to the accompanied charger . This product can monitor the pressure and the temperature of each tire.It will warn the driver if any tire is abnormal A Set function to set the standard value of pressure, unit of pressure and temperature, high temperature threshold ; exchange sensors’ position; setup sensors.B) warning function: Low pressure warning, high pressure warning, leakagewarning, high temperature warning, low power of sensor warning, no signalwarning.  : OPERATION 07 Picture 3 Picture 4 06 4 Display interface . Receiver battery : to show current energy of the receiver battery. When the icon is flashing , it means low power for the receiver and the receiver must be charged by the charger in time. charging temperature: 0 45  - OPERATION Low power of sensor warning: the buzzer turns on for 6 beeps and red LED is on ; The icon of the warning tire and the icon of low power are flashing; the buzzer will stop buzzing if any key is pressed. The warning message of each tire will be displayed in turn if more than one tire is under abnormal condition . B) No signal warning: the buzzer turns on for 2 beeps and red LED is on; no pressure and temperature of the tire is displayed, the icon of the warning tire and the icon of “ no signal” are flashing; the buzzer will stop buzzing if any key is pressed. The warning message of each tire will be displayed in turn if more than one tire is under abnormal condition. 5. Value of tire pressure: to show the real-time tire pressure.Value of tire temperature: to show the real-time tire temperature.setup:S-P : to set the standard tire pressure.W-T : to set the tire high temperature threshold.L-C : to set up sensors.E-P : to exchange sensors positions in case of tire rotation. Value of tire pressure Set up Value of tire temperature Warnings Receiver battery 09 Picture 8 OPERATION Picture 7 OPERATION 08 Picture 5 Picture 6 C) Leakage warning: the buzzer turns on for 6 beeps and red LED is on; the icon of the warning tire and the icon of leaking are flashing; the buzzer will stop buzzer if any key is pressed. The warning message of each tire will be displayed in turn if more than one tire is under abnormal condition. D) Low pressure warning: the buzzer turns on for 6 beeps and red LED is on; the value of pres…

Text truncated - open the document above for the full version.

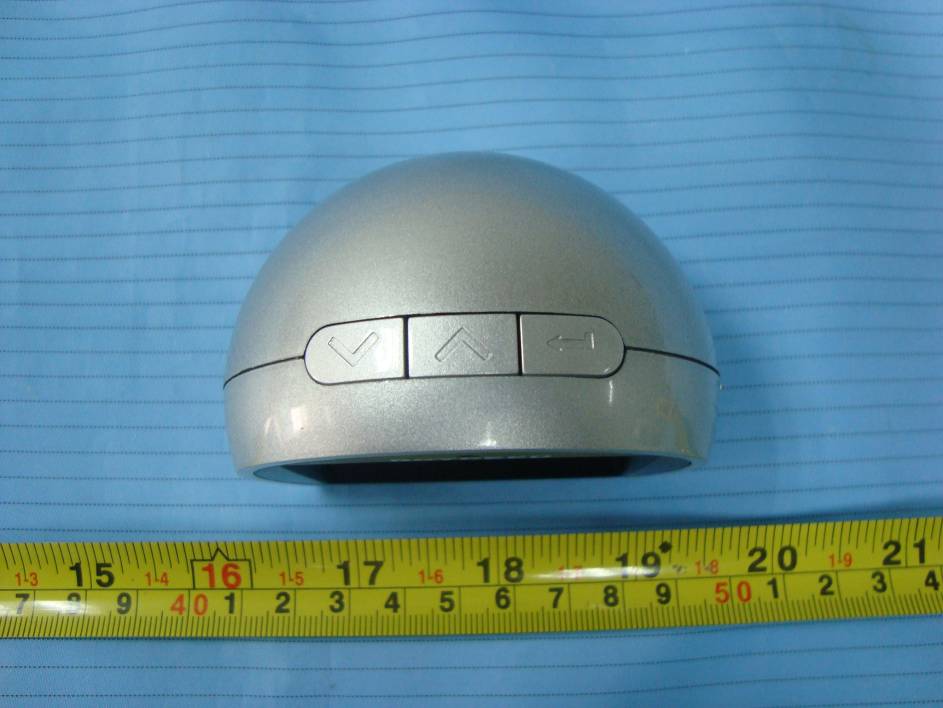

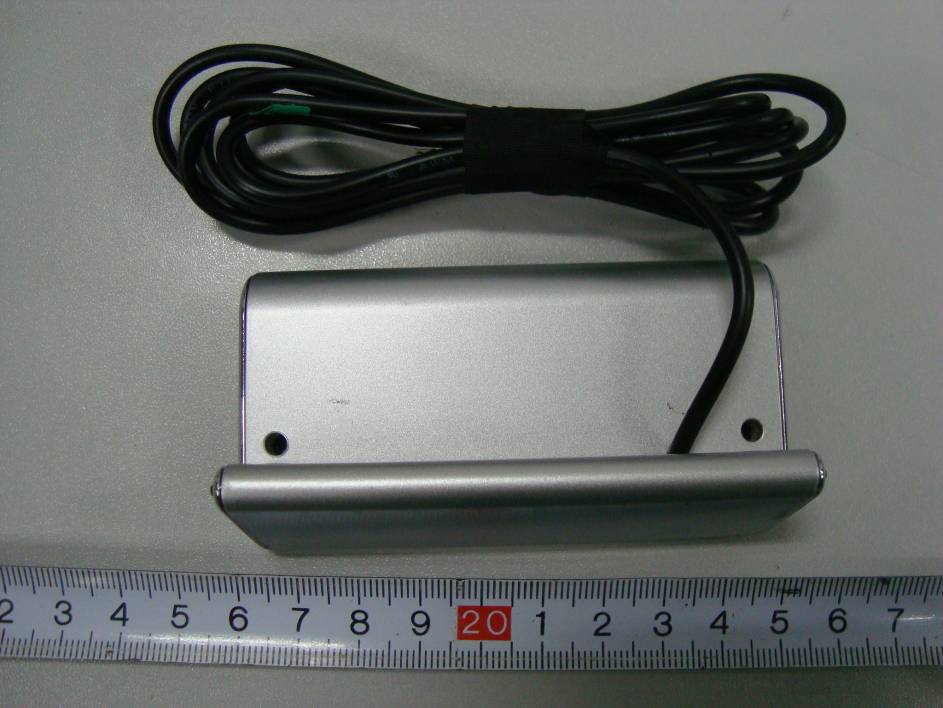

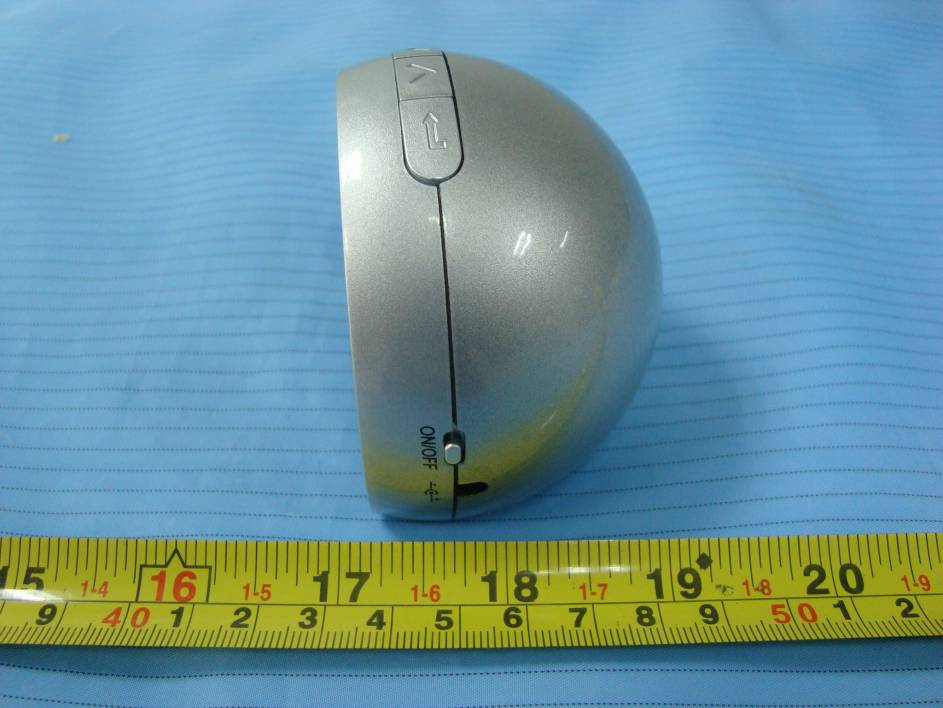

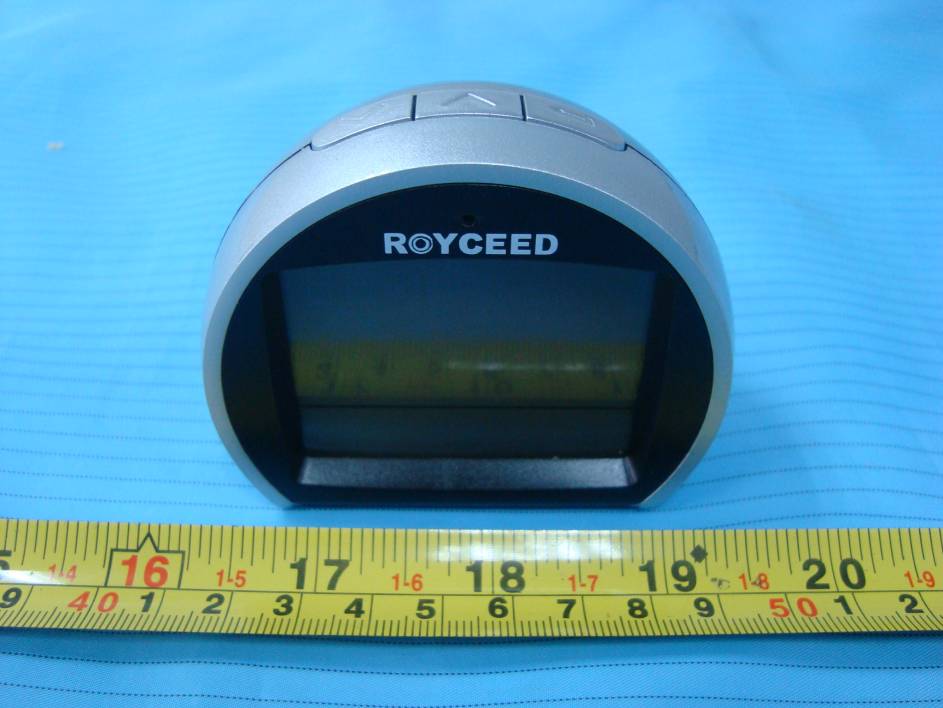

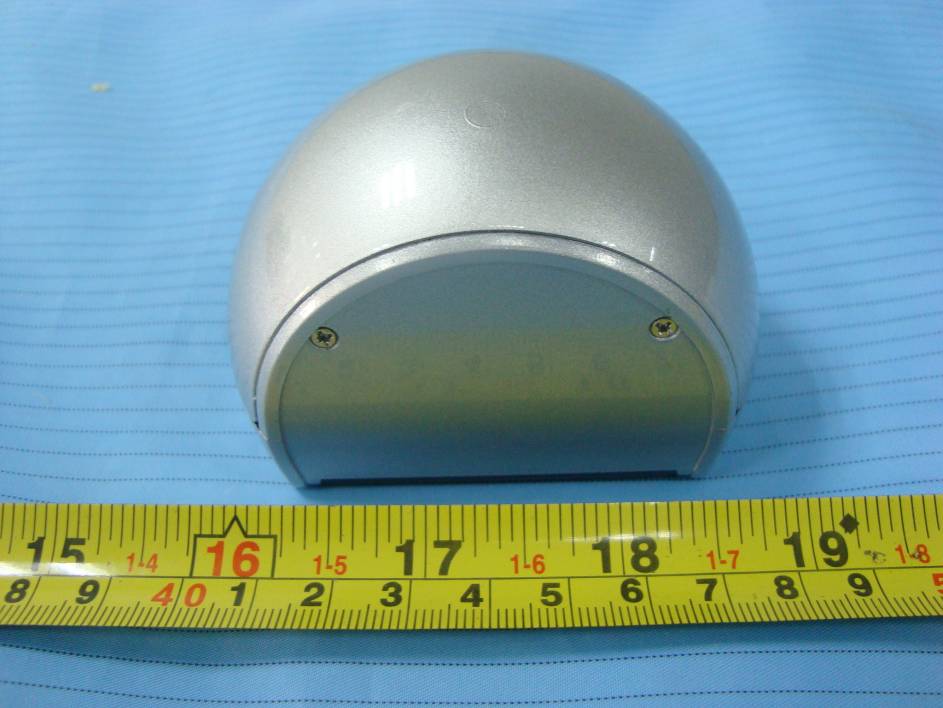

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT –Rear View EUT – Left View EUT – Top View EUT – Bottom View EUT – Battery View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View

Receiver WTRX003 Circuit Description 1. RF signals transmitted by the antenna to the S1. S1 is a SAW filter, can be useful in screening out 433.92-434.02MHz signal, and then sent data to the U3 TP31371FNG, U3 is a UHF Receiver. It will demodulate the received RF signal data and send it to the MCU. After that data will be transmitted by the MCU to the U1 HT1622, U1 is the LCD Controller. Finally detected data will be shown in LCD display. 2. When receiver received abnormality information, the buzzer turns on and red LED is on: the value of pressure, the icon of the warning tire are shown in display.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 29-Mar-2011 Sheet of File: E:\ 不能删除的资料 \TP MS 接收机 \WT 13 0( 带电池 )\ 新 WT 13 0\ 最新 WT 13 0.DD B Drawn By: Vin 1 GND 2 Vout 3 U4 XC6206R332PR 3.3V GND 1 IN 2 GND 3 GND 4 OUT 5 GND 6 S2 SAW_434MHZ R71K R1730K C15 1NF L322NH C18 6p A1 ANTENNA Q6 R25 L6 22nH C50103p R31 10R C44 5p C4910P Q7 R25 C43 470P R28 100K R27 47R C52 3P L7 22nH C48 102P C5110p C53 8P L4 47NH R29 470R 1 XIN 2 XOUT 3 SW 4 GND 5 NC 6 VCC 7 VCC 8 SW 9 VCC 10 RSSI 11 REF 12 RX DATA 13 RF IN 14 RF DEC 15 CHARG 16 MIX IN 17 VCC 18 VCC 19 AF OUT 20 GND 21 LPF 22 LPF IN 23 LPF OUT 24 LPF C2 U3 TB31371FNG C4 102P R51K C5 104P L5 10NH R19 4.7K C7 6P R20 68K R21 68K C10270P C14 82P X1 13.553125MHz C9 39p C3 27p C2 102P C1 222P VRX VRX C192P C33 102P C35 104P C34105P Q1 2SB624 R11 2.2K Q4 DTC114EE 4.2V BATTERY E4 100UF D5 SS14 C57 103P C56103P R24 NC R8 100K C23104p R610k 1 STAT 2 VSS 3 BAT 4 VDD 5 PROG U6 MCP73831 R1 0.1R SW R11 2K E2 22UF E1 22UF E3 100UF DC JACK R391M R38 1M C17104P C25 104P C26 104P 3.3V 充电检测 BATT 4.2V WTRX003 2010 10 19 AF TEST RF DATA D5 SS14 COM0 28 COM1 27 COM2 26 COM3 25 COM4 24 COM5 23 COM6 22 COM7 21 SEG0 20 SEG1 19 SEG2 18 SEG3 17 SEG4 16 SEG5 15 SEG6 14 SEG7 13 SEG8 12 SEG9 11 SEG10 10 SEG11 9 SEG12 8 SEG13 7 SEG14 6 SEG15 5 SEG16 4 SEG17 3 SEG18 2 SEG19 1 lcd1lcd R1615K Q3L6 B1BUZZER 3.3V 确认 上翻 下翻 3.3V 3.3V R9 0R RXD TXD GND 123 RS232 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U524C08 R1510R Q5M6 R1810K Q2M6 R210K GREEN 串口 指示灯 RED R14470R R3470R R4 10K C6105P R264.7K R3015K R36 10K X2 8MHz C29 33P C3033P CS 1 RD 2 WR 3 DATA 4 VSS 5 OSC1 6 VDD 7 VLCD 8 IRQ 9 T1 10 T2 11 T3 12 COM0 13 COM1 14 COM2 15 COM3 16 COM7 20 COM6 19 COM5 18 C0M4 17 SEG0 21 SEG1 22 SEG2 23 SEG3 24 SEG4 25 SEG5 26 SEG6 27 SEG7 28 SEG8 29 SEG9 30 SEG10 31 SEG11 32 SEG12 33 SEG13 34 SEG14 35 SEG15 36 SEG16 37 SEG17 38 SEG18 39 SEG19 40 SEG20 41 SEG21 42 SEG22 43 SEG23 44 U1 HT1622 R39 1M R381M C17 104P J 振动开关 D4IN4148 R2510K C27 104P D3 1N4148 C22103P C36 104P 3.3V R12 10K 3.3V Reset Mode Test GND 1 2 3 4 5 IMGBURN 完全垂直放置 R121M C17 2.2UF Q3 L6 R12 10M R1210M 3.3V Q9 L6 C58 105P 3.3V R441M 1 EEP SDA 2 TXD 3 RESET 4 XIN 5 GND 6 XOUT 7 VCC 8 MODE 10 HC595 SH 9 Vibration 11 LCD DATA 12 LCD WR 13 Charge 14 HC595_DS 15 HC595_ST 16 V_REF 17 BATT DET 18 KEY 19 RF DATA 20 EEP CLK U7 R8C1B C17 104P 3.3V 1 Q1 2 Q2 3 Q3 4 Q4 5 Q5 6 Q6 7 Q7 8 GND 9 Q7' 10 /MR 11 SH_CP 12 ST_CP 13 /OE 14 DS 15 Q0 16 VCC U2 74HC595 R6 10k R6 10k C25104P

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15B MEASUREMENT AND TEST REPORT For Wellgain Auto Technology Co., Ltd. Dongcheng Science & Technology Industrial Area, Dongke Road, Dong Cheng District, Dongguan City, Guangdong Province, P.R.C FCC ID: YASRX003 Report Type: Original Report Product Type: Tire Pressure Monitoring Systems (Receiver) Test Engineer: Jimmy Xiao Report Number: RSZ11021652 Report Date: 2011-03-21 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Wellgain Auto Technology Co., Ltd. FCC ID: YASRX003 Report No.: RSZ11021652 Page 2 of 11 FCC Part 15B Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §15.109 - RADIATED EMISSIONS ...................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 Wellgain Auto Technology Co., Ltd. FCC ID: YASRX003 Report No.: RSZ11021652 Page 3 of 11 FCC Part 15B Test Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Wellgain Auto Technology Co., Ltd’s product, model number: WTRX003 (FCC ID: YASRX003) or the "EUT" as referred to in this report is a Tire Pressure Monitoring Systems (Receiver), which measures approximately: 7.5 cm (L) x 6.2 cm (W) x 4.8 cm (H), rated input voltage: DC 3.7V battery or DC 5 V for charging.The hightest operating frequency is 433.92 MHz. All measurement and test data in this report was gathered from production sample serial number: 1102004 (Assigned by BACL, Shenzhen). The EUT was received on 2011-02-16 Objective This Type approval report is prepared on behalf of Wellgain Auto Technology Co.,Ltd in accordance with Part 2, Subpart J, Part 15, Subparts A and B of the Federal Communication Commission…
