YB2-C105CD PLAYER

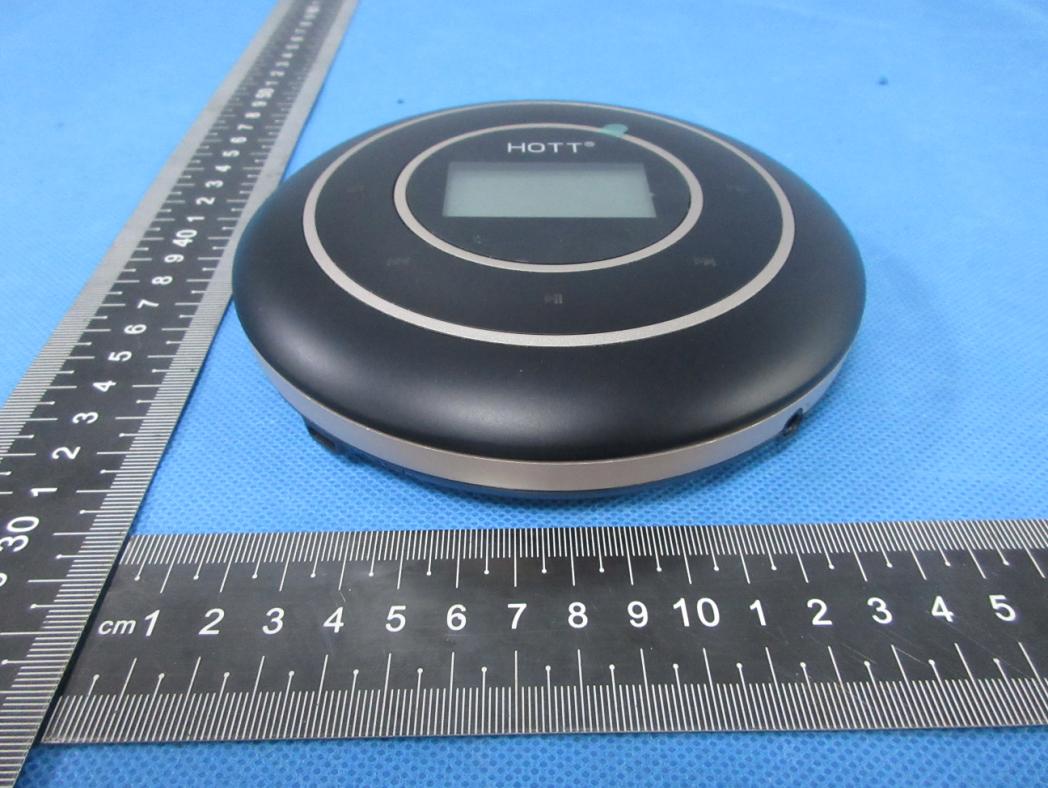

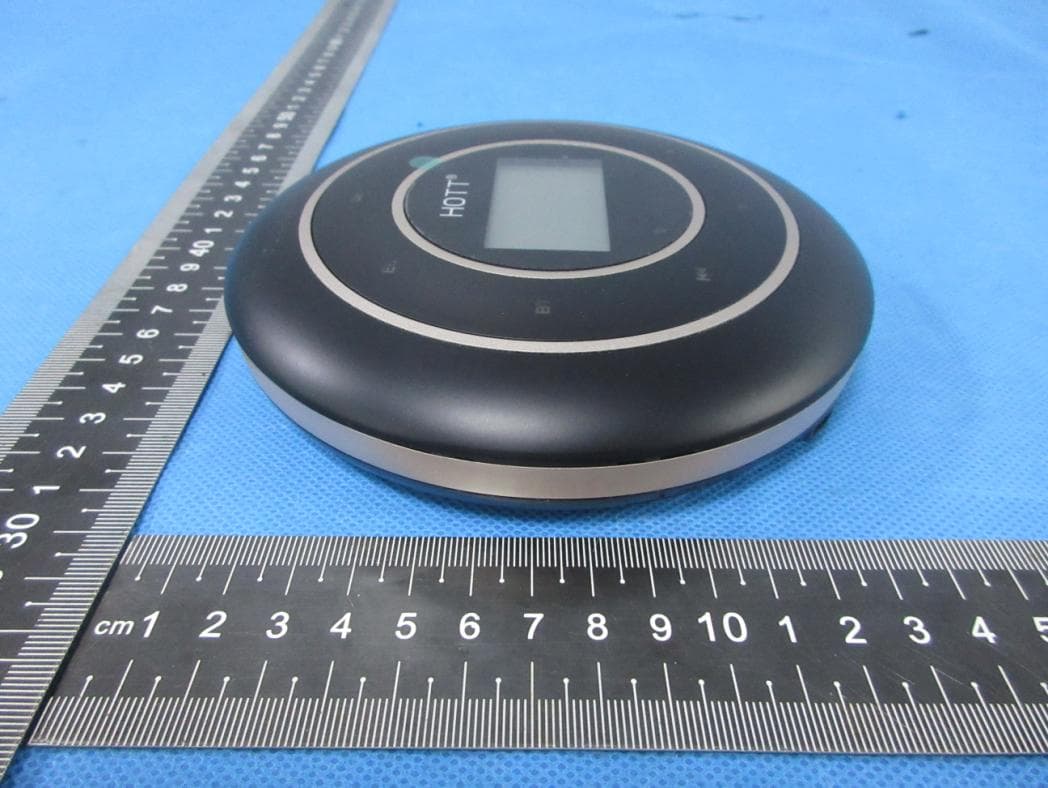

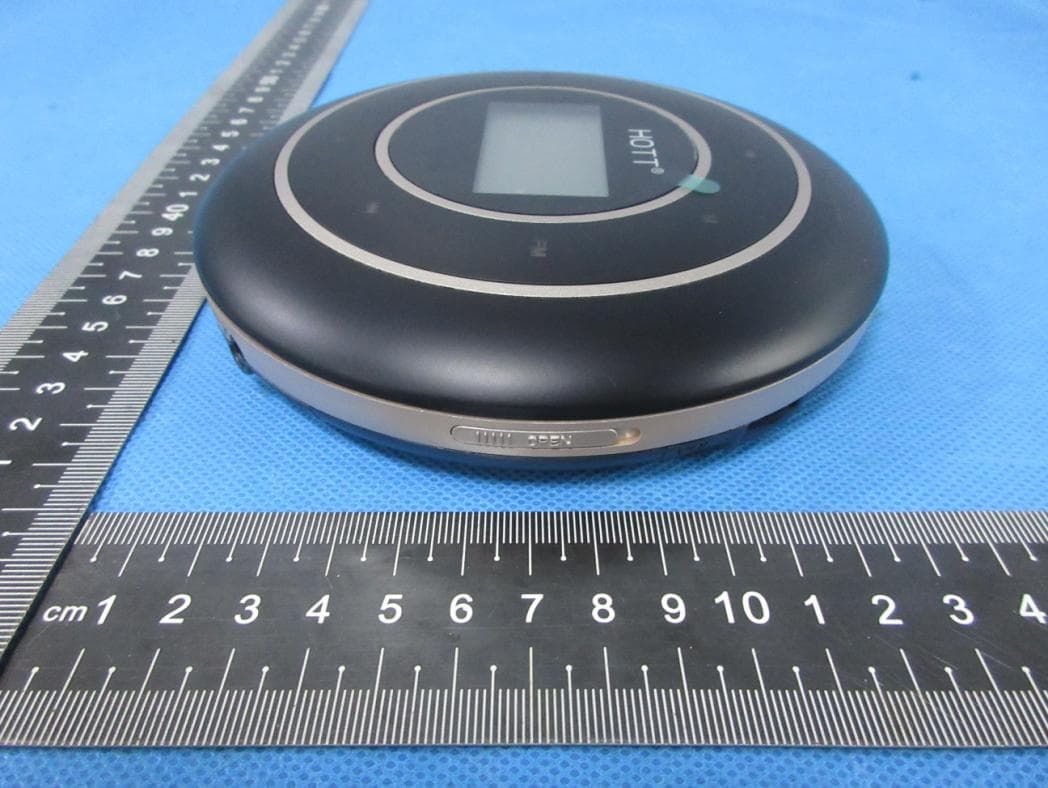

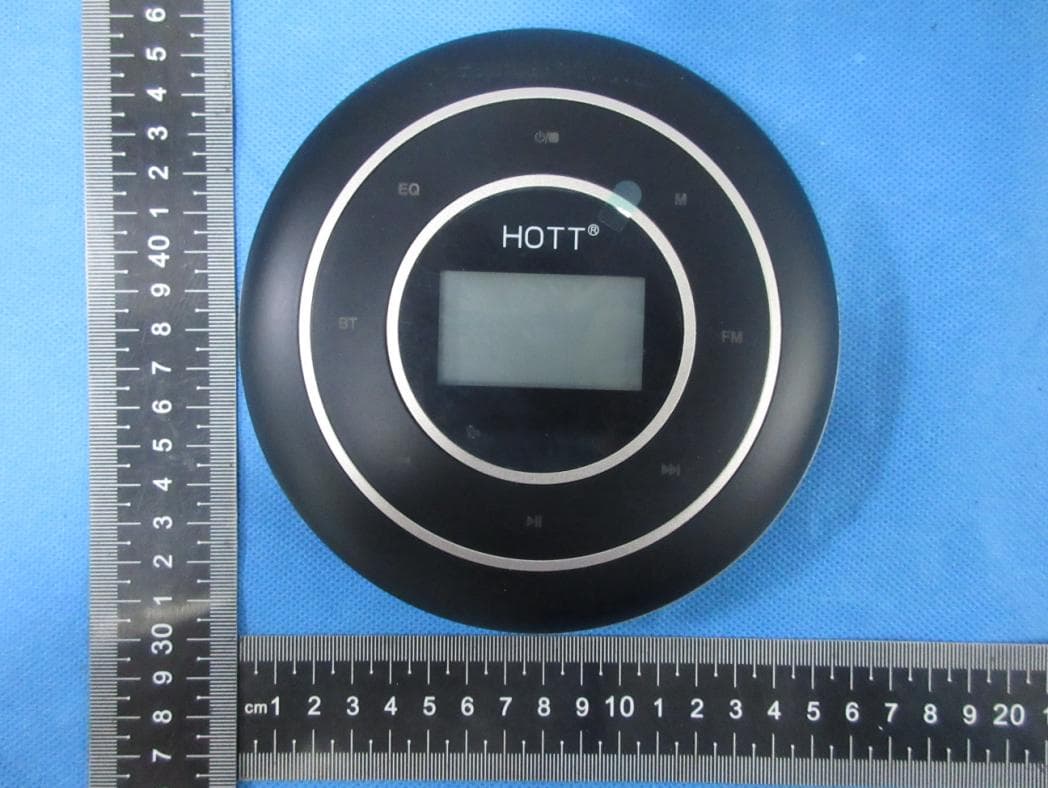

English CD Player User Manual MODEL: C105 Dear Users: We appreciate you choosing the HOTT CD Player and wish you an excellent user experience. Please read this manual in detail and keep it on hand for further reference. C105 Product Design Accessories CD player Operation manual power cable Audio cable Earphone Start Step Tip: ※ When the HOLD button is in ON position, all functionality buttons are locked. When the HOLD button is in OFF position, CD Player can be used normally. ※ The screen will turn off after 30 seconds of inactivity as a screen saver function. Press any button to reactivate. ※ Please do not use discs with severe scratches, fingerprints, or dirt. It might cause failure to read and CD Player itself, or affect the service life of laser head. Introduction of touch button 1. : ON/OFF Hold 3 seconds to turn on Hold 3 seconds to turn off 2. : Pause/Play Press to pause and resume 3. : Previous track/Rewind Press one time to replay the current track Press twice to find the previous Hold to rewind 4. : Next Track/Fast Forward Press to find the next track Hold to fast forward 5. ：Sound effect mode Press EQ to switch sound effect mode EQ mode: BASS→ POP→ JAZZ→ ROCK→ CLASSIC 6. ：Play mode Press Ｍ to switch play mode Bluetooth Function Introduction Before connecting with Bluetooth, please turn on the Bluetooth device that needs to be connected, and turn off other devices that do not need to be connected to avoid interferences; In some cases some products may not be able to pair with this CD Player due to Bluetooth compatibility difference, please use the Audio Cable in the product accessories to connect. When a car stereo is not connecting, you can choose to use the FM transmitter to connect; When connecting a Bluetooth device, please unplug the headset, Bluetooth and headset cannot output audio at the same time; FM radio and Bluetooth cannot be used at the same time. 1. Bluetooth speaker/headset Connection: 1) When CD Player is on, holdto turn on Bluetooth; 2) When is flickering, the devise is ready to connect; 3) Turn on the Bluetooth speaker/headset to enter pairing mode; 4) Once connected, will stop flickering, The connection processmay take 20s~60s. 2. Car Bluetooth connection: 1) When CD Player is on, hold to turn on Bluetooth; 1 Single track play ALL All tracks play in order Shuffle play 2) When is flickering, the devise is ready to connect; 3）Turn on car Bluetooth, find the devise“HOTT-CD” and match the connection automatically，Some car Bluetooth requires a PN code(which is initially 000000 and can be changed later); 4）Once connected, will stop flickering. 3.Exit Bluetooth mode： Hold until the icon disappear. FM transmitter mode introduction The FM mode is only suitable for cars with FM function; CD Player supports 5 fixed frequency points：F87:5、F88:1、F89:1、F90:5、F95:5; FM and Bluetooth cannot be used at the same time. 1. Car FM Connection： 1) When CD Player is on, hold to turn on FM connection; 2) Hold to switch frequency point： F87:5、F88:1、F89:1、F90:5、F95:5; 3) Adjust the frequency of car tuner to the same frequency of the CD Player for connection; For example：adjust the frequency of both car equipment and CD Player to F90:5MHz and play music. 4) Press to Pause/Play, press to replay the current track, press twice to find the previous 播放状态 track, Press to find the next track. (Only supports track switching or pause and play on the CD Player itself, not on receiving device.) 2.Exit FM mode： When FM mode is on, hold to end FM connection mode. Back of product HOLD (ON/ OFF): Lock button switch - ON: All buttons will be locked - OFF: Unlock Note: Before power on, you need to put the button to the “OFF” position. VOL -/VOL+: Adjust the volume PHONES: Earphone jack USB 5V: USB power supply RESET: Reset / shutdown Charging ※ Attention： The power adaptor for the equipment：the voltage and power should be 5V-1A by USB. An adaptor over 9V will damage the equipment. 1. When is visible, the charge is low and a power source is needed for further use. 2. Adaptor with 5V - 1A is required. The USB provided works for charging. The light turns red when charging. The light turns blue when the charge is completed（after 4~5 hours). Parameters Power USB 5V-1A Supported CD type CD, MP3, CD-R, CD-RW Supported music format CD-DA, MP3, WMA Lithium battery 3.7V 1800mAh Charging length 4-5 hours Play length 8-10 hours Distance of Bluetooth 10meters Size ∮142X30.5mm Common trouble shooting solutions Trouble Possible reason Solution Failure to turn on Check if the HOLD is switched to ON Switch HOLD to OFF for unlocking The equipment is low on power Use the USB we provided to recharge （the adaptor with the voltage and power of 5V1A) Failure in recognizing the discs Check if the CD is seriously scraped, scratched, or otherwise damaged Change the disc Check if the format is compatible with the equipment Change to a CD that is compatible with the equipment Low volume Check if the earphones are properly connected Plug in earphones or change to other earphones Check the volume level Adjust if needed by pressing VOL+ Failure to charge Check that the USB interface and USB cable are in good condition Change to other USB cable Failure in connection with Bluetooth Check to ensure that all equipment is available for pairing Both equipment need to be available for pairing Distance exceeds the effective distance of Bluetooth connection Get closer and reconnect FM connection is weak or fails. Check if the car equipment is set to the same frequency with the CD Player Change to same frequency and try again There are distractors around Switch direction Buttons are not functional Check if the button HOLD is switched to ON Switch HOLD to OFF for unlocking Stops or automatically turns off when playing Check if the play mode is ALL tracks play in order The CD Player will turn off automatically once the list is completed Tracks get skipped when play Check if the discs are dirty or damaged Change the disc Failure to turn off Chec…
