YBL101WIRELESS MOUSE

ON/OFF Switch MANUAL Setting up the mouse 1. Slide the battery door open, install 2 AAA batteries, close the battery door. 2. Turn on the mouse using the power button on the baottom of the mouse. The red LED light on the bottom of the mouse should be on, indicating that the batteries were installed properly and mouse is operational. VIEW: 1. Scroll Wheel, to scroll down the page you are viewing, roll the wheel backwards. To scroll to the top of a page, roll the wheel, forward. 2. Universal forward and back buttons 3. Left and Right mouse buttons 4. Speed change buttom(adjust from 800 dpi to 1600 dpi) Operation: 1. While this mouse will operate over virtuall any surface, shiny or glass surfaces may diminish the performance of the mouse. We recommend using the mouse on non reflective surfaces for optimal performance. 2. Having the mini-receiver close to any electronic products with bluetooth technology may cause interference with the signal. 3. This mouse has an automatic sleep function to preserve battery life. When the mouse is not used for a period of time, it will go to “sleep”. To “wake” the mouse press any key or move the scrollwheel. If the mouse does not resume functioning, verify that the power button has not been turn off. 4. If the mouse will not be used for an extended period of time, turn the power off to preserve battery life. 5. This mouse will function up to 20ft away from the minireceiver. FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

MCU U2 SE95BD-EM Battery 3V AAA*2 RF 2.4GHz RF U1 8713 DICE Sensor circuit U3 SE24C02 Crystal Y1 12.00MHz BLOCK ANTENNA

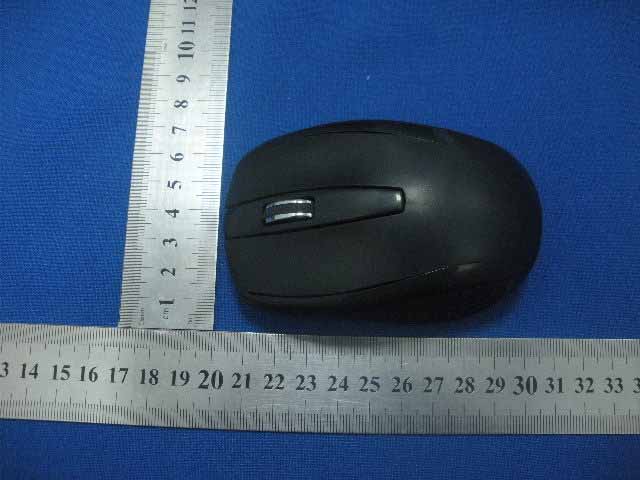

External Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 External Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 External Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110

FCC ID LABEL FCC ID:YBL101 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 Internal Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 Internal Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 Internal Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 Antenna Internal Photo for Model: 101, 102, 103, 104, 105, 106, 107, 108, 109, 110

DESCRIPTION The power of whole mouse is supplied by two AAA battery, the mouse will work at 2.7-3V. Sense component SE24C02(U3) can make the light signal transfer to electronic signal transfer through XY axis coding and then transfer to MCU SE95BD-EM(U2). Master MCU controls RF IC 8713DICE (U1) to get and send wireless signal in 2402-2480MHZ frequency range, and controls LED, optical transducer, left and right button, trolley at the same time.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 27-Jul-2009 Sheet of File: E: \ B RF_CS# PKT_FLAG IIC_SCL IIC_SDAID_KEY Y112M C1424P*C1530P USBD+ USBD-SPI_MISORF_RST# SPI_CLK SPI_MOSI D+ 3 D- 2 VCC 1 GND 4 5 USBA VDD C134.7uF/10V USBD-USBD+ RF3V3 +1.8V +1.8V +1.8V C52.2uF C30.1uF SPI_MISORF_RST#SPI_CLKSPI_MOSIRF_CS#PKT_FLAG C20.1uF OSCI C10.1uF RFIX OSCI +1.8V C62.2nF C94.7uF/6.3V ANT PLL_VDD 2 VCO_VDD 3 ANT 4 GND 5 RF_VDD 6 IF_VDD 7 AMS_VDD 8 GND 12 PKT_FLAG 11 RXCLK 10 FIFO_FLAG 9 DIG_VDD 13 SPI_SS 14 SPI_MOSI 15 SPI_CLK 16 RESET_n 17 SPI_MISO 18 VDD_IO 19 LDO_VOUT 20 CKPHA 21 GND 22 VDD_IN 23 XTALO 24 XTALI 1 U1 8713 DICE C710nF L2 3.9nH R210K IIC_SDAIIC_SCL R13.3R 3V3 ANT1 SCL 1 GND 2 SDA 3 VCC 4 WP 5 U3SE24C02 3V3 GND GND 3V3 LED# VDD VDD C104.7uF/6.3V 3V3 GND OSCO 3V3 OSCOOSCI P56 8 P57 9 P60 10 P61 11 P62 12 P65 13 P66 14 VDD 15 OSCI 16 OSCO 17 VSS 18 V3.3 19 D+ 20 D- 1 P92 2 P93 3 P94 4 NC 5 P54 6 P55 7 U2 SE95BD-EM DICE C110.1uF C120.1uF CF1 1PF

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For SHENZHEN VICTORY ELECTRONICS CO., LTD. N0. 5 Building, Xufa Industrial Area, Heshuikou Village, Gongming Town, Guangming New District, Shenzhen City, Guangdong Province, China FCC ID:YBL101 Apr. 12, 2010 This Report Concerns: Original Report Equipment Type Wireless Mouse Test Engineer: Eric Li Report No.: BST1000270402R-3 Receive EUT Date/Test Date: Apr.05,2010/ Apr.05-Apr.12,2010 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. SHENZHEN VICTORY ELECTRONICS CO., LTD. FCC ID: YBL101 BST FCC ID REPORT : BST1000270402R-3 Page 2/17 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Confihuration of the EUT ...............................................................................................12 7.5. EUT Operating Condition...............................................................................................12 7.6. Radiated Emission Limit.................................................................................................12 7.7. Radiated Emission Test Result .......................................................................................13 8. BAND EDGE .............................................................................................................................15 8.1. Test Equipment ...............................................................................................................15 8.2. Test Procedure ................................................................................................................15 8.3. Configuration of The EUT ..............................................................................................15 8.4. EUT Operating Condition...............................................................................................15 8.5. Band Edge FCC 15.249(d) Limit ....................................................................................15 8.6. Band Edge Test Result ....................................................................................................15 SHENZHEN VICTORY ELECTRONICS CO., LTD. FCC ID: YBL101 BST FCC ID REPORT : BST1000270402R-3 Page 3/17 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that…
