YC6-GLOBEI250BDEMartime Satellite Voice & Data Router

May 2010 IG266 Rev A Issued by Globe Wireless, Inc.  1571 Robert J. Conlan Blvd. NE Palm Bay, FL 32905Printed in U.S.A. Globe Wireless Installation Guide IG 266 Installing a Globe i250 Every effort has been made to ensure that the information contained herein is complete and accurate; however, information contained in this manual is subject to change without notice and Globe Wireless ® reserves the right to change specifications of hardware and software without prior notice. Globe Wireless ® obligations regarding the use or application of its products shall be limited to those commitments to the purchaser set forth in its Standard Terms and Conditions of Sale for a delivered product. © Copyright 2008, Globe Wireless, Inc ® . All rights reserved. This document contains information Confidential and Proprietary to Globe Wireless ® . No part of this publication may be reproduced or transmitted by any means and disclosure or distribution of its contents for any purpose without written consent from Globe Wireless ® is strictly prohibited. May 2010 IG266 Rev A Issued by Globe Wireless, Inc.  1571 Robert J. Conlan Blvd. NE Palm Bay, FL 32905Printed in U.S.A. Globe Wireless Installation Guide IG 266 Revision Page Rev By Description of Changes Date A WD Initial Release of Installation Guide (ECO 1068) 5/27/2010 Document Approval Title Name Date Doc. Rev. Engineering A Product Management A Peer Review A QUALITY Dan Thomasson A May 2010 IG266 Rev A Globe Wireless Installation Guide – IG266 Rev A iii This page intentionally left blank. May 2010 IG266 Rev A Globe Wireless Installation Guide – IG266 Rev A iv Table of Contents 1.0 Regulatory Information ................................................................................................... 1-1 1.1 Federal Communication Commission Notice ................................................................. 1-1 1.2 Eu Declaration of Conformity: ........................................................................................ 1-2 2.0 Warning Safety Information ............................................................................................ 2-1 2.1 Observe marked areas ................................................................................................... 2-1 2.1.1 Microwave radiation hazards .................................................................................. 2-1 2.1.2 Distance to other equipment ................................................................................... 2-1 2.1.3 Service .................................................................................................................... 2-2 2.1.4 Do not service or adjust alone ................................................................................ 2-2 2.1.5 Grounding, cables and connections ....................................................................... 2-2 2.1.6 Power supply .......................................................................................................... 2-2 2.1.7 Equipment ventilation .............................................................................................. 2-2 2.1.8 Keep away from live circuits ................................................................................... 2-3 2.1.9 Obtaining Licensing For Inmarsat Terminals .......................................................... 2-3 3.0 General Information ......................................................................................................... 3-1 3.1 Overview ........................................................................................................................ 3-1 3.2 Installation Guide Organization ...................................................................................... 3-1 3.3 Special Notations ........................................................................................................... 3-1 3.4 Customer Comments and Quality .................................................................................. 3-2 3.5 General Safety Reminders ............................................................................................. 3-2 3.6 Additional Equipment Needed ....................................................................................... 3-3 3.7 Available Services .......................................................................................................... 3-3 4.0 Hardware and Software Requirements .......................................................................... 4-1 4.1 Components ................................................................................................................... 4-1 4.2 Equipment Configuration ................................................................................................ 4-1 4.2.1 Globe i250 Front View ............................................................................................ 4-1 May 2010 IG266 Rev A Globe Wireless Installation Guide – IG266 Rev A v 4.2.2 Globe i250 Rear View ............................................................................................. 4-2 4.3 Preparation ..................................................................................................................... 4-2 4.3.1 Installing the Globe i250 into 19” High Profile Rack Cabinet.................................. 4-3 4.3.2 Installing the Globe i250 onto Wall, Shelf or Table ................................................ 4-3 4.3.3 Installing the ADE ................................................................................................... 4-4 4.3.4 Installing the SIM Card............................................................................................ 4-6 5.0 Setup Instructions ........................................................................................................... 5-1 5.1 LAN setup for communication on Shipboard Network ................................................... 5-1 5.2 Satellite Search ......…

Text truncated - open the document above for the full version.

FCC AGENCY AUTHORIZATION LETTER Date: 17th May 2010 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned Globe Wireless LLC,hereby authorise TUV SUD PSB PTE LTD, Ms Tan Lee Tuan to act on our behalf in all matters relating to all processes required in FCC equipment authorization for FCC ID: YC6-GLOBEI250BDE. Any and all acts carried out by TUV SUD PSB PTE LTD, Ms Tan Lee Tuan, on our behalf shall have the same effects as acts of our own, where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Globe Wireless LLC. We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Mark Witsaman Globe Wireless LLC Chief Technical Officer

Confidentiality Request Format Attention: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR : Maritime Satellite Voice and Data Router, GLOBE i250 FCC ID: YC6-GLOBEI250BDE To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 (d) (1) (ii) and 0.459. We have requested that the schematic, block diagrams, parts lists, tune-up procedure, operational/technical description required to be submitted with this application be withheld from public review. The purpose of this request is that it contains intellectual property of our company and making it public will hinder the competitiveness of the product. Please contact me if there is any information you may need. Sincerely, Mark Witsaman, 17 th May 2010 Globe Wireless LLC Chief Technical Officer

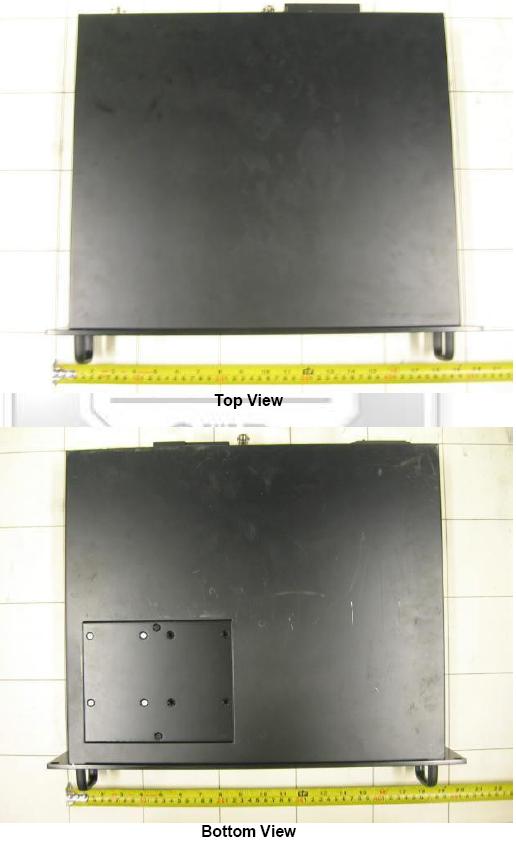

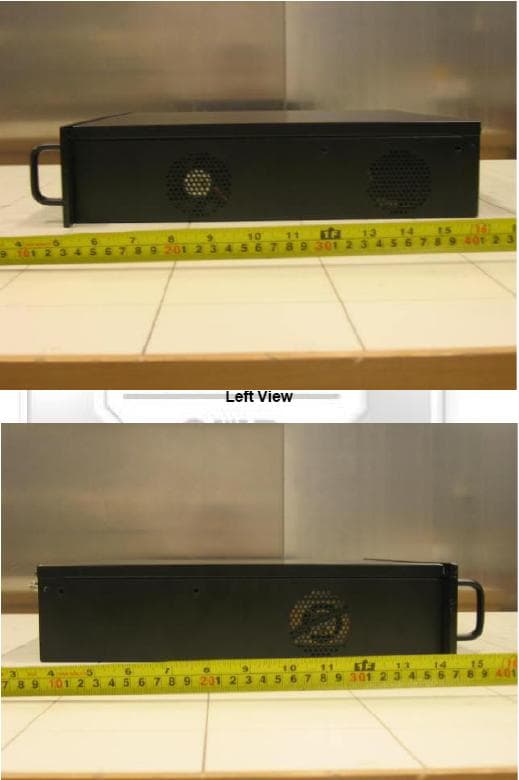

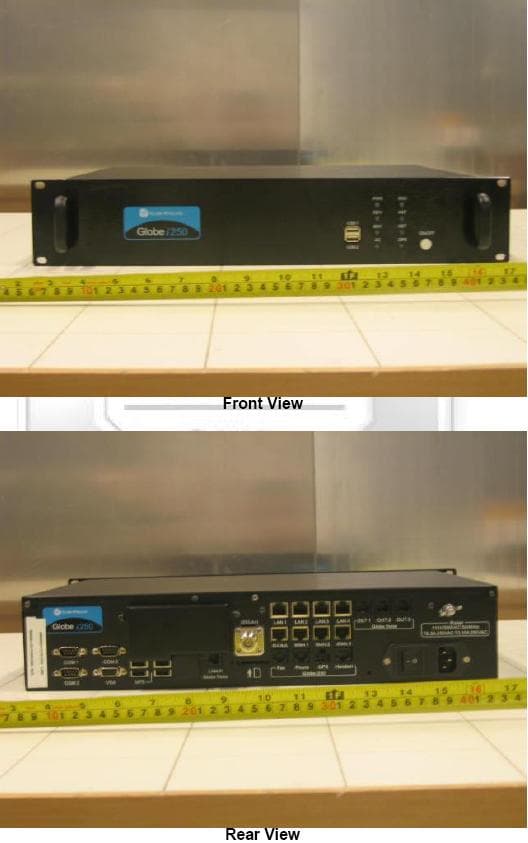

External Photo Page1 of4 External Photo Page2 of4 External Photo Page3 of4 External Photo Page4 of4

FCC LABEL & POSITIONANNEXB Globe Wireless LLCPage 118 of 119 Martime Satellite Voice & Data Router [ Model : Globe i250 ] [ FCC ID : YC6-GLOBEI250BDE ] Test Report No. 719177396-EEC10/03 dated 04 Jun 2010 Labeling requirements per Section 2.925 & 15.19 The label shown will be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

Internal photo 1 Internal photo 2 Internal photo 3 Internal photo 4 Internal photo 5 Internal photo 6 Mainboard Internal photo 7 Internal photo 8 Mainboard Telecom Board Internal photo 9 Internal photo 10 Internal photo 11 Internal photo 12 LAN Switch Board Internal photo 13 Internal photo 14

Test Report No. 719177396-EEC10/03 dated 04 Jun 2010 Note: This report is issued subject to TÜV SÜD PSB's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2007-0380-A LA-2007-0380-A-1 LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-677 6 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 119 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 2, 15, and 25: 2009 (CLASS B) OF A MARTIME SATELLITE VOICE & DATA ROUTER [ Model : Globe i250 ] [ FCC ID : YC6-GLOBEI250BDE ] TEST FACILITES TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, 1 Science Park Drive, Singapore 118221 and TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, 13 Internatonal Business Park #01-01, Singapore 609932. FCC REG. NO.99142 (3m and 10m Semi-Anechoic Chamber, Science Park) 871638 (3m Semi-Anechoic Chamber, Science Park) 160581 (3m and 10m Semi-Anechoic Chamber, International Business Park) IND. CANADA REG. NO.2932I-1 (3m and 10m Semi-Anechoic Chambers, Science Park) 2932N-1 (10m Semi-Anechoic Chambers, International Business Park) PREPARED FORGlobe Wireless LLC 1571 Robert J. Conlan Blvd Palm Bay, FL USA 32905 Tel : +1 321 309 1300Fax : +1 321 727 9497 QUOTATION NUMBER219108364 & 219111900 JOB NUMBER719173547 & 719177396 TEST PERIOD09 Apr 2010 – 03 Jun 2010 PREPARED BYAPPROVED BY ____________________ Foo Kai Maun Engineer ____________________ Lim Cher Hwee Assistant Vice President Globe Wireless LLCPage 2 of 119 Martime Satellite Voice & Data Router [ Model : Globe i250 ] [ FCC ID : YC6-GLOBEI250BDE ] Test Report No. 719177396-EEC10/03 dated 04 Jun 2010 TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RF OUTPUT POWER TEST UNWANTED EMISSIONS AT ANTENNA TERMINAL TEST RADIATED SPURIOUS EMISSION TEST PROTECTION OF AERONAUTICAL RADIO NAVIGATION SATELLITE SERVICE TEST FREQUENCY STABILITY (TEMPERATURE VARIATION) TEST FREQUENCY STABILITY (VOLTAGE VARIATION) TEST MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Globe Wireless LLCPage 3 of 119 Martime Satellite Voice & Data Router [ Model : Globe i250 ] [ FCC ID : YC6-GLOBEI250BDE ] Test Report No. 719177396-EEC10/03 dated 04 Jun 2010 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Parts 2, 15 and 25: 2009 15.107(a), 15.207Conducted EmissionsPass 2.1046(a), 25.204RF Output PowerPass 2.1051, 25.202(f)Unwanted Emissions at Antenna TerminalPass 2.1053, 25.202(f), 15.109 Radiated Spurious EmissionsPass 25.216(h)(i)(j)Protection of Aeronautical Radio Navigation Satellite Service Pass 2.1055, 25.202(d)Frequency Stability (Temperature Variation)Pass 2.1055, 25.202(d)Frequency Stability (Voltage Variation)Pass 1.1310Maximum Permissible ExposureRefer to page 98 for details Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels (transmit and receive) of the Equipment Under Test (EUT) when it was configured to operate under test mode condition. Transmit Channel Frequency (GHz)Receive ChannelFrequency (GHz) Lower Channel1.6315Lower Channel1.5250 Middle Channel1.6435Middle Channel1.5421 Upper Channel1.6604Upper Channel1.5590 2.The following tests were based on conducted measurement method: a. RF Output Power b. Unwanted Emissions at Antenna Terminal c. Frequency Stability (Temperature Variation) d. Frequency Stability (Voltage Variation) 3. All test measurement procedures are according to ANSI/TIA-603-B-2002. 4.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. Modifications No modifications were made. Globe Wireless LLCPage 4 of 119 Martime Satellite Voice & Data Router [ Model : Globe i250 ] [ FCC ID : YC6-GLOBEI250BDE ] Test Report No. 719177396-EEC10/03 dated 04 Jun 2010 PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is aMARTIME SATELLITE VOICE AND DATA ROUTER. Applicant: Globe Wireless LLC 1571 Robert J. Conlan Blvd Palm Bay, FL USA 32905 Manufacturer: Addvalue Communications Pte Ltd 28 Tai Seng Street #06-02 Singapore 534106 Model Number: Globe i250 FCC ID:YC6-GLOBEI250BDE Serial Number: EB250SA091100025 Microprocessor:OMAP5912 Operating Frequency:Tx.1625 – 1660 MHZ ,Rx 1525 – 1559 MHz Clock / Oscillator Frequency : Baseband Board 32.768kHz, 12MHz, 25MHz, 39.3216MHz and 16.384MHz RF Board 24.192MHz Port / Connectors:Refer to manufacturer's user manual / operating manual. Rated Input Power: 100-240VAC 50/60Hz Accessories: Refer to manufacturer's user manual / operating manual. Globe Wireless LLCPage 5 of 119 Martime Satellite Voice & Data Router [ Model : Globe i250 ] [ FCC ID : YC6-GLOBEI250BDE ] Test Report No. 719177396-EEC10/03 dated 04 Jun 2010 SUPPORTING EQUIPMENT DESCRIPTION Equipment Description (Including Brand Name) Model, Serial & FCC ID Number Cable Description (List Length, Type & Purpose) Dell InspironM/N: PP40LNil S/N: CN-0H1908-48643-54L-1298 FCC ID: E2K24GBRL Dell 65W AC AdaptorM/N: PA-1650-05D20.9m 3 pins unshielded power cable 1.8m DC power cabl…
