YCR-AR-1002SHARK AND CLOWN FISH

Instructions for assembly and flying Contents 1. 1 x Air Swimmers balloon (only 1 balloon included) 2. 2 x Underbelly fins 3. 1 x Back fin 4. 1 x Tail fin 5. 1 x Pod track 6. 1 x Fin assembly 7. 4 x Fastening clips 8. 4 x Elastic bands 9. 4 x Hooks 10. 1 x Remote control (with putty) 11. 18 x Clear tape tabs 12. 12 x Double sided sticky pads 13. 1 x AAA battery 14. 1 x 9V battery 15. 1 x Extractor 16. 1 x Ribbon Filling with helium All parts of the assembly of your Air Swimmer must be carried out by an adult. You will need at least two adults to complete these instructions. Before using helium tanks please consult any instruction manuals provided. You can fill your Air Swimmer at most party shops, flower shops and good retail stockists. Please make sure you tie the ribbon to your airswimmer if using this option. You can also buy your own helium tank that will allow you to fill your Air Swimmer at home. 1. To fill the Air Swimmer with helium lay the Air Swimmer balloon (1) out flat on the ground. Whilst one person holds the balloon down the other person can operate the helium tank. 2. Open up the valve on the back of the balloon and insert the helium tanks nozzle, release the helium slowly so that the balloon starts to inflate and increase it gradually until the balloon is full. The Air Swimmer needs to be filled by an adult. After a few days you may find that the Air Swimmer may lose some of its buoyancy. This is not a fault of the Air Swimmer. Therefore you will need to top up the balloon on a regular basis. After several top ups of the Air Swimmer the helium inside the balloon may become mixed with oxygen and therefore if the balloon does not fly as well once full, it may be time to empty the balloon fully and then refill the balloon. HELIUM Assembly 1. Once the Air Swimmer (1) is full, place the double sided sticky pads (12) onto a table with the yellow liner facing up. Remove the liner from the back, push each of the fins’(2)(3) attachment tabs down on a sticky pad and remove the entire pad, including the lining. 2. Whilst one person holds the Air Swimmer the other can remove the lining and stick the underbelly fins (2) to the area of the Air Swimmer marked “Place fin here” underneath, and stick the back fin (3) to the area marked “place fin here” on the top of the Air Swimmer, then put clear tape tabs (11A) over the fin tabs. 3. Stick the sticky pads onto the four hooks (9) using the same technique as in step one. Remove the lining and with the hooks facing towards the head of the Air Swimmer, stick them to the area marked “place hook here”. Place clear tape (11A) over the hook tabs. 4. Attach the tail fin (4) to the fin assembly (6) by slotting the rods into the fin assembly arms. The rods should line up with the groove in the arms and the ends should sit comfortably in the holes at the bottom of the fin assembly arms. Attach the fastening clips (7) to the top and bottom of the assembly arms securing the rods in place. Choose an environment which meets the following criteria: 1. 2. 3. 4. 1. Turn the power switch to “ON” for both the remote (10) and the pod track (5). 2. To move the Air Swimmers tail left, press left on the remote. To move the tail right, press right on the remote. To get the Air Swimmer moving, you need to move the tail from left to right by pressing right, left, right, left in a constant rhythm. Experiment with faster and slower rhythms to find the best speed. Troubleshooting guide www.wowstuff.co.uk USA, EU and international patents and designs pending. Designed and Developed by: William Mark Corporation, Claremont, California. Distributed by: China Industries Ltd. T/A Wow! Stuff, Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK, www.wowstuff.co.uk Made in China Not suitable for children under 36 months due to small parts which may represent a choking hazard. Not suitable for children under 36 months; strangulation hazard. Please retain this packaging for future reference. Keep out of reach of children. Adult assembly only. Balloons represent a choking hazard. Keep uninflated balloons away from children. Discard broken balloons immediately. Children under 8 years can choke or suffocate. Warning! Never deliberately inhale balloon gas. Inhaling helium can result in serious lung injuries and/or suffocation. Do not inhale helium from a balloon or helium tank under any circumstances. Always use in a well-ventilated area. Never allow children to handle the cylinder or to use the balloon filling equipment. Adult supervision is required. Don’t play with the balloon near water. This product is strictly for use INDOORS ONLY. Do not use this product outside. Do not fly near air conditioning ducts. Small drafts or air flows may divert flying path. Do not expose the balloon to extreme heat as this may cause the balloon to burst. PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE. • Non-rechargeable batteries are not to be recharged; • Rechargeable batteries are only to be charged under adult supervision; • Rechargeable batteries are to be removed from the handset before being charged; • Different types of batteries or new and used batteries are not to be mixed; • Batteries are to be inserted with the correct polarity; • Exhausted batteries are to be removed from the toy; • The supply terminals are not to be short-circuited. Never : • Dispose of batteries in a fire. Always : • Make sure battery compartments are secure. • Use batteries of the correct size and type. • Fit batteries correctly observing the plus and minus marks on the battery and compartment. • Replace a whole set of batteries at one time. • Remove dead batteries from equipment. • Remove batteries from appliance that will not be used again for a long time. Consumers have a significant role to play in reducing the impact of waste electrical and electronic equipment on the environment, you can help by re-using or recycling such equipment. The crossed out wheelie-bin symbol indicat…

Text truncated - open the document above for the full version.

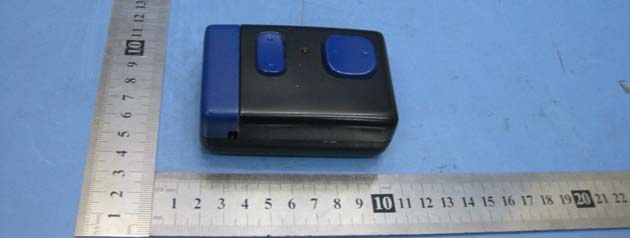

2.1 EUT-Front View 2.2 EUT-Back View

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002 Report No.: WT11062791EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 14 of 14 9 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC Label Location === End of Test Report === FCC ID: YCR-AR-1002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID Label Sample for Model: AR-1001&AR-1002 FCC ID : YCR-AR-1002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 PCB-Front View 2.2 PCB-Back View

Circuit Description The Microprocessor (U1) reads input commands (SW1/SW2/W3/W4),and then encodes them to digital codes. The codes are sent to RF oscillator via pin 8 of U1, R8 and then modulates 49.820 ~ 49.900MHz, carry frequency signal via Q1 to achieve AM signal . The Radio Frequency of the transmitter is based on standard 49.860MHz AM citizen’s band. It generates low power 49.820 ~ 49.900MHz, AM carrier frequency via major components of Q1, T2, L1, C9, C10, C13, R2, and R7 etc.. Please note that the value of the components may vary. Please see the attached schematics for more detail. The AM signal is passed to RF amplifier ( Q2, C3, R6 and L3), which amplifies the signal and then couples the signal into the antenna (ANT1) via components C7,C1,L2,C8 and L5.

11 22 33 44 D D C C B B A A Model NameModel No. Title ManagerExamineDraw DateDateDate Sheet of Electric Engineer Department M S L DATE APP.BY DESIGNED BY DESCRIPTION REV DWG NO. Page C3103 R1330 R262K R3180K C5NC R41K5 C647uF C782P C822P C4103 R533K C956P R610R/1206 C10 39P T1ANT R7100 +9V SW1RIGHTSW2BACK Q1C380Y Q29018H RIGHT 1 TEST 2 PC 10 GND 3 VDD 9 BACKWARD 4 SO 8 FORWARD 5 SC 7 TURBO 6 OSCO 11 OSCI 12 FOSC 13 LEFT 14 U1TX-2 T249.860MHz L12.2uH L211T (0.22uH) L31uH R81K 12 LED1RED C11203 RBACKFORW OSCOOSCI VDD1 SO SW3LEFT VDD2 C222P SW4FORWARD L Q38550 D14148 D34148D44148 D54148 D74148D84148 D94148 D104148 R91K BACKWARDRIGHT LIGHT C12220uF VDD3 C139P C1322P Z13.0V FORW FORWARD L51.5uH F10.9A BT19V 49MHz EL339 & EL341 TX SCH

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China TEST REPORT FCC ID: YCR-AR-1002 Report No.: WT11062791EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 1 of 14 Applicant: China Industries Ltd. t/a Wow! Stuff. Address: Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK The following samples were submitted and identified by/on behalf of the client as: Sample Description: Shark & Clown Fish Style/model No.: AR-1001 & AR-1002 Operation Frequency: 49.860MHz FCC ID: YCR-AR-1002 Sample Receiving Date: June 13, 2011 Test Period: June 14, 2011 to June 15, 2011 Test Requested: In accordance with the FCC Part 15 Subpart C, Section 15.235:2008 Test Method: ANSI C63.4: 2003 Test Conclusion: Based on the performed tests on the submitted samples, the results comply with the FCC Part 15 Subpart C requirements. ******** For Further Details, Please Refer to the Following Page(s) ******** Signed for and on behalf of Waltek Services (Shenzhen) Co., Ltd ------------------------------------------- Philo zhong EMC Laboratory Manager Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002 Report No.: WT11062791EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 2 of 14 2 Contents 2 CONTENTS............................................................................................................................................................. 2 3 TEST SUMMARY..................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................. 4 4.1 CLIENT INFORMATION...................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 E.U.T. ENVIRONMENT AND TEST MODES........................................................................................................ 4 4.4 TEST LOCATION................................................................................................................................................. 5 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER................................................................................ 5 4.6 TEST FACILITY................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST.................................................................................................................. 6 6 TEST RESULT & MEASUREMENT DATA........................................................................................................ 7 6.1 RADIATED EMISSION......................................................................................................................................... 7 6.1.1 Intentional emission..................................................................................................................................8 6.1.2 Other emissions （QP）.........................................................................................................................8 6.2 OCCUPIED BAND EDGE...................................................................................................................................... 9 7 PHOTOGRAPHS - TEST SETUP....................................................................................................................... 10 8 PHOTOGRAPHS - EUT....................................................................................................................................... 11 8.1 EUT-FRONT VIEW.......................................................................................................................................... 11 8.2 EUT-BACK VIEW............................................................................................................................................. 11 8.3 EUT-OPEN VIEW............................................................................................................................................ 12 8.4 PCB-FRONT VIEW.........................................................................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002 Report No.: WT11062791EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 10 of 14 7 Photographs - Test Setup
