YCR-AR-1002RSHARK&CLOWN FISH

Instructions for assembly and flying Contents 1. 1 x Air Swimmers balloon (only 1 balloon included) 2. 2 x Underbelly fins 3. 1 x Back fin 4. 1 x Tail fin 5. 1 x Pod track 6. 1 x Fin assembly 7. 4 x Fastening clips 8. 4 x Elastic bands 9. 4 x Hooks 10. 1 x Remote control (with putty) 11. 18 x Clear tape tabs 12. 12 x Double sided sticky pads 13. 1 x AAA battery 14. 1 x 9V battery 15. 1 x Extractor 16. 1 x Ribbon Filling with helium All parts of the assembly of your Air Swimmer must be carried out by an adult. You will need at least two adults to complete these instructions. Before using helium tanks please consult any instruction manuals provided. You can fill your Air Swimmer at most party shops, flower shops and good retail stockists. Please make sure you tie the ribbon to your airswimmer if using this option. You can also buy your own helium tank that will allow you to fill your Air Swimmer at home. 1. To fill the Air Swimmer with helium lay the Air Swimmer balloon (1) out flat on the ground. Whilst one person holds the balloon down the other person can operate the helium tank. 2. Open up the valve on the back of the balloon and insert the helium tanks nozzle, release the helium slowly so that the balloon starts to inflate and increase it gradually until the balloon is full. The Air Swimmer needs to be filled by an adult. After a few days you may find that the Air Swimmer may lose some of its buoyancy. This is not a fault of the Air Swimmer. Therefore you will need to top up the balloon on a regular basis. After several top ups of the Air Swimmer the helium inside the balloon may become mixed with oxygen and therefore if the balloon does not fly as well once full, it may be time to empty the balloon fully and then refill the balloon. HELIUM Assembly 1. Once the Air Swimmer (1) is full, place the double sided sticky pads (12) onto a table with the yellow liner facing up. Remove the liner from the back, push each of the fins’(2)(3) attachment tabs down on a sticky pad and remove the entire pad, including the lining. 2. Whilst one person holds the Air Swimmer the other can remove the lining and stick the underbelly fins (2) to the area of the Air Swimmer marked “Place fin here” underneath, and stick the back fin (3) to the area marked “place fin here” on the top of the Air Swimmer, then put clear tape tabs (11A) over the fin tabs. 3. Stick the sticky pads onto the four hooks (9) using the same technique as in step one. Remove the lining and with the hooks facing towards the head of the Air Swimmer, stick them to the area marked “place hook here”. Place clear tape (11A) over the hook tabs. 4. Attach the tail fin (4) to the fin assembly (6) by slotting the rods into the fin assembly arms. The rods should line up with the groove in the arms and the ends should sit comfortably in the holes at the bottom of the fin assembly arms. Attach the fastening clips (7) to the top and bottom of the assembly arms securing the rods in place. Choose an environment which meets the following criteria: 1. 2. 3. 4. 1. Turn the power switch to “ON” for both the remote (10) and the pod track (5). 2. To move the Air Swimmers tail left, press left on the remote. To move the tail right, press right on the remote. To get the Air Swimmer moving, you need to move the tail from left to right by pressing right, left, right, left in a constant rhythm. Experiment with faster and slower rhythms to find the best speed. Troubleshooting guide www.wowstuff.co.uk USA, EU and international patents and designs pending. Designed and Developed by: William Mark Corporation, Claremont, California. Distributed by: China Industries Ltd. T/A Wow! Stuff, Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK, www.wowstuff.co.uk Made in China Not suitable for children under 36 months due to small parts which may represent a choking hazard. Not suitable for children under 36 months; strangulation hazard. Please retain this packaging for future reference. Keep out of reach of children. Adult assembly only. Balloons represent a choking hazard. Keep uninflated balloons away from children. Discard broken balloons immediately. Children under 8 years can choke or suffocate. Warning! Never deliberately inhale balloon gas. Inhaling helium can result in serious lung injuries and/or suffocation. Do not inhale helium from a balloon or helium tank under any circumstances. Always use in a well-ventilated area. Never allow children to handle the cylinder or to use the balloon filling equipment. Adult supervision is required. Don’t play with the balloon near water. This product is strictly for use INDOORS ONLY. Do not use this product outside. Do not fly near air conditioning ducts. Small drafts or air flows may divert flying path. Do not expose the balloon to extreme heat as this may cause the balloon to burst. PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE. • Non-rechargeable batteries are not to be recharged; • Rechargeable batteries are only to be charged under adult supervision; • Rechargeable batteries are to be removed from the handset before being charged; • Different types of batteries or new and used batteries are not to be mixed; • Batteries are to be inserted with the correct polarity; • Exhausted batteries are to be removed from the toy; • The supply terminals are not to be short-circuited. Never : • Dispose of batteries in a fire. Always : • Make sure battery compartments are secure. • Use batteries of the correct size and type. • Fit batteries correctly observing the plus and minus marks on the battery and compartment. • Replace a whole set of batteries at one time. • Remove dead batteries from equipment. • Remove batteries from appliance that will not be used again for a long time. Consumers have a significant role to play in reducing the impact of waste electrical and electronic equipment on the environment, you can help by re-using or recycling such equipment. The crossed out wheelie-bin symbol indicat…

Text truncated - open the document above for the full version.

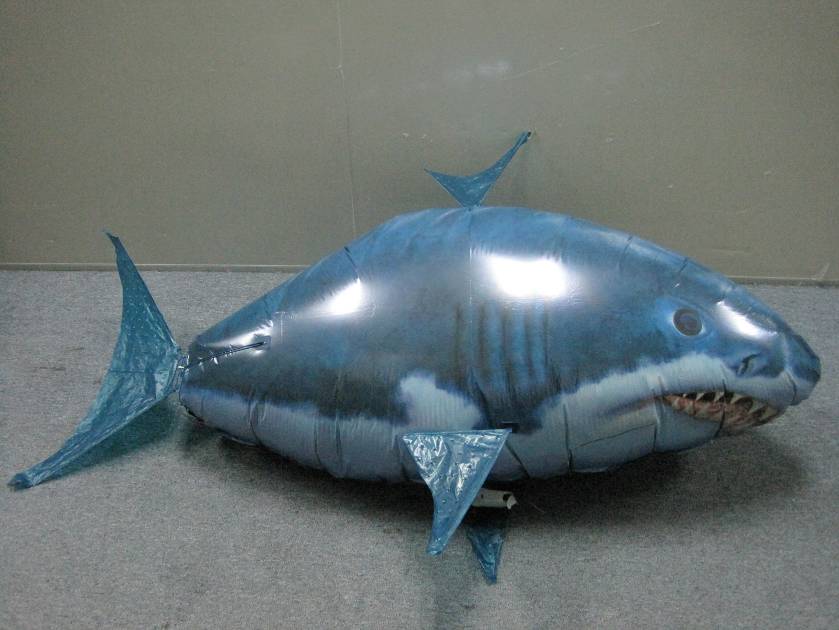

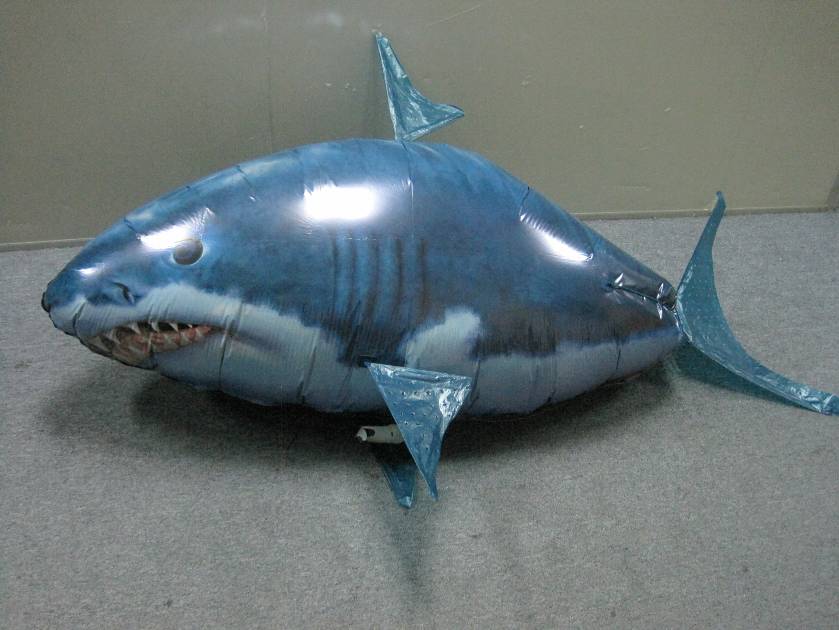

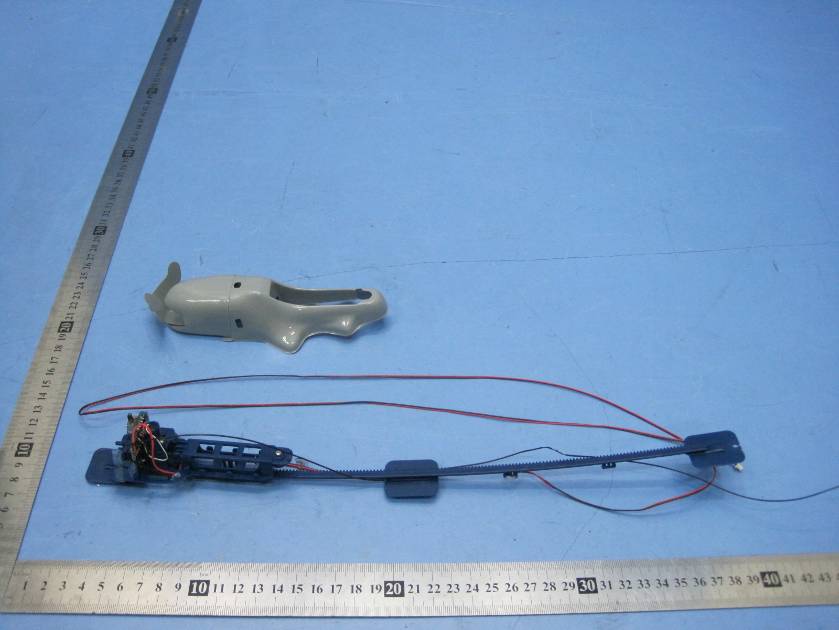

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 11 of 14 8 Photographs - EUT 8.1 EUT-Front View 8.2 EUT-Back View Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 12 of 14 8.3 EUT- Deleave View(1) 8.4 EUT- Deleave View(2)

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 14 of 14 9 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC ID Label Location === ===

FCC ID Label Sample for Model: AR-1001&AR-1002 FCC ID : YCR-AR-1002R

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 13 of 14 8.5 PCB-Front View 8.6 PCB-Back View

Circuit Description The Radio Frequency of the receiver is based on standard 49.86MHz AM (Amplitude Modulation) citizen’s band. A low power local oscillator frequency of 49.820 ~ 49.900MHz, generated by components of Q1, C3, L2, C2, R2, C11, C6, R1, C4, L3, couple with antenna input via components of C1, Q2, R11, R6, C22, L1 to discriminate RF signals from transmitter. The demodulated signal is sent to the Pin 14 of U1 by R4 and C7, and then is amplified by R6, C14, R7, R8, C13, R9, R10, C12 and U1. The amplified signal is passed to the pin 3 of U1 and is decoded to control commands by internal circuit of U1.The control command signals drive the motors via U3 and U4 accordingly.

11 22 33 44 D D C C B B A A Model NameModel No. Title ManagerExamineDraw DateDateDate Sheet of Electric Engineer Department M S L DATE APP.BY DESIGNED BY DESCRIPTION REV DWG NO. Page C320p C215p C6103 C4222 R1820R R2220k R34k7 R41k L34.7uH L210T(0.4uH) C8104 C7104 R5330R OA 1 VCC 2 VCC 3 OB 4 GND 5 IA 6 IB 7 GND 8 U3CM8025 A -+M1 C15104 C10104 VCC OA 1 VCC 2 VCC 3 OB 4 GND 5 IA 6 IB 7 GND 8 U4CM8025 A -+M2 C17104 C16104 VCC FORWARD BACKWARD LEFT RIGHT C5105 VCC RX C11105 F1NSM150 2 31 SW1Power BT+ BT11.5V R121kR131kR151kR141k C12222 R17180k R8 1K C13104 R63.3M R93.3M R101K C14560P C18104 VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LEFT 7 RDB 8 LDB 9 BWD 10 FWB 11 TURBO 12 VDD 13 VI1 14 VO1 15 VI2 16 U1RX2 RIGHT LEFT FORWARDBACKWARD R71K L447uH C1947UF/16V 3.3V D141N4148 LX 3 VSS 1 OUT 2 U2BL8534-3.3V C9220uF/16V Vin 3.3V C16p L13.9uH E1Antenna R11 470k Q2C380Y R162K C2218p c1 c2 b2 Q1C380Y 12 LED1RED R1851 01 SCH 49 .86 MHz

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China TEST REPORT FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 1 of 14 Applicant: China Industries Ltd. t/a Wow! Stuff. Address: Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK The following samples were submitted and identified by/on behalf of the client as: Sample Description: Shark & Clown Fish Style/model No.: AR-1001 & AR-1002 Operation Frequency: 49.860MHz(Receiver) FCC ID: YCR-AR-1002R Sample Receiving Date: June 13, 2011 Test Period: June 14, 2011 to June 15, 2011 Test Requested: In accordance with the FCC Part 15 Subpart B, Section 15.109:2008 Test Method: ANSI C63.4: 2003 Test Conclusion: Based on the performed tests on the submitted samples, the results comply with the FCC Part 15 Subpart B requirements. ******** For Further Details, Please Refer to the Following Page(s) ******** Signed for and on behalf of Waltek Services (Shenzhen) Co., Ltd ------------------------------------------- Philo zhong EMC Laboratory Manager Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 2 of 14 2 Contents 2 CONTENTS.............................................................................................................................................................2 3 TEST SUMMARY.....................................................................................................................................................3 4 GENERAL INFORMATION.................................................................................................................................4 4.1 CLIENT INFORMATION...................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 E.U.T. ENVIRONMENT AND TEST MODES........................................................................................................ 4 4.4 TEST LOCATION................................................................................................................................................. 5 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER................................................................................ 5 4.6 TEST FACILITY................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST..................................................................................................................6 6 TEST RESULT & MEASUREMENT DATA........................................................................................................7 6.1 RADIATED EMISSION......................................................................................................................................... 7 6.1.1 Unintentional emission.............................................................................................................................8 7 PHOTOGRAPHS - TEST SETUP.......................................................................................................................10 8 PHOTOGRAPHS - EUT.......................................................................................................................................11 8.1 EUT-FRONT VIEW.......................................................................................................................................... 11 8.2 EUT-BACK VIEW............................................................................................................................................. 11 8.3 EUT- DELEAVE VIEW(1)................................................................................................................................. 12 8.4 EUT- DELEAVE VIEW(2)................................................................................................................................. 12 8.5 PCB-FRONT VIEW........................................................................................................................................... 13 8.6 PCB-BACK VIEW.................................................................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co., Ltd 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China FCC ID: YCR-AR-1002R Report No.: WT11062793EEF This Test Report is issued by the Company subject to its General Conditions of Service Printed overleaf or available on request and accessible at http://www.waltek.com.cn. Attention is drawn to the limitations of liability, indemnification and jurisdictional policies defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated and the sample(s) are retained for 30 days only. This Test report cannot be reproduced, except in full, without prior written permission of the Company Test Location: 1/F, Fukangtai Building,West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China. Web: www.waltek.com.cn Email: [email protected] Tel: 0086-755-83551033 Fax: 0086-755-83552400 Page 10 of 14 7 Photographs - Test Setup
