YCR-TX-1008HCyber Dactyl

R/C TM 1) Before each flight, and especially when first out of the box, take time to ensure wings and tail fins are straight and symmetrical. If not, gently bend the foam body back in to shape. Fine adjustments can also be made with the Tail Flaps. To fly in a smaller area, gently bend both tail flaps upward along the fold line. 2) Press the power switch on the CyberDactyl ™ to turn ON, a red light will illuminate on the underside of the CyberDactyl’s body. Push the power switch of the remote control to ON. 3) To ensure horizontal flying hold the remote control vertically. Push the control trigger fully forward until the CyberDactyl ™ is moving. Throw the CyberDactyl ™ horizontally along your line of sight. 4) IMPORTANT: Flying the CyberDactyl ™ successfully takes a lot of practice. Key is that when the CyberDactyl ™ is initially launched and it moves to one side, adjust the Direction controller in direction to keep the CyberDactyl ™ flying straight. After climbing to a height of around 10m, reduce the throttle to about half power for smooth level flight. Keep movements of the throttle smooth and gradual, to prevent stalls or dives. 5) When launching the CyberDactyl ™ , make sure that it is facing a slight breeze and flying horizontally. 6) Do not throw the CyberDactyl ™ vertically upwards as it may fall immediately back down and become damaged. 7) If the angle of elevation is too steep, reduce the speed by easing off the throttle. Alternatively, if the CyberDactyl ™ nose-dives, increase its speed by pushing up the throttle more. 8) Again, flying is not easy, but after practice is great fun! Choosing the Right Venue and Weather 1) Choose a spacious, obstacle-free area when operating indoors, ensure that the device is operating away from electronic fans and air conditioners as these may affect air flow. 2) Choose a fine, calm day. It is not recommended to fly the CyberDactyl ™ in winds over 5mph. 3) Power consumption will increase when operating in strong winds, which can also affect control of the CyberDactyl ™ and may result in damage. 4) Operation away from crowds, ponds, residential buildings and trees is recommended. 5) Do not operate in the rain or snow or near to any high voltage cables. Safe Usage and Maintenance 1) If not in use for a long time, remove batteries from the controller. 2) Ensure that the device is placed away from heat sources. 3) Do not place in water as this may cause short circuit of the circuit board. 4) Do not expose the CyberDactyl ™ to extreme temperatures. 5) Always keep the CyberDactyl ™ clean, use a damp cloth to clean, followed by a dry cloth to wipe water away. Never use chemicals to clean the product. 6) Long operation time may generate high heat levels causing wear and tear. To extend product life, operators are recommended to allow a 10-15 minute cool down period before recharging batteries. 7) Keep this instruction manual for future use. Performance Adjustments: 1. If the Cyberdactyl™ cannot turn left / dives when turning right: Bend the right tail flap up slightly. [R] 2. If the Cyberdactyl™ cannot turn right / dives when turning left: Bend the left tail flap up slightly. [L] 3. For flying indoors only: bend both tail flaps up slightly. [R & L] 4. For flying in windier conditions: bend both tail flaps down slightly. [R&L] [R][L] Please Note: Power transfer from the handset controller to the CyberDactyl ™ may be intermittent within a distance of 2 metres, this will not affect flight performance in any way. When testing the CyberDactyl’s function it is best if one person holds the CyberDactyl ™ and stands at least 2 metres from the person holding the handset controls. ContentsCharging Handset USB Cable Problem Reason Solution • Wings do not flap • Suddenly descends after take off. 1) ON/OFF switch is positioned at OFF. 2) Batteries not yet fully charged. 1) Switch the power to ON. 2) Recharge batteries. • Fails to take off or descends slowly when flying. • Falling immediately after take off. 1) The CyberDactyl ™ is not facing into the wind during take off. 2) Ensure batteries have enough power. 1) Face into the wind when throwing the CyberDactyl ™ before take off. 2) Recharge the device. Battery low.Recharge batteries. • No response or slow response when operating. • Loss of control. Affected by high frequency radiation from the surrounding high voltage cable/adapter/special building. 1) Another R/C product with the same frequency is operating close-by. 2) Location of the aeroplane is beyond the range of the remote control. 1) Operate this product in an interference-free environment. 2) Ensure that the aeroplane is operating within its 150 metre maximum range. Fly in another location. Troubleshooting Flying the CyberDactyl™ 1 2 3. Carefully cut the wires connecting the Li-poly battery to the aeroplane. Use tape to cover the end of each wire from the battery, to prevent short circuit WARNING: CUTTING BOTH WIRES AT THE SAME TIME MAY CAUSE A SHORT CIRCUIT & POTENTIALLY DANGEROUS RISK OF THE BATTERY OVERHEATING 2. Carefully take out the battery. Disposal of CyberDactyl ™ Disposal of Li-poly battery instructions (Only follow these instructions when you wish to dispose of your CyberDactyl ™ ). Warning: Batteries should only be removed by an adult. Children should not be allowed to carry out the following procedure. 1. Carefully prise apart the CyberDactyl ™ along the seam on the side using your fingers to expose the battery. 1 2 3 China Industries Ltd. T/A Wow! Stu Property: TX Juice Product: CyberDactyl™ Product No: TX-1008 Date: 09/07/14 Printed: Black Distributed by: China Industries Ltd. T/A Wow! Stuff, Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG. www.wowstuff.com Designed by TX Juice in the UK, California and Asia. Manufactured and assembled in China. INSTRUCTION MANUAL Battery requirement for the aeroplane Rating: DC 3.7V, 15.1 W Batteries: 1 x 3.7 V Li-poly Rechargeable Battery Pack (included) Battery requirement …

Text truncated - open the document above for the full version.

China Industries Ltd T/A Wow! Stuff FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameChina Industries Ltd T/A Wow! Stuff AddressCreative Industries Centre, Wolverhampton Science Park CityWolverhampton, WV10 9TG CountryUnited Kingdom request for this certification filing under: Grantee CodeProduct Number FCC ID:YCR-TX-1008H to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription vOperational Descriptionexplaining the functioning of the block diagram vBlock Diagramsshowing the systematic building blocks of the EUT vSchematics Diagramsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede The Netherlans 2014-07-17M. Koop (authorized) Manager

China Industries Ltd T/A Wow! Stuff FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name China Industries Ltd T/A Wow! Stuff Address Creative Industries Centre, Wolverhampton Science Park, City Wolverhampton, WV10 9TG Country UK. declare that the following representative (agent): Name (person) Tony Wu Company name Bontek Compliance Laboratory Co., Ltd. Address 1/F, Block East H-3,OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, City Shenzhen,Guangdong Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Cyber Dactyl Type or Model(s) TX-1008 Tradename or Brand(s) TX-Juice We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) SHEN ZHEN 2014-07-05 Graeme Taylor Director

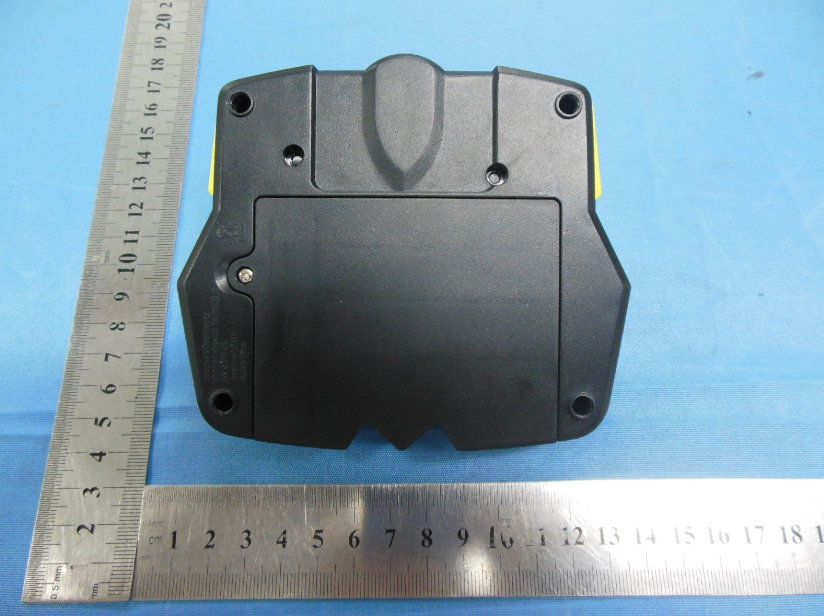

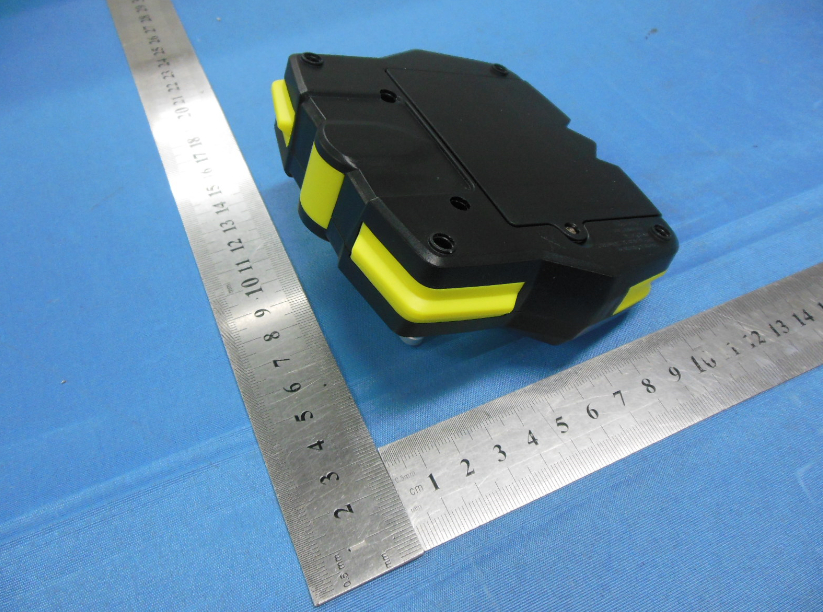

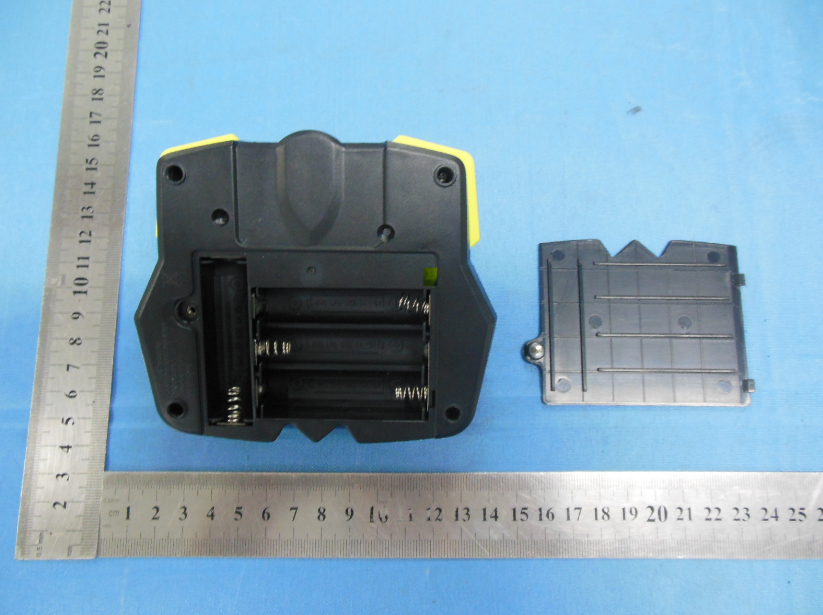

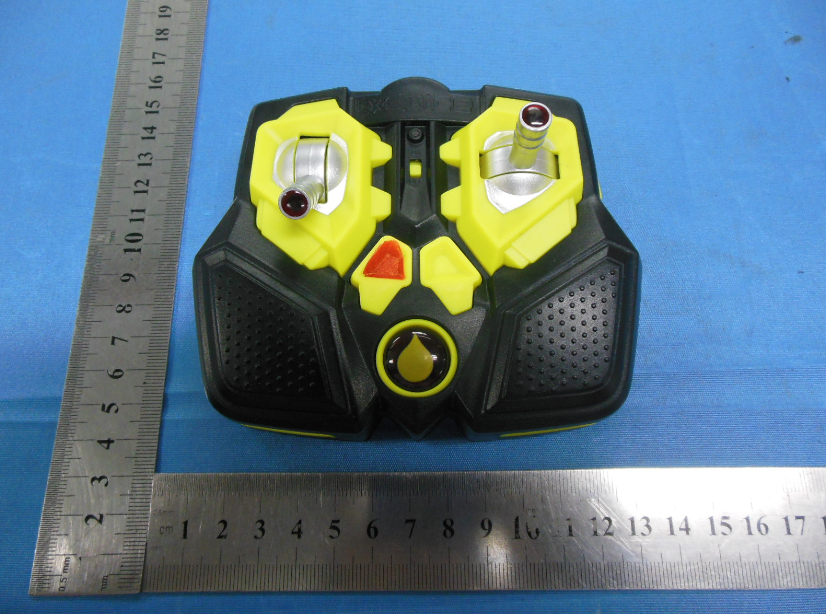

External Photographs EUT –Front View EUT – Rear View EUT – Side View EUT – Side View EUT –Bottom View

China Industries Ltd. T/A Wow! Stu Property: TX Juice Product: TX-1008 Handset Date: 01/07/14 Printed: CMYK FCC ID: YCR-TX-1008H Product Code: TX-1008 FCC ID: YCR-TX-1008HProduct Code: TX-1008

Internal Photographs EUT - Open View EUT - PCB View Antenna location EUT - PCB View

Test Report of FCC Part 15 C for FCC Certificate On Behalf of China Industries Ltd T/A Wow! Stuff FCC ID: YCR-TX-1008H Product Description: Cyber Dactyl Model No.: TX-1008 Supplementary Model No.: N/A Brand Name: TX-Juice Prepared for: China Industries Ltd T/A Wow! Stuff Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK. Prepared by: Bontek Compliance Testing Laboratory Co., Ltd. 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT14GR274E Issue Date: July 8~15, 2014 Test Date: July 15, 2014 Tested by: Reviewed by: Jiankuai.Li Owen Yang Approved by: Kendy Wang Report No.: BCT14GR274E Page 2 of 28 FCC ID: YCR-TX-1008H TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................. 3 1.1 Client Information ....................................................................................................................... 3 1.2 Related Submittal(s) / Grant (s) ................................................................................................. 4 1.3 Test Methodology ...................................................................................................................... 4 1.4 Test Facility ................................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 5 2.1 EUT Configuration ..................................................................................................................... 5 2.2 EUT Exercise ............................................................................................................................. 5 2.3 General Test Procedures .......................................................................................................... 5 2.4 List of Measuring Equipments ................................................................................................... 6 3. SUMMARY OF TEST RESULTS ......................................................................................................... 7 4. TEST OF CONDUCTED EMISSION ................................................................................................... 8 4.1 Applicable Standard ................................................................................................................... 8 4.2 Test Setup Diagram ................................................................................................................... 8 5. TEST OF HOPPING CHANNEL BANDWIDTH .................................................................................. 9 5.1 Applicable Standard ................................................................................................................... 9 5.2 EUT Setup ................................................................................................................................. 9 5.3 Test Equipment List and Details ................................................................................................ 9 5.4 Test Procedure .......................................................................................................................... 9 5.5 Test Result ................................................................................................................................. 9 6. BAND EDGES MEASUREMENT ...................................................................................................... 12 6.1 Limit of Band Edges Measurement ........................................................................................ 12 6.2 Radiate EUT Setup .................................................................................................................. 12 6.3 Test Procedure ........................................................................................................................ 13 6.4 Test Result ............................................................................................................................... 13 7. SPURIOUS EMISSIONS.................................................................................................................... 15 7.1 Limit of Spurious Emissions .................................................................................................... 15 7.2 EUT Setup ............................................................................................................................... 16 7.3 Test Procedure ........................................................................................................................ 17 7.4 Spurious Emissions Test Result .............................................................................................. 18 8. ANTENNA REQUIREMENT .............................................................................................................. 28 8.1 Standard Applicable ................................................................................................................. 28 8.2 Antenna Connected Construction ........................................................................................... 28 Report No.: BCT14GR274E Page 3 of 28 FCC ID: YCR-TX-1008H 1. GENERAL INFORMATION 1.1 Client Information Applicant: China Industries Ltd T/A Wow! Stuff Address of applicant: Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK. Manufacturer: Huatong Metals & Plastic Products Co. Ltd. Address of manufacturer: Yongfeng Industrial District, Henglan Town, Zhongshan, Guangdong General Description of E.U.T Items Description EUT Description: Cyber Dactyl Trade Name: TX-Juice Model No.: TX-1008 Supplementary Model No.: N/A Frequency Band: 2420.875MHz ~ 2472MHz Type of modulation GFSK Antenna Gain 0dBi Antenna Ty…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated emission Radiated emission below 30MHz Radiated Emission Above 1GHz
