YCR-WS-1083DAVE THE ROBOTIC SHOULDER MONKEY

BATTERY INFORMATION: • 5 x 1.5V AAA (Included) PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE. • Non-rechargeable batteries are not to be recharged; • Rechargeable batteries are only to be charged under adult supervision; • Rechargeable batteries are to be removed from the toy before being charged; • Different types of batteries or new and used batteries are not to be mixed; • Batteries are to be inserted with the correct polarity; • Exhausted batteries are to be removed from the toy; • The supply terminals are not to be short-circuited. Always: • Make sure battery compartments are secure. • Use batteries of the correct size and type. • Fit batteries correctly observing the plus and minus marks on the battery and compartment. • Replace a whole set of batteries at one time. • Remove dead batteries from equipment. • Remove batteries from appliance that will not be used again for a long time. • Please remember that small button cells and all batteries should be kept away from young children as they could be easily swallowed. Seek medical advice if you believe a cell has been swallowed. Never: • Mix different types of batteries. • Mix old and new batteries. • Dispose of batteries in a fire. • Attempt to recharge ordinary batteries. Consumers have a significant role to play in reducing the impact of waste electrical and electronic equipment on the environment, you can help by re-using or recycling such equipment. The crossed out wheelie-bin symbol indicates that the product & batteries must not be disposed of in domestic waste as they contain substances which can be damaging to the environment and human health. If you cannot re-use or recycle the product or batteries, please use designated collection points, or civic recycling facilities to dispose of them. Dave comes complete with a specially designed remote control, giving you complete control of his personality. Using the remote couldn’t be easier... Press one of the four different mode buttons (Conversation Mode, Greeting Mode, Puppet Mode and Action Mode) to select the type of action you want Dave to perform. Within each of these different modes, there are a number of behaviours that can be activated. Use the keypad to select the action you want Dave to perform and then watch as he struts his stuff! Dave offers over 30 different behaviours. By pressing the keypad multiple times, further actions can be activated. A full list of Dave’s behaviours are listed on the following page... Learning all of Dave’s actions will take a little bit of time. That’s why we included some “Magic Buttons” to get you started. Magic Buttons are basically shortcuts for some of Dave’s behaviours. Press and hold down one of the mode buttons and Dave will spring into life and perform one of his signature moves. Each of the four mode buttons has its own behaviour meaning you’ll never be short of things to do! Note: The Remote Control features an internal antenna. Avoid covering the top of the Remote as this may affect its performance. Dave loves nothing more than sitting on peoples shoulder’s. But he wouldn’t want to fall off... Thats why this pack also includes a “Monkey Shoulder-Support” to ensure that Dave travels in comfort and style. Attaching the Shoulder-Support couldn’t be easier. Simply place the cushioned pad on your shoulder and position Dave on top. The hook and loop tabs will ensure Dave doesn’t slide around. Then, loop the straps around your shoulder and underneath your arm. Make sure the monkey is sitting comfortably and then attach the hook and loop tabs on the strap. Remove the battery cover on the reverse of the handset using a philips-head screwdriver. Then install 2 x AAA (1.5V) batteries according to the polarity shown. (Figure 1) Figure 1 Figure 2 Open the base of the monkey to expose the battery cover. Then, using a philips-head screwdriver, remove the cover and install 3 x 1.5V AAA batteries according to the polarity shown. (Figure 2) 1 Look Front Wave Greeting 1 Press Once 2 Look Front Wave (harder) Greeting 1 Press Twice 3 Act Shy Greeting 2 Press Once 4 Still Shy Greeting 2 Press Twice 5 Look Left Wave Greeting 3 Press Once 6 Look Left Wave (harder) Greeting 3 Press Twice 7 Look Right Wave Greeting 4 Press Once 8 Look Right Wave (harder) Greeting 4 Press Twice 9 Look Left Puppet 1 Press Once 10 Double Take Left Puppet 1 Press Twice 11 Look Right Puppet 2 Press Once 12 Double Take Right Puppet 2 Press Twice 13 Look Down Puppet 3 Press Once 14 Sleeping Puppet 3 Press Twice 15 Wake Up Puppet 3 Press Three Times 16 Freak Out 1! Puppet 4 Press Once 17 Freak Out 2! Puppet 4 Press Twice 18 Nod Head Conversation 1 Press Once 19 Conga Drums Conversation 1 Press Twice 20 High Five 1! Conversation 2 Press Once 21 High Five 2! Conversation 2 Press Twice 22 Shake Head Conversation 3 Press Once 23 Bored Yawn Conversation 3 Press Twice 24 Handshake 1 Conversation 4 Press Once 25 Handshake 2 Conversation 4 Press Twice 26 Giggle! Action 1 Press Once 27 Guffaw! Action 1 Press Twice 28 Burp (Cover Mouth) Action 2 Press once 29 Fart! Action 2 Press Twice 30 Dance! Action 3 Press Once 31 Blow Raspberry Action 3 Press Twice 32 Scratch Left Action 4 Pess Once 33 Scratch Right Action 4 Press Twice Operating The Handset Battery Installation Magic Buttons Attaching the Monkey Shoulder-Support The Remote Control Dave the Monkey No. Behaviour Mode Button Sequence Battery Information Conversation Mode Selection Keypad Greeting Mode Puppet Mode Action Mode DECLARATION OF CONFORMITY Manufacturer’s Name: Mech RC Limited Manufacturer’s Adress: Room 805, B&H Plaza 1077 Nanhai Ave, Shekou, Shenzhen, China. Importer’s Name: China Industries Ltd. T/A Wow! Stuff Importer’s Address: Creative Industries Centre, Wolverhampton Science Park, Wolverhampton, WV10 9TG, UK Type of Equipment: Remote-Controlled Toy Model Number: WS1038 Year of Manufacture: 2010 Application of Council Directive(s): 1999/5/EEC The Radio Equipment and Telecommunications Terminal Equipment Regulations …

Text truncated - open the document above for the full version.

FCC ID Label Sample for FCC ID: YCR-WS-1083_ FCC ID: YCR-WS-1083 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

LOYAL TECHNOLOGY CO.LTD CIRCUIT DESCRIPTION Transmit Circuit The SW1､SW2､SW3､SW4､ SW5､SW6､SW7､SW8is pressed for control coding circuit MCU1. Q2 is the crystal oscillator which is modulated by the output of coding circuit MCU1. Q1 is mixer and RF amplifier. The output of the RF amplifier coupled to T1 and antenna. Power and Ground Energy is supplied by AAA1.5 x 2 Volt battery . No external connection is provided and what ground that’s available is from the printed circuit board.

LY-FM-RD-30/A0 XIN NAN ZHONG CHEN ELECTRONIC FACTRYMODEL:DRAWN:APPROVAL: DATE:DATE: CHECKED:DESIGN: DATE:DATE: A0 REV: TYPE: TX FCC CHEEKY MONKEY 发声猴子公仔 卢光华 陈锦明 05-07-201005-07-2010 丘坤明 05-07-2010 ANT Q1 R24 Q2 9018 C1 20PF - + DC3V R1 3R9 C13 104P C12 104P L2 4.7UH C3 100P C2 47P C4 103P C5 18P R3 100R R4 1R L4 0.56UH C7 472P SW2 R8 1 R5 1K C6 100UF TAL1 27.145MHZ 1 X1 2 X2 3 X3 4 VDD 5 Y1 6 X4 7 7 14 RFOUT 13 X8 12 POWERCONTROL 11 VSS 10 X7 9 X6 8 X5 U2 14-PIN R9 51K R2 10K C9 68PF SW4SW5SW8SW6SW7SW3SW1 C8 6PF GND Q3 BC807 T1 EP30624 R10 2K7 C10 10UH C11 *** C14 2PF

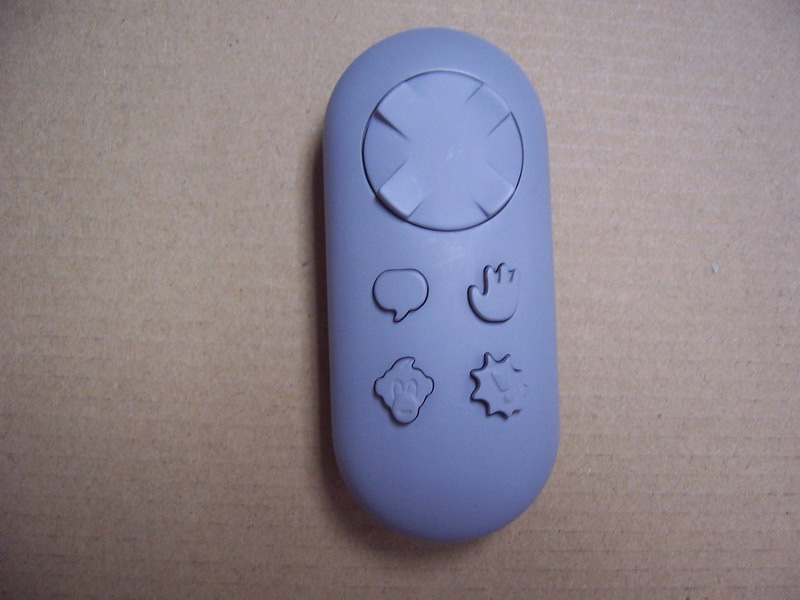

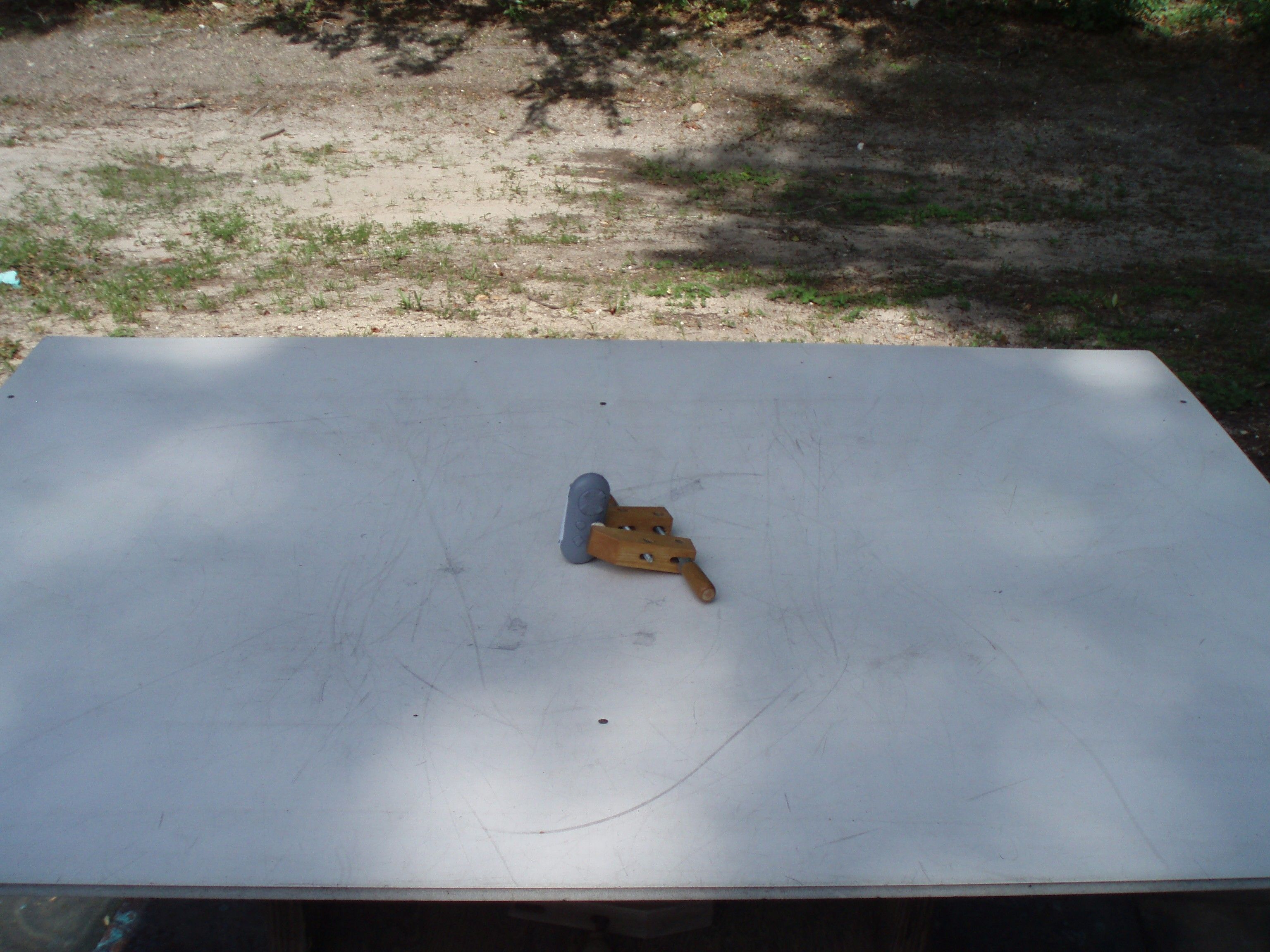

FCC PART 15.227 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE Address WOLVERHAMPTON SCIENCE PARK WOLVERHAMPTON WV10 9TG United Kingdom FCC ID YCR-WS-1083 Product Description RADIO CONTROLLED CHEEKY MONKEY - TX Date Sample Received 7/7/2010 Date Tested 7/7/2010 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Timco Report No. 1629HT10TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE FCC ID: YCR-WS-1083 REPORT: C\CHINA INDUSTRIES_YCR\1629HT10\1629HT10TestReport.doc Page 2 of 9 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS .................................................................................................. 3 REPORT SUMMARY .................................................................................................... 4 TEST ENVIRONMENT.................................................................................................. 4 TEST SETUP ............................................................................................................... 4 DUT SPECIFICATION .................................................................................................. 5 TEST EQUIPMENT LIST .............................................................................................. 6 TEST PROCEDURES ................................................................................................... 7 RADIATION INTERFERENCE ....................................................................................... 8 OCCUPIED BANDWIDTH............................................................................................. 9 APPLICANT: CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE FCC ID: YCR-WS-1083 REPORT: C\CHINA INDUSTRIES_YCR\1629HT10\1629HT10TestReport.doc Page 3 of 9 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 7/7/2010 APPLICANT: CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE FCC ID: YCR-WS-1083 REPORT: C\CHINA INDUSTRIES_YCR\1629HT10\1629HT10TestReport.doc Page 4 of 9 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.227, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE FCC ID: YCR-WS-1083 REPORT: C\CHINA INDUSTRIES_YCR\1629HT10\1629HT10TestReport.doc Page 5 of 9 mdea 09.20.2007 DUT SPECIFICATION Applicant CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE Description RADIO CONTROLLED CHEEKY MONKEY - TX FCC ID YCR-WS-1083 Frequency Range 27.145 MHz DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE FCC ID: YCR-WS-1083 REPORT: C\CHINA INDUSTRIES_YCR\1629HT10\1629HT10TestReport.doc Page 6 of 9 mdea 09.20.2007 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 03/10/10 03/10/12 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 3/30/09 3/30/11 Antenna: Dipole Kit Electro-Metrics TDA-30/1- 4 152 CAL 3/3/09 3/3/12 Antenna: Dipole Kit Electro-Metrics TDA-30/1- 4 153 CHAR 4/5/09 4/5/12 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/9/09 5/9/11 Digital Multimeter Fluke FLUKE-77- 3 79510405 CAL 5/14/09 5/14/11 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 6/1/09 6/2/11 APPLICANT: CHINA INDUSTRIES LTD. T/A WOW! STUFF CREATIVE INDUSTRIES CENTRE FCC ID: YCR-WS-1083 REPORT: C\CHINA INDUSTRIES_YCR\1629HT10\1629HT10TestReport.doc Page 7 of 9 mdea 09.20.2007 TEST PROCEDURES Radiated Spurious Emissions: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer w…
