YCYRSMGZ1WIRELESS GUN TRIGGER / MAGAZINE DEVICE

Practicing Where It Counts – In Your Own Home... With Your Own Gun... Using Your Own Tactical Scenarios Operating Instructions ReadyShot Gun Insert Kit Questions? Contact us: 1-877-973-2399 or [email protected] ©2010 ReadyShot Made in the USA Thank you for choosing ReadyShot! Before operating, please fully read the Operating Instructions. We appreciate your business and are looking forward to hearing from you regarding our products. Questions? Contact us: 1-877-973-2399 or [email protected] ©2010 ReadyShot Made in the USA WARNINGS AND DISCLAIMERS SAFETY INSTRUCTIONS We want you to SAFELY enjoy using your new ReadyShot Training System. Please READ THIS ENTIRE INSTRUCTION MANUAL CAREFULLY. It is essential to follow the safety instructions for your safety and the safety of others. • All safety measures are to be followed when dry firing. • Follow all rules as if you were at the range. • You are responsible for your safety and for those around you. • At ALL times, treat your firearm as if it is loaded. • Always keep your gun pointed in a safe direction. • Always keep your finger off the trigger until ready to shoot. • Remove all ammunition from the room in which you practice. • Visually inspect that the firearm and all magazines in the vicinity are unloaded. • Always follow firearms safety rules as outlined by the firearms manufacturer. • Always keep the gun unloaded until ready to use. • This training system is not a toy. Lasers and magnets can be dangerous if not used properly. Adult supervision is required. • Do not point the laser beam at eyes. Permanent eye damage can result. • Never look directly into the laser beam. • Never point a laser beam at a person. • Do not aim the laser at reflective surfaces. • Never view a laser pointer using an optical instrument, such as binocular or a microscope. • Do not allow children to use laser pointers unless under the supervision of an adult. • It is a crime to point certain laser beams at moving airplanes or automobiles; this action may result in prosecution by the law. • Do not allow children to handle neodymium magnets. Do not swallow or insert these magnets into any part of the body. • Keep this and all firearm related products locked and secured from children or other unauthorized users. • To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. LASER SAFETY AND DISCLAIMER CLASS IIIa LASER PRODUCT LASER RADIATION--DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS DO NOT OPERATE A LOADED FIREARM WHILE READYSHOT IS ATTACHED Discharging a loaded firearm while ReadyShot is attached can result in the firearm not functioning properly, potentially leading to damage to the firearm, AS WELL AS THE POTENTIAL FOR PHYSICAL INJURY OR DEATH TO THE USER AND/OR THIRD PARTIES. Prior to using ReadyShot, ensure that the firearm is not loaded with any type of ammunition. Ammunition may still load into the chamber while ReadyShot is properly installed. This does NOT mean that the firearm is safe to use for firing live ammunition. ALWAYS DISASSEMBLE READYSHOT FROM THE FIREARM AFTER USE OF READYSHOT IS DISCONTINUED Do not stow firearms while ReadyShot is installed. Failure to do so can result in costly delays in the event of an emergency. LIMITATION OF LIABILTY EXCEPT AS EXPRESSLY PROVIDED HEREIN, NOVEL ENGINEERING RAPID DESIGN SERVICES, INC., DBA READYSHOT, SHALL HAVE NO LIABILITY REGARDING READYSHOT, INCLUDING, WITHOUT LIMITATION COMMERCIAL OR OTHER LOSS BASED UPON NEGLIGENCE OR STRICT LIABILITY. IN NO EVENT SHALL NOVEL ENGINEERING RAPID DESIGN SERVICES, INC., DBA READYSHOT, BE LIABLE FOR ANY DIRECT, INDIRECT SPECIAL, INCIDENTAL AND/OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR CHARACTER INCLUDING, WITHOUT LIMITATION, COMMERCIAL AND/OR PERSONAL LOSSES AND/OR INJURY, EXCEPT TO THE EXTENT LIMITED BY 2-719 OF THE COMMERCIAL LAW ARTICLE OF THE ANNOTATED CODE OF MINNESOTA. FUTHER, NO SUCH LIMIATION SHALL APPLY TO THE EXTENT PROHIBITED BY APPLICABLE LAW. PURCHASER’S EXCULPATORY CLAUSE I acknowledge that I am responsible for using ReadyShot safely and legally and hereby agree to indemnify and hold harmless Novel Engineering Rapid Design Services, Inc, its owners, employees, agents and affiliates for any and all legal action arising from purchase, use or ownership of ReadyShot products and accessories, including, but not limited to any lawsuit or claim by myself or a third party for bodily injury, death or illegal activity. By purchasing this product, I, the Purchaser, indicate that I have read and understood the above liability waiver and that I agree to be bound by its terms. Terms and conditions are subject to change without notice. WARRANTY DISCLAIMER Except as expressly stated herein, Novel Engineering Rapid Design Services, Inc. makes no representations or warranties, either express or implied, of any kind with respect to ReadyShot. Except as expressly stated herein, Novel Engineering Rapid Design Services, Inc. expressly disclaims all warranties, express or implied, of any kind with respect to ReadyShot, including but not limited to, merchantability and fitness for a particular purpose. LIMITED WARRANTY Novel Engineering Rapid Design Services, Inc. warrants to the original purchaser that the ReadyShot product is free from defects in material and workmanship and agrees to repair or replace, at the exclusive discretion of Novel Engineering Rapid Design Services, Inc.’s, any defective ReadyShot product as follows from the original date of purchase: 30 DAYS – Parts and Labor This warranty is not transferable and does not cover damage or liability caused by improper handling, improper maintenance, or the use of accessories and/or attachments not specifically recommended by Novel Engineering Rapid Design Services, Inc. for use with this product. Additionally, this warranty does not cover damage if the product is altered in any way which in Novel Engineering Rapid Design Services, Inc.’s judgment affects its condition or o…

Text truncated - open the document above for the full version.

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Block Diagram

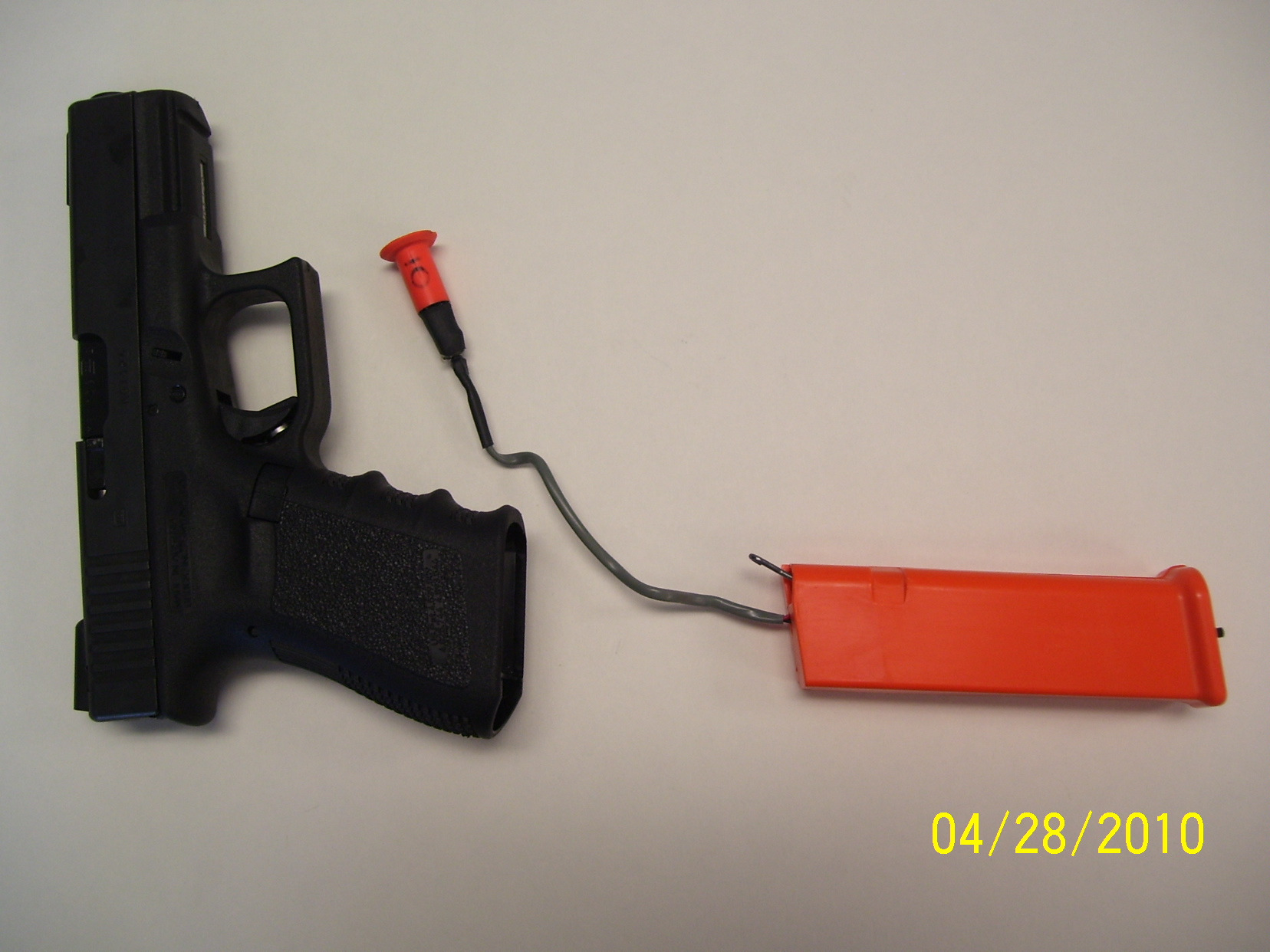

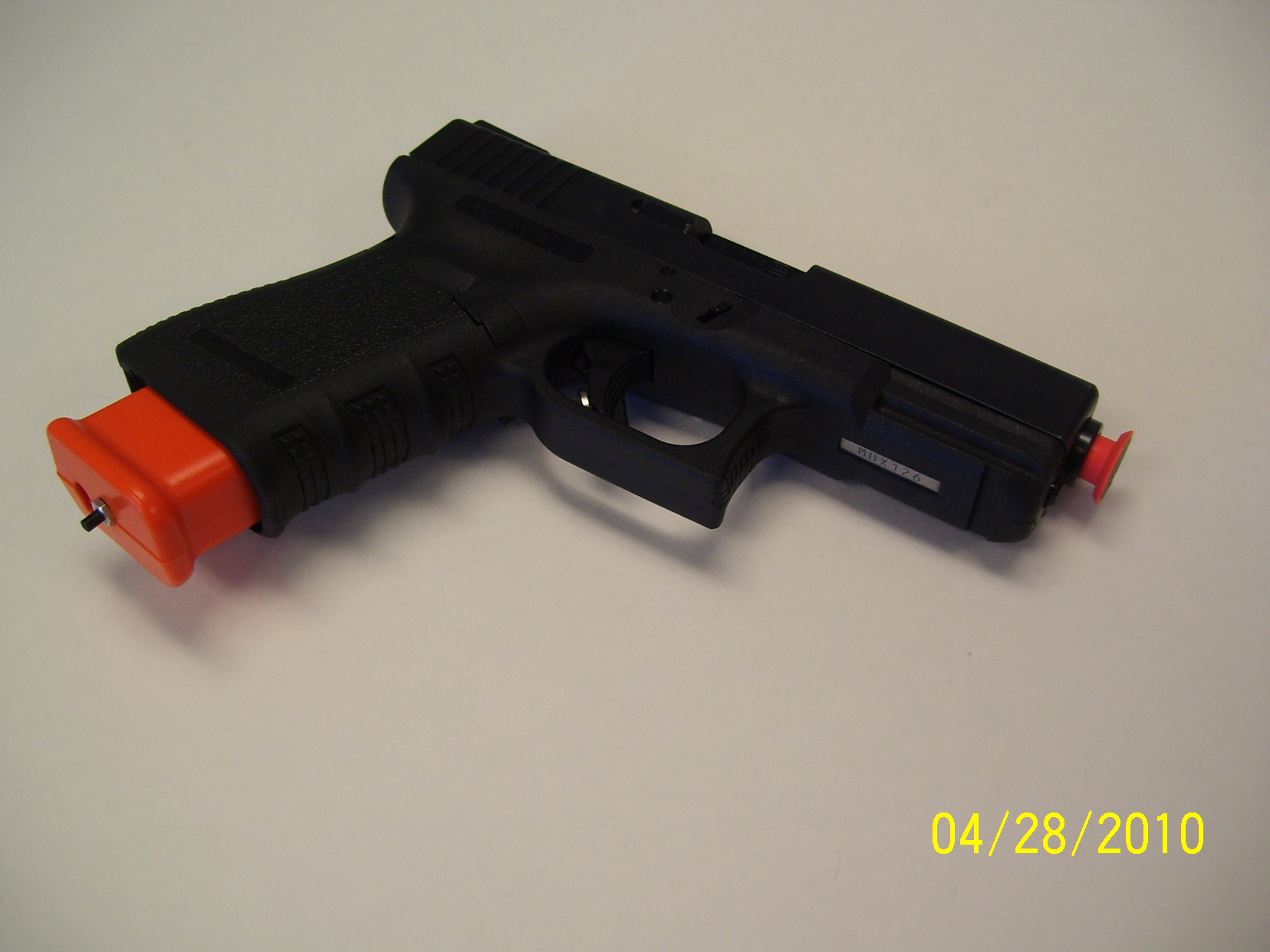

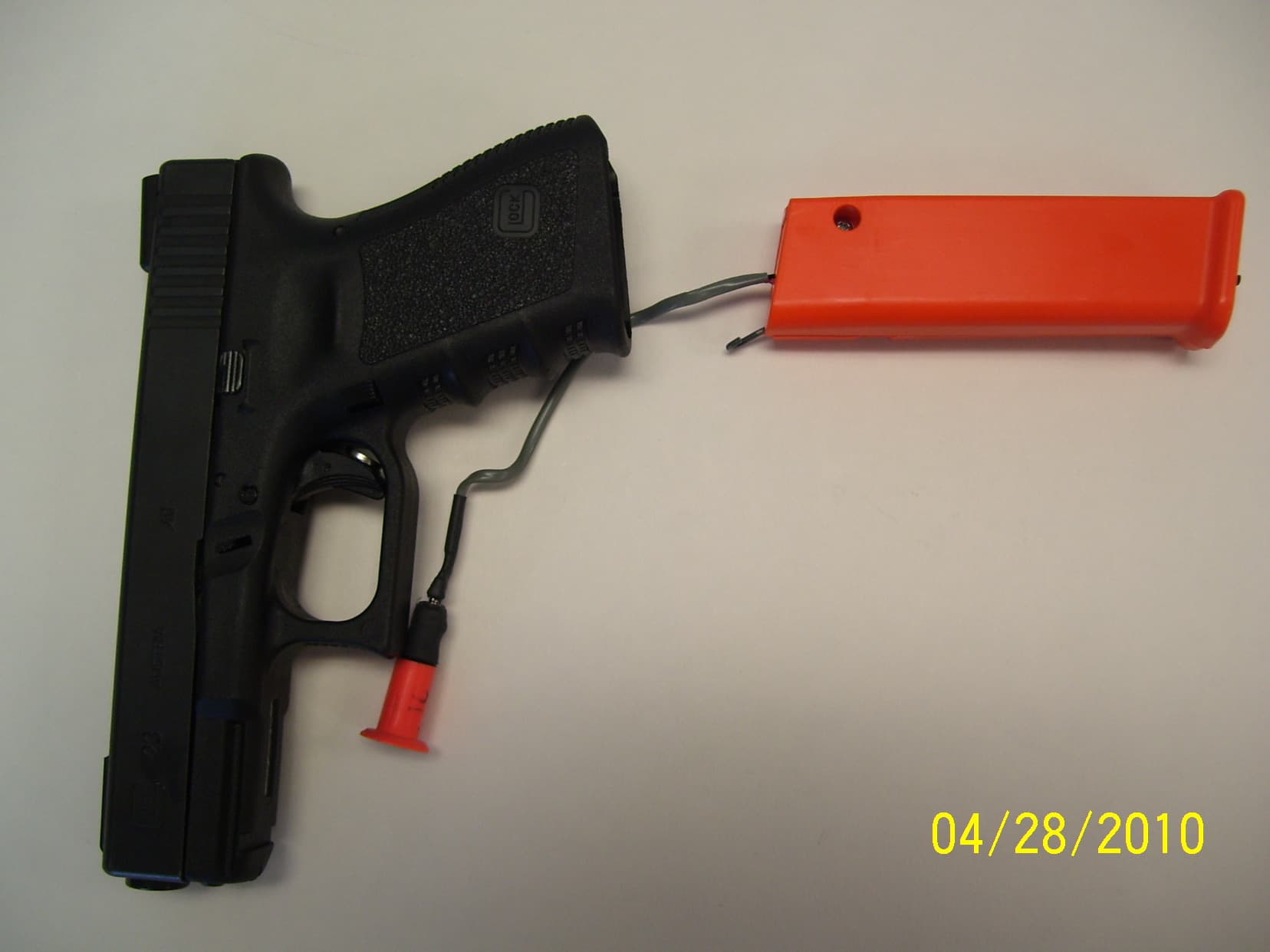

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ External Photos International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ External Photos International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ External Photos

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Label and Location

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Internal Photos PC Board Solder Side Loop Antenna International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Internal Photos PC Board Component Side International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Internal Photos RS-MGZ Plastic Enclosure International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Internal Photos RS-MGZ System Top Level Assembly

Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Operational Description The RS-MGZ is installed in a standard Glock pistol by being placed in the magazine cavity of a Glock handgun, which is facilitated by enclosing the circuit board into a plastic housing whose outer dimensions are shaped similarly to the actual magazine. A neodymium magnet of size 5/16 inch diameter by 1/16 inch thick is affixed to the back of the gun’s trigger. A hall-effect sensor on the circuit board is set to effective zero based on the initial position of the magnet, and when the user pulls the trigger, the change in magnetic field strength is communicated to a microprocessor on the circuit board. The processor determines the validity of the event, and initiates a two-part response: 1) a pulsed voltage of peak 5 V is output to a connected 650 nm < 5 mW laser diode, and 2) a coded RF signal is transmitted. The coded RF signal consists of a pre-amble, 6 bits of data, and a post-amble. The microprocessor then waits for the next polling period to check for hall-effect sensor activity. This is repeated for up to 11 minutes, at which point the microprocessor’s firmware causes the circuit board to enter a sleep state. The circuit is awakened using a user-accessible button protruding from the bottom of the plastic housing.

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Parts List

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Electrical Schematic

TEST REPORT #280410 STANDARD: FCC PART 15 SUBPART C--INTENTIONAL RADIATORS SECTION 15. 231 PERIODIC OPERATION IN THE BAND 40.66 – 40.70 MHZ AND ABOVE 70 MHZ EQUIPMENT TESTED: NOVEL ENGIINEERING RAPID DESIGN SERVICES, INC. dba READYSHOT MODEL: RS-MGZ TEST DATE: 28 APRIL, 2010 INTERNATIONAL CERTIFICATION SERVICES, INC. 1100 Falcon Avenue Glencoe, MN 55336 Tele: 320-864-4444 Fax: 320-864-6611 CERT NO: 2055:01 CERT NO: 2055:01CERT NO: 2055:01 CERT NO: 2055:01 INTERNATIONAL CERTIFICATION SERVICES, INC. Prepared for: Test agent: Test location: Prepared by: . Novel Engineering Rapid Design Services, Inc. dba ReadyShot 1609 W County Rd 42, Suite 259 Burnsville, MN 55306 International Certification Services, Inc. 1100 Falcon Avenue Glencoe, MN 55336 Tele: 320-864-4444 Fax: 320-864-6611 International Certification Services, Inc. 1100 Falcon Avenue Glencoe, MN 55336 Tele: 320-864-4444 Fax: 320-864-6611 International Certification Services, Inc. 1100 Falcon Avenue Glencoe, MN 55336 International Certification Services represents to the client that testing is done in accordance with standard procedures applicable and that reported test results are accurate within generally accepted commercial ranges of accuracy. This report only applies to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. International Certification Services shall have no liability for any deductions, inferences or generalizations drawn by the client or others from this report. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. INTERNATIONAL CERTIFICATION SERVICES, INC. 1.0 TEST SUMMARY TEST REPORT : #280410 COMPANY: AGENT: International Certification Services, Inc. PHONE: 320-864-4444 TEST DATE: EQUIPMENT UNDER TEST: GENERAL TEST SUMMARY: VERIFICATION / CERTIFICATION STATUS: MODIFICATIONS NECESSARY: TESTED BY WRITTEN BY Duane R. Bagdons Duane R. Bagdons Novel Engineering Rapid Design Services, Inc. dba ReadyShot 28 April, 2010 Small trigger device Model: RS-MGZ The testing was performed at International Certification Services, Inc. at 1100 Falcon Ave, Glencoe, MN 55336 The Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ was found to be in compliance with the FCC Part 15 Subpart C, Section 15.231 requirements. None INTERNATIONAL CERTIFICATION SERVICES, INC. Applicable Standards 47 CFR Ch.1 (10-01-09 Edition) FCC Part 15 Radio Frequency Devices Subpart C Intentional Radiators Section 15.231 Periodic Operation in the band 40.66 – 40.70 Mhz, and above 70 Mhz. 2.1 Referenced Standards ANSI C63.4-2003 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 Khz to 40 Ghz. 2.2 Equipment Units Tested The equipment tested is a Glock Laser Insert Kit that was developed to accommodate Glock gun owners who would like to dry fire practice – without having to cycle the slide after each trigger pull. This device (Model: RS-MGZ) contains a 433 Mhz transmitter that communicates with an electronic Target (Model: RS-TGT) that is not part of this filing. The RS-MGZ is battery powered and has no connection to any Public Mains Voltages. 2.3 Equipment and Cable Configuration See photo of the EUT test configuration setup in Attachment A 2.4 List of Test Equipment Measurement cable losses, and antenna correction factors are included in the data sheets. The Resolution BW was set at 1 Mhz and the Video BW was set at 1 Hz with a Span of 0 Hz to perform the correct average detected measurements over 1000 Mhz. 2.5 Units of Measurement. All measurements were taken in dBuV/m with the antenna located at 3 meters distance from the EUT. Frequency measurements are recorded in Mhz 2.6 Location of Test Site The open area test site (OATS) measurement facility used to collect the data was International Certification Services, Inc. at 1100 Falcon Ave in Glencoe, MN 55336. This site has been certified to be in spec of the normalized site attenuation per ANSI C63.4- 2003. Test Equipment Spectrum Analyzer Preamp Preamp Log Periodic Antenna (200-1000 MHz) Horn Antenna (1-18 Ghz) Model Hewlett-Packard 8566B P0012 P0013 Nextec EMCO 3146 EMCO 3115 S/N 2421A00458 1726A00666 378 9111-3280 2334 Calibration Date 01/25/08 11/16/09 06/09/08 06/22/09 06/23/09 INTERNATIONAL CERTIFICATION SERVICES, INC. 2.7 Measurement Procedures The antenna was placed at a distance of 3 meters from the EUT. The EUT was set on an insulating table in the OATS site and rotated through 360 degrees to determine the worst case EUT orientation. The antenna was then positioned vertical and horizontal to determine which antenna polarity orientation was worst case. Then certification data was recorded at all the transmitter frequencies from the fundamental to the 10 th harmonic at an antenna height variation of from 1-4 meters. 2.8 Reporting Measurement Data See data sheets and plots in Attachment B. 2.9 Radiated Emissions Data The frequency and amplitude of the tuned frequency of the EUT along with the frequencies and amplitudes of the harmonics up to the 10 th harmonic are reported in the data sheets in Attachment B. This information is plotted against the limit of section 15.231 of FCC Part 15 subpart C. Both Horizontal and Vertical antenna polarities as well as antenna heights of 1 to 4 meters were observed but all maximum signal strengths occurred in the Horizontal antenna polarity and at 1 meter antenna height. The Final Level, expressed in dBuV/m, is arrived at by taking the reading from the spectrum analyzer (Level dBuV) and adding the antenna correction factor and cable loss factor (Factor dB) and subtracting the preamp gain. This result then has the FCC limit subtracted from it to…

Text truncated - open the document above for the full version.

International Certification Services, Inc. Novel Engineering Rapid Design Services, Inc. dba ReadyShot Model: RS-MGZ Test Set Up Photos
