YD8-GNC-REMOTE-112 volt remote start system-5 position remote

Five FiveFive Five- -- -in inin in- -- -One One One One Remote Control System Remote Control SystemRemote Control System Remote Control System Features: 1. Operates household appliances & machines-ON / OFF. 2. Remotes 5 control points spontaneously and individually. 3. Dry-connect design enables variety application. 4. The 6th key of the remote: complete shut off for safety. 5. Lid design of the remote as keys lock. 6. Finger-flipping coding design to avoid ease of duplication. (as shown on diagram 1) Specifications: 1. Voltages: DC 12V or 24V. 2. Maximum wattage of each connect points: 500W. 3. Remote distance: Max. 20 meters in interference free environment. 4. Working frequency: 315MHZ. 5. Connect point: 1.2.3 intermediate remote; 4.5 continuous remote. Cautions: 1. Avoid direct contact from the power source on each connect point of the transmitting box, this will lead system short/burnout damage. 2. Power off before installation. 3. Avoid metal coverage and contact of the transmitting box & antenna. 4. When remote distance appear shorten, replace battery (12V). 5. No warranty if adjustment and repair was not done by manufacturer. Diagrams & layout: Dry-Connect Wiring Instruction: 1. Transmitting box wiring diagrams (as shown on diagram III). 2. Remote keys layout (as shown on diagram II). Instruction: 1. Click #1 key of the remote, engages #1 connect point of the transmitting box; same applies to #2-5 ). 2. Click and hold # 1, 2, 3 key of the remote (intermediate remote), engages #1, 2, 3 connect point of the transmitting box (ON status). Release key to disengage the power (OFF status). 3. Click # 4, 5 (continuous remote) of the remote, engages #4, 5 connect point of the transmitting box (ON status) continuously. Click key again to disengage the power (OFF status). 4. To replace battery of the remote, unscrew two bolts located on the back cover. Remove cover to replace the battery. Place the cover back and tighten the lid with two bolts screw in. NOTE: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

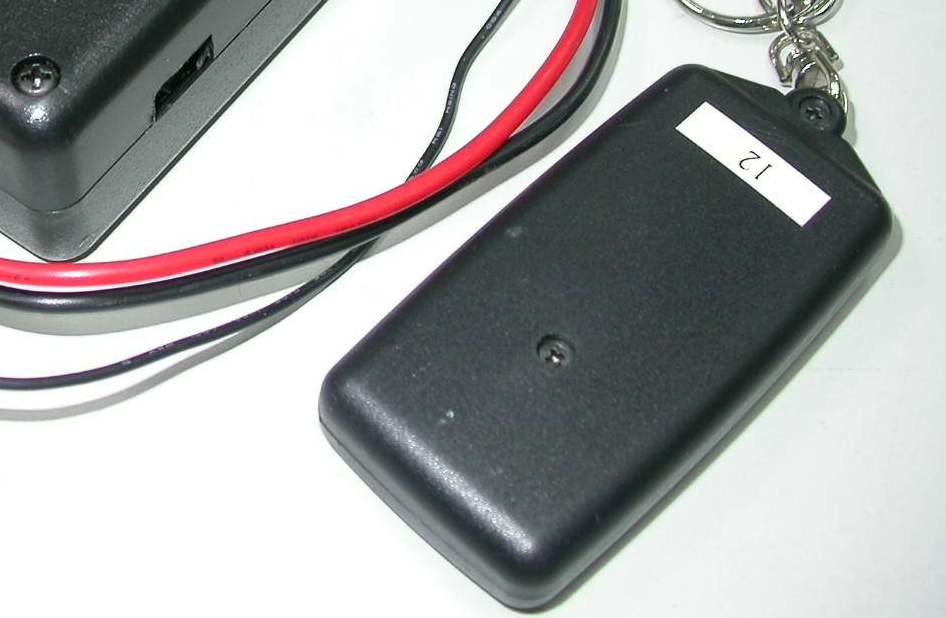

FCC ID: YD8-GNC-REMOTE-1 Sheet A1 of A1 Sheets ETC Report No. : 10-05-MAS-004-01(R) ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID: YD8-GNC-REMOTE-1 Sheet B1 of B3 Sheets ETC Report No. : 10-05-MAS-004-01(R) ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: YD8-GNC-REMOTE-1 Sheet B2 of B3 Sheets ETC Report No. : 10-05-MAS-004-01(R) 3. Inside View 3 of EUT 4. Front view of PCB FCC ID: YD8-GNC-REMOTE-1 Sheet B3 of B3 Sheets ETC Report No. : 10-05-MAS-004-01(R) 5. Rear view of PCB

FCC ID.: YD8-GNC-REMOTE-1 Sheet 1 of 23 Sheets ETC Report No. : 10-05-MAS-004-01(R) Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 10-05-MAS-004-01(R) Client: EVERGREEN SPRAYING TECHNOLOGY INC. Product: 12 volt remote start system-5 position remote Model: 22-GNC-REMOTE-1 FCC ID: YD8-GNC-REMOTE-1 Manufacturer/supplier: Kindrom Enterprise Co., Ltd Issue date of the origin report 09-12-MAS-129-01: 2009/09/04 Issue date of the revision report : 2010/07/21 The test result only corresponds to the tested sample. It is not permitted to cop y this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 23 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By John Li James Cheng Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID.: YD8-GNC-REMOTE-1 Sheet 2 of 23 Sheets ETC Report No. : 10-05-MAS-004-01(R) Rev. No 1.0 Client : EVERGREEN SPRAYING TECHNOLOGY INC. Address : 12F-1, No.45 Ta-Ya Rd, North Dist., 40458 Taichung City, Taiwan (ROC) Manufacturer : Kindrom Enterprise Co., Ltd Address : No. 22, Hsin Pei Street, Tou Fen Town, Miao Li County, Taiwan EUT : 12 volt remote start system-5 position remote Trade name : ---- Model No. : 22-GNC-REMOTE-1 Power Source : 12V dc Regulations applied : FCC 47 CFR, Part 15 Subpart C (2008) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF 5 FCC Registration Number: 90588, 91094, 91095 h Industry Canada Site Regisitation number: IC 2949A-1 NVLAP Lab Code 200133-0 FCC ID.: YD8-GNC-REMOTE-1 Sheet 3 of 23 Sheets ETC Report No. : 10-05-MAS-004-01(R) Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION................................................................................................................................................. 4 1.2 CHARACTERISTICS OF DEVICE:....................................................................................................................................... 4 1.3 TEST METHODOLOGY..................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 1.5 TEST SUMMARY............................................................................................................................................................. 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 DEFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................5 2.3 LIMITATION.................................................................................................................................................................... 6 2.4 LABELING REQUIREMENT............................................................................................................................................... 7 2.5 USER INFORMATION....................................................................................................................................................... 7 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 8 3.1 APPLICABLE STANDARD................................................................................................................................................. 8 3.2 MEASUREMENT PROCEDURE.......................................................................................................................................... 8 3.3 TEST DATA................................................................................................................................................................... 10 3.4 FIELD STRENGTH CALCULATION.................................................................................................................................. 14 3.5 RADIATED TEST EQUIPMENT.............................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: YD8-GNC-REMOTE-1 Sheet 1 of 2 Sheets ETC Report No. : 10-05-MAS-004-01(R) Photos of Radiation Measuring Setup x-axis FCC ID: YD8-GNC-REMOTE-1 Sheet 2 of 2 Sheets ETC Report No. : 10-05-MAS-004-01(R) y-axis z-axis
