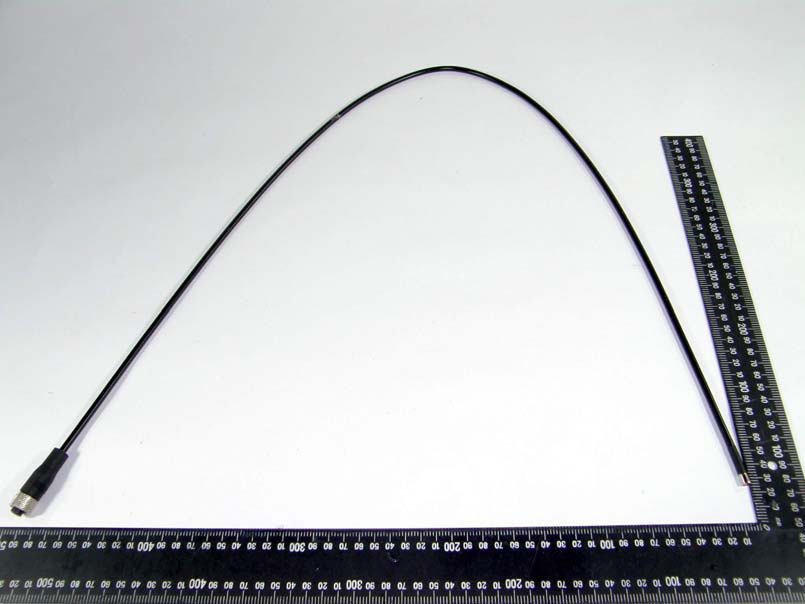

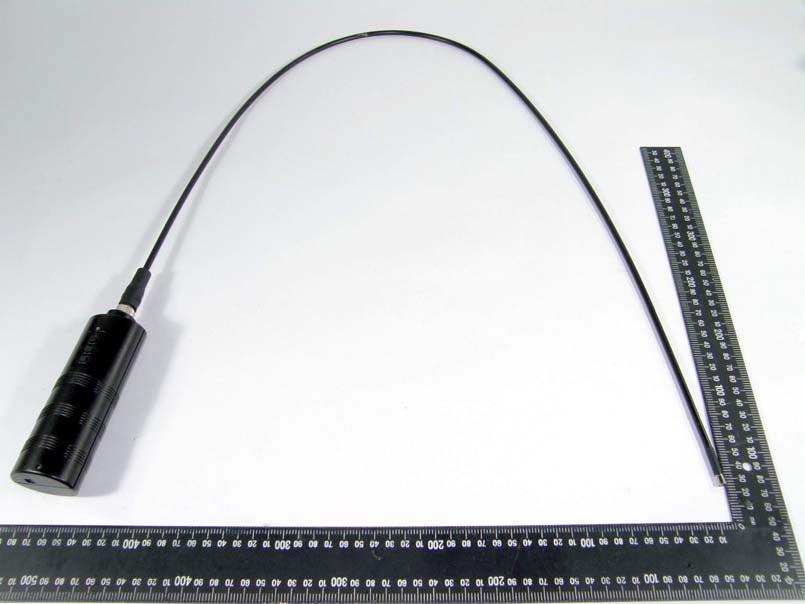

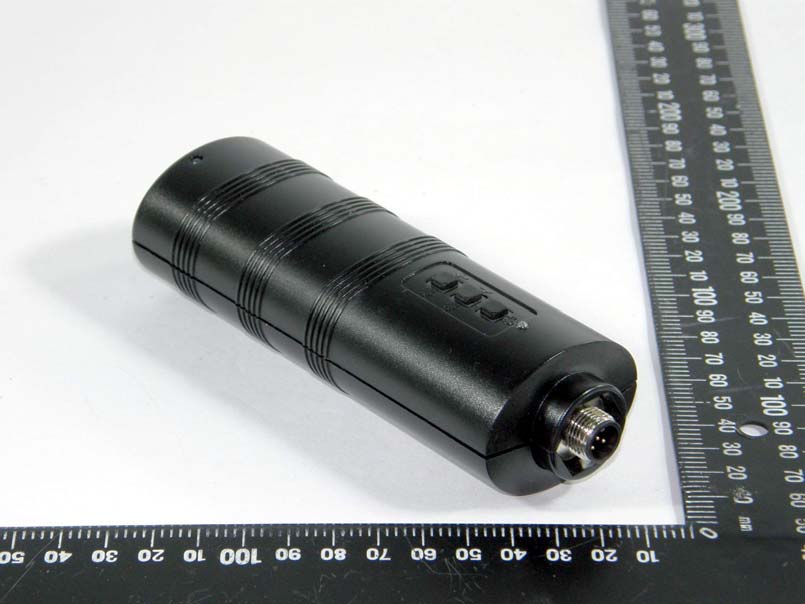

YECTIO-W355558100Wireless Video Scope

Video Scope User Manual For Model：TIO-W3558100 Table of contents Safety recommendations . .............................................................................3 1. Description . ...............................................................................................4 2. Preparation for use . ..................................................................................5 3. Menu set up . .............................................................................................6 7. Snapshot and Recording functions . ............................... ..........................10 10. Troubleshooting......................................................................................11 11. Technical data. .......................................................................................11 12. Spares & accessories . ............................................................................13 VIDEO SCOPE 8. Surfing mode............................................................................................10 4. Digital Zoom . ............................... ..............................................................8 5. LED Adjustment . ............................... ........................................................9 6. Mirror / Reflecting Object Surface . ................................. ...........................9 9. Transferring Photos and Videos to a PC..................................................11 Safety recommendations Warning • Do not modify or disassemble the unit. • Do not use this item in explosive atmospheres. Caution • Keep the device out of the reach of children. • Do not look directly into the objective lens at the end of the insertion tube, your eyesight may be seriously damaged. • Do not forcibly bend, twist or elongate the insertion tube. • Strong impact on the device may result in the breakage of the objective lens (made of glass) at the tip of the insertion tube. • Do not use or store the device at a temperature higher than 60 °C or lower than -20 °C. • Don’t use the device in the direct sunshine. • Store the device in a dry and adequately ventilated environment. • Keep the device away from acid or alkaline solutions, oil or petrol, and do not use it in an atmosphere containing their vapours. • Do not remove the SD Memory Card while data is being saved to the card. This may cause the data to be lost or the card to be damaged. 3 VIDEO SCOPE 4 1. Description VIDEO SCOPE Parts and function A. POWER button C. Escape B. DOWN button G. Zoom out L. Display unit E. LED brightness decrease M. REC button D. Mirror Image and RotateJ. OK button K. UP button N. Zoom inH. LED brightness increase F. PHOTO button O. SD slot Q. Video Out P. DC-in R. USB Port I. Insertion tube This wireless Video Scope is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye. This wireless Video Scope is supplied in a sturdy carrying case and consists of a display unit, insertion ube, main adapter and side view adapter. The display unit, with a 3,5” wide angle TFT LCD screen, has the capacity of viewing, storing and reviewing photos and video images. Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later. The display unit is powered by rechargeable Li-polymer batteries and a multi-voltage charger is included. The 1 meter (3,3 ft) insertion tube has a tip of just 5,5 mm (0.22 in) and is equipped with powerful variable LED lighting. Other lengths are available, see section 12. Spares & accessories. Wireless Inspection System Introduction and Applications Wireless Inspection System is an outstanding feature of Video Scope. The wireless inspection camera lets you see a clear image of problems in hard to reach locations without the cable. The image can be sent to main unit up to 50 m (160') away. With the palm-sized probe handle you can inspect many applications. Video Scope includes wireless and direct input modes. You can choose the appropriate mode to meet your needs in different working applications. You can hold the wireless probe handle at a perfect height when checking somewhere unreachable and narrow dark space. In some special working environments you may need a free hand to remove an obstacle during inspection. Simply place the main unit on a stable platform and manipulate the probe with a single hand. Besides, we can have a long time inspection away from the target observed with Wireless Inspection System if the probe handle is set up fixed. Rec Eec OK A B C D E F G H I J K L M N O P Q R 2. Preparation for use On first use it is important that the SD card is inserted as Fig.1 shown. Connect the insertion tube to the display unit as shown in the figure and tighten the locking collar:Fig.2 The status screen shows the capacity of the SD card and the internal battery. If the Video Scope has been stored for a long time then the display might not able to turn on. The most likely cause is that the battery has run out.Please use power adapter to re-charge the battery. 5 VIDEO SCOPE Press the POWER button for 3-5 seconds to turn the display unit on. The Start-up screen is shown briefly followed by the status screen for five seconds.Fig.3 Fig.2 Fig.3 Wireless Inspection Device Parts and Function Insertion tube Connector Power ON/OFF botton Battery charge indicator LED Battery charger connector Power Indicator LED LED brightness increase LED brightness decrease Fig.1 Rec Eec OK Directly on the screen, a “live” picture can be seen. This is the camera mode. • Switch the unit on. Ensure that camera mode is active (i.e. a “live” picture can be seen) • Press the OK button to access the menus. Use the UP or DOWN button to select the menu item. Press OK to confirm. 3. Menu set up The options displayed are as follows; - Delete all - Video output - Date / time setup - Language - Video format - Auto power off - Input Source Delete All Ta…

Text truncated - open the document above for the full version.
