SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sep. 14, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, NIPPON AUDIOTRONIX LIMITED hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Transmitter, Model No.: W408 Key fob, FCC ID: YEDMMTJA We affirm that between SIEMIC and NIPPON AUDIOTRONIX LIMITED, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Mahendra K Singh / Sr. Manager – R&D NIPPON AUDIOTRONIX LIMITED Tel: +91-120-2555555 Fax: +91-120-2527967 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Sep. 14, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YEDMMTJA We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mahendra K Singh / Sr. Manager – R&D NIPPON AUDIOTRONIX LIMITED Tel: +91-120-2555555 Fax: +91-120-2527967 E-mail: [email protected]

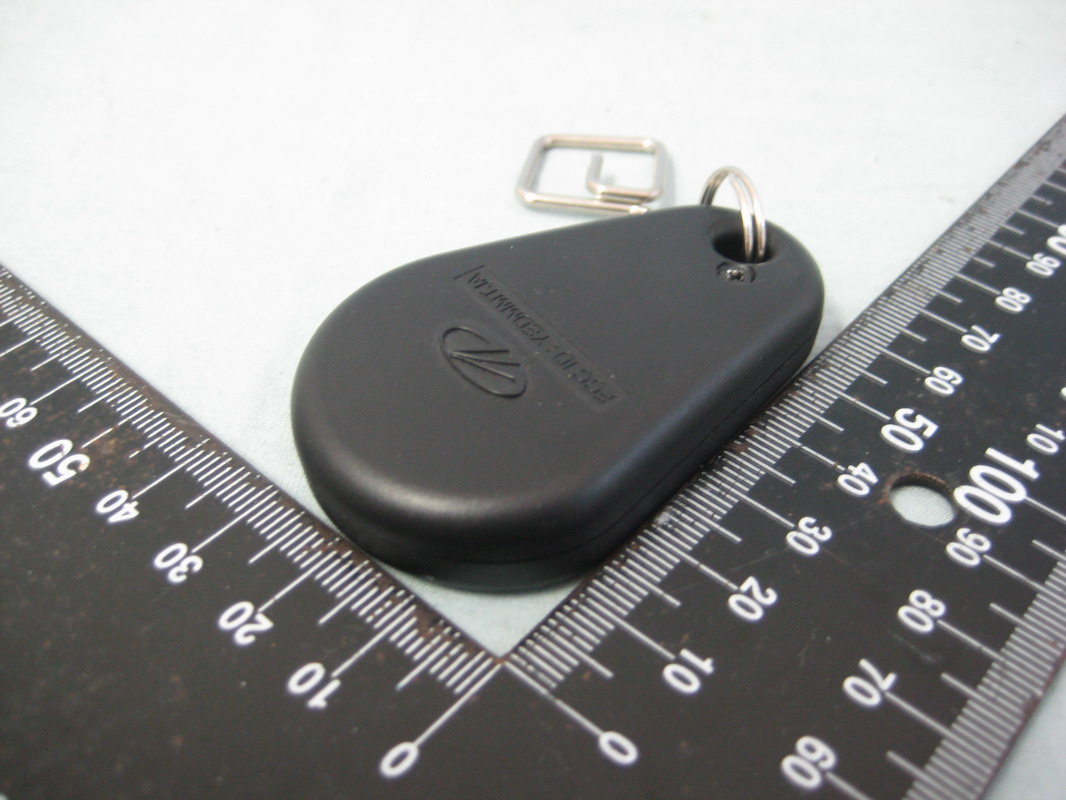

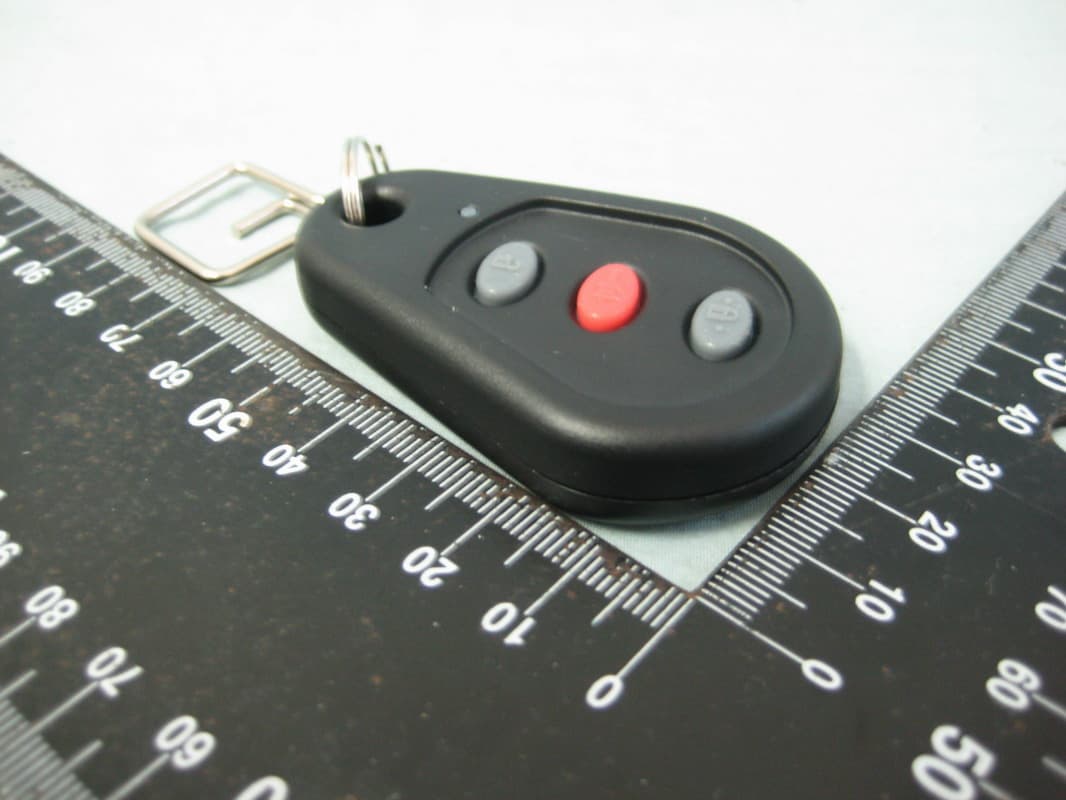

Report No.：10A091001FR FCC ID： YEDMMTJA Page 23 of 25 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT

A ± B ± C ± EMBOSSED LOGO SURFACE NOT TO BE TEXTURED CHANGE CORE (CAVE=0.2) ENGRAVED (CAVE=0.2) Water Proof TX for M&M Scorpio 408 LOCK BUTTON COLOR： GREY FCC IDYEDMMTJA 1. TEXTURE OF TOP/BOT CASE IS SAME AS NAL SAMPLE 2. Radious will be 0.2 if not specified. 1 2 3 4 5 6 1 7 PANIC BUTTON COLOR： RED UNLOCK BUTTON COLOR： GREY TEXTURE OF TOP/BOT CASE IS SAME AS NAL SAMPLE LOCATION OF LED PDF 檔案使用 "pdfFactory Pro" 試用版本建立 www.ahasoft.com.tw/FinePrint

Report No.：10A091001FR FCC ID： YEDMMTJA Page 24 of 25 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：10A091001FR FCC ID： YEDMMTJA Page 25 of 25 Interocean EMC Technology Corp. Test Report Component View of PCB Board Solder View of PCB Board

Report No.：10A091001FR FCC ID： YEDMMTJA Page 1 of 25 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： W408 Key fob FCC ID： YEDMMTJA Prepared for NIPPON AUDIOTRONIX LIMITED D7, D8, SECTOR 10, NOIDA, GAUTAM BUDH NAGAR, INDIA. TEL.： +91-120-2555555 FAX.： +91-120-2527967 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 25 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report No.：10A091001FR FCC ID： YEDMMTJA Page 2 of 25 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: NIPPON AUDIOTRONIX LIMITED Manufacturer: NIPPON AUDIOTRONIX LIMITED Product: Transmitter Model No.: W408 Key fob Tested Power Supply: 3Vdc Battery Date of Final Test: Sep. 14, 2010 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2010/09/29 Project Engineer: Approved: Adam Cheng Jerry Liu Report No.：10A091001FR FCC ID： YEDMMTJA Page 3 of 25 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission bandwidth 19 5.1 Limits 19 5.2 Test Result 19 6 Photographs of Test 21 6.1 Radiated Emission Measurement (below 1GHz) 21 6.2 Radiated Emission Measurement (above 1GHz) 22 7 Photographs of EUT 23 Report No.：10A091001FR FCC ID： YEDMMTJA Page 4 of 25 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：10A091001FR FCC ID： YEDMMTJA Page 5 of 25 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : W408 Key fob Applicant : NIPPON AUDIOTRONIX LIMITED D7, D8, SECTOR 10, NOIDA, GAUTAM BUDH NAGAR, INDIA. Manufacturer : NIPPON AUDIOTRONIX LIMITED D7, D8, SECTOR 10, NOIDA, GAUTAM BUDH NAGAR, INDIA. Power Supply : 3Vdc Battery Operating Frequency : 315MHz Channel Number : 1 channel Type of Modulation : ASK Antenna description : This device uses Spring antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Receipt Sample : Sep. 10, 2010 Date of Test : Sep. 10 ~ 14, 2010 Additional Description : 1) The Model Number “W408 Key fob” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：10A091001FR FCC ID： YEDMMTJA Page 6 of 25 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：10A091001FR FCC ID： YEDMMTJA Page 7 of 25 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2 Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site 3, 4 Location : No. 12, Ruei-Shu Valley, Ruei-Ping Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3 & 4) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 130946 Registration No. (OATS 1): 4437A-1 Registration No. (OATS 2): 4437A-2 Registration No. (OATS 3): 4437A-3 Registration No. (OATS 4): 4437A-4 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-02 Report No.：10A091001FR FCC ID： YEDMMTJA Page 8 of 25 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：10A091001FR FCC ID： YEDMMTJA Page 9 of 25 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2010/12/08 Spectrum Analyzer R&S FSP40 100478 2011/04/20 Preamplifier Agilent 8449B 3008A01434 2011/04/20 Preamplifier SCHAFFNER CA30100 2 2010/11/03…
