YEI-N305210Modular WLAN Assess Point

i 802.11n Modular WLAN Access Point User Guide ii Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated ra- dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tel- evision reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example – use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or trans- mitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ- ment. This equipment should be installed and operated with minimum distance 20 cm between the ra- diator & your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. iii R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Termi- nal Equipment and Satellite Earth Station Equipment) as of April 8,2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. How- ever, special attention must be paid to the dangers of electric shock and static electricity when work- ing with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, Portugal, Spain, Sweden, The Netherlands, and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Norway and Swit- zerland. EU Countries Not Intended for Use None. iv Table of Contents 1. Introduction ......................................................................................................................... 1 1.1. Overview ...................................................................................................................1 1.2. Features.................................................................................................................... 1 1.3. LED Definitions ......................................................................................................... 3 2. First-Time Installation and Configuration ............................................................................ 4 2.1. Power........................................................................................................................ 4 2.2. Installing the Access Point ........................................................................................ 4 2.3. Connecting a Managing Computer ........................................................................... 5 2.4. Configuring the AP.................................................................................................... 6 2.4.1. Login............................................................................................................... 6 2.4.2. Selecting Mode ............................................................................................... 7 2.4.3. Configuring TCP/IP Settings........................................................................... 8 2.4.4. Configure IEEE 802.11 Settings ..................................................................... 9 2.4.5. Review and Apply Settings ........................................................................... 10 2.5. Setting up Client Computers ................................................................................... 11 2.5.1. Configure IEEE 802.11 Settings ................................................................... 11 2.5.2. Configure TCP/IP-Related Settings .............................................................. 11 2.6. Confirm Settings of the Access Point and Client Computers.................................. 12 2.6.1. Checking if the IEEE 802.11n-Related Settings Work.................................. 12 2.6.2. Checking if the TCP/IP-Related Settings Work ............................................ 12 3. Advanced Network Management ...................................................................................... 12 3.1. Overview ...........................................................................................................…

Text truncated - open the document above for the full version.

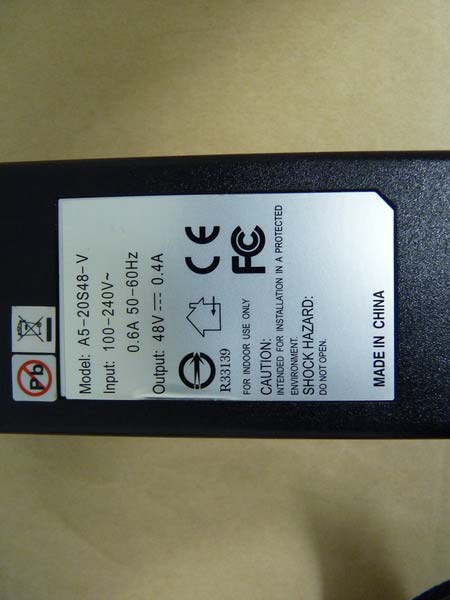

Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page2 of 25 External Photos Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page3 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page4 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page5 of 25

FCC Label and Location FCC ID: YEI-N305210 41mm 35mm

Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page6 of 25 Internal Photos Antenna a: Dipole Antenna Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page7 of 25 Antenna b: Dipole Antenna Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page8 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page9 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page10 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page11 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page12 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page13 of 25 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page14 of 25

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 29.37 (dBm) Maximum peak output power at antenna input terminal: 864.968 (mW) Antenna gain(maximal): 2 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2402 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.2753 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

of Applicant: Equaline Corporation Address: 9F, No. 234, Sec. 4, Cheng-De Road, Taipei 111, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21004-10574-P-15 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Modular WLAN Access Point Model No.: WEJ-11n FCC ID: YEI-N305210 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 58 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 16 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 16 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 17 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 18 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 49 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 51 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 53 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 55 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 56 APPENDIX.............................................................................................................................. 58 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 58 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: May 13, 2010 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: May 13, 2010 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 58 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, L…

Text truncated - open the document above for the full version.

Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 259 Spurious Emissions radiated Mode A Antenna Port I with antenna a: CH1 Antenna Polarization H Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 259 Antenna Polarization V Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 22 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 23 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 24 of 259 CH6 Antenna Polarization H Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 25 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 26 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 27 of 259 Antenna Polarization V Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and ar…

Text truncated - open the document above for the full version.

Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 99 of 259 Antenna Port I with antenna b: CH1 Antenna Polarization H Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 100 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 101 of 259 Antenna Polarization V Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 102 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 103 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 104 of 259 CH6 Antenna Polarization H Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 105 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 106 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 107 of 259 Antenna Polarization V Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. Th…

Text truncated - open the document above for the full version.

Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 179 of 259 Mode D Antenna Port I+II with antenna a: CH1 Antenna Polarization H Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 180 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 181 of 259 Antenna Polarization V Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 182 of 259 Registration number: W6M21004-10574-P-15 FCC ID: YEI-N305210 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for dete…

Text truncated - open the document above for the full version.
