1 K520，K520+,Mini K520,K520i,S218 Mobile Phone User Manual 2 Declaration Please read the user’s manual so as to keep your mobile phone in the best condition. The manual has been verified and reviewed to guarantee the accuracy. Instructions and descriptions contained herein are accurate at the time of publication. However, mobile phones developed afterwards and the contents of their manual are subject to modification without further notification. Our company reserves the rights in relation to the manual. 3 Contents Safety Precautions ....................................................................................... 4 Overview....................................................................................................... 6 1. Introduction ............................................................................................. 7 2. Your Mobile Phone .................................................................................. 8 3. Communicate by phone function ......................................................... 11 4. Import Methods..................................................................................... 13 5. Function of main menu ......................................................................... 15 6. Phonebook .............................................................................................. 15 7. Messages ................................................................................................. 16 8. Call center .............................................................................................. 17 9. Settings ................................................................................................... 19 10.Games .................................................................................................... 21 11. Multimedia ........................................................................................... 21 12. Business&Fun ...................................................................................... 24 13. Organizer ............................................................................................. 25 14. Network service ................................................................................... 26 15. SIM card service.................................................................................. 27 16. PC connect ........................................................................................... 27 17. Original accessories............................................................................. 28 18. About the battery................................................................................. 29 19. Maintenance and service .................................................................... 30 20. Important safety directions ................................................................ 31 4 Safety Precautions Please read the following concise rules carefully. Nonobservance to the rules may lead to danger or violence of the laws. The user’s manual gives details about the safety precautions. Secure startup Please don't start up the mobile phone in case it is forbidden to use wireless equipment or the usage thereof may result in any interference or danger. Put traffic safety first Please abide by all the local laws and regulations. Drive the automobile with both hands. Put the traffic safety first at drive. Interference Any wireless equipment may be subject to interference, affecting its performance. Power-off in hospital Please comply with any related restrictions. Turn the mobile off when you are close to medical equipments. Power-off on the plane Please comply with any related restrictions. Usage of wireless equipment may result in interference to the plane. Power-off when refueling Please don's use the equipment in gas stations. Don't use the equipment in the periphery of fuel or chemicals. Power-off in the periphery of blasting spots Please comply with any related restrictions. Don't use the equipment near the place of blasting. Proper employment Use the equipment only in proper locations as described in the product document. If not necessary, please don't touch the antenna point. Employ proper maintenance service Only qualified maintenance personnel are allowed to install or repair the equipment. 5 Accessories and battery Approved accessories and battery are to be used. Please don't connect with unmatched products. Waterproofing quality The equipment is not waterproof/ Please keep it dry. Backup Back up or keep written records of important information stored in the equipment. Connecting with other devices Please read the user's manual of the device for detailed safety information when connecting the equipment with other devices. Don't connect with unmatched products. Emergency call Make sure the equipment is in the covered area of the network service and the calling function is activated. As per the specific requirements, press the key of finish to clear the screen and return to the standby state. Input the emergency call number and press the call key. Tell the called your location. Don't hang up before the called tells you to. „ About your mobile phone Please abide by the laws and regulations and respect the local customs as well as others' privacies and legal rights and interests (including the copyrights) when using different functions of the mobile. Turn on the mobile in order to use its functions (except for the alarm clock). In case usage of the wireless equipment may result in any interference or danger, please don't power on. „ Network service You should apply to the wireless service provider for opening of necessary services in order to use the phone function of the equipment. Many functions of the equipment require support of special network functions. The functions may not apply to all networks. As for other 6 networks, you may have to reach necessary agreements with the wireless service provider before using the network ser…

Text truncated - open the document above for the full version.

ShenZhen Jin Fei Sheng Technology Co., Ltd. FCC ID: YEV-BAOXINGK520 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: This device can connect to a personal computer during normal operation, and as such it is also considered a class B personal computer peripheral subject to the DoC procedure. The device was tested by Compliance Certification Services Inc. in No. 81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County, Taiwan .The test report number is KS100512B01 Sincerely, ------------------------------- (Type name of signer)： MinghuiChen (Title of signer) Marketing Executive (Applicant name) Shenzhen Jin Fei Sheng Technology Co., Ltd. （date）:2010-5-20

ShenZhen Jin Fei Sheng Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: YEV-BAOXINGK520 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards (Type name of signer) (Title of signer) Marketing Executive (Applicant name) Shenzhen Jin Fei Sheng Technology Co., Ltd. (Date)：2010-5-12

ShenZhen Jin Fei Sheng Technology Co., Ltd. 11st May.2010 FCC ID：YEV-BAOXINGK520 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.10 WeiyeRd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, P.R.O.C Name: Miro Job Title: Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Baoxing/ K520 FCC ID: YEV-BAOXINGK520 Product Name: Mobile Phone Signature FCC grantee contact person information. Name/Title: Marketing Executive Company Name: ShenZhen Jin Fei Sheng Technology Co., Ltd. Address: Room 5103, 51F, Seg Plaza,Shennan Mid-road, Futian District, Shenzhen, China. TEL: 755-83462163 FAX: 755-83462922 Email: [email protected]

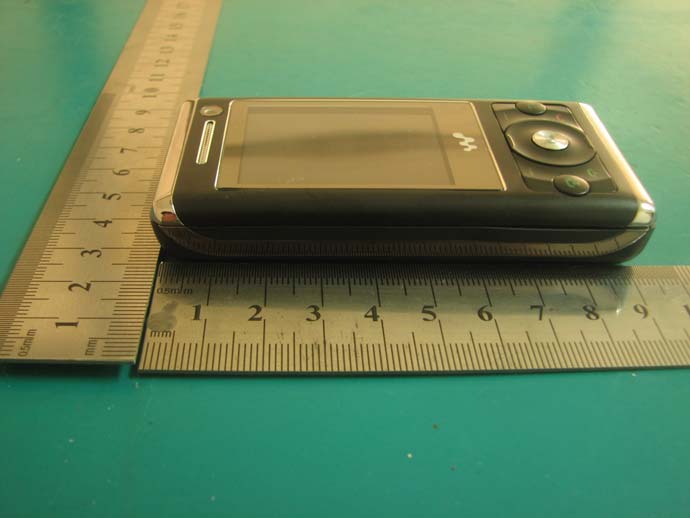

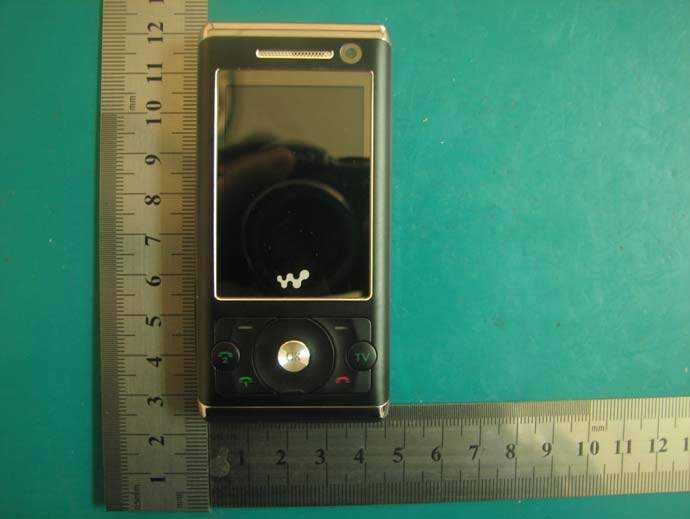

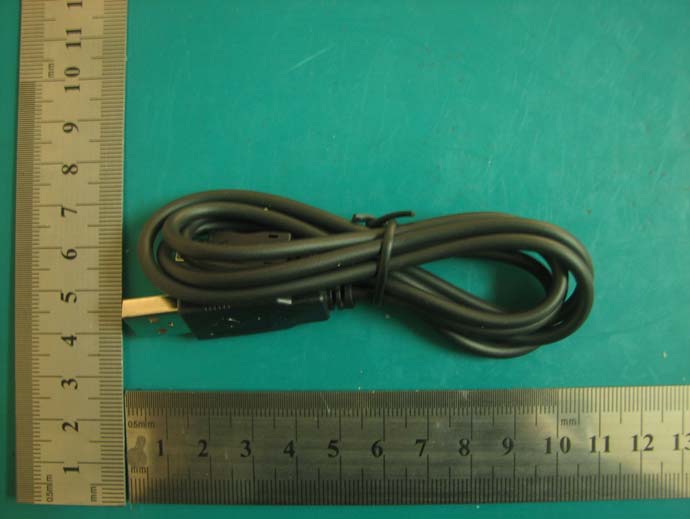

Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 13, 2010

LABEL LOCATION

Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 GSM antenna Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 BT antenna Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010 Compliance Certification Services (Kunshan) Inc. Report No.: KS100512B01 Date of Issue: May 17, 2010

Project name: KS100512B01 Page 1 SAR Test Plots Project name : KS100512B01 EUT DESCRIPTION Product name: Mobile Phone Model No.: K520,K520+,Mini K520,K520i,S218 Trade name: Baoxing Tested date: May 13, 2010 Applicant: ShenZhen Jin Fei Sheng Technology Co., Ltd. Room 5103, 51F, Seg Plaza,Shennan Mid-road, Futian District, Shenzhen, China. Air Temperature: 21 °C Liqued Temperature: 20 °C Crest Factor: CW:___1__ GSM:__8___ GPRS 12: __2___ Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm Probe：Antennessa (SN:SN_1109_EP_100) Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com Project name: KS100512B01 Page 2 EUT Slide on GSM850 I. RESULTS TYPE BAND PAR AM E TE RS Noise -- -- Validation -- -- Phone GSM850 Measurement 1: Right Head with Cheek device position on Low Channel in GSM mode Measurement 2: Right Head with Cheek device position on Middle Channel in GSM mode Measurement 3: Right Head with Cheek device position on High Channel in GSM mode Measurement 4: Right Head with Tilt device position on Low Channel in GSM mode Measurement 5: Right Head with Tilt device position on Middle Channel in GSM mode Measurement 6: Right Head with Tilt device position on High Channel in GSM mode Measurement 7: Left Head with Cheek device position on Low Channel in GSM mode Measurement 8: Left Head with Cheek device position on Middle Channel in GSM mode Measurement 9: Left Head with Cheek device position on High Channel in GSM mode Measurement 10: Left Head with Tilt device position on Low Channel in GSM mode Measurement 11: Left Head with Tilt device position on Middle Channel in GSM mode Measurement 12: Left Head with Tilt device position on High Channel in GSM mode Project name: KS100512B01 Page 3 MEASUREMENT 1 Type: Phone measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 19 minutes 56 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels Low Signal GSM Project name: KS100512B01 Page 4 B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100512B01 Page 5 C. SAR Measurement Results Frequency (MHz) 824.200001 Relative permitivity (real part) 41.490145 Relative permitivity (imaginary part) 19.510000 Conductivity (S/m) 0.853690 Variation (%) -1.000000 SURFACE SAR VOLUME SAR Project name: KS100512B01 Page 6 Maximum location: X=-13.00, Y=-3.00 SAR 1g (W/Kg) 0.866169 Project name: KS100512B01 Page 7 Z Axis Scan Project name: KS100512B01 Page 8 MEASUREMENT 2 Type: Phone measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 19 minutes 56 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels Middle Signal GSM B. Instrumentations. Project name: KS100512B01 Page 9 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100512B01 Page 10 C. SAR Measurement Results Frequency (MHz) 836.590001 Relative permitivity (real part) 41.410230 Relative permitivity (imaginary part) 19.504201 Conductivity (S/m) 0.905234 Variation (%) -0.100000 SURFACE SAR VOLUME SAR Project name: KS100512B01 Page 11 Maximum location: X=-13.00, Y=-3.00 SAR 1g (W/Kg) 0.848915 Project name: KS100512B01 Page 12 Z Axis Scan Project name: KS100512B01 Page 13 MEASUREMENT 3 Type: Phone measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 19 minutes 56 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels High Signal GSM B. Instrumentations. Project name: KS100512B01 Page 14 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100512B01 Page 15 C. SAR Measurement Results Frequency (MHz) 848.799999 Relative permitivity (real part) 41.202610 Relative permitivity (imaginary part) 19.586120 Conductivity (S/m) 0.904346 Variation (%) -0.100000 SURFACE SAR VOLUME SAR Project name: KS100512B01 Page 16 Maximum location: X=-13.00, Y=-3.00 SAR 1g (W/Kg) 0.831094 Project name: KS100512B01 Page 17 Z Axis Scan Project name: KS100512B01 Page 18 MEASUREMENT 4 Type: Phone measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 19 minutes 47 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Tilt Band GSM850 Channels Low Signal GSM B. Instrumentations. Project name: KS100512B01 Page 19 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN…

Text truncated - open the document above for the full version.

Project name: KS100504B03 Page 1 System Validation Plots Project name : KS100504B03 EUT DESCRIPTION Product name: Mobile Phone Model No.: K520，K520+, Mini K520, K520i, S218 Trade name: Baoxing Tested date: May 13, 2010 Applicant: ShenZhen Jin Fei Sheng Technology Co., Ltd. Room 5103, 51F, Seg Plaza,Shennan Mid-road, Futian District, Shenzhen, China. Air Temperature: 21 °C Liqued Temperature: 20 °C Crest Factor: CW:___1__ GSM:__8___ GPRS 12: __2___ Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm Probe：Antennessa (SN:SN_1109_EP_100) Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com Project name: KS100504B03 Page 2 850 HEAD VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Project name: KS100504B03 Page 3 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 6 minutes 41 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW Project name: KS100504B03 Page 4 B. Instrumentations. PC HP (Pentium(R) V 3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100504B03 Page 5 C. SAR Measurement Results Frequency (MHz) 835.000110 Relative permitivity (real part) 41.559001 Relative permitivity (imaginary part) 19.590210 Conductivity (S/m) 0.924310 Variation (%) 0.450000 SURFACE SAR VOLUME SAR Project name: KS100504B03 Page 6 Maximum location: X=0.00, Y=-5.00 SAR 1g (W/Kg) 9.553001 Project name: KS100504B03 Page 7 Z Axis Scan Project name: KS100504B03 Page 8 1900 HEAD VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Cheek device position on Middle Channel in CW mode GSM1900 Phone -- Project name: KS100504B03 Page 9 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 7 minutes 3 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM1900 Channels Middle Signal CW Project name: KS100504B03 Page 10 B. SAR Measurement Results Frequency (MHz) 1900.000020 Relative permitivity (real part) 41.211023 Relative permitivity (imaginary part) 13.210520 Conductivity (S/m) 1.441301 Variation (%) 0.450000 SURFACE SAR VOLUME SAR Project name: KS100504B03 Page 11 Maximum location: X=-1.00, Y=-1.00 SAR 1g (W/Kg) 40.212323 Project name: KS100504B03 Page 12 Z Axis Scan Project name: KS100504B03 Page 13 850 BODY VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Project name: KS100504B03 Page 14 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement: 13/5/2010 Measurement duration: 6 minutes 51 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW Project name: KS100504B03 Page 15 B. Instrumentations. PC HP (Pentium(R) V 3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_1109_EP_100) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa Project name: KS100504B03 Page 16 C. SAR Measurement Results Frequency (MHz) 835.000004 Relative permitivity (real part) 54.512300 Relative permitivity (imaginary part) 22.120012 Conductivity (S/m) 0.979110 Variation (%) 0.300000 SURFACE SAR VOLUME SAR Project name: KS100504B03 Page 17 Maximum location: X=1.00, Y=-2.00 SAR 1g (W/Kg) 9.683247 Project name: KS100504B03 Page 18 Z Axis Scan Project name: KS100504B03 Page 19 1900 BODY VALIDATION I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM1900 Phone -- Project name: KS100504B03 Page 20 MEASUREMENT 1 Type: Validation measurement (Complete) Date of measurement:4/5/2010 Measurement duration: 6 minutes 43 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM1900 Channels Middle Signal CW B. SAR Measurement Results Project name: KS100504B03 Page 21 Frequency (MHz) 1900.000000 Relative permitivity (real part) 52.953128 Relative permitivity (imaginary part) 13.621000 Conductivity (S/m) 1.490230 Variation (%) -0.400000 SURFACE SAR VOLUME SAR Project name: KS100504B03 Page 22 Maximum location: X=0.00, Y=-1.00 SAR 1g (W/Kg) 38.978202 Project name: KS100504B03 Page 23 Z Axis Scan

Compliance Certification Services (Kunshan)Inc. Report No: KS100512B01 Date of Issue: May 13, 2010 Page 1 of 54 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Mobile Phone Model No.: K520, K520+, Mini K520, K520i, S218 Trade Name: Baoxing Test Report Number: KS100512B01 Prepared for ShenZhen Jin Fei Sheng Technology Co., Ltd. Room 5103, 51F, Seg Plaza,Shennan Mid-road, Futian District, Shenzhen, China. Issued by Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, P.R.China. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services (Kunshan)Inc. Report No: KS100512B01 Date of Issue: May 13, 2010 Page 2 of 54 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .........................................................3 2. EUT DESCRIPTION ..........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ..........................5 4. Applied Standards ...............................................................................................................................5 5. Test Configuration ..............................................................................................................................5 6. DOSIMETRIC ASSESSMENT SETUP ............................................................................................5 6.1 MEASUREMENT SYSTEM DIAGRAM ........................................................................................................ 7 6.2 SYSTEM COMPONENTS ............................................................................................................................ 8 7. EVALUATION PROCEDURES......................................................................................................10 8. MEASUREMENT UNCERTAINTY ..............................................................................................14 9. EXPOSURE LIMIT ..........................................................................................................................15 10. EUT ARRANGEMENT................................................................................................................16 10.1 ANTHROPOMORPHIC HEAD PHANTOM................................................................................................. 16 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION.................................................................................. 17 10.3 DEFINITION OF THE “TILTED” POSITION ............................................................................................... 18 11. MEASUREMENT RESULTS ......................................................................................................19 11.1 TEST LIQUIDS CONFIRMATION............................................................................................................... 19 11.2 SYSTEM PERFORMANCE CHECK........................................................................................................... 20 11.3 EUT TUNE-UP PROCEDURES AND TEST MODE ................................................................................... 22 11.4 RF POWER OUTPUT................................................................................................................................. 23 11.5 EUT SETUP PHOTOS ............................................................................................................................... 24 11.6 SAR MEASUREMENT RESULTS .............................................................................................................. 32 EUT PHOTO .............................................................................................................................................46 12. EQUIPMENT LIST & CALIBRATION STATUS.....................................................................52 13. FACILITIES ..................................................................................................................................53 14. REFERENCES ..............................................................................................................................53 15. ATTACHMENTS..........................................................................................................................54 Compliance Certification Services (Kunshan)Inc. Report No: KS100512B01 Date of Issue: May 13, 2010 Page 3 of 54 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Product name: Mobile Phone Model No.: K520,K520+,Mini K520,K520i,S218 Trade name: Baoxing Description: Only the external and the color are different, the internal motherboard and function are the same. Description Test Modes(worst case ) The all models were scanned during the preliminary test . then K520 SIM1 was found to transmit the highest SAR value after tested dual SIM1 and SIM2. Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Date of Test: May 12, 2010 Applicant: ShenZhen Jin Fei Sheng Technology Co., Ltd. Room 5103, 51F, Seg Plaza,Shennan Mid-road, Futian District, Shenzhen, China. Manufacturer: ShenZhen Jin Fei Sheng Technology Co., Ltd. Room 5103, 51F, Seg Plaza,Shennan Mi…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: KS100512B01-RP FCC ID: YEV-BAOXINGK520 Date of Issue: May 15, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 58 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For Mobile Phone Model: K520,K520+,Mini K520,K520i,S218 Tra d e Na me: Baoxing Issued to ShenZhen Jin Fei Sheng Technology Co., Ltd. Room 5103, 51F, Seg Plaza,Shennan Mid-road, Futian District, Shenzhen, China. Issued by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 1 0#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Compliance Certification Services (Kunshan) Inc. Report No: KS100512B01-RP FCC ID: YEV-BAOXINGK520 Date of Issue: May 15, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 5 4. INSTRUMENT CALIBRATION................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ................................................................................... 7 5.1 FACIL…
