USER GUIDE for #SED-10R Customer Support: 866-377-4771 [email protected] Remote  Product Specifications & Diagram .........................2 Caution ................................................................... 3 Technical Information ...........................................4-5 Introduction .............................................................6 Set Up Link ...............................................................7 Operation .............................................................8-9 Mounting Holster ..................................................10 Frequetly Asked Questions (FAQs) ................11-13 Limited Product & Connected Equipment Warranty .............14-16 Table of Contents  Mountable Holster Power ON/ LINK Indicator Light Power ON Button Power OFF Button LINK to Remote Button • Remote Range ..............................65 ft/20 m • Remote Frequency .........................433MHz • Batteries (not included) .............Size AAA (2) • Dimensions (L x W x H) ......4.8 x 1.8 x 0.6 in .......................................121 x 45 x 15 mm • FCC ID: YF3MC-SED10R01 Product Specification SEED ™ Remote & Holster  caution • FOR INDOOR USE. DO NOT USE THIS PRODUCT NEAR WET AREAS SUCH AS SINKS AND NEAR AQUARIUMS. !!  FCC Information • FCC ID: YF3MC-SED10R01 • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. WARNING: DO NOT CHANGE OR MODIFY THE DEVICE. THIS COULD VOID THE USER’S AUTHORITY TO OPERATE THE DEVICE. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. however, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,  the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Information (cont’d)  Thank you for purchasing the SEED™ Remote. This device helps eliminate phantom power consumption by electrical devices which are powered OFF. PLEASE READ THROUGH THIS U SER G UIDE CAREFULLY to ensure proper set up and operation of the SEED™ Remote. PL anninG • Make sure that the electrical devices you are planning to use with the SEED™ are NOT DEVICES WHICH REQUIRE CONTINUOUS POWER. (i.e. Refrigerators, Clocks, Telephones.) • First determine which electrical devices drain the most power while turned OFF. (i.e. Plasma TVs, Game Consoles, VCR/DVD players, Computers, Laser Printers, Monitors, Audio Systems.) • Locate an area for convenient access to mount the remote holster (such as near the entrance to a room or near the bed.) Introduction  A. Press the LINK button on the SEED™ device. The indicator light will flash a blue light. B. Then press the LINK button on the remote. The indicator light will show a blue light for about a second. When both the flashing blue light on the SEED™ device and the blue light on the remote turns off, the remote is now linked to the SEED™ device. NOTE : It is possible to link the remote to 99 SEED™ devices. Inversely, an individual SEED™ device can be controlled by 4 SEED™ Remotes. Follow the same procedure to link another SEED™ device to the remote. Set Up Link Link up to 99 SEED ™ devices the SEED ™ can be controlled by 4 SEED ™ Remotes  PoWERin G on tHE SEED™ DEVic E Before powering on the electrical devices connected to the SEED™, you must POWER ON the SEED™. To POWER ON the SEED™ with the SEED™ Remote, press the ON button on the remote. Operation  PoWERin G oFF tHE SEED™ DEVic E There is only one way to manually power OFF a SEED™ device: • Press the OFF button for 3 seconds on the remote. NOTE: The SEED™ device is designed to automatically power OFF 5 minutes after all connected electrical devices have been turned off. Once the SEED™ device is powered OFF, all power consumption is eliminated. THIS DOES NOT APPLY TO THE “ALWAYS ON” OUTLET. Operation 0 MountinG tHE SEED REMotE HoLS tER On the back of the remote holster, expose the cover of the adhesive tape and attach vertically to either the wall or furniture. Place the remote holder in a location convenient for you to turn off your devices (i.e. near existing light switches, near entrances, or near the bed.) Mounting the Holster  Frequently Asked Questions (FAQs) How does the SEED™ save energy? Electrical devices and appliances left plugged into outlets but turned OFF still draw electricity. This is known as “phantom load” or vampire energy consumption. Therefore, your electrical devices and appliances constantly draw and waste valuable energy from the moment you power them OFF till the moment you power them back ON. The SEED™ will passively shut off all power consumption* to the electrical devices plugged into it 5 minutes after the last device is turned …

Text truncated - open the document above for the full version.

Michilin Prosperity Co., Ltd. 5F, No.11, Sanning St., Sanchung City, Taipei Hsien, Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: May 21, 2010 To whom it may concern: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: YF3MC-SED10R01 1 including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Name: William Huang Title: Manager Company: Michilin Prosperity Co., Ltd.

Michilin Prosperity Co., Ltd. 5F, No.11, Sanning St., Sanchung City, Taipei Hsien, Taiwan, R.O.C. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: May 21, 2010 Request for Confidentiality Company name: Michilin Prosperity Co., Ltd. FCC ID: YF3MC-SED10R01 FCC Part 15 Certification To whom it may concern: In accordance with 0.459 of CFR 47, Michilin Prosperity Co., Ltd. hereby requests confidentiality of all Block Diagrams, Schematics, Parts List, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Michilin Prosperity Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Michilin Prosperity Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Name: William Huang Title: Manager Company: Michilin Prosperity Co., Ltd.

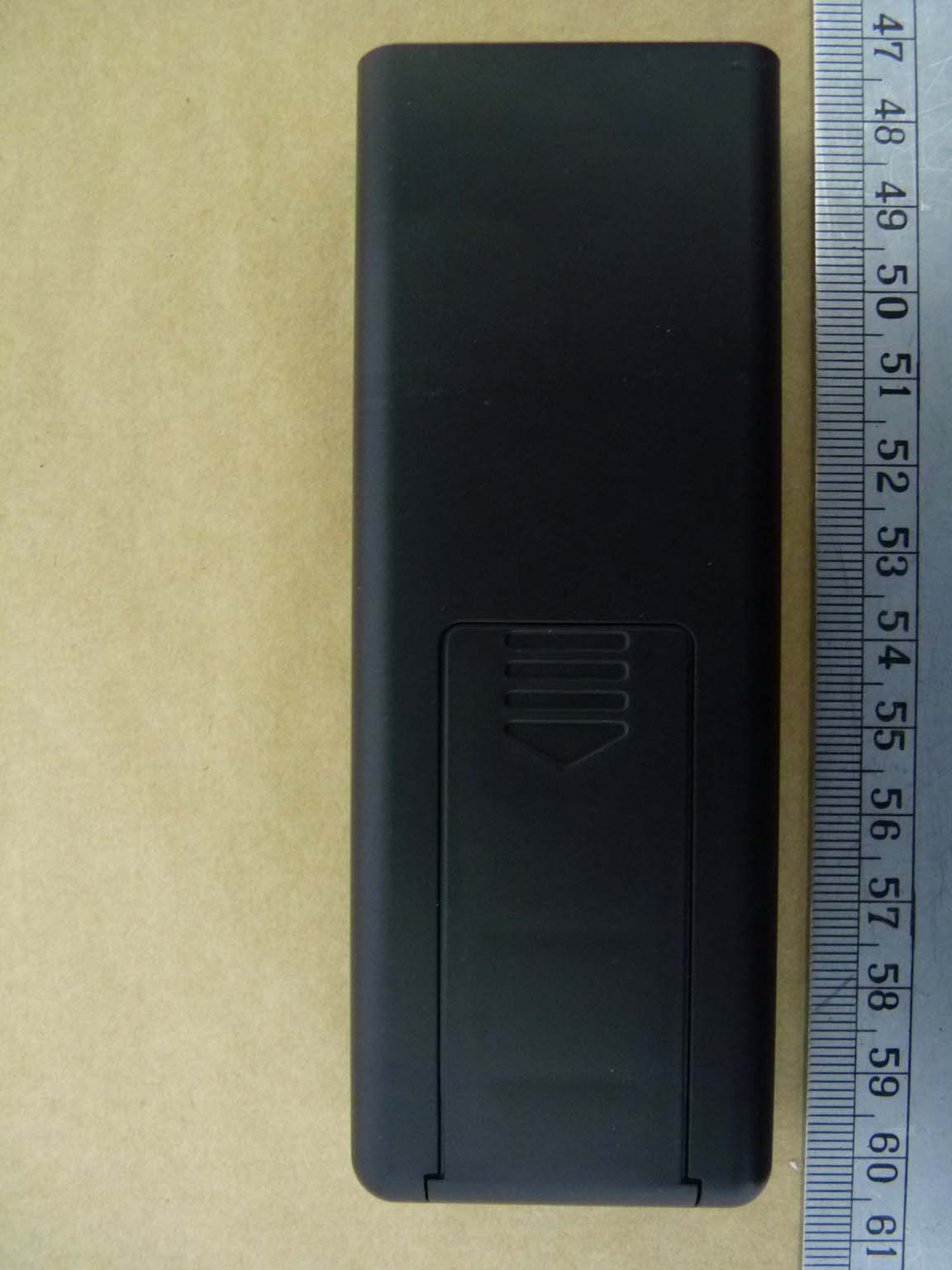

Registration number: W6M21005-10654-P-15 FCC ID: YF3MC-SED10R01 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 18 External Photos Registration number: W6M21005-10654-P-15 FCC ID: YF3MC-SED10R01 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 18 Registration number: W6M21005-10654-P-15 FCC ID: YF3MC-SED10R01 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 18
