1 Chris Harvey From: SS [[email protected]] Sent: Wednesday, June 30, 2010 10:56 PM To: [email protected] Cc: R00/黃心怡; [email protected]; [email protected]; [email protected] Subject: --Unscanned-- Re: TAIWAN MICRO VOICE ELECTRON CO.,LTD., FCC ID: YFITMVSR982010051, Assessment NO.: AN10T0446, Notice#1 Importance: High Attachments: Exhibit-D-ID_ Label for TX.pdf; Exhibit-D-ID_ Label for RX.pdf; Exhibit-C-Test_Report rev.pdf; Exhibit-K-Operation Description rev.pdf; Exhibit-G-Schematics rev.pdf; Exhibit-A- Block_Diagram rev.pdf Exhibit-D-ID_ Label for TX.pdf... Exhibit-D-ID_ Label for RX.pdf... Exhibit-C-Test_Re port rev.pdf ... Exhibit-K-Operati on Descriptio... Exhibit-G-Schema tics rev.pdf (... Exhibit-A-Block_D iagram rev.pd... Dear Charvey, 1. The power threshold 60/f(GHz) = 60/0.190903 = 314.3 mW. The EUT output power is 43.651mW which is less than it, then no SAR test required. 2. Revised label provided. The statement have been removed. 3. Revised operation description provided. 4. These two models share the identical circuit design and the only difference is the model name and trade name. 5. The neck tie microphone is the antenna of the transmitter. Please refer to the external photo exhibit. 6. Revised circuit diagram and block diagram provided. The RX portion have been removed. 7. The test data of frequency stability vs. supplied voltage have been provided. 8. The label of receiver provided. 9. The test report has been corrected accordingly. 10. The emission mask plot and bandwidth plot have been revised with a modulated carrier signal. Please refer to revised test report. Please kindly have a review soon. Thank you in advance. Best regards, S. S. Liou Section Manager EMC Testing Dept. II Electronics Testing Center, Taiwan Tel: +886-2-26023052 ext. 20 Email: [email protected] URL: http://www.etc.org.tw ----- Original Message ----- From: <[email protected]> To: <[email protected]> Cc: <[email protected]>; <[email protected]>; <[email protected]> Sent: Thursday, June 03, 2010 9:22 PM Subject: TAIWAN MICRO VOICE ELECTRON CO.,LTD., FCC ID: YFITMVSR982010051, Assessment NO.: AN10T0446, Notice#1 2 > Dear SS Liou, > > You are listed as the Technical Contact for the above referenced TCB > application. The following items need to be resolved before the > review can be continued: > > 1. Please address RF Exposure issues for the Body-worn transmitter. > If SAR does not apply to this device, please provide a justification. > > 2. The device being approved is a licensed, Part 74 Wireless > Microphone transmitter body pack. The label contains the FCC Part 15 > two-part statement, but this transmitter device is not subject to Part > 15. Please either justify having that part 15 statements on the label > or provide a replacement label with that statement removed. > > 3. The Operational Description exhibit does not provide any technical > description of the operation of this transmitter. The operational > Description exhibit typically includes the information required by FCC > 2.1033 (6) through (10): > (6) Range of operating power values or specific operating power > levels, and description of any means provided for variation of operating power. > (7) Maximum power rating as defined in the applicable part(s) of the > rules. > (8) The dc voltages applied to and dc currents into the several > elements of the final radio frequency amplifying device for normal > operation over the power range. > (9) Tune-up procedure over the power range, or at specific operating > power levels. > (10) A schematic diagram and a description of all circuitry and > devices provided for determining and stabilizing frequency, for > suppression of spurious radiation, for limiting modulation, and for limiting power. > > 4. Additionally there have been 2 different label samples provided for > models THUN-1000 and WSR-98SW, but does not explain the difference > between the 2 models. Please explain the difference between the 2 models. > > 5. Please provide an antenna location, description and specification > for this device. > > 6. The schematic Diagram exhibit seems to include the Transmitter > Circuit, but also the circuit for a Receiver. Since the device being > approved is a Transmitter Body Pack, the receiver circuit is not part > of the device being approved. Please review the schematic and ensure > that only the transmitter circuit is included. > > 7. The frequency stability test indicates that the test was performed > to the battery end-point, but does not specify what the nominal > voltage or what voltage is considered the battery end-point. Please > specify the voltages in the test report. > > 8. It appears that the megaphone shown in the manual is the associated > receiver for the transmitter of this application. Please confirm how > this receiver, which is subject to FCC Part 15 Subpart B, is or will > be an FCC approved device. It may be helpful to provide a sample of > the label for the receiver. > > 9. The RF test report lists the power limit from FCC 74.861(e)(1)(ii) > as 250mW, but that limit only applies to devices in the frequency > bands of > 470-608 and 614-806 MHz. The appropriate power limit section for this > 190.903MHz transmitter is FCC 74.861(e)(1)(i), and is 50mW. Please > correct the test report. > > 10. The Emission Mask plot on page 19 of 25 in the RF test report > seems to only show an unmodulated carrier signal in relation to the > mask of FCC 74.861(e)(6). Please provide plots showing compliance 3 > with the mask with modulation applied to the carrier. > > The items indicated above must be submitted before processing can > continue on the above referenced application. Failure to provide the > requested information within 30 days of the original e-mail date may > result in application dismissal and forfeiture of the filing fee. > Also, please note that partial responses increase processing time and > should not be submitted. Any questions about the conte…

Text truncated - open the document above for the full version.

1 Chris Harvey From: SS [[email protected]] Sent: Tuesday, July 06, 2010 1:05 AM To: [email protected] Cc: R00/黃心怡; CCS 蔡文君 小姐; [email protected] Subject: --Unscanned-- Re: TAIWAN MICRO VOICE ELECTRON CO.,LTD., FCC ID: YFITMVSR982010051, Assessment NO.: AN10T0446, Notice#2 Importance: High Attachments: Exhibit-E-User_Manual_rev.pdf; Exhibit-C-Test_Report rev2.pdf Exhibit-E-User_Ma nual_rev.pdf ... Exhibit-C-Test_Re port rev2.pdf... Dear Chris, Attached the revised test report with the occupied bandwidth plot updated and the frequency stability test to the end point added. Regarding to the user's information, a notice was added to the user's manual. Best regards, S. S. Liou Section Manager EMC Testing Dept. II Electronics Testing Center, Taiwan Tel: +886-2-26023052 ext. 20 Email: [email protected] URL: http://www.etc.org.tw ----- Original Message ----- From: "SS" <[email protected]> To: <[email protected]> Cc: <[email protected]>; <[email protected]> Sent: Tuesday, July 06, 2010 11:15 AM Subject: Re: TAIWAN MICRO VOICE ELECTRON CO.,LTD., FCC ID: YFITMVSR982010051, Assessment NO.: AN10T0446, Notice#2 > Dear Chris, > > Regarding to Q#1 and #2 we are working. About Q#3, can you let me know > which FCC grant can be an example? We have never been asked this question > before. > > Best regrads, > > > S. S. Liou > Section Manager > EMC Testing Dept. II > Electronics Testing Center, Taiwan > Tel: +886-2-26023052 ext. 20 > Email: [email protected] > URL: http://www.etc.org.tw > 2 > > > > ----- Original Message ----- > From: <[email protected]> > To: <[email protected]> > Cc: <[email protected]>; <[email protected]> > Sent: Saturday, July 03, 2010 8:12 PM > Subject: TAIWAN MICRO VOICE ELECTRON CO.,LTD., FCC ID: YFITMVSR982010051, > Assessment NO.: AN10T0446, Notice#2 > > >> Dear SS Liou, >> Thank you for your response and additional documentation send on >> Wednesday. I have had the opportunity to review the information and >> still have a few questions. >> >> The 26dB Occupied BW plot has a resolution Bandwidth (RBW) that is too >> wide to resolve the modulation of this device. An Occupied BW plot shall >> be made using an RBW no less than 1% of the emission Bandwidth. Since >> you have an emission of 62K0F3E, of 62 kHz necessary bandwidth, the RBW >> for the Occupied BW measurement should be no less than 620 Hz. For >> typical measurement instrumentation, this is likely to mean that you >> should measure the Occupied BW using the next available RBW setting, or 1 >> kHz. Please re-measure the Occupied BW and provide a description of the >> settings in the test report. >> >> The Frequency Stability section of the test report appears to have a typo >> in the voltage units (VAC instead of VDC). Since this is a battery >> operated device, please perform measurements of frequency stability in >> accordance with FCC 2.1055(d)(2) which states: >> (2) For hand carried, battery powered equipment, reduce primary supply >> voltage to the battery operating end point which shall be specified by >> the manufacturer. >> >> Please also explain how this devices marketing will be restricted to FCC >> Part 74 Licensed users, and how the Users are informed of the licensing >> requirement for Part 74 devices. >> >> The items indicated above must be submitted before processing can >> continue on the above referenced application. Failure to provide the >> requested information within 30 days of the original e-mail date may >> result in application dismissal and forfeiture of the filing fee. Also, >> please note that partial responses increase processing time and should >> not be submitted. Any questions about the content of this correspondence >> should be directed to the e-mail address listed below the name of the >> sender. >> >> Best regards, >> >> Chris Harvey >> [email protected] >> >> >

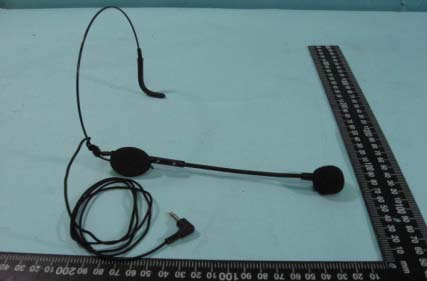

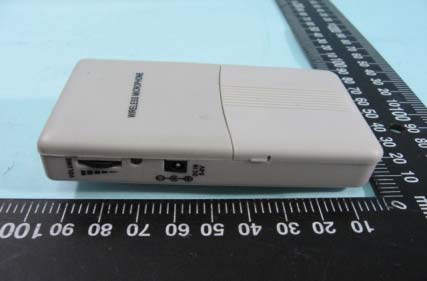

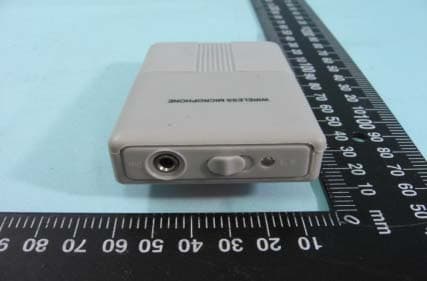

ETC Report No.:10-04-RBF-193 Sheet 1 of 5 Sheets FCC ID.: YFITMVSR982010051 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Side View of EUT ETC Report No.:10-04-RBF-193 Sheet 2 of 5 Sheets FCC ID.: YFITMVSR982010051 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 3. Rear View of EUT 4. Side View of EUT ETC Report No.:10-04-RBF-193 Sheet 3 of 5 Sheets FCC ID.: YFITMVSR982010051 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 5. Front View of EUT 6. Bottom View of EUT ETC Report No.:10-04-RBF-193 Sheet 4 of 5 Sheets FCC ID.: YFITMVSR982010051 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 7. Top View of EUT

ETC Report No.:10-04-RBF-193 Sheet 5 of 5 Sheets FCC ID.: YFITMVSR982010051 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB

Tune-up procedure 1-1Power 1. Connect to ANT to Spectrum Analyzer 2.Adjust VC 103Make the main wave biggest 3. Adjust T2T3T4 4.SPEC The radiation of wave in harmony is lower than the above main wave 40dB. The main wave does not exceed 50Mw. 1-2Frequency adjustment 1. Connect ANT to Modulation Meter) 2. Adjust I1 3. SPECFrequency +-20KHz. 1-3TONE KEY modulation adjustment 1Connect ANT to Multifunction Counter; 2Connect MIC to Audio Analyzer :1KHz,30db 3Adjust VR 4SPEC30KHz+-1KHz

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : WIRELESS MICROPHONE FCC ID. : YFITMVSR982010051 Model No. : THUN-1000/WSR-98SW Working Frequency : 190.903MHz for APPLICANT : TAIWAN MICRO VOICE ELECTRON CO., LTD. ADDRESS : No.11, ALLEY 12, LANE 297-8, SEC 2, HIS TUN RD., TAICHUNG CITY. TAIWAN Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 10-04-RBF-193 ETC Report No.:10-04-RBF-193 FCC ID.: YFITMVSR982010051 Rev. 2.0 TEST REPORT CERTIFICATION Applicant : TAIWAN MICRO VOICE ELECTRON CO., LTD. No.11, ALLEY 12, LANE 297-8, SEC 2, HIS TUN RD., TAICHUNG CITY. TAIWAN Manufacturer : TAIWAN MICRO VOICE ELECTRON CO., LTD. LAI WU SHAN INDUSTRIAL ESTATE LAI WU SHRN VILLAGE LONG HUA TOWN SHEN ZHEN CITY. CHINA Description of EUT : a) Type of EUT : WIRELESS MICROPHONE b) Trade Name : THUNDER POWER/tmv c) Model No. : THUN-1000/WSR-98SW d) FCC ID : YFITMVSR982010051 e) Working Frequency : 190.903MHz f) Power Supply : Battery DC 1.5V x 2 Regulation Applied : FCC Rules and Regulations Part 74 Subpart H (2009) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Date Test Item Received : Apr. 29, 2010 Date Test Campaign Completed : Jul. 06, 2010 Date of Issue : Jul. 06, 2010 Test Engineer : ( Vincent Cheng, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:10-04-RBF-193 FCC ID.: YFITMVSR982010051 Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 TEST METHODOLOGY.............................................................................................................................................. 1 1.3 TEST FACILITY........................................................................................................................................................ 1 2. REQUIREMENTS OF PROVISIONS ................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 FREQUENCIES AVAILABLE...................................................................................................................................... 2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION.................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 3 3. OUTPUT POWER MEASUREMENT ................................................................................................................ 4 3.1 PROVISION APPLICABLE.......................................................................................................................................... 4 3.2 MEASUREMENT PROCEDURE................................................................................................................................... 4 3.3 TEST DATA.............................................................................................................................................................. 6 3.4 RESULT CALCULATION............................................................................................................................................ 6 3.5 TEST EQUIPMENT.................................................................................................................................................... 6 4. MODULATION CHARACTERISTICS ............................................................................................................. 7 4.1 PROVISIONS APPLICABLE........................................................................................................................................ 7 4.2 MEASUREMENT METHOD........................................................................................................................................ 7 4.3 MEASUREMENT INSTRUMENT.................................................................................................................................. 8 4.4 MEASUREMENT RESULT.......................................................................................................................................... 8 5. OCCUPIED BANDWIDTH OF EMISSION .................................................................................................... 10 5.1 PROVISIONS APPLICABLE...................................................................................................................................... 10 5.2 MEASUREMENT METHOD...................................................................................................................................... 10 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................................ 10 5.4 BANDWIDTH MEASURED....................................................................................................................................... 11 5.4.1 Input Level Derived...................................................................................................................................... 11…

Text truncated - open the document above for the full version.

ETC Report No.:10-04-RBF-193 Sheet 18 of 22 Sheets FCC ID.: YFITMVSR982010051 Rev. 2.0 6.6 Radiated Measurement Photos
