YFMPDS06720CORDLESS CEILING LIGHT WITH REMOTE

Block Diagram MCU Microchip ANT OUT Code ANT Crystal frequency: 315.00MHz Power

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Date: 17 May 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, PRODUCT SOURCE MARKETING LTD hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: CORDLESS CEILING LIGHT WITH REMOTE Model No.: 06720 We affirm that between SIEMIC and PRODUCT SOURCE MARKETING LTD, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, EDDIE CHAN Title: General Manager Phone : +852-23303325 Facsimile: +852-23303405

FCC ID: YFMPDS06720 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100429-01492-O Page 1 of 1 1 External Photos of the EUT External view-front External view-back Side

FCC ID: YFMPDS06720 ____________________________________________________________________________________________ Report No.: CGZ3100429-01492-O Page 1 of 3 APPLICATION FOR FCC CERTIFICATION Document List: EXHIBIT 1. LABEL DRAWING............................................................................................2 EXHIBIT 2. PHOTOGRAPHS..............................................................................................3 Applicant : PRODUCT SOURCE MARKETING LTD EUT : CORDLESS CEILING LIGHT WITH REMOTE Model No. : 06720 FCC ID: YFMPDS06720 ____________________________________________________________________________________________ Report No.: CGZ3100429-01492-O Page 2 of 3 EXHIBIT 1. Label Drawing FCC Label Drawing 20mm Please refer Exhibit 2 Figure 2 for Label Placement Location 10mm FCC ID: YFMPDS06720 ____________________________________________________________________________________________ Report No.: CGZ3100429-01492-O Page 3 of 3 EXHIBIT 2. Photographs Figure 1 External view-back Label Location

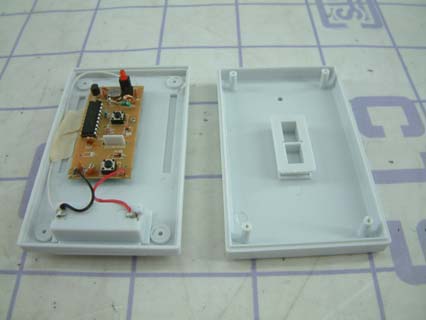

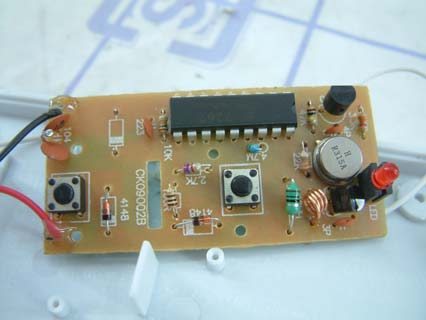

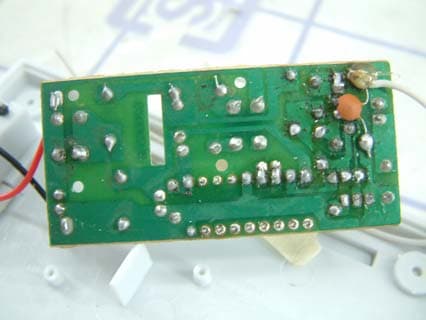

FCC ID: YFMPDS06720 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3100429-01492-O Page 1 of 1 1 Internal Photos of the EUT Internal view-1 PCB layout PCB Solder Antenna

Description of operation U1 <SC2262> is a universal remote control codes IC: K1/K2 contro l light switches were functional, the internal encoding by the IC after the IC output encoding of the 17 f eet signal, the encoded signal and crystal three tube Q1/Q2 Crystal XI <315MHz > and other compon ents to modulate the composition of high-frequency signal circuit and the amplification of the modulated signal amplified by the antenn as emit electromagnetic wave into the air. , Super-regenerative receiver circuit uses the classic line: ant ennas pick up the electromagnetic signals from the air, into the super-regenerative circuit formed by Q1 and other parts of the high-frequency amplifier, high frequency signal amplified by L1Q 2C9 selected frequency, <315MHz> Re enlarge, detection of the low fr equency signal sent by R8C11 IC1 <LM358> for amplifying shaping , amplification of signal sent IC1 IC2 <SC2272> 14 feet into the internal decoding, 10 feet from t he IC1 output signal to drive t he corresponding LED 18 LED
